Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
TPN1600ANH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 16 mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 50V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 16 mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 50V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
987 in stock

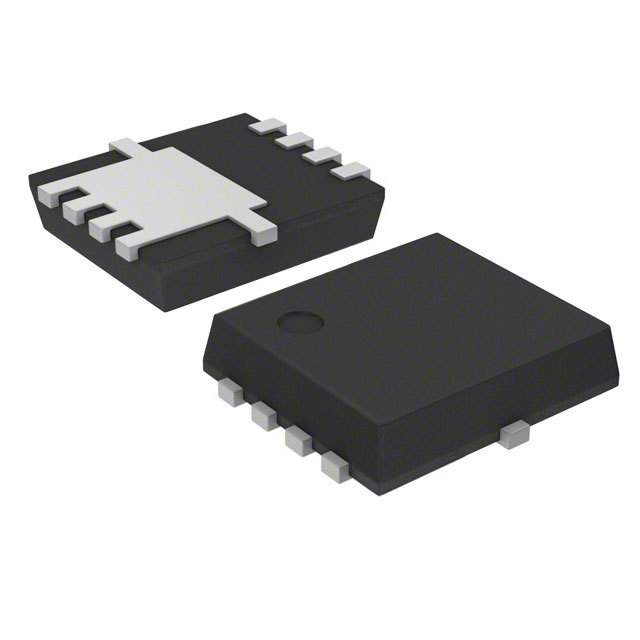

TPN1R603PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.2 mOhm @ 80A, 10V
Vgs(th) (Max) @ Id : 10V @ 10µA
Gate Charge (Qg) (Max) @ Vgs : 41nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3900pF @ 15V
FET Feature : -
Power Dissipation (Max) : 104W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.2 mOhm @ 80A, 10V
Vgs(th) (Max) @ Id : 10V @ 10µA
Gate Charge (Qg) (Max) @ Vgs : 41nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3900pF @ 15V
FET Feature : -
Power Dissipation (Max) : 104W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
7117 in stock

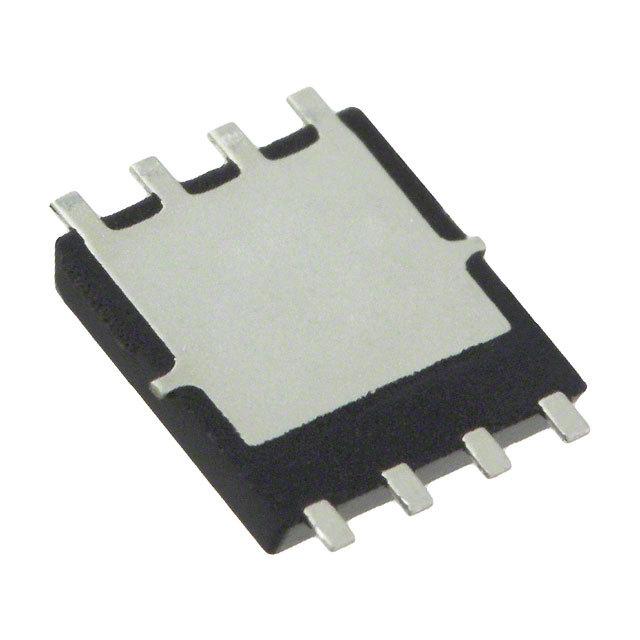

TPN2010FNH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 5.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 198 mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 100V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 39W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 5.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 198 mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 100V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 39W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
2474 in stock
TPN22006NH,LQ
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 710pF @ 30V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 18W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 710pF @ 30V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 18W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
1802 in stock
TPN2R203NC,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 2.2 mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 34nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2230pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 2.2 mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 34nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2230pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
3393 in stock
TPN2R304PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.3 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.3mA
Gate Charge (Qg) (Max) @ Vgs : 41nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3600pF @ 20V
FET Feature : -
Power Dissipation (Max) : 630mW (Ta), 104W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.3 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.3mA
Gate Charge (Qg) (Max) @ Vgs : 41nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3600pF @ 20V
FET Feature : -
Power Dissipation (Max) : 630mW (Ta), 104W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
4289 in stock
TPN2R503NC,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.5 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2230pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 35W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.5 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2230pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 35W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
TPN2R703NL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.7 mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2100pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.7 mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2100pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
12421 in stock
TPN30008NH,LQ
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 9.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 30 mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 40V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 27W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 9.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 30 mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 40V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 27W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
4010 in stock
TPN3300ANH,LQ
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 33 mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 880pF @ 50V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 27W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 33 mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 880pF @ 50V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 27W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
58 in stock
TPN3R704PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.7 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.2mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 20V
FET Feature : -
Power Dissipation (Max) : 630mW (Ta), 86W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.7 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.2mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 20V
FET Feature : -
Power Dissipation (Max) : 630mW (Ta), 86W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
38709 in stock
TPN4R203NC,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 23A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1370pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 22W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 23A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1370pF @ 15V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 22W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
