TPH4R003NL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 14.8nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1400pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 36W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 14.8nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1400pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 36W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
86 in stock
TPH4R008NH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 59nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5300pF @ 40V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 59nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5300pF @ 40V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
6662 in stock
TPH4R50ANH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 58nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5200pF @ 50V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 58nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5200pF @ 50V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
31 in stock
TPH4R606NH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 32A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 4.6 mOhm @ 16A, 10V
Vgs(th) (Max) @ Id : 4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3965pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 63W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 32A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 4.6 mOhm @ 16A, 10V
Vgs(th) (Max) @ Id : 4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3965pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 63W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
8389 in stock
TPH5200FNH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 26A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 52 mOhm @ 13A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2200pF @ 100V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 26A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 52 mOhm @ 13A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2200pF @ 100V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
3374 in stock
TPH5900CNH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 59 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 75V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 59 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 75V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5000 in stock
TPH5R906NH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 28A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 5.9 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 38nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3100pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 57W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 28A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 5.9 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 38nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3100pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 57W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5082 in stock

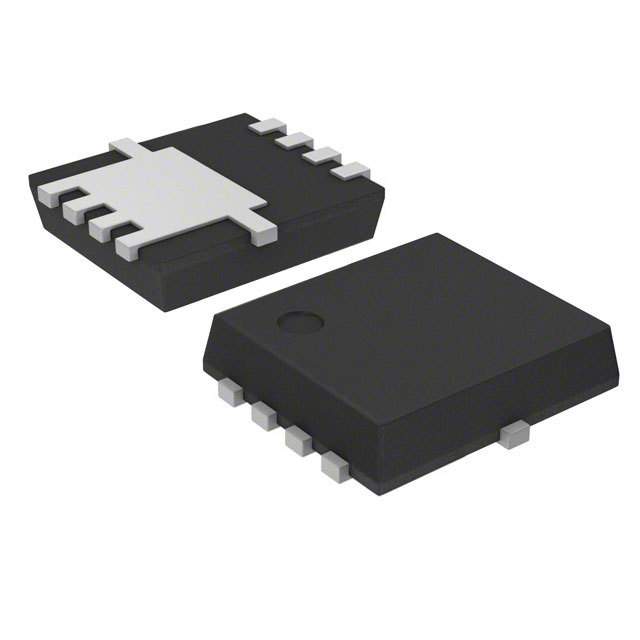

TPH6400ENH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 64 mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 11.2nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 100V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 57W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 64 mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 11.2nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 100V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 57W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
9671 in stock
TPH6R003NL,LQ
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 38A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6 mOhm @ 19A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1400pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 34W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 38A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6 mOhm @ 19A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1400pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 34W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPH7R006PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 13.5 mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id : 2.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1875pF @ 30V
FET Feature : -
Power Dissipation (Max) : 81W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 13.5 mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id : 2.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1875pF @ 30V
FET Feature : -
Power Dissipation (Max) : 81W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPH7R204PL,LQ
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.7 mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id : 2.4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2040pF @ 20V
FET Feature : -
Power Dissipation (Max) : 69W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.7 mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id : 2.4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2040pF @ 20V
FET Feature : -
Power Dissipation (Max) : 69W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
8338 in stock
TPH7R506NH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 7.5 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 31nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2320pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 7.5 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 31nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2320pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5995 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
