Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
TPH1R204PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.24 mOhm @ 50A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 74nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7200pF @ 20V
FET Feature : -
Power Dissipation (Max) : 960mW (Ta), 132W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.24 mOhm @ 50A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 74nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7200pF @ 20V
FET Feature : -
Power Dissipation (Max) : 960mW (Ta), 132W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
9432 in stock
TPH1R403NL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 60A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.4 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 46nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4400pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 64W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 60A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.4 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 46nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4400pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 64W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5966 in stock
TPH1R712MD,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVI
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 1.7 mOhm @ 30A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 182nC @ 5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 10900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVI
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 1.7 mOhm @ 30A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 182nC @ 5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 10900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
4880 in stock
TPH2010FNH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 5.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 198 mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 100V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 5.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 198 mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 100V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPH2900ENH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 33A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 29 mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2200pF @ 100V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 33A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 29 mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2200pF @ 100V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock

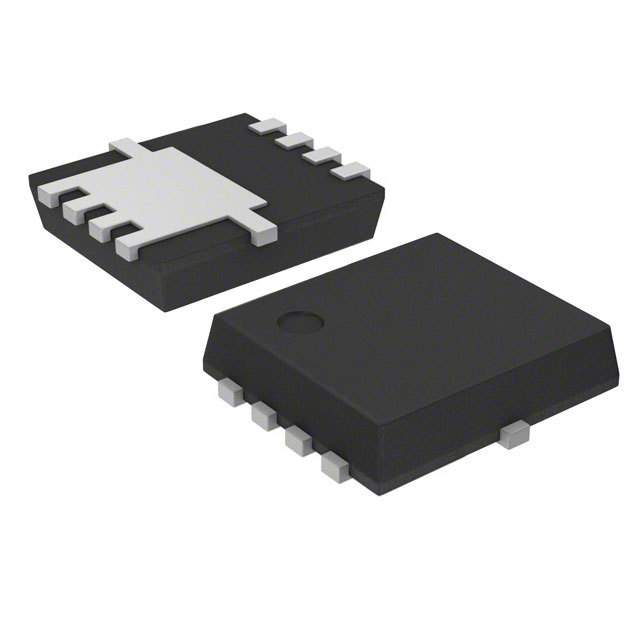

TPH2R306NH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 2.3 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 6100pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 2.3 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 6100pF @ 30V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 78W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5667 in stock
TPH2R506PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.4 mOhm @ 30A, 4.5V
Vgs(th) (Max) @ Id : 2.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 60nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5435pF @ 30V
FET Feature : -
Power Dissipation (Max) : 132W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.4 mOhm @ 30A, 4.5V
Vgs(th) (Max) @ Id : 2.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 60nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5435pF @ 30V
FET Feature : -
Power Dissipation (Max) : 132W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
11508 in stock
TPH2R608NH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 2.6 mOhm @ 50A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 6000pF @ 37.5V
FET Feature : -
Power Dissipation (Max) : 142W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 2.6 mOhm @ 50A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 6000pF @ 37.5V
FET Feature : -
Power Dissipation (Max) : 142W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPH3300CNH,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 18A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 33 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 10.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 75V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 57W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 18A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 33 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 10.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 75V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 57W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPH3R003PL,LQ
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 88A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 44A, 4.5V
Vgs(th) (Max) @ Id : 2.1V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 50nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3825pF @ 15V
FET Feature : -
Power Dissipation (Max) : 90W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 88A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 44A, 4.5V
Vgs(th) (Max) @ Id : 2.1V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 50nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3825pF @ 15V
FET Feature : -
Power Dissipation (Max) : 90W (Tc)
Operating Temperature : 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5616 in stock
TPH3R203NL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.2 mOhm @ 23.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2100pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 44W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.2 mOhm @ 23.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 300µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2100pF @ 15V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 44W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
5979 in stock
TPH3R704PL,L1Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 92A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.7 mOhm @ 46A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.2mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 20V
FET Feature : -
Power Dissipation (Max) : 960mW (Ta), 81W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 92A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.7 mOhm @ 46A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.2mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 20V
FET Feature : -
Power Dissipation (Max) : 960mW (Ta), 81W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
