Part Number
Manufacturer
Description
Unit Price
In Stock

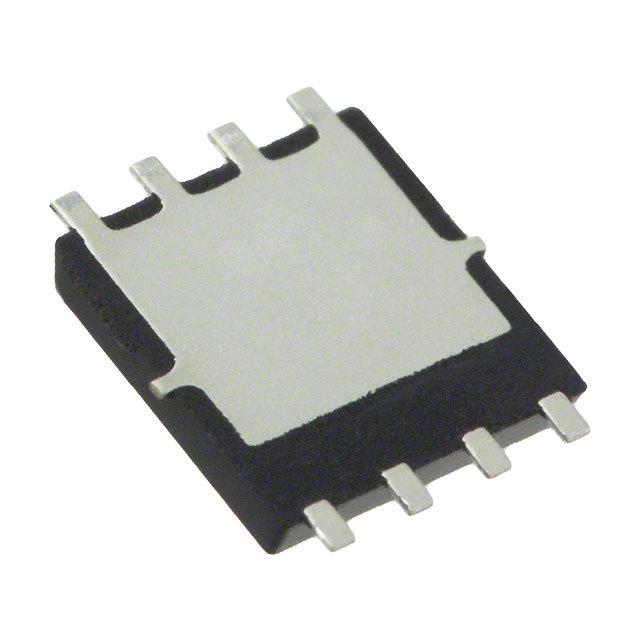

TPCA8052-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 11.3 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2110pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 11.3 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2110pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8102(TE12L,Q,M
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
Rds On (Max) @ Id, Vgs : 6 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 109nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
Rds On (Max) @ Id, Vgs : 6 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 109nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8103(TE12L,Q,M
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 184nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7880pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 184nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7880pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8105(TE12L,Q,M
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 33 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 5V
Vgs (Max) : ±8V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 20W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 33 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 5V
Vgs (Max) : ±8V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 20W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8A01-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 36A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.6 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1970pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 36A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.6 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1970pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8A02-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 34A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.3 mOhm @ 17A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 36nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3430pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 34A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.3 mOhm @ 17A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 36nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3430pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8A04-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 44A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.2 mOhm @ 22A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 59nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5700pF @ 10V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 44A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.2 mOhm @ 22A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 59nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5700pF @ 10V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCC8001-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.3 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.3 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCC8002-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.3 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.3 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCC8002-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.3 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.3 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCC8003-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSVI-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 16.9 mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1300pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 22W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSVI-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 16.9 mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1300pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 22W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCC8005-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSVI-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 26A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.4 mOhm @ 13A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSVI-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 26A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.4 mOhm @ 13A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
