Welcome to Weijie Semiconductor
Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
TPC8A05-H(TE12L,QM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 10A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 13.3 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1700pF @ 10V
FET Feature : Schottky Diode (Body)
Power Dissipation (Max) : 1W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP (5.5x6.0)
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 10A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 13.3 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1700pF @ 10V
FET Feature : Schottky Diode (Body)
Power Dissipation (Max) : 1W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP (5.5x6.0)
Package / Case : 8-SOIC (0.173", 4.40mm Width)
0
100 in stock
.jpg "Show details for TPC8A06-H(TE12LQM)")
TPC8A06-H(TE12LQM)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 12A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 10.1 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 10V
FET Feature : Schottky Diode (Body)
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP (5.5x6.0)
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 12A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 10.1 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 10V
FET Feature : Schottky Diode (Body)
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP (5.5x6.0)
Package / Case : 8-SOIC (0.173", 4.40mm Width)
0
100 in stock
TPCA8003-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 35A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.6 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1465pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 35A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.6 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1465pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8005-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 27A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1395pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 27A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1395pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8007-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 47 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 47 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock

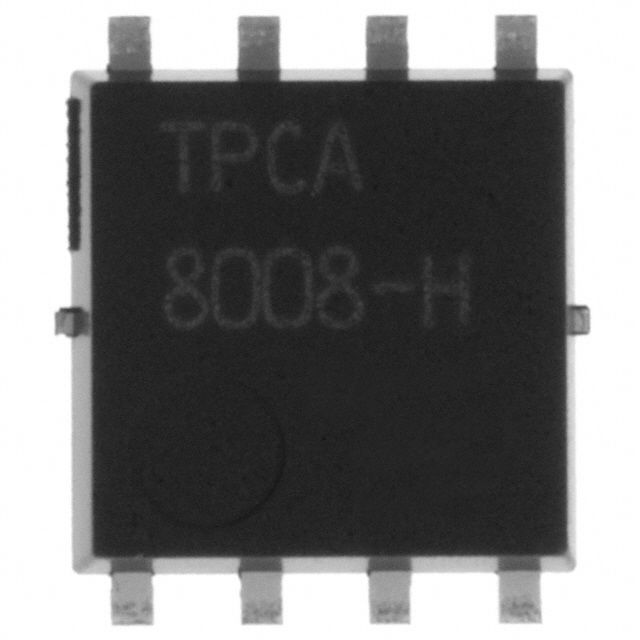

TPCA8008-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 580 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 580 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8008-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 580 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 580 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock

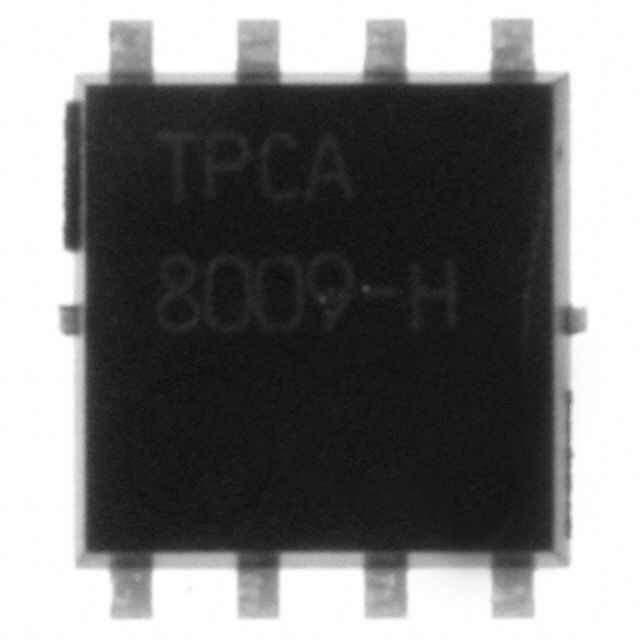

TPCA8009-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8010-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : 蟺-MOSV
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 450 mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : 蟺-MOSV
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 450 mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8010-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : 蟺-MOSV
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 450 mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : 蟺-MOSV
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 450 mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8011-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSIII-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 3.5 mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 32nC @ 5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 2900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSIII-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 3.5 mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 32nC @ 5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 2900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8012-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.9 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 42nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3713pF @ 10V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.9 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 42nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3713pF @ 10V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
