Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
TPCA8016-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Digi-Reel®
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 25A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 21 mOhm @ 13A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1375pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Digi-Reel®
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 25A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 21 mOhm @ 13A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 22nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1375pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8018-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.2 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 34nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2846pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.2 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 34nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2846pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8021-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 27A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1395pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 27A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1395pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8023-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 21A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 12.9 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2150pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 21A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 12.9 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2150pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8025(TE12L,Q,M
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSIV
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.5 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2200pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSIV
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.5 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2200pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock

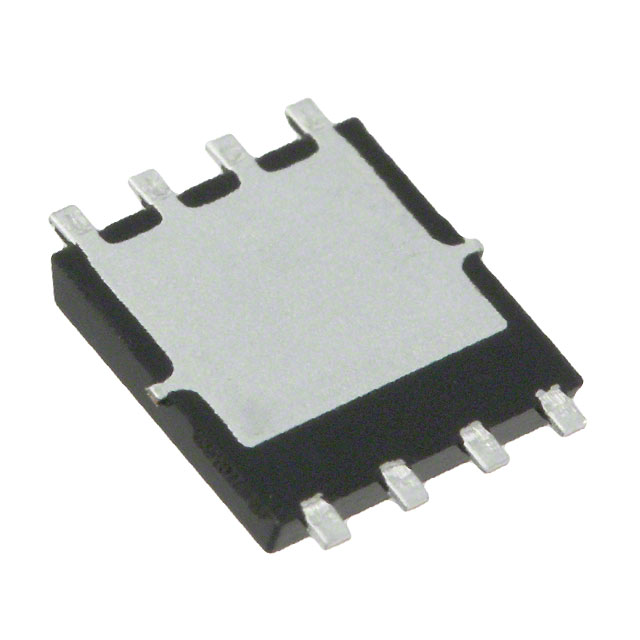

TPCA8026(TE12L,Q,M
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIV
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 45A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.2 mOhm @ 23A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 113nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4200pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIV
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 45A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.2 mOhm @ 23A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 113nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4200pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
709 in stock
TPCA8028-H(TE12LQM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIV-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 50A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.8 mOhm @ 25A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 88nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7800pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIV-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 50A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.8 mOhm @ 25A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 88nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7800pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
2058 in stock
TPCA8031-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 24A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 11 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2150pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 24A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 11 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2150pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 30W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8036-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSVI-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 38A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 19A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 50nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Tape & Reel (TR)
Series : U-MOSVI-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 38A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 19A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 50nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8045-H(T2L1,VM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 46A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.6 mOhm @ 23A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 90nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7540pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 46A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.6 mOhm @ 23A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 90nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7540pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
2943 in stock
TPCA8048-H(TE12L,Q
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 35A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.6 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 90nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7540pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 35A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.6 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 90nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7540pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
100 in stock
TPCA8051-H(T2L1,VM
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 28A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.4 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 91nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7540pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVI-H
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 28A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.4 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 91nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7540pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.6W (Ta), 45W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP Advance (5x5)
Package / Case : 8-PowerVDFN
0
3626 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
