Part Number
Manufacturer
Description
Unit Price
In Stock
603K
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
0
135 in stock
6043BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular
Length : 0.800" (20.32mm)
Width : 0.268" (6.81mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 23.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular
Length : 0.800" (20.32mm)
Width : 0.268" (6.81mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 23.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6703 in stock
605202F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 1.312" (33.32mm)
Diameter : -
Height Off Base (Height of Fin) : 9.875" (250.82mm)
Power Dissipation @ Temperature Rise : 15.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 0.25°C/W @ 700 LFM
Thermal Resistance @ Natural : 0.90°C/W
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 1.312" (33.32mm)
Diameter : -
Height Off Base (Height of Fin) : 9.875" (250.82mm)
Power Dissipation @ Temperature Rise : 15.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 0.25°C/W @ 700 LFM
Thermal Resistance @ Natural : 0.90°C/W
Material : Aluminum
Material Finish : -
0
9 in stock
607602F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 3.250" (82.55mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 4.0W @ 20°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 3.250" (82.55mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 4.0W @ 20°C
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
16 in stock

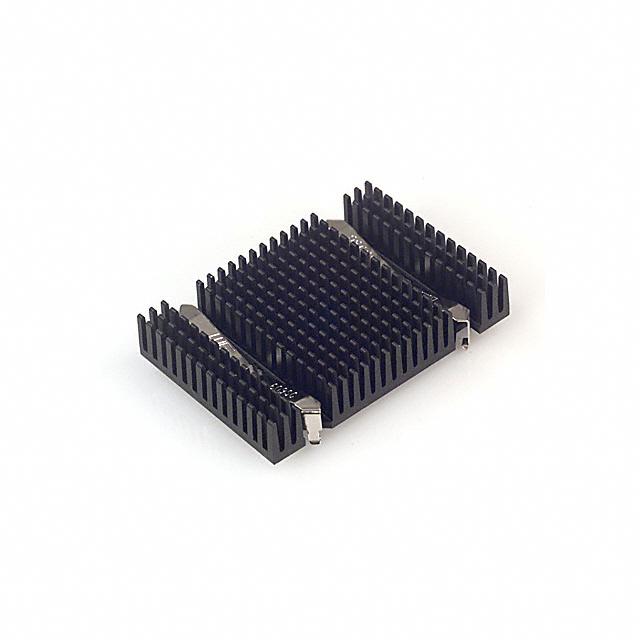

609-50ABS3
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 609
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Clip, Thermal Material
Shape : Rectangular, Pin Fins
Length : 2.895" (73.53mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 250 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : 609
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Clip, Thermal Material
Shape : Rectangular, Pin Fins
Length : 2.895" (73.53mm)
Width : 2.000" (50.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 250 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
481 in stock
610852F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 5.380" (136.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.312" (33.32mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 5.380" (136.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.312" (33.32mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
0
14 in stock
615652F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 0.250" (6.35mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 21.20°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 0.250" (6.35mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 21.20°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
39 in stock
622002F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 3.500" (88.90mm)
Diameter : -
Height Off Base (Height of Fin) : 0.850" (21.60mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Pin Fins
Length : 48.000" (1219.20mm)
Width : 3.500" (88.90mm)
Diameter : -
Height Off Base (Height of Fin) : 0.850" (21.60mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
13 in stock
6221BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
270 in stock

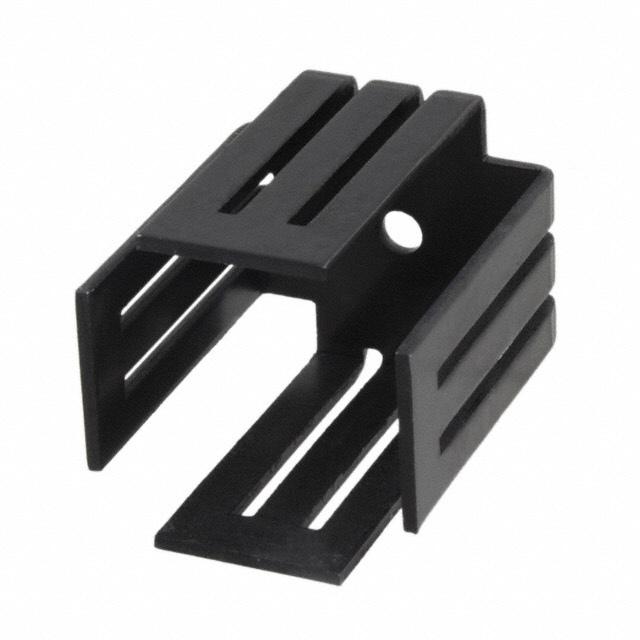

6222BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : Bridge Rectifiers
Attachment Method : Bolt On
Shape : Square, Fins
Length : 1.060" (26.92mm)
Width : 1.060" (26.92mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 3.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 9.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : Bridge Rectifiers
Attachment Method : Bolt On
Shape : Square, Fins
Length : 1.060" (26.92mm)
Width : 1.060" (26.92mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 3.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 9.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5026 in stock
6223BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : Bridge Rectifiers
Attachment Method : Bolt On
Shape : Square, Fins
Length : 1.060" (26.92mm)
Width : 1.060" (26.92mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 3.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 9.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : Bridge Rectifiers
Attachment Method : Bolt On
Shape : Square, Fins
Length : 1.060" (26.92mm)
Width : 1.060" (26.92mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 3.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 9.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6685 in stock
6225B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.070" (27.18mm)
Width : 1.024" (26.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.315" (8.00mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 700 LFM
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.070" (27.18mm)
Width : 1.024" (26.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.315" (8.00mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 700 LFM
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11039 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
