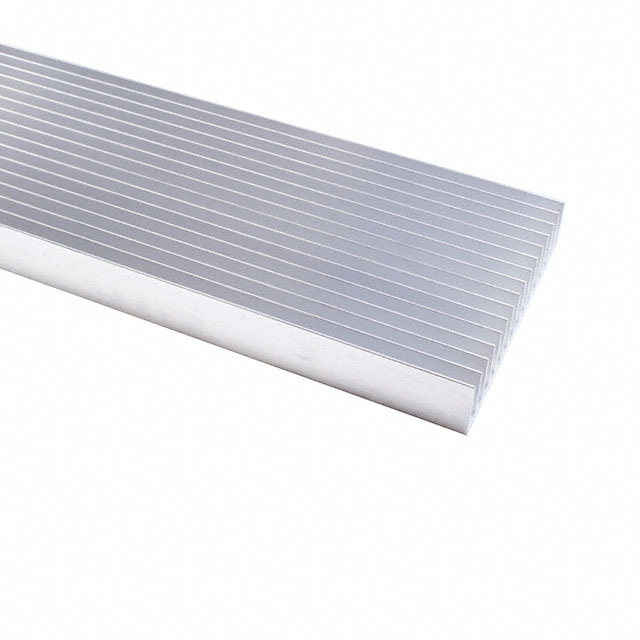

622852F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 48.000" (1219.20mm)
Width : 6.750" (171.45mm)
Diameter : -
Height Off Base (Height of Fin) : 1.630" (41.40mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.65°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 48.000" (1219.20mm)
Width : 6.750" (171.45mm)
Diameter : -
Height Off Base (Height of Fin) : 1.630" (41.40mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.65°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
7 in stock
6230B-TTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
0
276 in stock
.jpg "Show details for 6230DG (COPPER)")

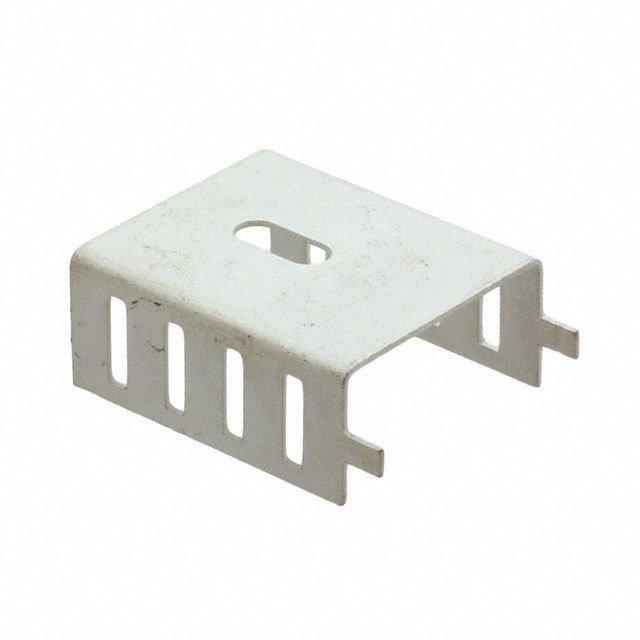

6230DG (COPPER)
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.50°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.50°C/W
Material : Copper
Material Finish : Tin
0
4683 in stock

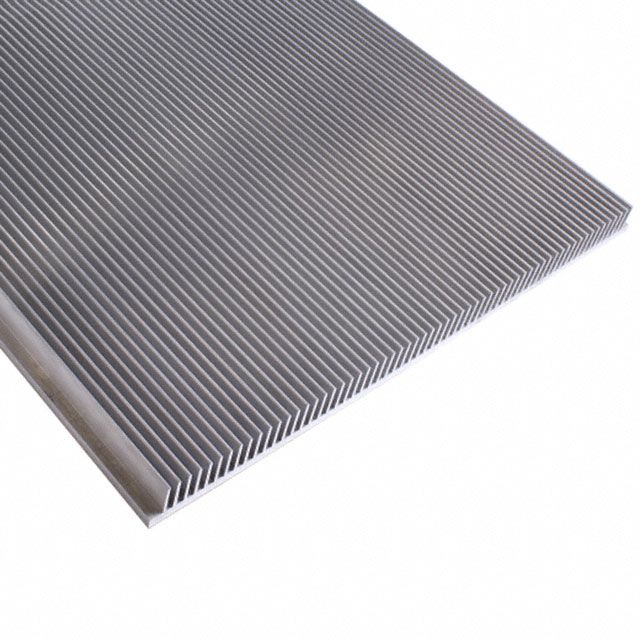

623352F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 36.000" (914.40mm)
Width : 19.000" (482.60mm)
Diameter : -
Height Off Base (Height of Fin) : 1.312" (33.32mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 36.000" (914.40mm)
Width : 19.000" (482.60mm)
Diameter : -
Height Off Base (Height of Fin) : 1.312" (33.32mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
3 in stock

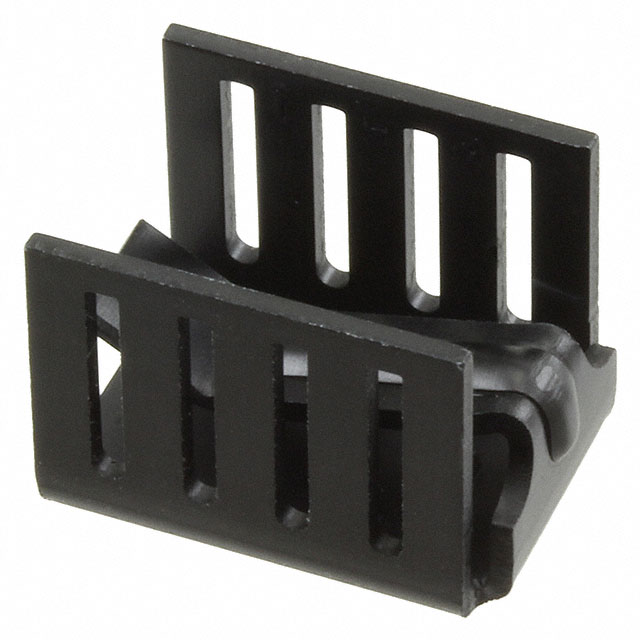

6236BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.700" (17.78mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.510" (12.95mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 25.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.700" (17.78mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.510" (12.95mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 25.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
13659 in stock

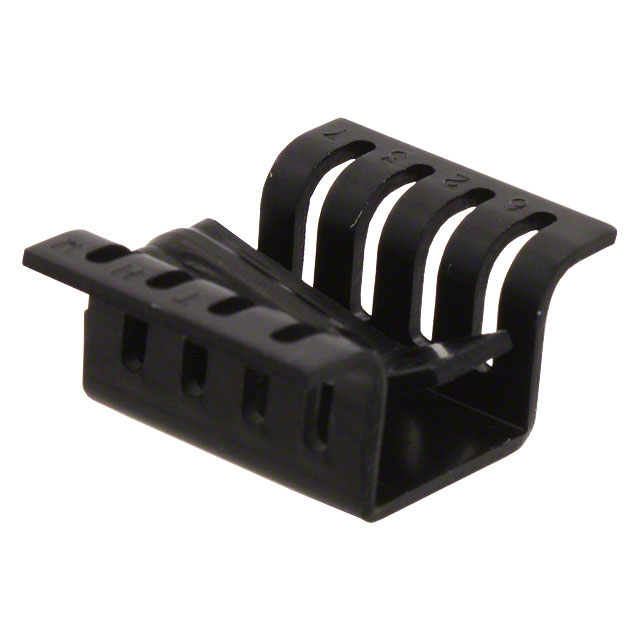

6237BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.700" (17.78mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 14.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.700" (17.78mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 14.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
17914 in stock

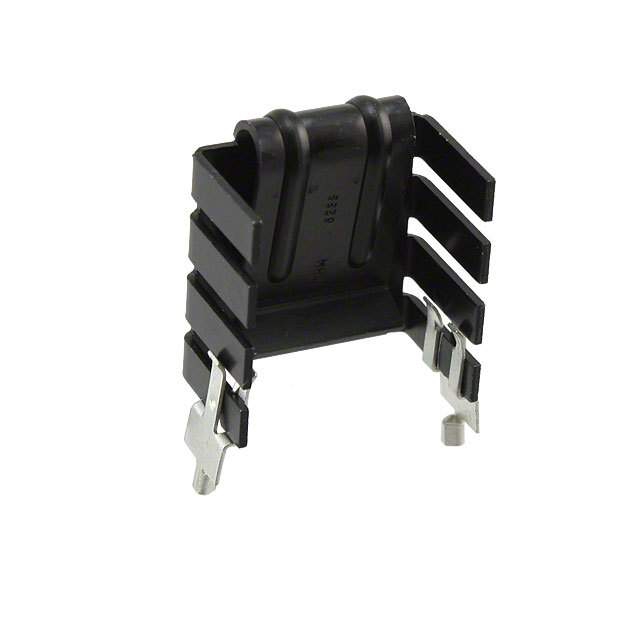

6238B-MTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.159" (29.44mm)
Width : 1.005" (25.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.610" (15.49mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 13.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.159" (29.44mm)
Width : 1.005" (25.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.610" (15.49mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 13.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6717 in stock

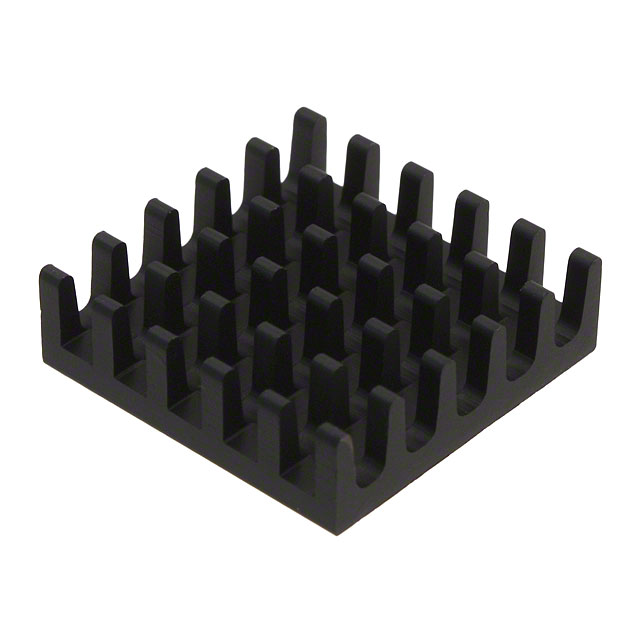

624-25ABT4E
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 624
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.827" (21.00mm)
Width : 0.827" (21.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 25.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : 624
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.827" (21.00mm)
Width : 0.827" (21.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 25.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
13171 in stock

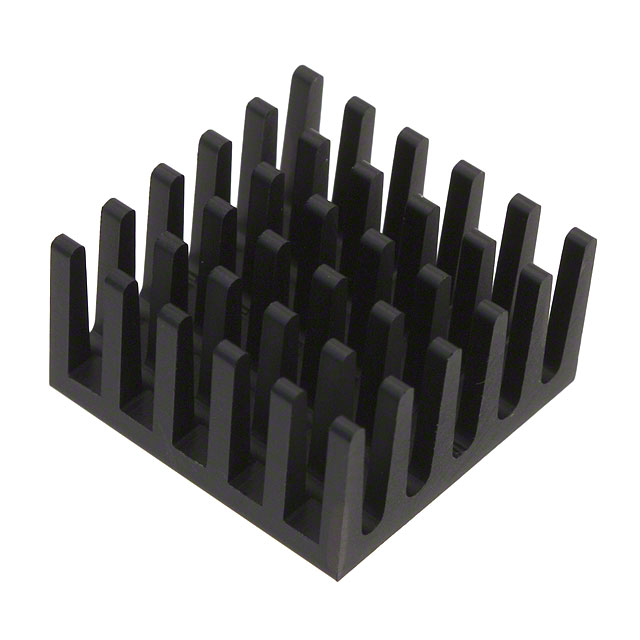

624-45ABT3
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 624
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.827" (21.00mm)
Width : 0.827" (21.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 15.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : 624
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.827" (21.00mm)
Width : 0.827" (21.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 15.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
7653 in stock

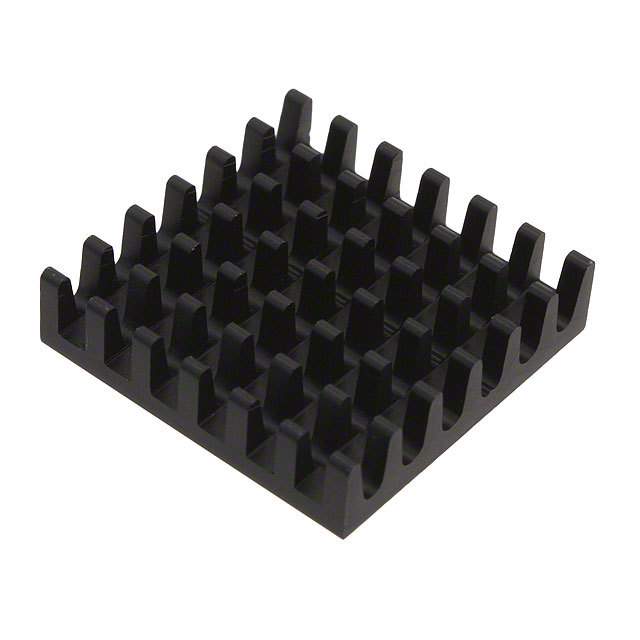

625-25ABT4E
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 625
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : 625
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
5469 in stock

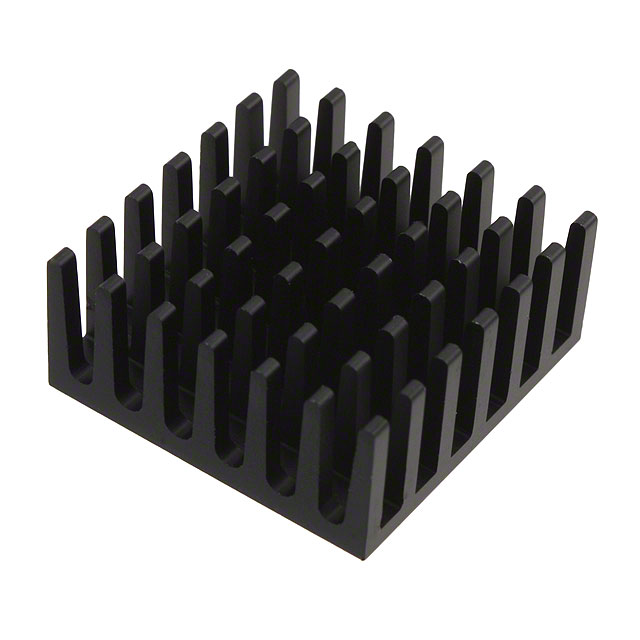

625-45AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 625
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 400 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : 625
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 400 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
4138 in stock
627252F00000
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 55.500" (1409.70mm)
Width : 9.750" (247.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.280" (57.91mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.20°C/W @ 700 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 55.500" (1409.70mm)
Width : 9.750" (247.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.280" (57.91mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.20°C/W @ 700 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
