Part Number
Manufacturer
Description
Unit Price
In Stock

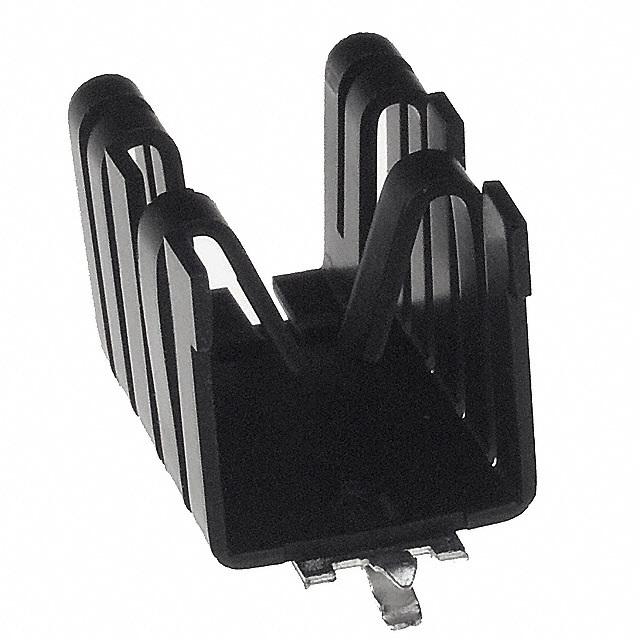

591302B02800G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and Board Locks
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and Board Locks
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1996 in stock

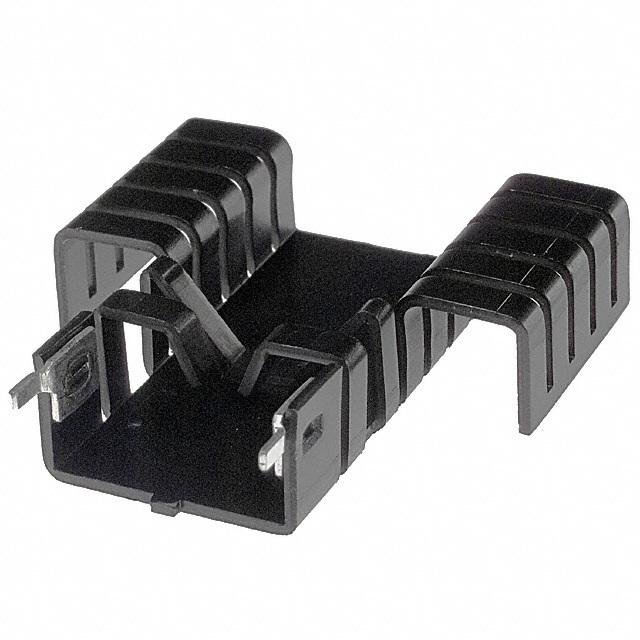

592201B03400G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-218
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.970" (50.04mm)
Width : 1.950" (49.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 1.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 6.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-218
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.970" (50.04mm)
Width : 1.950" (49.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 1.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 6.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
832 in stock

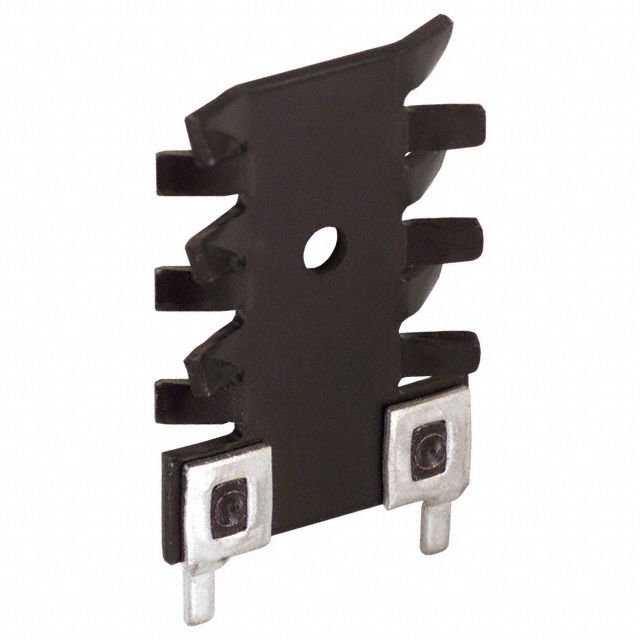

592502B03400G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.250" (31.75mm)
Width : 0.874" (22.20mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 22.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.250" (31.75mm)
Width : 0.874" (22.20mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 22.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
13315 in stock

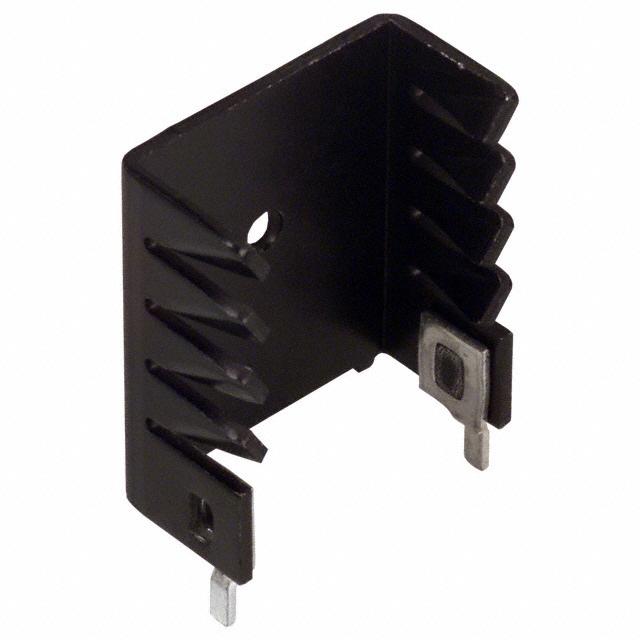

593002B03400G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 0.942" (23.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 0.942" (23.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11249 in stock
593101B03600G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-218, TO-247
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.640" (41.66mm)
Width : 1.700" (43.18mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 8.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-218, TO-247
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.640" (41.66mm)
Width : 1.700" (43.18mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 8.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1032 in stock

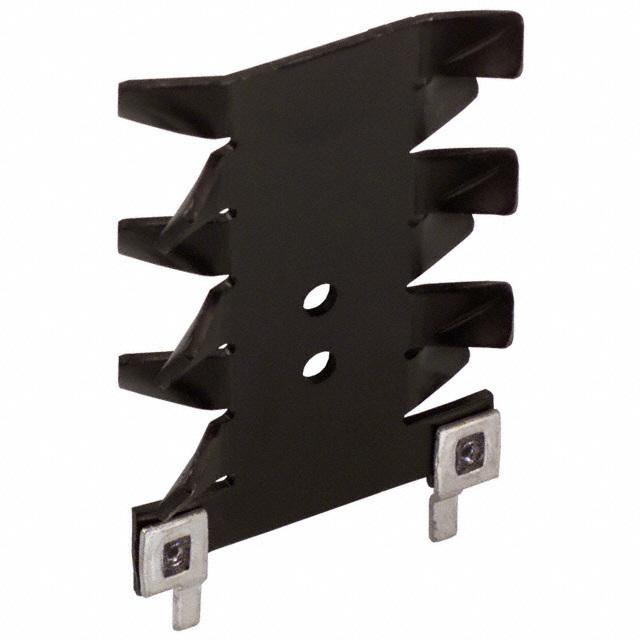

593202B03500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.380" (35.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.480" (12.19mm)
Power Dissipation @ Temperature Rise : 6.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 10.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.380" (35.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.480" (12.19mm)
Power Dissipation @ Temperature Rise : 6.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 10.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
7682 in stock

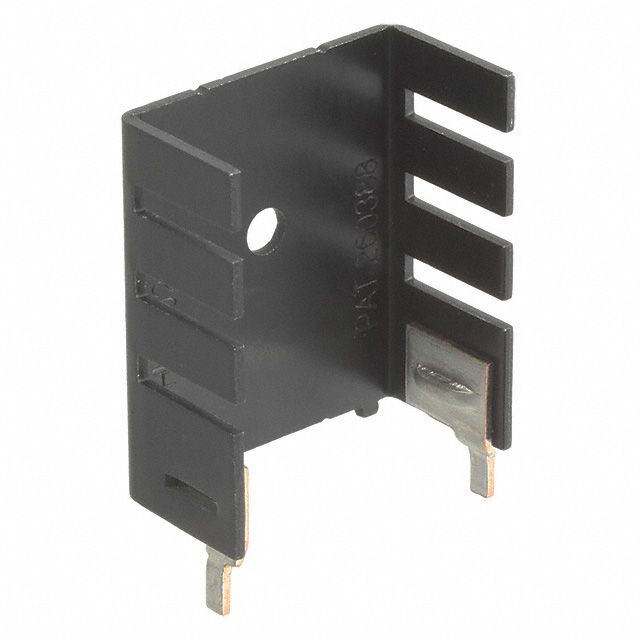

6021BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 12.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 12.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4776 in stock

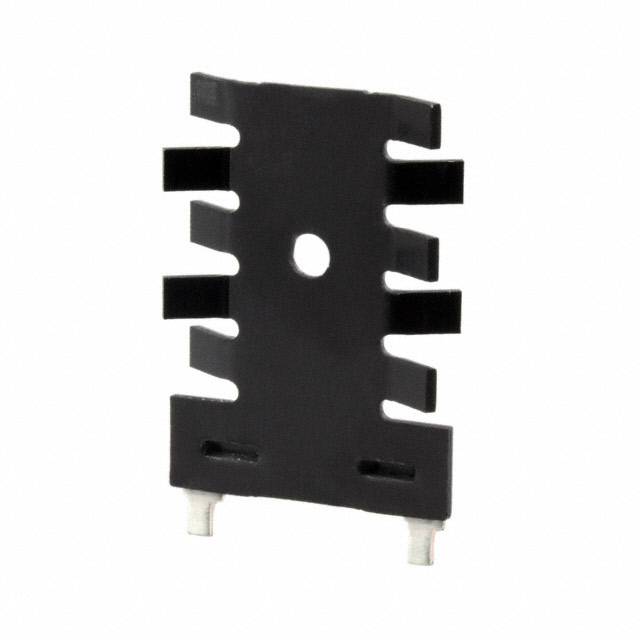

6022BG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.210" (30.73mm)
Width : 0.875" (22.22mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 16.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.210" (30.73mm)
Width : 0.875" (22.22mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 16.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4737 in stock

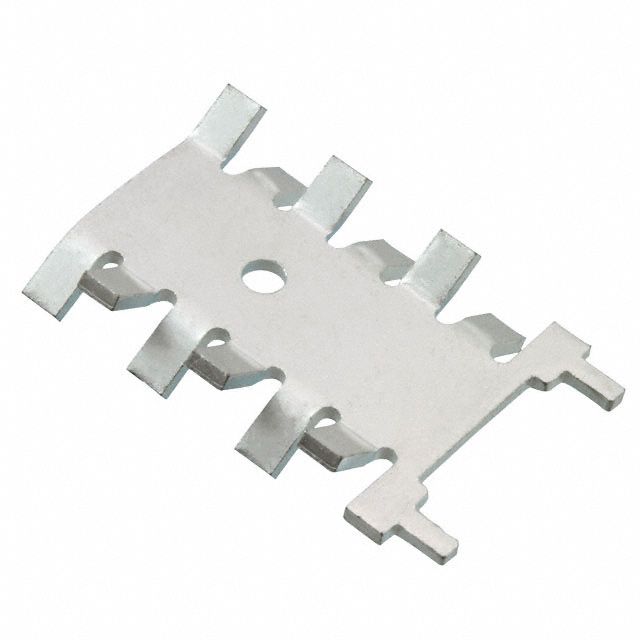

6025DG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
0
9701 in stock

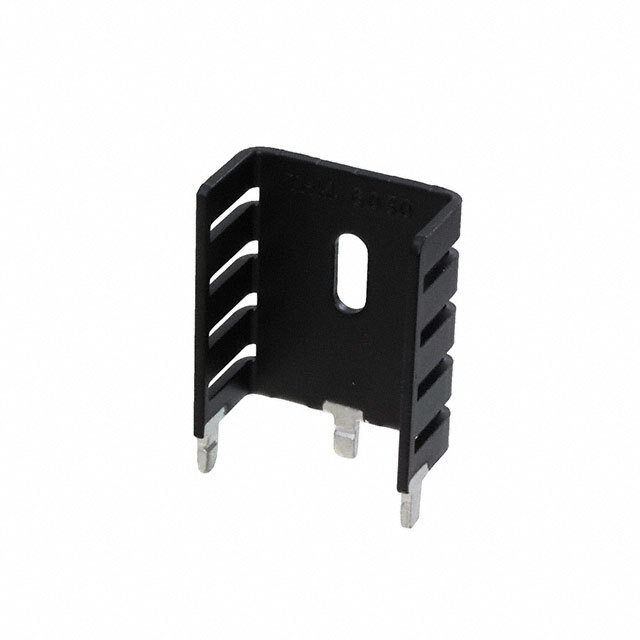

6030B-TTG
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Copper
Material Finish : Tin, Black Paint
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Copper
Material Finish : Tin, Black Paint
0
2000 in stock
G.jpg "Show details for 6030D(COPPER)G")

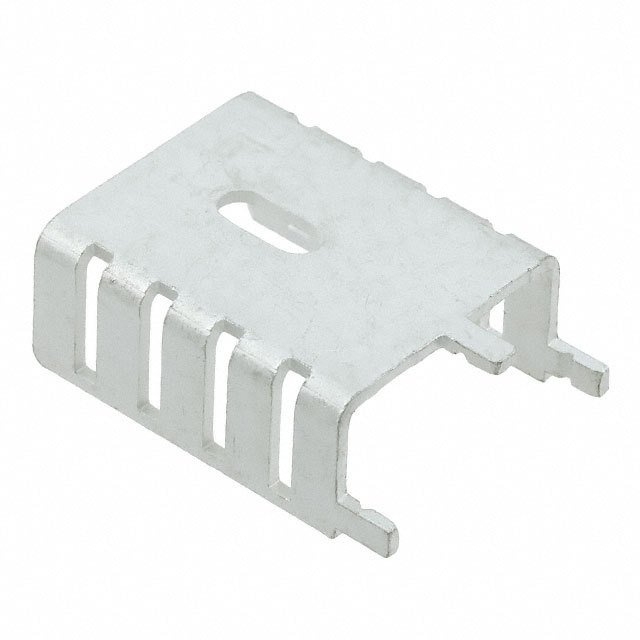

6030D(COPPER)G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.50°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.50°C/W
Material : Copper
Material Finish : Tin
0
4729 in stock
603402F00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular
Length : 48.000" (1219.20mm)
Width : -
Diameter : -
Height Off Base (Height of Fin) : 1.312" (33.32mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
Series : -
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : -
Attachment Method : Adhesive
Shape : Rectangular
Length : 48.000" (1219.20mm)
Width : -
Diameter : -
Height Off Base (Height of Fin) : 1.312" (33.32mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
10 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
