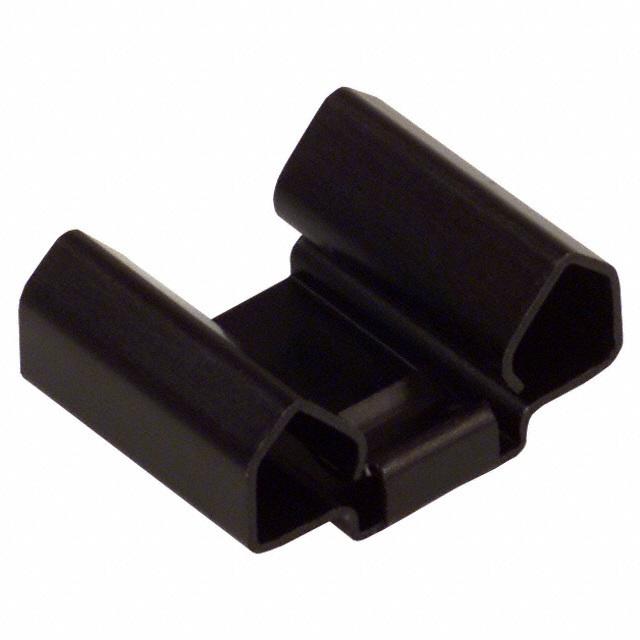

579402B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.980" (24.89mm)
Diameter : -
Height Off Base (Height of Fin) : 0.440" (11.18mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 16.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.980" (24.89mm)
Diameter : -
Height Off Base (Height of Fin) : 0.440" (11.18mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 16.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
9761 in stock

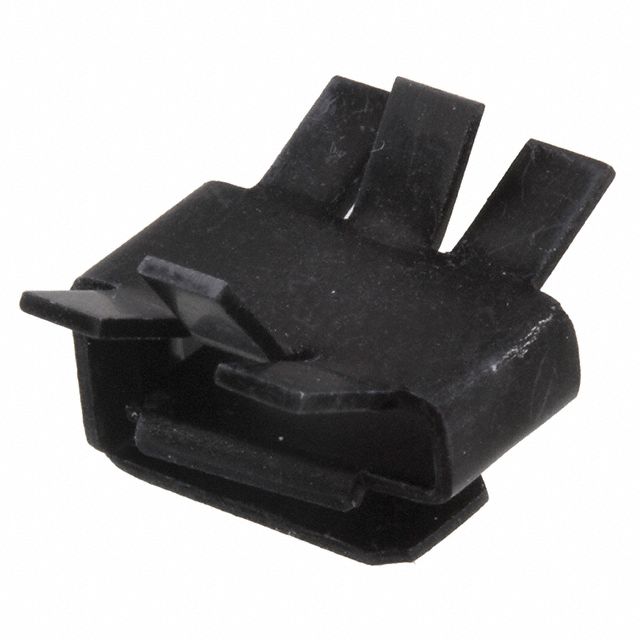

580100B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 8-DIP
Attachment Method : Press Fit, Slide On
Shape : Rectangular, Fins
Length : 0.562" (14.27mm)
Width : 0.600" (15.24mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 30.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 8-DIP
Attachment Method : Press Fit, Slide On
Shape : Rectangular, Fins
Length : 0.562" (14.27mm)
Width : 0.600" (15.24mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 30.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4416 in stock

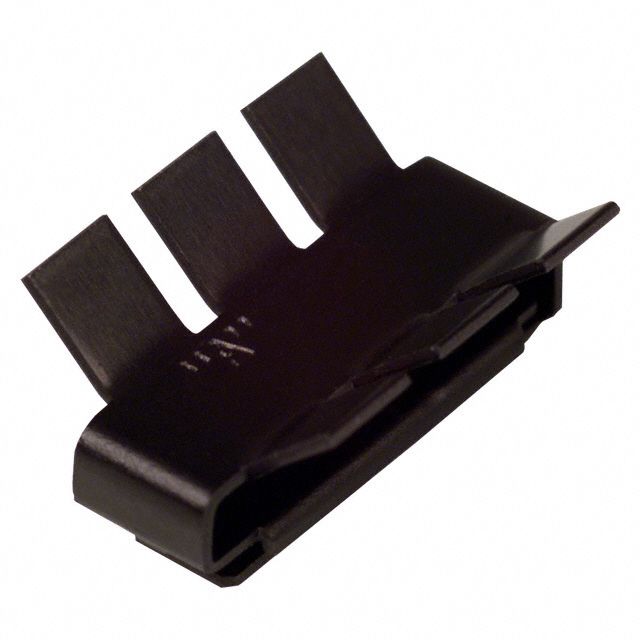

580200B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 14-DIP and 16-DIP
Attachment Method : Press Fit, Slide On
Shape : Rectangular, Fins
Length : 0.890" (22.61mm)
Width : 0.600" (15.24mm)
Diameter : -
Height Off Base (Height of Fin) : 0.410" (10.42mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 14-DIP and 16-DIP
Attachment Method : Press Fit, Slide On
Shape : Rectangular, Fins
Length : 0.890" (22.61mm)
Width : 0.600" (15.24mm)
Diameter : -
Height Off Base (Height of Fin) : 0.410" (10.42mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3818 in stock

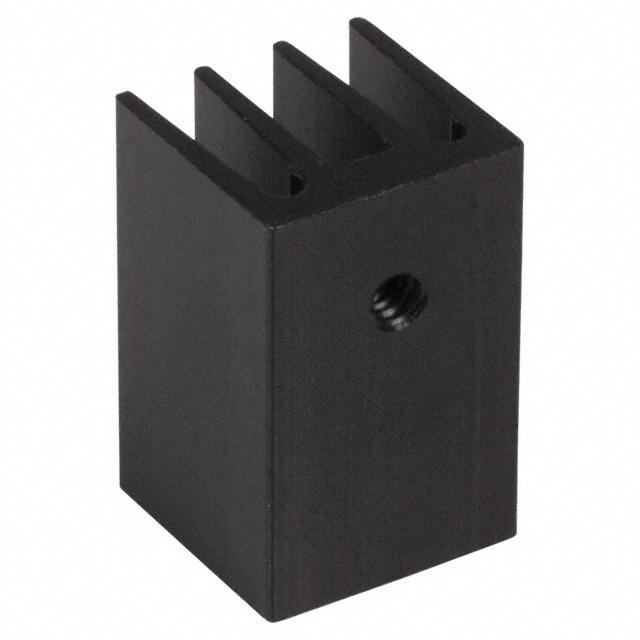

581002B00000
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 2.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 2.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
16263 in stock

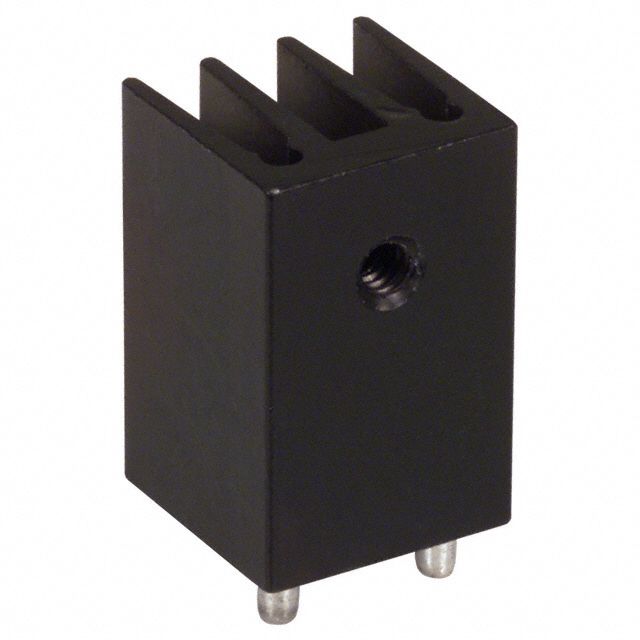

581002B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 2.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 17.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 2.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 17.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
23133 in stock

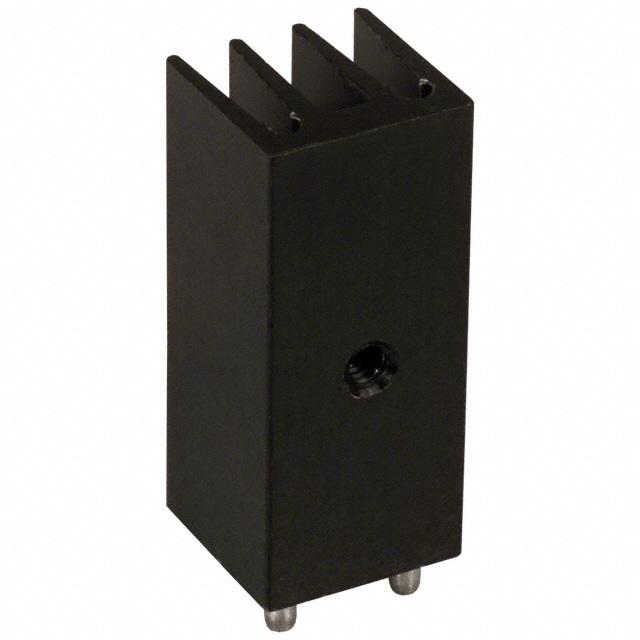

581102B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 16.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 16.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5413 in stock

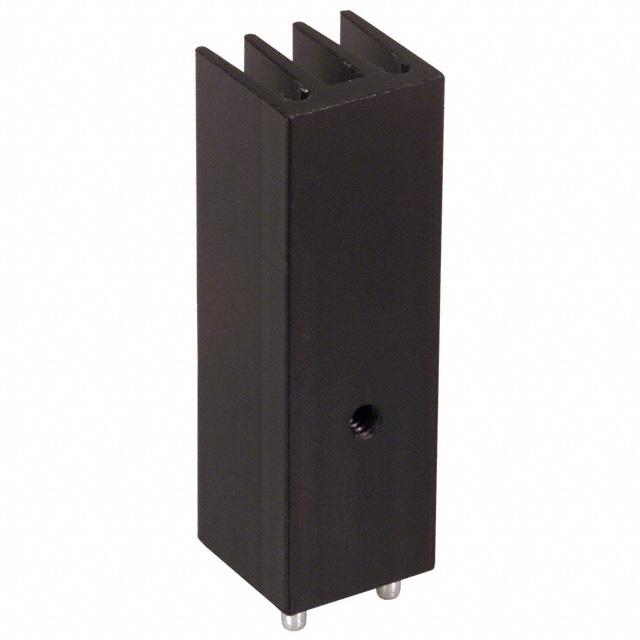

581202B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 1.5W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : 1.5W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4048 in stock

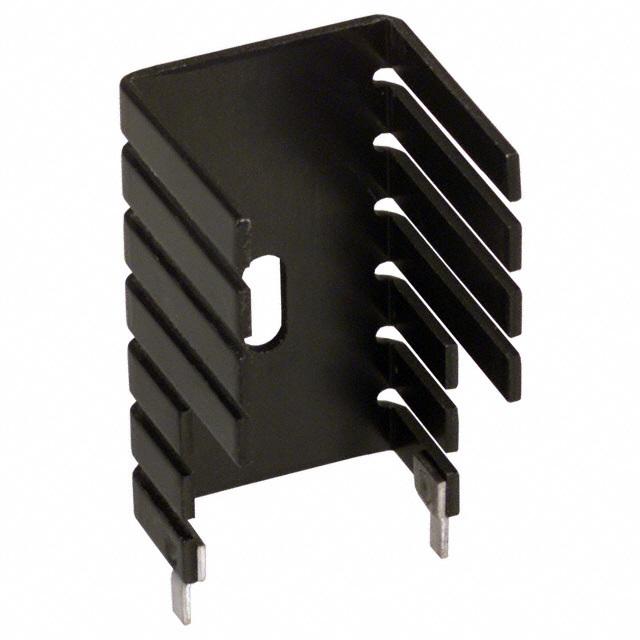

590102B03600G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.675" (42.55mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 2.5W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 10.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.675" (42.55mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 2.5W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 10.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4969 in stock

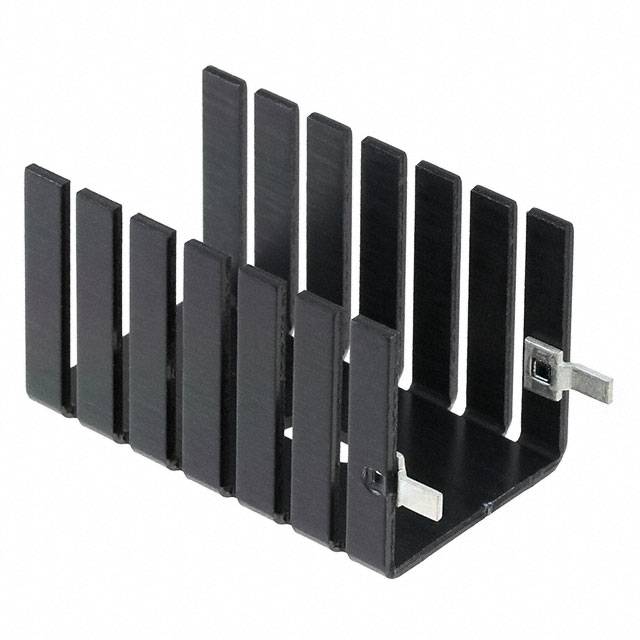

590302B03600G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.675" (42.55mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 4.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 11.20°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.675" (42.55mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 4.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 11.20°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2069 in stock

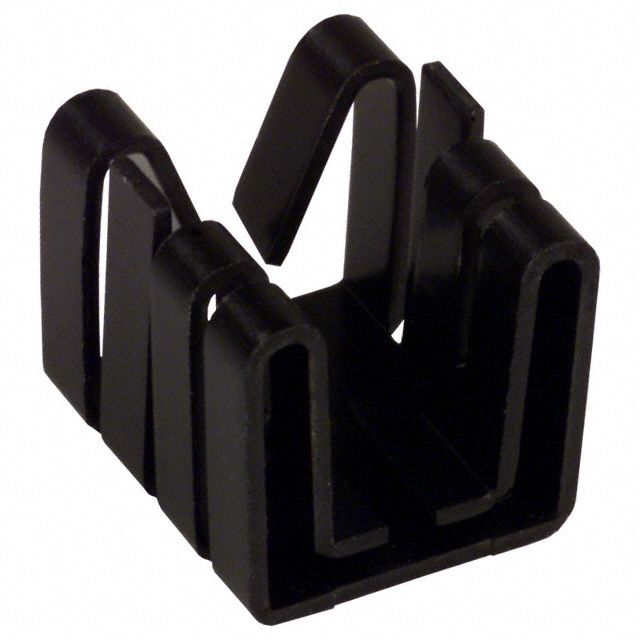

591202B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.600" (15.24mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.600" (15.24mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
12748 in stock
591202B03700G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.600" (15.24mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.600" (15.24mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1587 in stock
591202B04000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.600" (15.24mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.600" (15.24mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
7336 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
