Part Number
Manufacturer
Description
Unit Price
In Stock

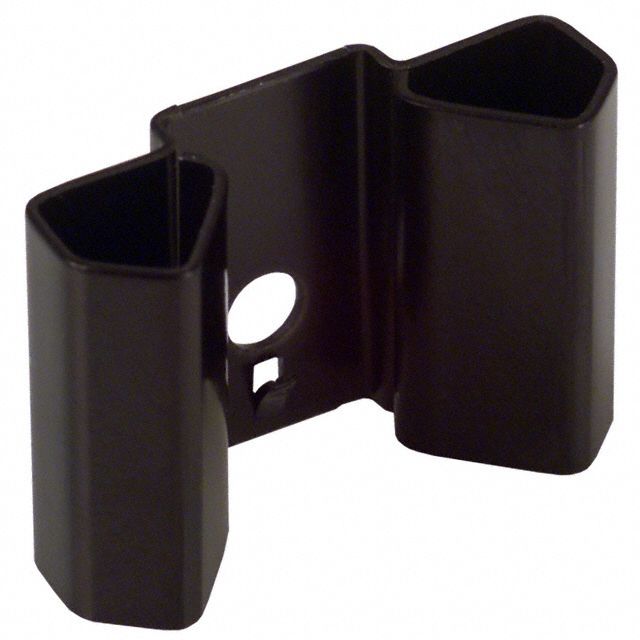

575102B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 1.120" (28.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.440" (11.18mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 16.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 1.120" (28.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.440" (11.18mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 16.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4367 in stock

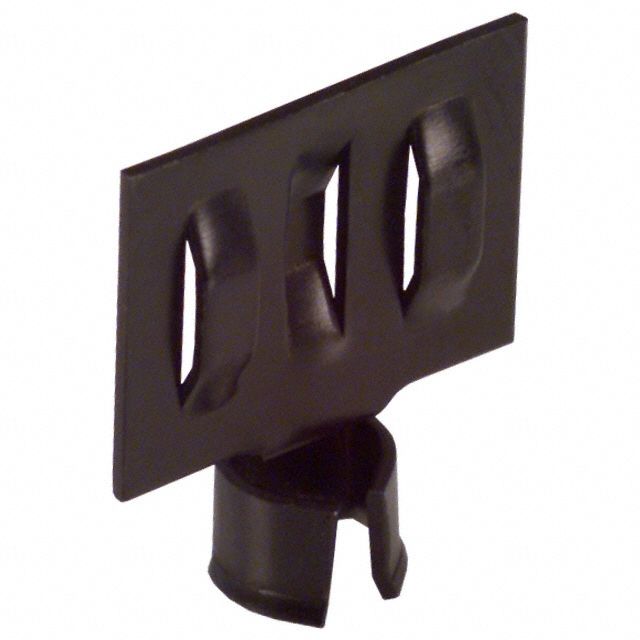

575200B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-92
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 0.602" (15.29mm)
Width : -
Diameter : -
Height Off Base (Height of Fin) : 0.720" (18.29mm)
Power Dissipation @ Temperature Rise : 0.3W @ 20°C
Thermal Resistance @ Forced Air Flow : 17.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 60.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-92
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 0.602" (15.29mm)
Width : -
Diameter : -
Height Off Base (Height of Fin) : 0.720" (18.29mm)
Power Dissipation @ Temperature Rise : 0.3W @ 20°C
Thermal Resistance @ Forced Air Flow : 17.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 60.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4624 in stock
575703B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.630" (41.40mm)
Width : 1.290" (32.77mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.630" (41.40mm)
Width : 1.290" (32.77mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5800 in stock

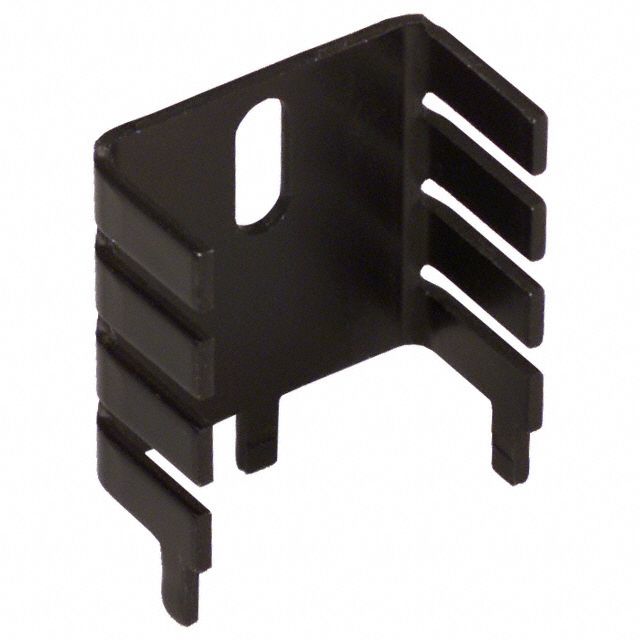

576602B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.950" (24.13mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 9.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 16.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.950" (24.13mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 9.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 16.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
14057 in stock
576802B00000 W/TAB038326
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
10055 in stock

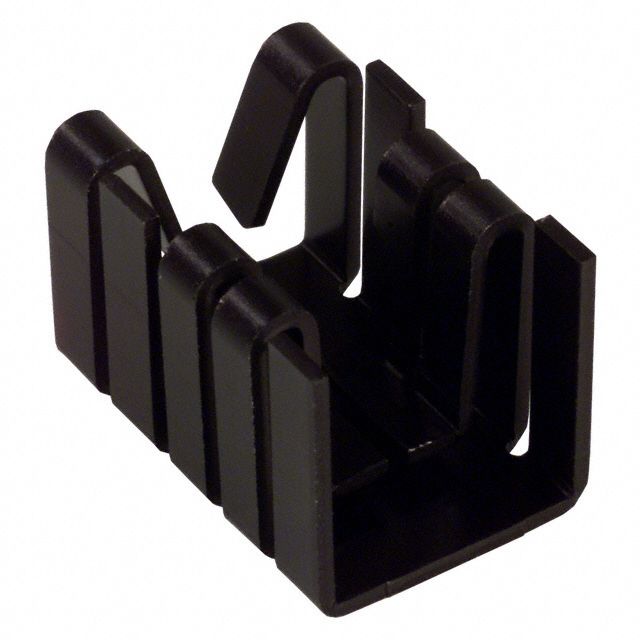

576802B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11738 in stock

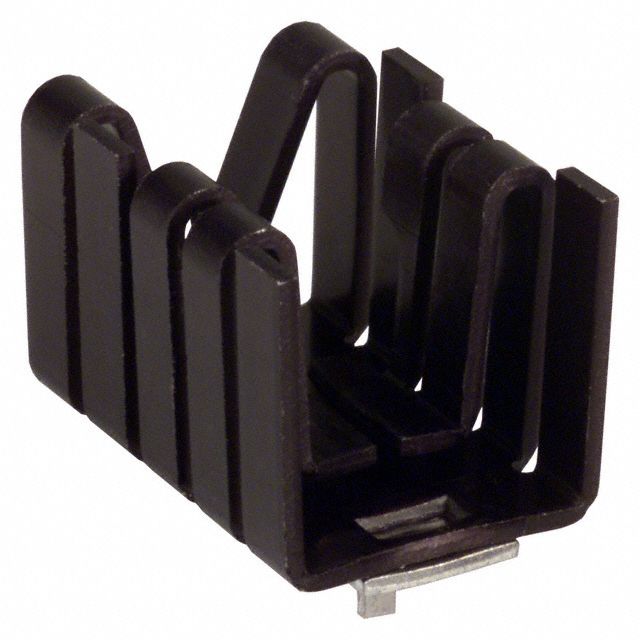

576802B03100G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
16992 in stock

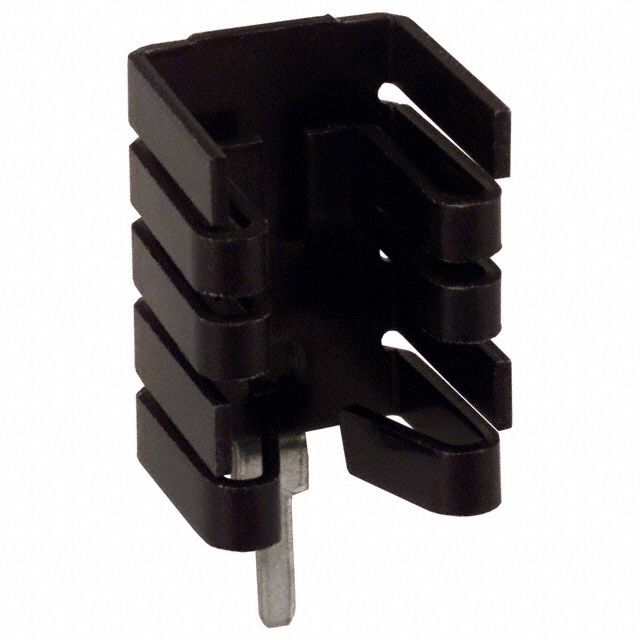

576802B03700G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.748" (19.00mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.748" (19.00mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
7666 in stock

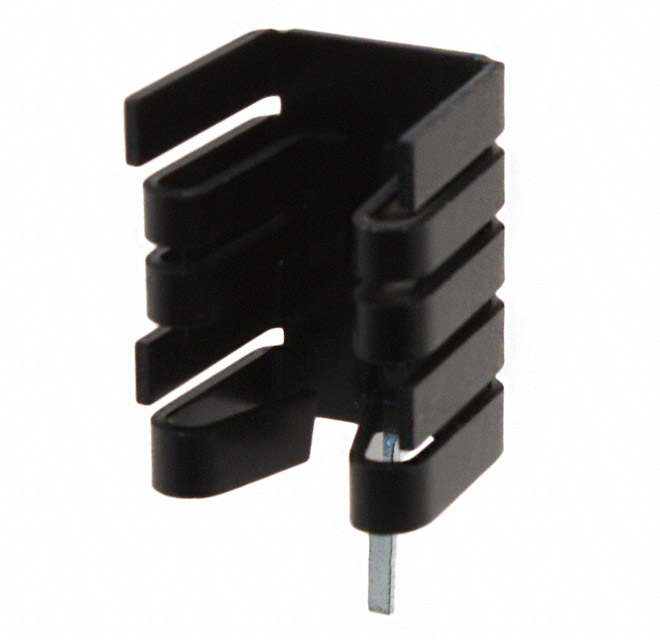

576802B03900G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
12868 in stock

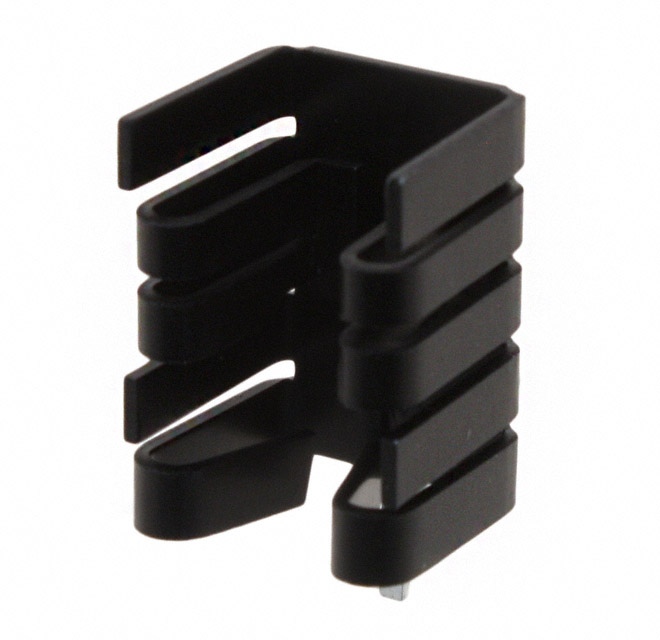

576802B04000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
31516 in stock

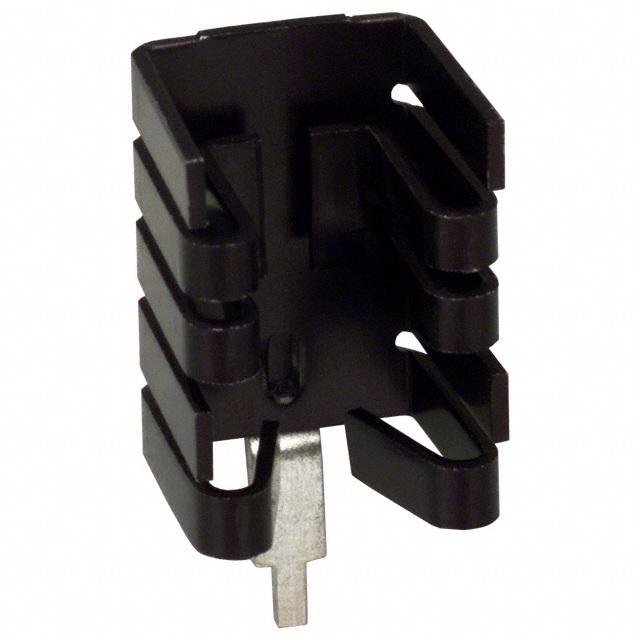

576802B04100G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-262
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 27.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5799 in stock
577002B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 32.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 32.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
30796 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
