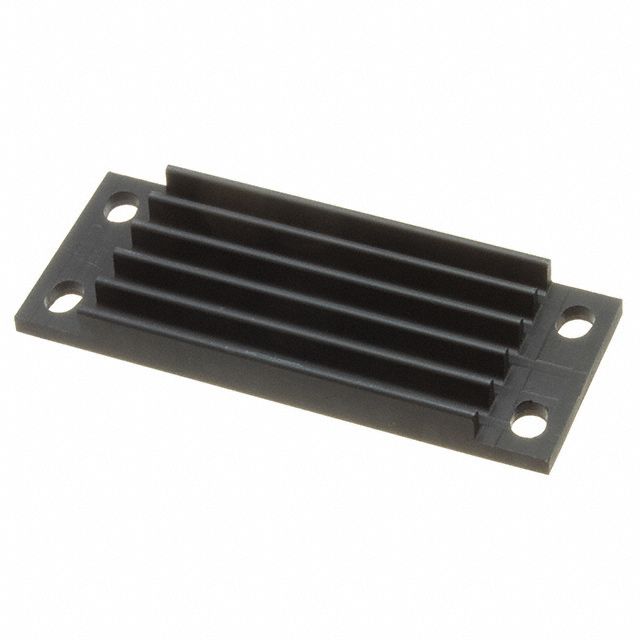

567-24AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 567
Part Status : Active
Type : Top Mount
Package Cooled : Eighth Brick DC/DC Converter
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 2.165" (55.00mm)
Width : 0.815" (20.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.240" (6.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 7.20°C/W @ 300 LFM
Thermal Resistance @ Natural : 7.20°C/W
Material : -
Material Finish : Unfinished
Series : 567
Part Status : Active
Type : Top Mount
Package Cooled : Eighth Brick DC/DC Converter
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 2.165" (55.00mm)
Width : 0.815" (20.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.240" (6.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 7.20°C/W @ 300 LFM
Thermal Resistance @ Natural : 7.20°C/W
Material : -
Material Finish : Unfinished
0
468 in stock

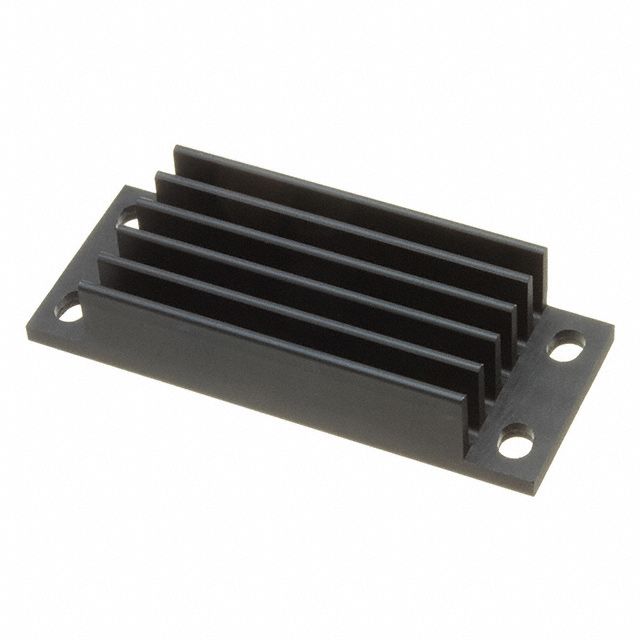

567-45AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 567
Part Status : Active
Type : Top Mount
Package Cooled : Eighth Brick DC/DC Converter
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 2.165" (55.00mm)
Width : 0.815" (20.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.449" (11.40mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 4.30°C/W @ 300 LFM
Thermal Resistance @ Natural : 4.30°C/W
Material : -
Material Finish : Unfinished
Series : 567
Part Status : Active
Type : Top Mount
Package Cooled : Eighth Brick DC/DC Converter
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 2.165" (55.00mm)
Width : 0.815" (20.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.449" (11.40mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 4.30°C/W @ 300 LFM
Thermal Resistance @ Natural : 4.30°C/W
Material : -
Material Finish : Unfinished
0
410 in stock
567-94AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 567
Part Status : Active
Type : Top Mount
Package Cooled : Eighth Brick DC/DC Converter
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 2.280" (57.90mm)
Width : 2.165" (55.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.940" (23.88mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.20°C/W @ 300 LFM
Thermal Resistance @ Natural : 2.20°C/W
Material : -
Material Finish : Unfinished
Series : 567
Part Status : Active
Type : Top Mount
Package Cooled : Eighth Brick DC/DC Converter
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 2.280" (57.90mm)
Width : 2.165" (55.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.940" (23.88mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.20°C/W @ 300 LFM
Thermal Resistance @ Natural : 2.20°C/W
Material : -
Material Finish : Unfinished
0
487 in stock

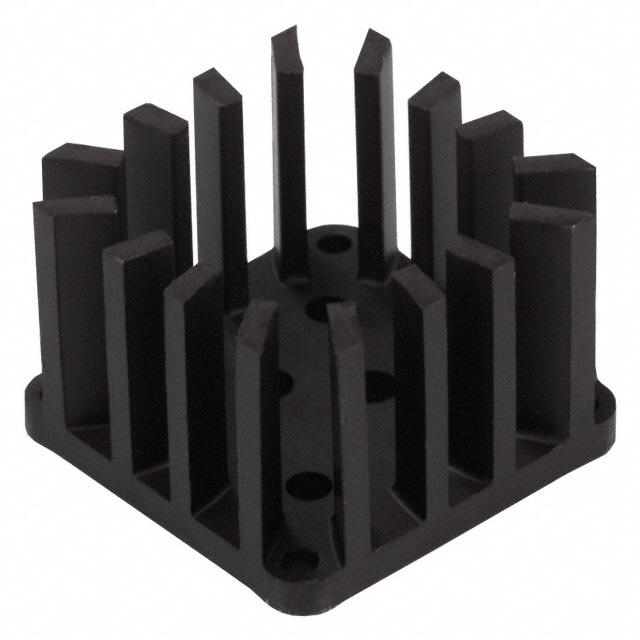

568303B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 5.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 5.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
983 in stock

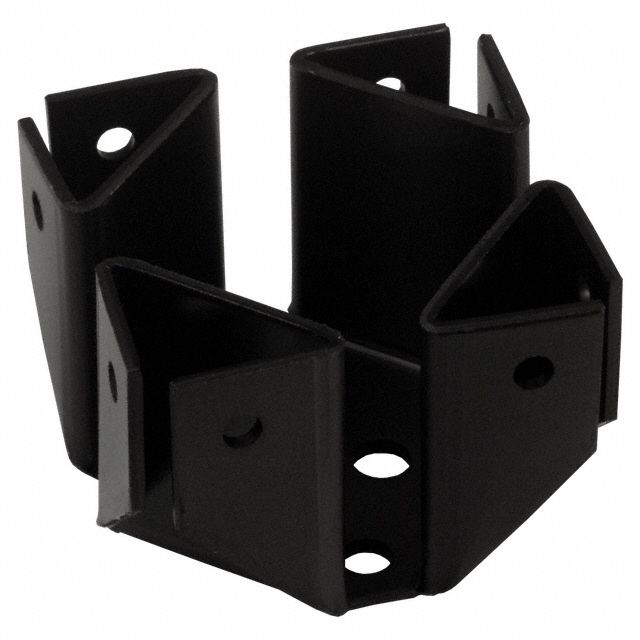

569003B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.830" (46.48mm)
Width : 1.830" (46.48mm)
Diameter : -
Height Off Base (Height of Fin) : 1.310" (33.27mm)
Power Dissipation @ Temperature Rise : 12.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 500 LFM
Thermal Resistance @ Natural : 5.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.830" (46.48mm)
Width : 1.830" (46.48mm)
Diameter : -
Height Off Base (Height of Fin) : 1.310" (33.27mm)
Power Dissipation @ Temperature Rise : 12.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 500 LFM
Thermal Resistance @ Natural : 5.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
695 in stock

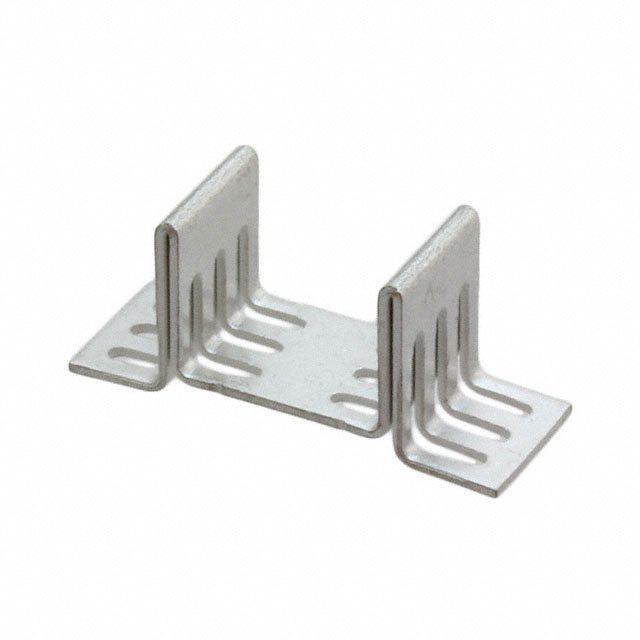

573100D00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-252 (DPak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.315" (8.00mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 0.8W @ 30°C
Thermal Resistance @ Forced Air Flow : 12.50°C/W @ 600 LFM
Thermal Resistance @ Natural : 15.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-252 (DPak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.315" (8.00mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 0.8W @ 30°C
Thermal Resistance @ Forced Air Flow : 12.50°C/W @ 600 LFM
Thermal Resistance @ Natural : 15.00°C/W
Material : Copper
Material Finish : Tin
0
14997 in stock

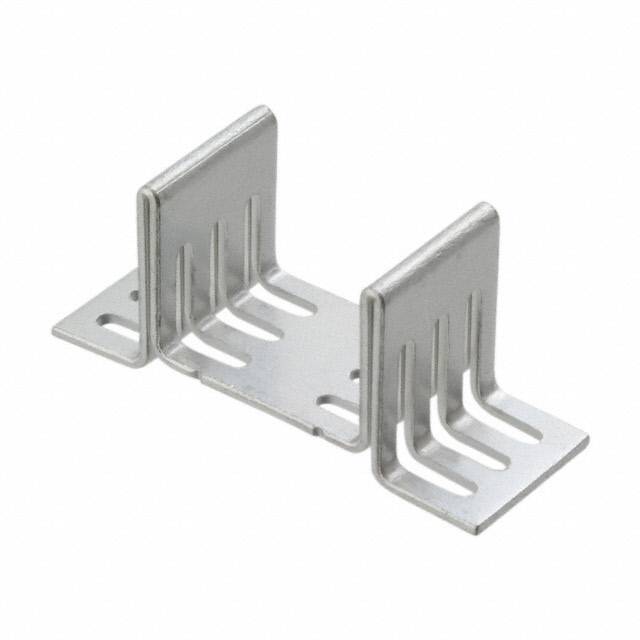

573100D00010G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-252 (DPak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.315" (8.00mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 0.8W @ 30°C
Thermal Resistance @ Forced Air Flow : 12.50°C/W @ 600 LFM
Thermal Resistance @ Natural : 15.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-252 (DPak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.315" (8.00mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 0.8W @ 30°C
Thermal Resistance @ Forced Air Flow : 12.50°C/W @ 600 LFM
Thermal Resistance @ Natural : 15.00°C/W
Material : Copper
Material Finish : Tin
0
13627 in stock

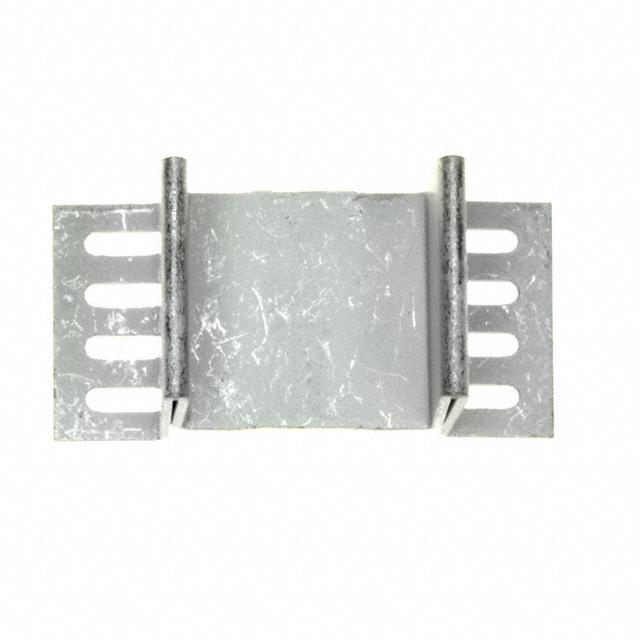

573300D00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.030" (26.16mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 1.3W @ 30°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 18.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.030" (26.16mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 1.3W @ 30°C
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 18.00°C/W
Material : Copper
Material Finish : Tin
0
1252 in stock

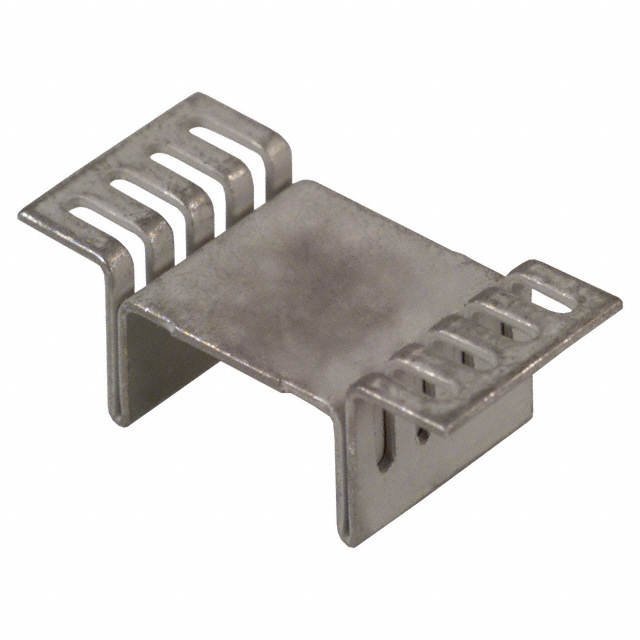

573300D00010G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.030" (26.16mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 1.3W @ 30°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-263 (D²Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.030" (26.16mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 1.3W @ 30°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.00°C/W
Material : Copper
Material Finish : Tin
0
46867 in stock
573400D00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-268 (D鲁Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.220" (30.99mm)
Diameter : -
Height Off Base (Height of Fin) : 0.401" (10.20mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 14.00°C/W
Material : -
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-268 (D鲁Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.220" (30.99mm)
Diameter : -
Height Off Base (Height of Fin) : 0.401" (10.20mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 14.00°C/W
Material : -
Material Finish : Tin
0
100 in stock

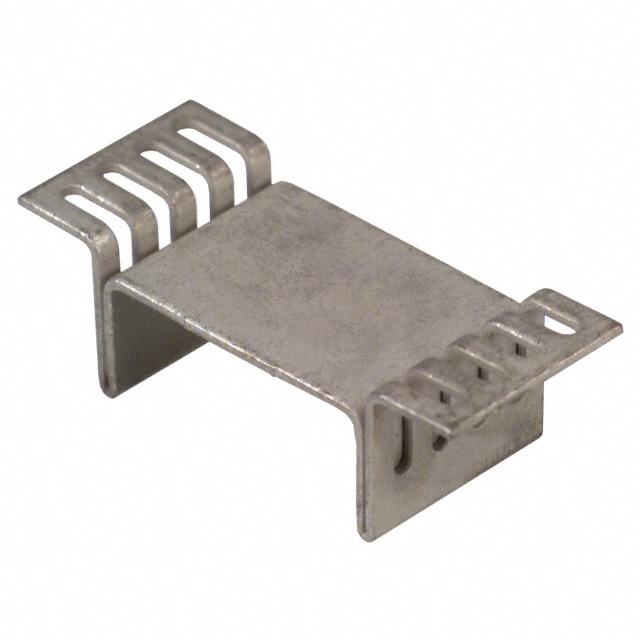

573400D00010G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-268 (D鲁Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.220" (30.99mm)
Diameter : -
Height Off Base (Height of Fin) : 0.401" (10.20mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 14.00°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-268 (D鲁Pak)
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.220" (30.99mm)
Diameter : -
Height Off Base (Height of Fin) : 0.401" (10.20mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 14.00°C/W
Material : Copper
Material Finish : Tin
0
8930 in stock
573902B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1049 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
