Part Number
Manufacturer
Description
Unit Price
In Stock

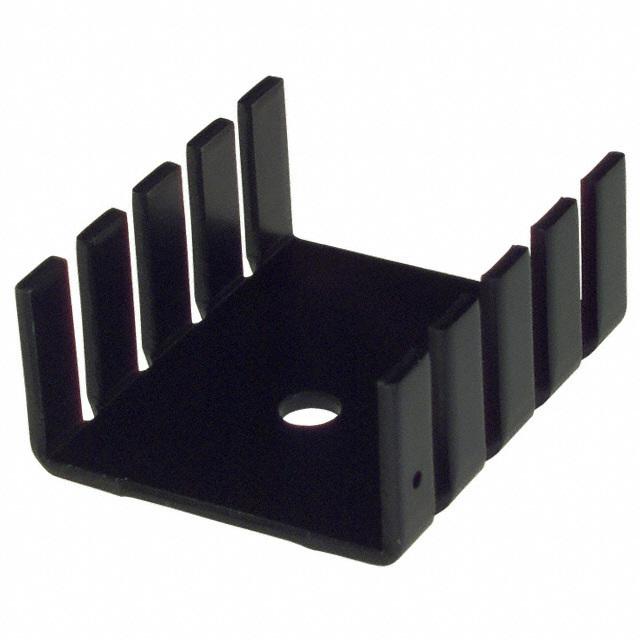

530614B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 16.70°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 16.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
7356 in stock

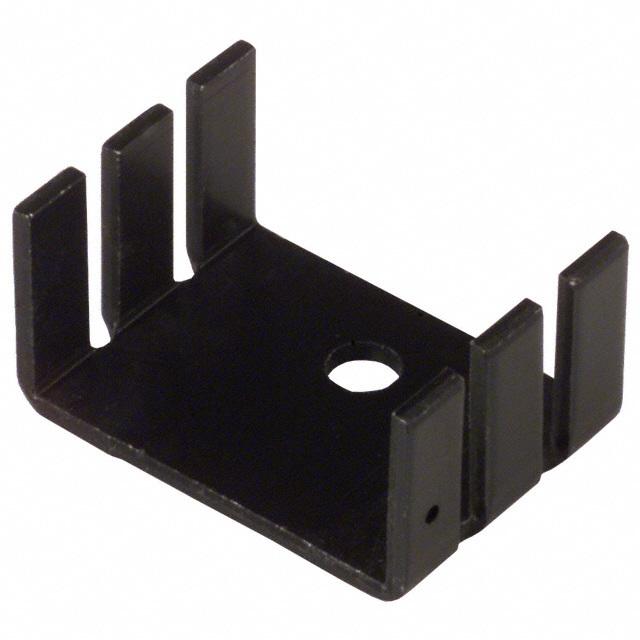

530714B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.710" (18.03mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 700 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.710" (18.03mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 700 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3016 in stock
531002B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
7364 in stock

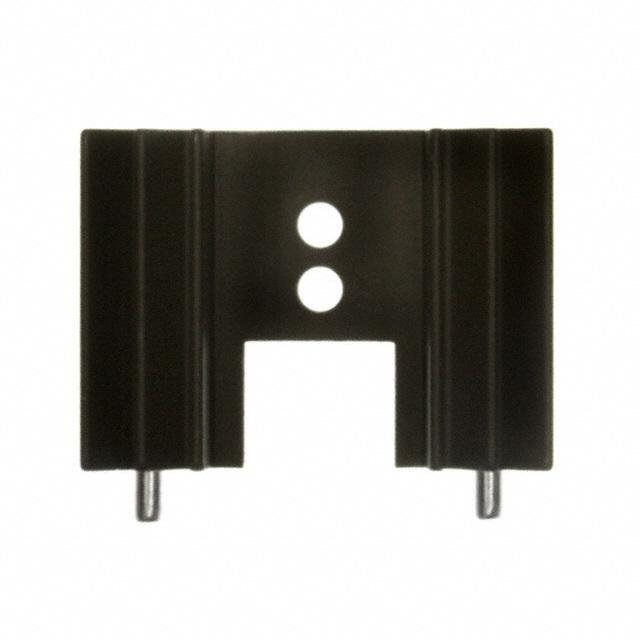

531002B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 13.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
10585 in stock

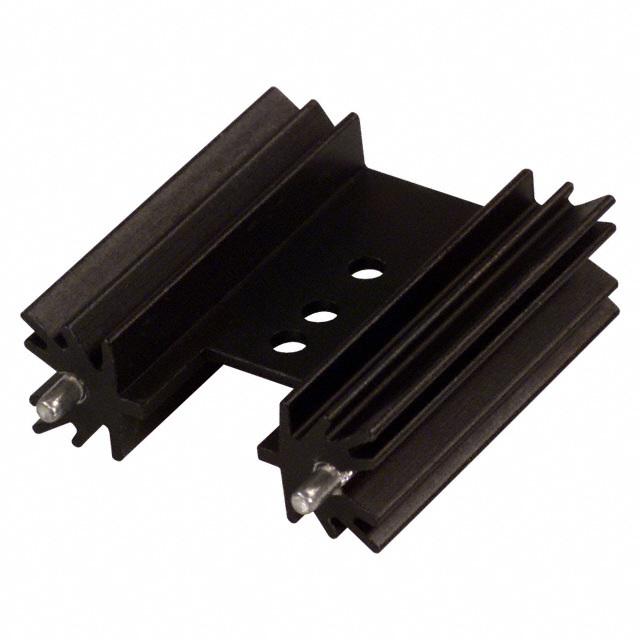

531102B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 7.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 10.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 7.0W @ 70°C
Thermal Resistance @ Forced Air Flow : 3.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 10.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5540 in stock

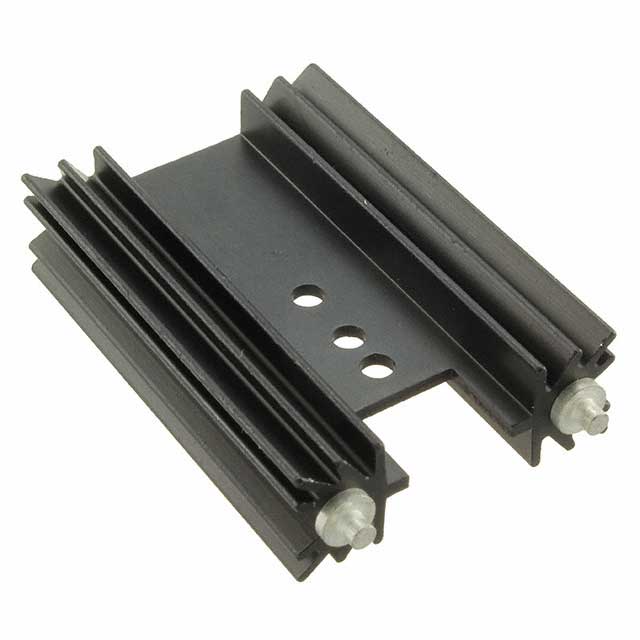

531202B02100G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 8.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 7.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 8.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 7.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1138 in stock

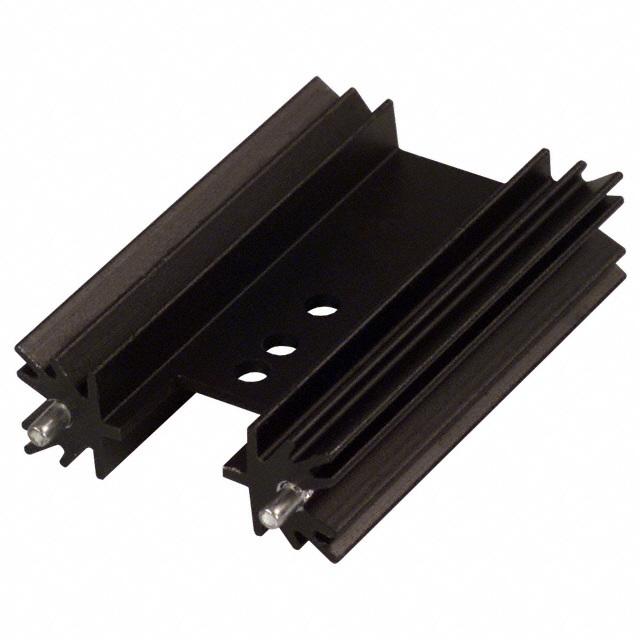

531202B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 5.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 7.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 5.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 7.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
5142 in stock

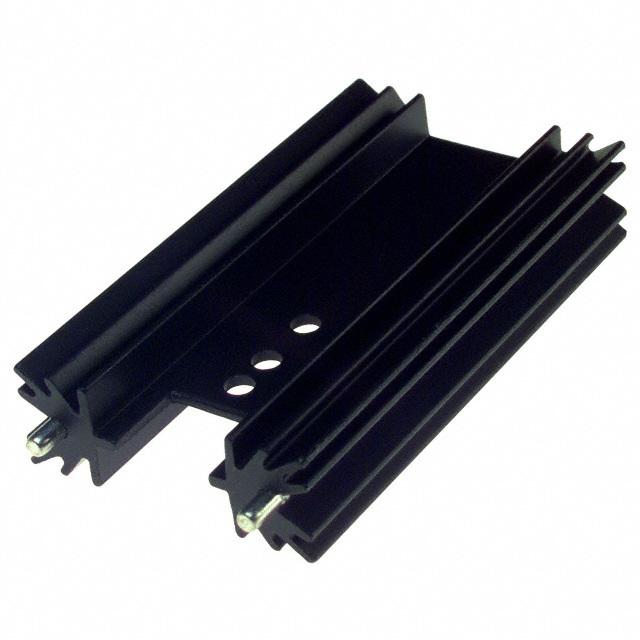

531302B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 6.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 8.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-202
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 6.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 8.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4389 in stock
532602B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 6.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 5.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 6.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 5.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3767 in stock

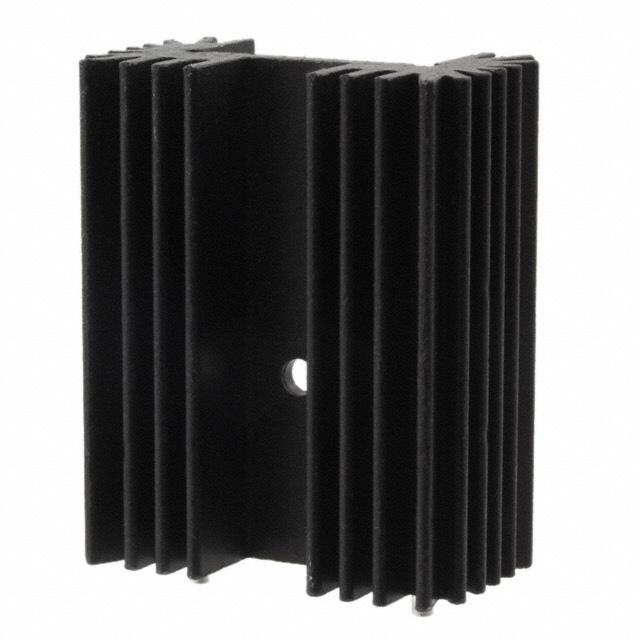

532702B02500G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 4.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.000" (50.80mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 4.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1858 in stock

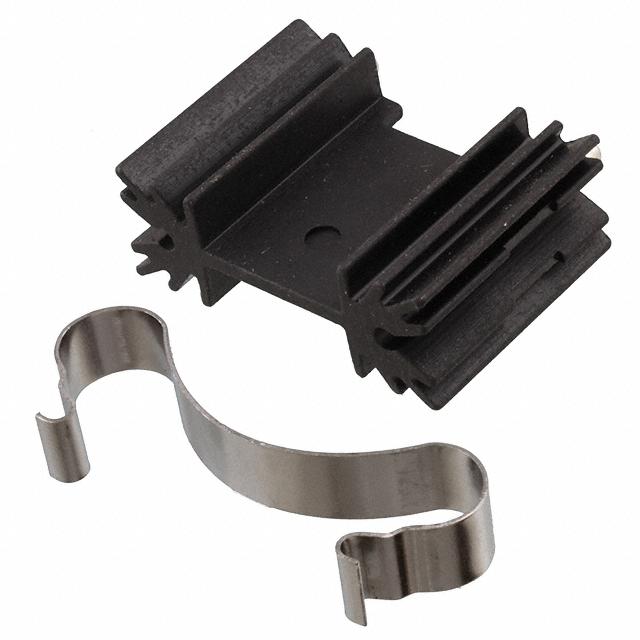

533002B02551G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 13.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.000" (25.40mm)
Width : 1.375" (34.93mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 13.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3142 in stock
533402B02552G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 8.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : 8.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4715 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
