Sunon
- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.
Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.
Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 45.5 dB(A)
Power (Watts) : 4.44W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.234 lb (106.14g)
0
170 in stock
Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 65.0 CFM (1.82m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 41.6 dB(A)
Power (Watts) : 2.76W
RPM : 3900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.234 lb (106.14g)
0
190 in stock
Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 65.0 CFM (1.82m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 41.6 dB(A)
Power (Watts) : 2.76W
RPM : 3900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.234 lb (106.14g)
0
178 in stock
Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 182.4 CFM (5.11m鲁/min)
Static Pressure : 2.940 in H2O (732.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 74.1 dB(A)
Power (Watts) : 48.00W
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.463 lb (210.01g)
0
30 in stock

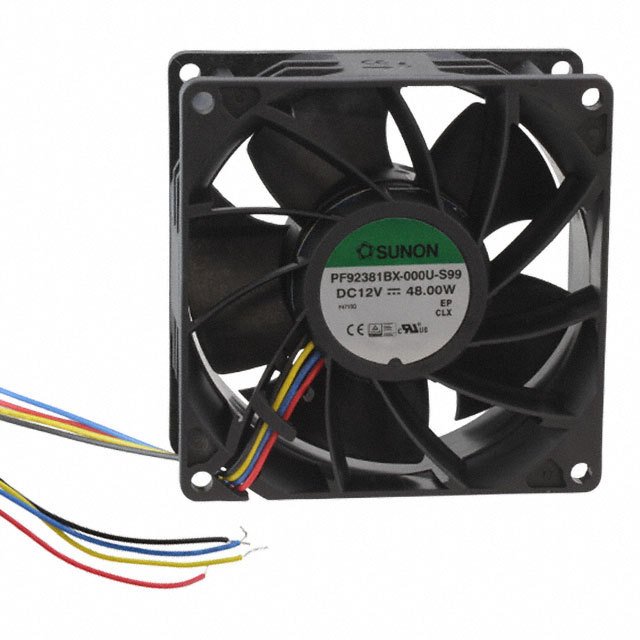

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 182.4 CFM (5.11m鲁/min)
Static Pressure : 2.940 in H2O (732.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 74.1 dB(A)
Power (Watts) : 48.00W
RPM : 13000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.463 lb (210.01g)
0
175 in stock
Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 97mm L x 95mm H
Width : 33.00mm
Air Flow : 44.2 CFM (1.24m鲁/min)
Static Pressure : 3.390 in H2O (844.4 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Auto Restart
Noise : 58.0 dB(A)
Power (Watts) : 19.20W
RPM : 5400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV, UL
Weight : 0.406 lb (184.16g)
0
28 in stock

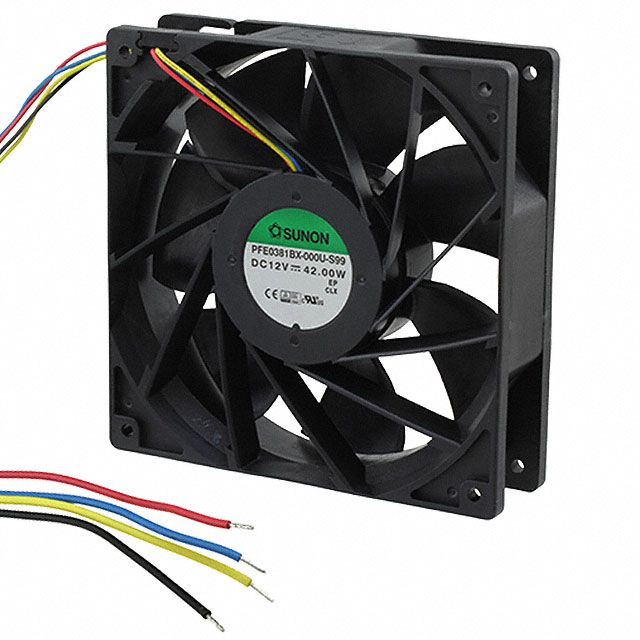

Sunon
Manufacturer : Sunon Fans
Series : PFE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 140mm L x 140mm H
Width : 38.00mm
Air Flow : 297.9 CFM (8.34m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 70.3 dB(A)
Power (Watts) : 39.60W
RPM : 6800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 1.102 lb (500.0g)
0
122 in stock

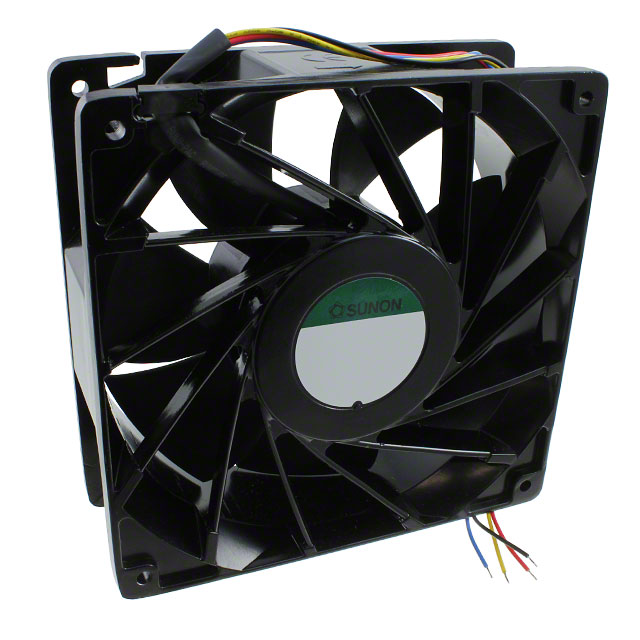

Sunon
Manufacturer : Sunon Fans
Series : PFE
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 140mm L x 140mm H
Width : 51.00mm
Air Flow : 250.3 CFM (7.01m鲁/min)
Static Pressure : 1.430 in H2O (356.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : -
Power (Watts) : 22.56W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 1.4 lbs (635g)
0
30 in stock
Sunon
Manufacturer : Sunon Fans
Series : PFE
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 140mm L x 140mm H
Width : 50.80mm
Air Flow : 250.3 CFM (7.01m鲁/min)
Static Pressure : 1.430 in H2O (356.2 Pa)
Bearing Type : Ball
Fan Type : -
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 63.4 dB(A)
Power (Watts) : 22.60W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 1.4 lbs (635g)
0
143 in stock
Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 35.9 CFM (1.01m鲁/min)
Static Pressure : 0.890 in H2O (221.7 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 53.8 dB(A)
Power (Watts) : 9.80W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.551 lb (249.93g)
0
361 in stock
Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 31.4 CFM (0.879m鲁/min)
Static Pressure : 0.640 in H2O (159.4 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.6 dB(A)
Power (Watts) : 5.40W
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.551 lb (249.93g)
0
29 in stock
Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 13.6 CFM (0.381m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 43.5 dB(A)
Power (Watts) : 3.60W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
69 in stock
