Sunon
- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.
Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.
Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.
Part Number
Manufacturer
Description
Unit Price
In Stock

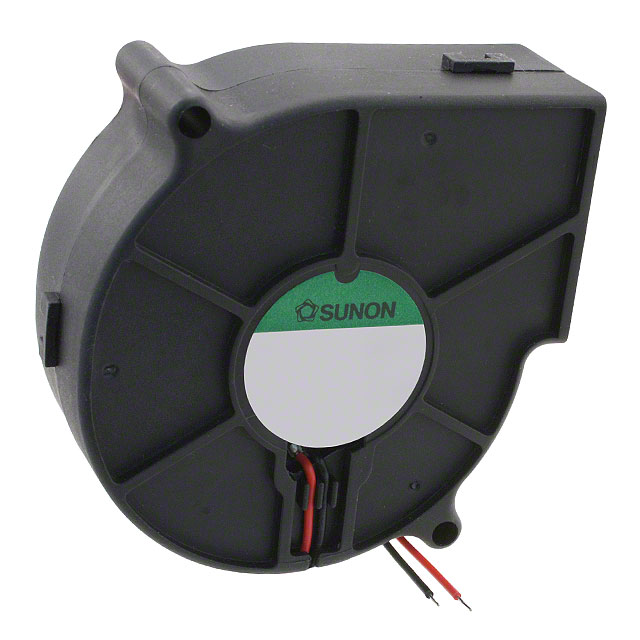

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 9.6 CFM (0.269m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 33.9 dB(A)
Power (Watts) : 1.60W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
379 in stock

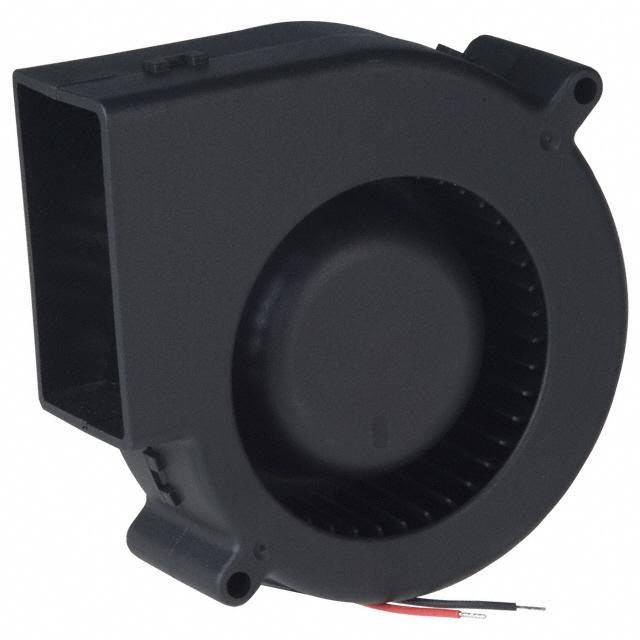

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 97.2mm L x 94.4mm H
Width : 33.00mm
Air Flow : 30.5 CFM (0.854m鲁/min)
Static Pressure : 0.920 in H2O (229.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 55.8 dB(A)
Power (Watts) : 8.60W
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.408 lb (185.07g)
0
273 in stock

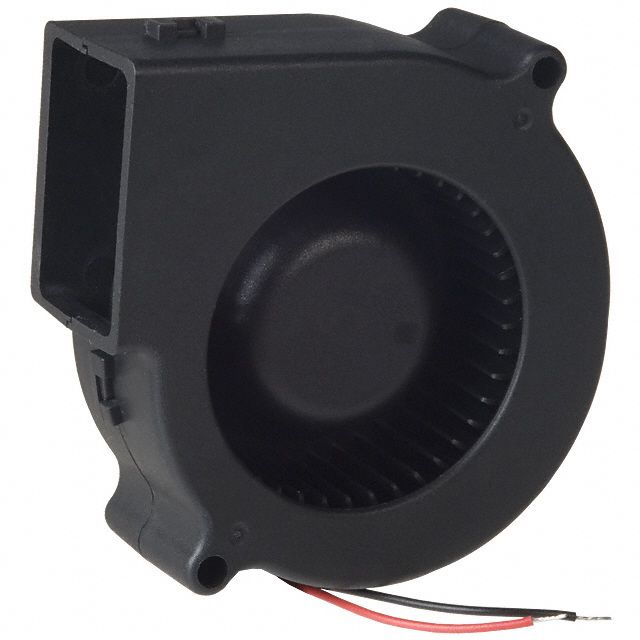

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 13.6 CFM (0.381m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Auto Restart
Noise : 43.5 dB(A)
Power (Watts) : 4.10W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
30 in stock
Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 9.6 CFM (0.269m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Auto Restart
Noise : 33.9 dB(A)
Power (Watts) : 1.90W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
17 in stock

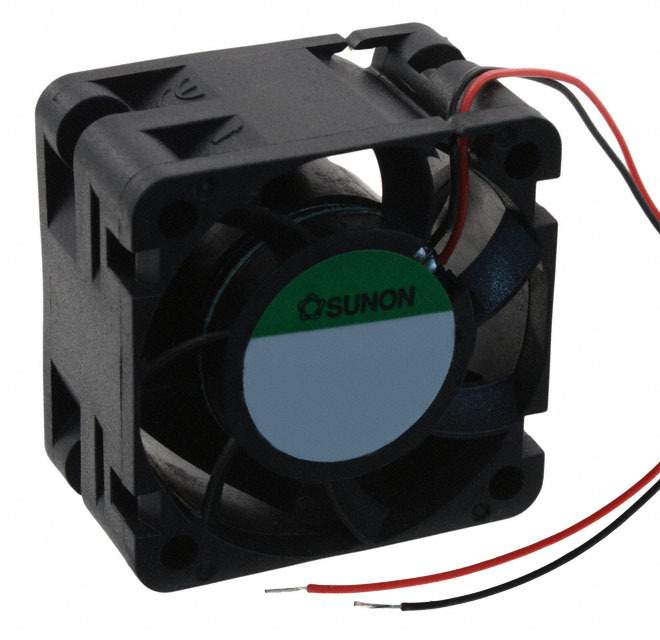

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 24.00mm
Air Flow : 23.5 CFM (0.658m鲁/min)
Static Pressure : 1.260 in H2O (313.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB(A)
Power (Watts) : 9.40W
RPM : 14500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.092 lb (41.73g)
0
1960 in stock

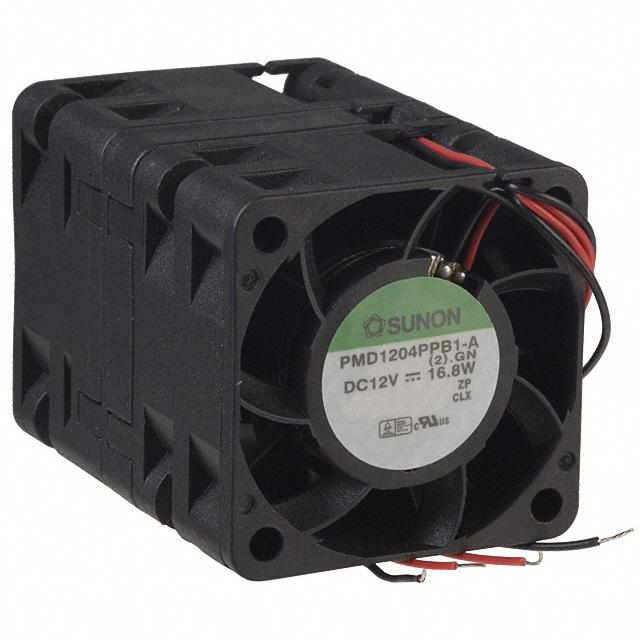

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 56.00mm
Air Flow : 26.5 CFM (0.742m鲁/min)
Static Pressure : 1.730 in H2O (430.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial (Dual)
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 16.80W
RPM : 14500 Front, 9500 Rear
Termination : 2 Wire Leads per Fan
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.195 lb (88.45g)
0
216 in stock

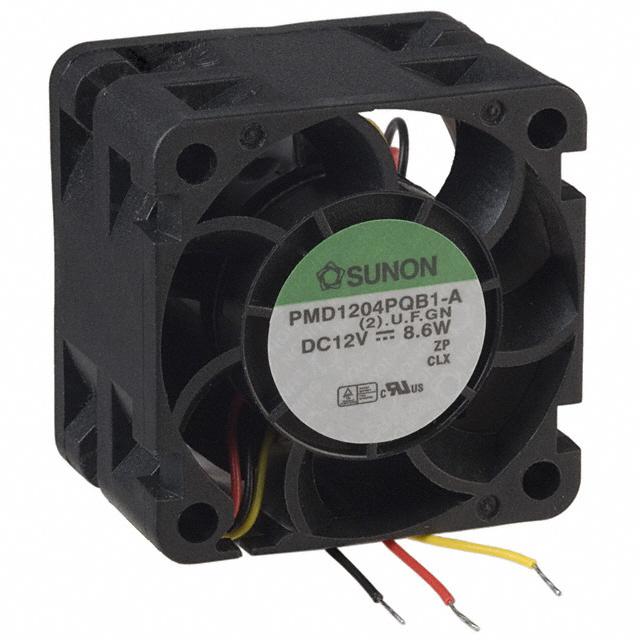

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 1.340 in H2O (333.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 55.5 dB(A)
Power (Watts) : 8.60W
RPM : 15000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.101 lb (45.81g)
0
304 in stock
Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 1.340 in H2O (333.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.5 dB(A)
Power (Watts) : 8.60W
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.101 lb (45.81g)
0
2779 in stock

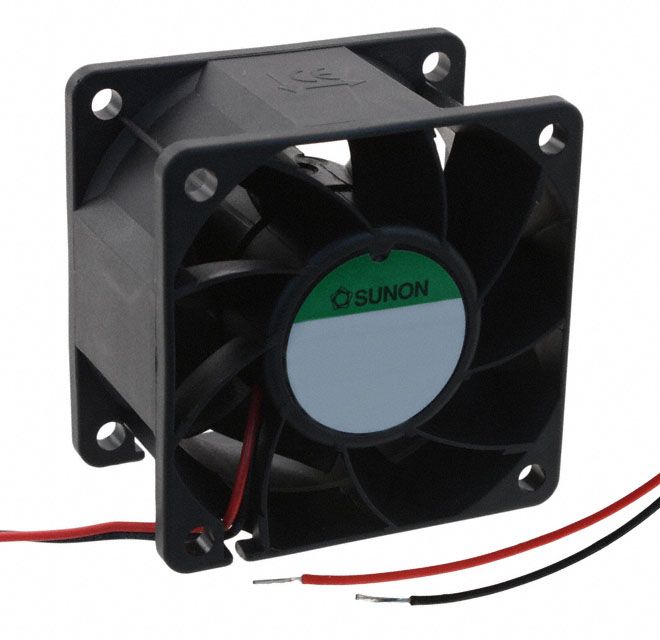

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 56.5 CFM (1.58m鲁/min)
Static Pressure : 0.920 in H2O (229.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 10.60W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.198 lb (89.81g)
0
1170 in stock

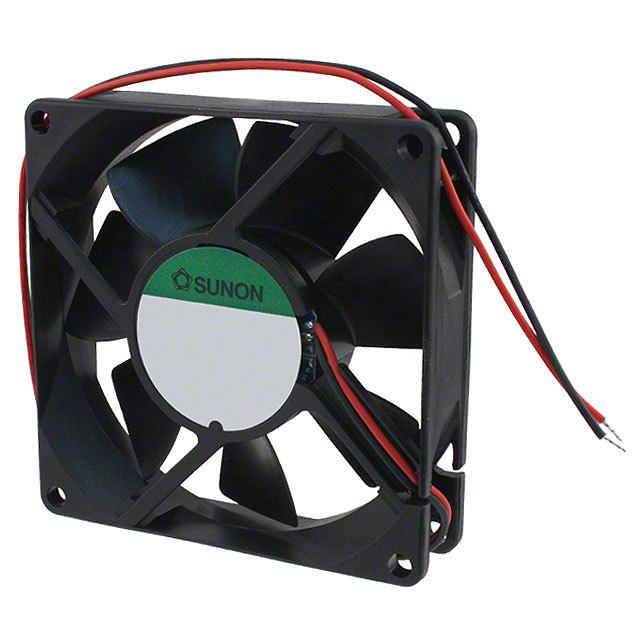

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.360 in H2O (89.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 49.0 dB(A)
Power (Watts) : 4.70W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.187 lb (84.82g)
0
1154 in stock

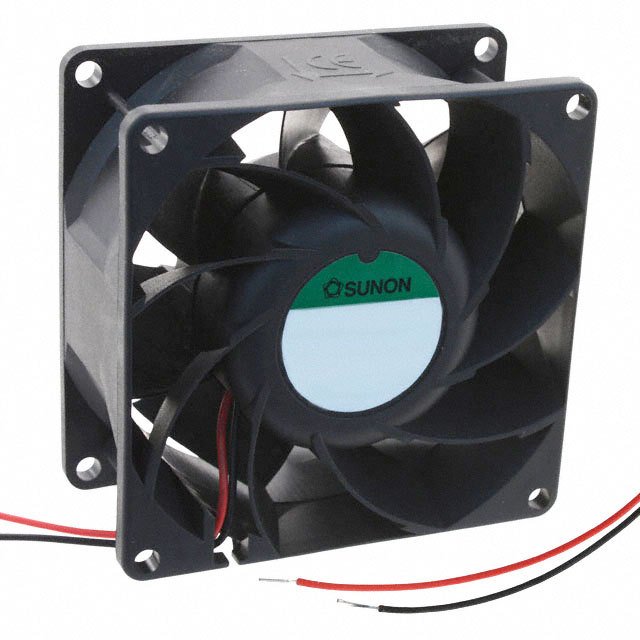

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 84.1 CFM (2.35m鲁/min)
Static Pressure : 0.740 in H2O (184.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.2 dB(A)
Power (Watts) : 9.10W
RPM : 5700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)
0
1762 in stock
Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 74.5 CFM (2.09m鲁/min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.6 dB(A)
Power (Watts) : 6.40W
RPM : 4900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)
0
829 in stock
