Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

UF385-100 UF385-100

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 8mm L x 8mm H
Width : 5.00mm
Air Flow : 0.010 CFM (0.0003m鲁/min)
Static Pressure : 0.012 in H2O (3.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 17.1 dB(A)
Power (Watts) : 200mW
RPM : 17000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.001 lb (0.45g)
0
65 in stock

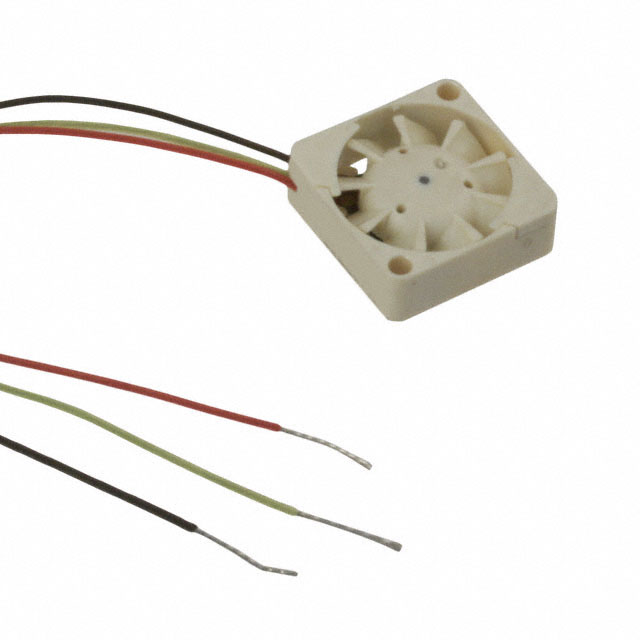

UF3A3-500 UF3A3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 10mm L x 10mm H
Width : 3.00mm
Air Flow : 0.121 CFM (0.003m鲁/min)
Static Pressure : 0.042 in H2O (10.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 27.3 dB(A)
Power (Watts) : 290mW
RPM : 17000 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.001 lb (0.45g)
0
195 in stock

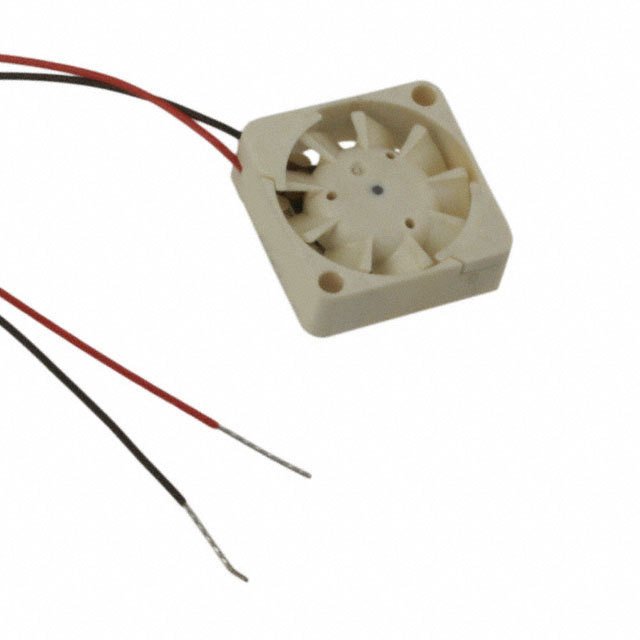

UF3A3-700 UF3A3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 10mm L x 10mm H
Width : 3.00mm
Air Flow : 0.121 CFM (0.003m鲁/min)
Static Pressure : 0.042 in H2O (10.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 27.3 dB(A)
Power (Watts) : 290mW
RPM : 17000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.001 lb (0.45g)
0
383 in stock

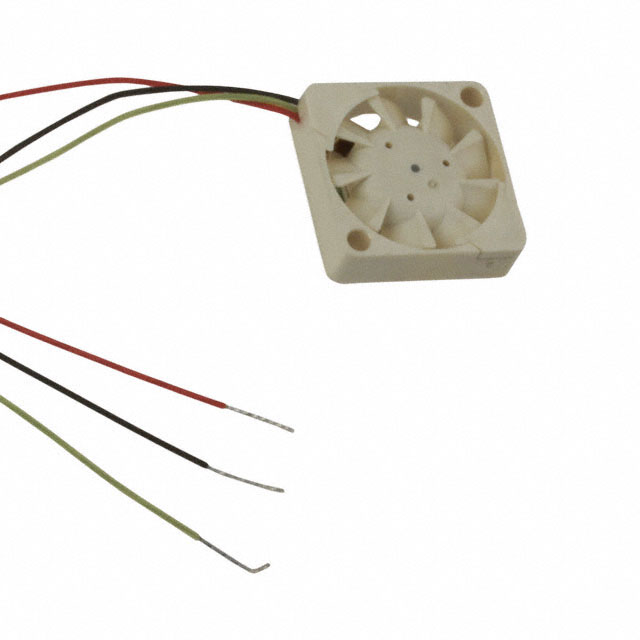

UF3C3-500 UF3C3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 12mm L x 12mm H
Width : 3.00mm
Air Flow : 0.210 CFM (0.006m鲁/min)
Static Pressure : 0.076 in H2O (18.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.3 dB(A)
Power (Watts) : 300mW
RPM : 16500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
284 in stock

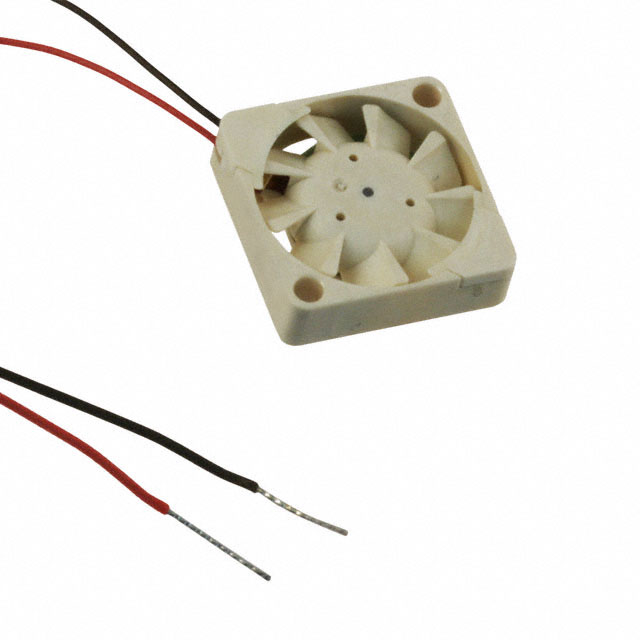

UF3C3-700 UF3C3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 12mm L x 12mm H
Width : 3.00mm
Air Flow : 0.210 CFM (0.006m鲁/min)
Static Pressure : 0.076 in H2O (18.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 28.3 dB(A)
Power (Watts) : 300mW
RPM : 16500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
763 in stock

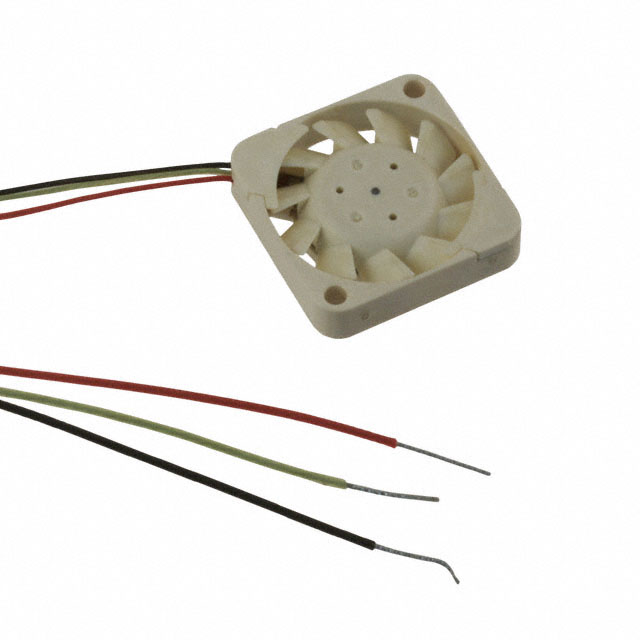

UF3F3-500 UF3F3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 15mm L x 15mm H
Width : 3.00mm
Air Flow : 0.309 CFM (0.009m鲁/min)
Static Pressure : 0.082 in H2O (20.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 100mW
RPM : 14500 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
1616 in stock

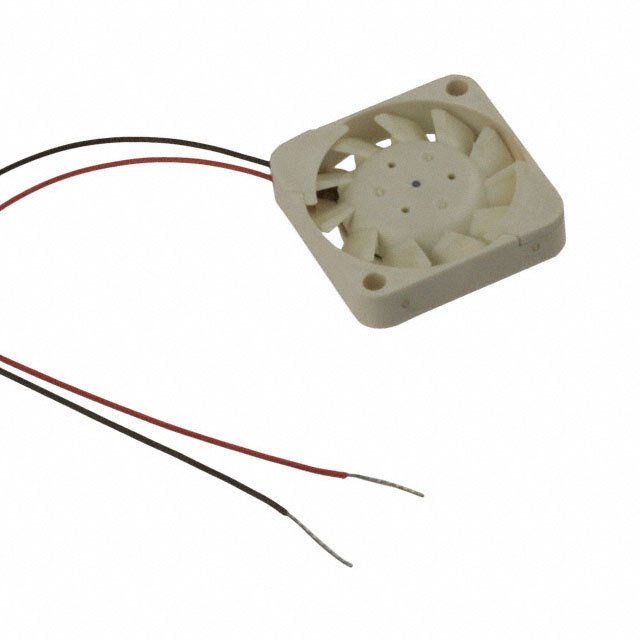

UF3F3-700 UF3F3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 15mm L x 15mm H
Width : 3.00mm
Air Flow : 0.309 CFM (0.009m鲁/min)
Static Pressure : 0.082 in H2O (20.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 100mW
RPM : 14500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
1302 in stock

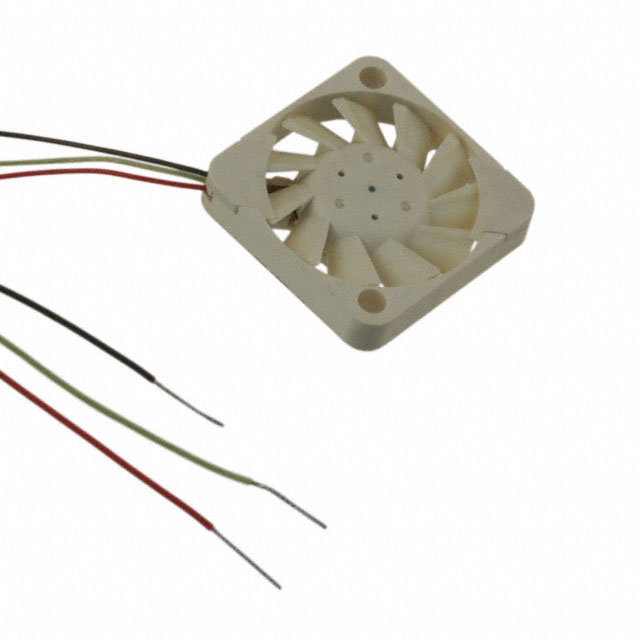

UF3H3-500 UF3H3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 3.00mm
Air Flow : 0.575 CFM (0.016m鲁/min)
Static Pressure : 0.085 in H2O (21.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : 100mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.003 lb (1.36g)
0
2769 in stock

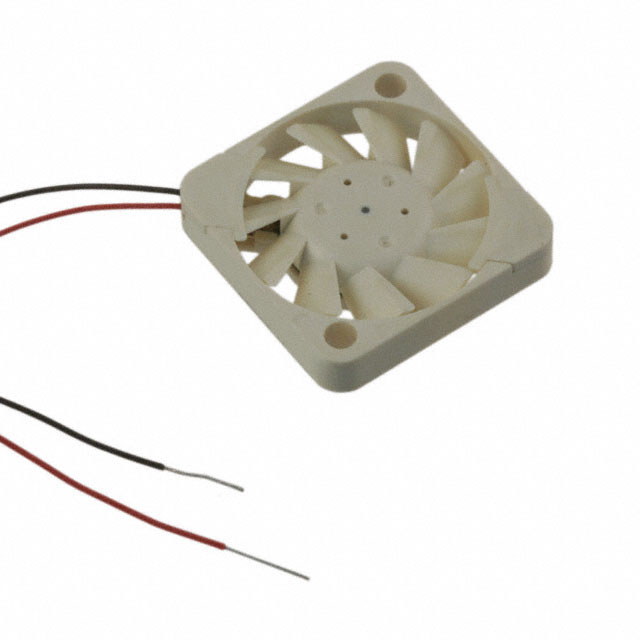

UF3H3-700 UF3H3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 3.00mm
Air Flow : 0.575 CFM (0.016m鲁/min)
Static Pressure : 0.085 in H2O (21.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB(A)
Power (Watts) : 100mW
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.003 lb (1.36g)
0
2012 in stock

UF3H3-710 UF3H3-710

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 3.00mm
Air Flow : 0.575 CFM (0.016m鲁/min)
Static Pressure : 0.085 in H2O (21.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB(A)
Power (Watts) : 100mW
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.003 lb (1.36g)
0
1049 in stock

UF3H3-710 V2 UF3H3-710 V2

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UF, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 3.00mm
Air Flow : 0.575 CFM (0.016m鲁/min)
Static Pressure : 0.085 in H2O (21.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB(A)
Power (Watts) : 100mW
RPM : 13000 RPM
Termination : 2 Position Rectangular Connector
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.003 lb (1.36g)
0
461 in stock

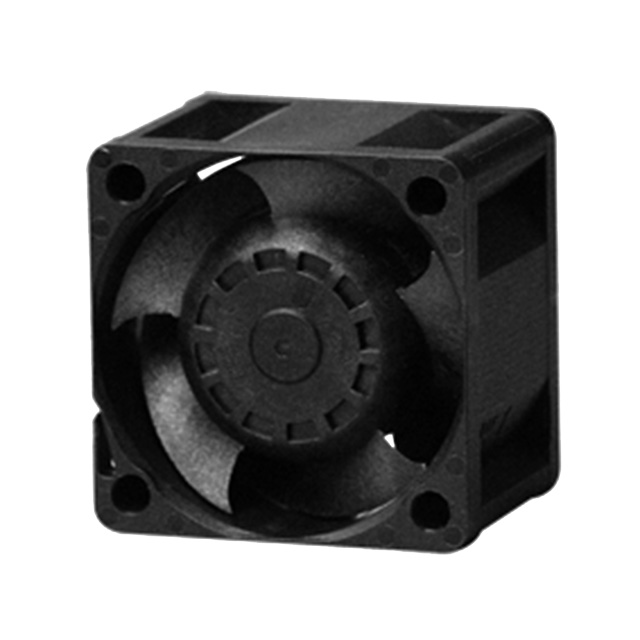

VF38281BX-000U-A9H VF38281BX-000U-A9H

Sunon
Manufacturer : Sunon Fans
Series : VF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 24.2 CFM (0.678m鲁/min)
Static Pressure : 3.560 in H2O (886.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 61.6 dB(A)
Power (Watts) : 10.44W
RPM : 27000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.098 lb (44.45g)
0
100 in stock
