Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

TA003-10003 TA003-10003

Sunon
Manufacturer : Sunon Fans
Packaging : -
Series : -
Part Status : Obsolete
Type : Fansink
For Use With/Related Products : -
Shape : Round
0
100 in stock

TA004-10003 TA004-10003

Sunon
Manufacturer : Sunon Fans
Packaging : -
Series : -
Part Status : Obsolete
Type : Fansink
For Use With/Related Products : -
Shape : Round
0
100 in stock

UB393-500 UB393-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 9mm L x 9mm H
Width : 3.00mm
Air Flow : 0.041 CFM (0.001m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 30.6 dB(A)
Power (Watts) : 280mW
RPM : 17400 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.001 lb (0.45g)
0
64 in stock

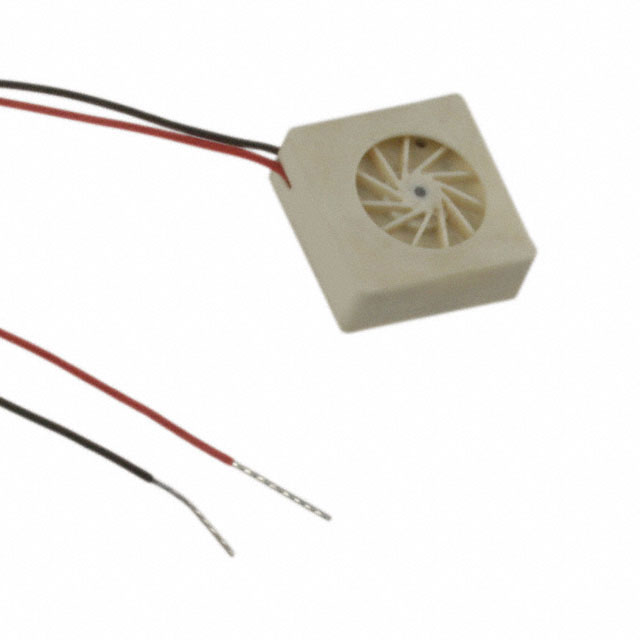

UB393-700 UB393-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 9mm L x 9mm H
Width : 3.00mm
Air Flow : 0.041 CFM (0.001m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : -
Noise : 30.6 dB(A)
Power (Watts) : 280mW
RPM : 17400 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.001 lb (0.45g)
0
266 in stock

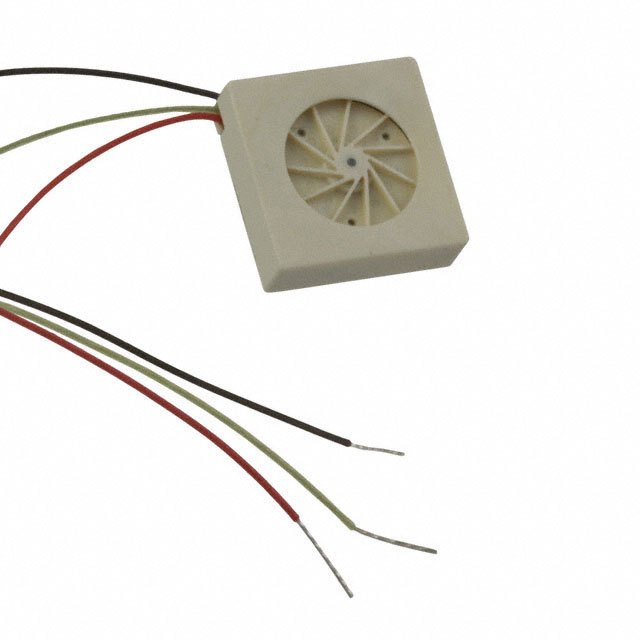

UB3C3-500 UB3C3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 12mm L x 12mm H
Width : 3.00mm
Air Flow : 0.094 CFM (0.003m鲁/min)
Static Pressure : 0.092 in H2O (23.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 26.6 dB(A)
Power (Watts) : 100mW
RPM : 15500 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
171 in stock

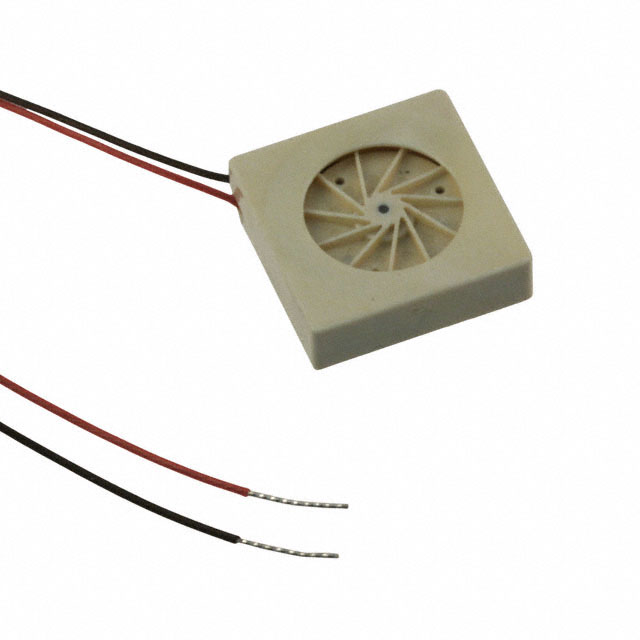

UB3C3-700 UB3C3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 12mm L x 12mm H
Width : 3.00mm
Air Flow : 0.094 CFM (0.003m鲁/min)
Static Pressure : 0.092 in H2O (23.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : -
Noise : 26.6 dB(A)
Power (Watts) : 100mW
RPM : 15500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
141 in stock

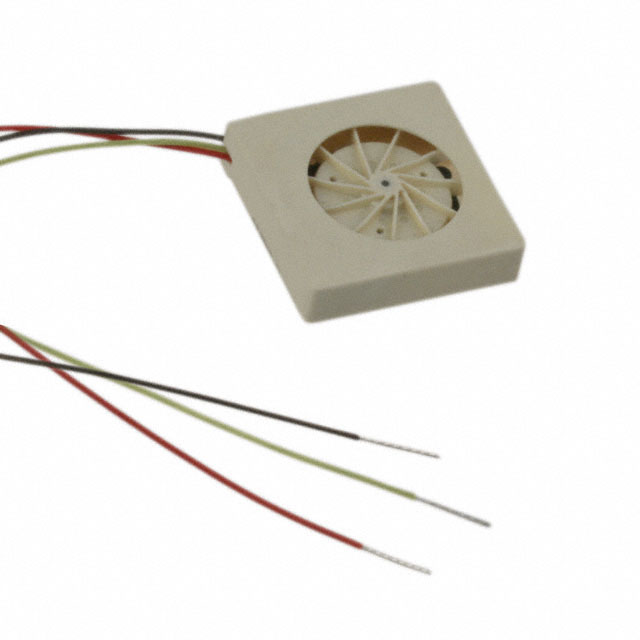

UB3F3-500 UB3F3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 15mm L x 15mm H
Width : 3.00mm
Air Flow : 0.160 CFM (0.004m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 34.1 dB(A)
Power (Watts) : 100mW
RPM : 14000 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
518 in stock

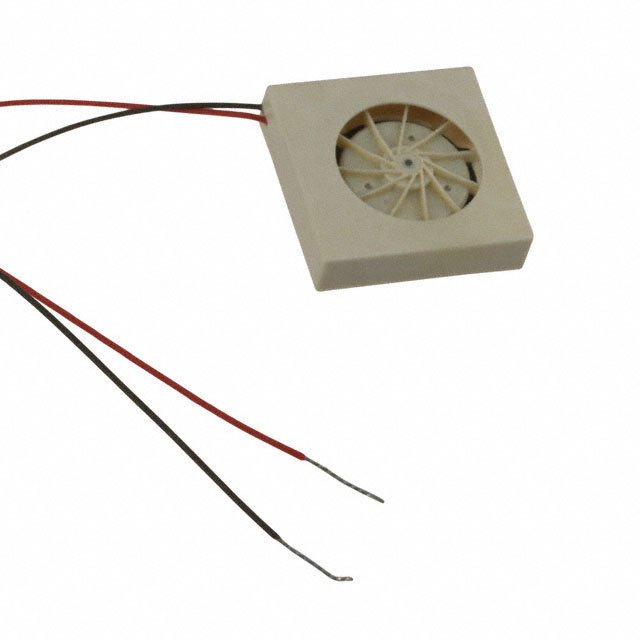

UB3F3-700 UB3F3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 15mm L x 15mm H
Width : 3.00mm
Air Flow : 0.160 CFM (0.004m鲁/min)
Static Pressure : 0.116 in H2O (28.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : -
Noise : 34.1 dB(A)
Power (Watts) : 100mW
RPM : 14000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
336 in stock

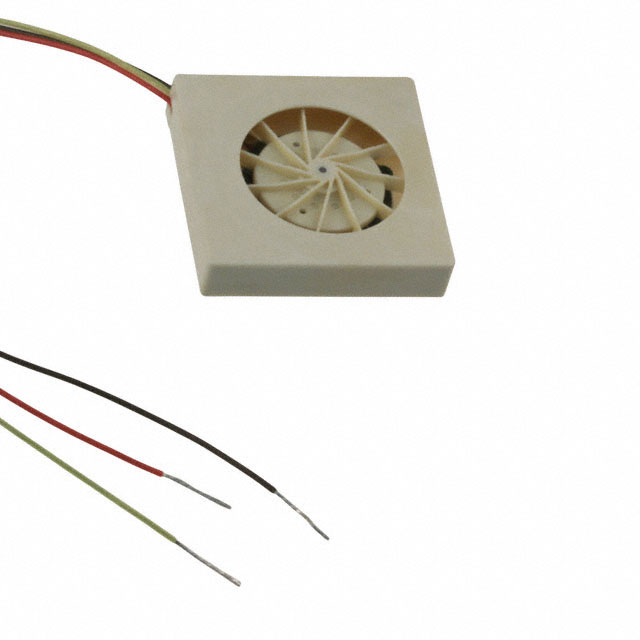

UB3H3-500 UB3H3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 3.00mm
Air Flow : 0.218 CFM (0.006m鲁/min)
Static Pressure : 0.162 in H2O (40.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 32.6 dB(A)
Power (Watts) : 100mW
RPM : 12500 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
506 in stock

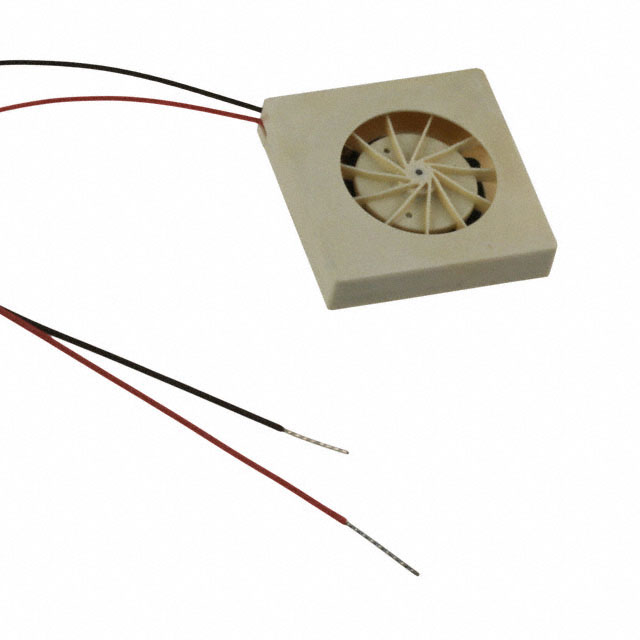

UB3H3-700 UB3H3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 3VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 3.00mm
Air Flow : 0.218 CFM (0.006m鲁/min)
Static Pressure : 0.162 in H2O (40.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : -
Noise : 32.6 dB(A)
Power (Watts) : 100mW
RPM : 12500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.002 lb (0.91g)
0
1670 in stock

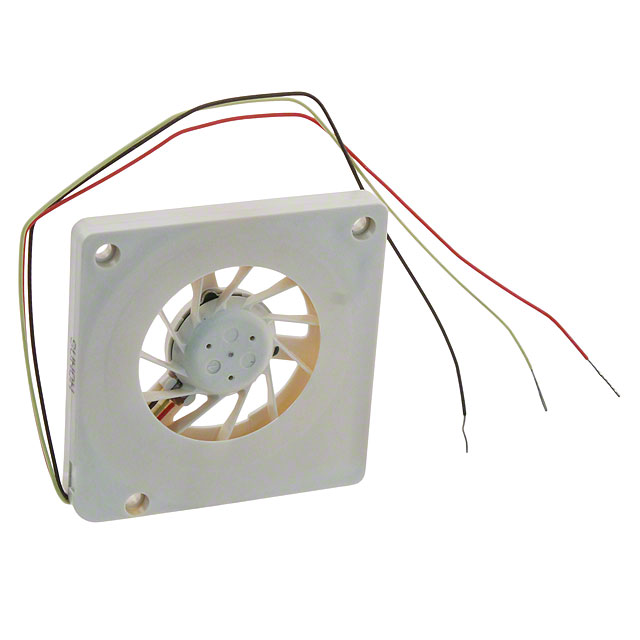

UB5U3-500 UB5U3-500

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 3.00mm
Air Flow : 0.630 CFM (0.018m鲁/min)
Static Pressure : 0.354 in H2O (88.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 39.2 dB(A)
Power (Watts) : 360mW
RPM : 9500 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.005 lb (2.27g)
0
2833 in stock

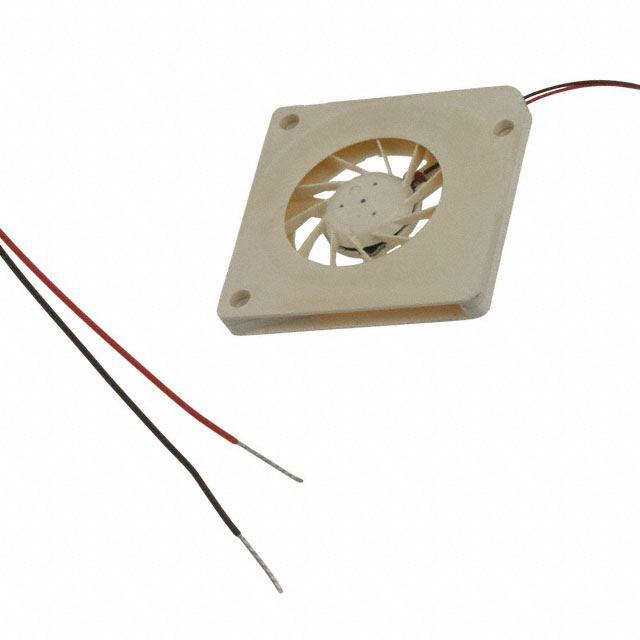

UB5U3-700 UB5U3-700

Sunon
Manufacturer : Sunon Fans
Series : MagLev® UB, Mighty Mini
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 3.00mm
Air Flow : 0.630 CFM (0.018m鲁/min)
Static Pressure : 0.354 in H2O (88.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : -
Noise : 39.2 dB(A)
Power (Watts) : 360mW
RPM : 9500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.005 lb (2.27g)
0
2203 in stock
