Welcome to Weijie Semiconductor

Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

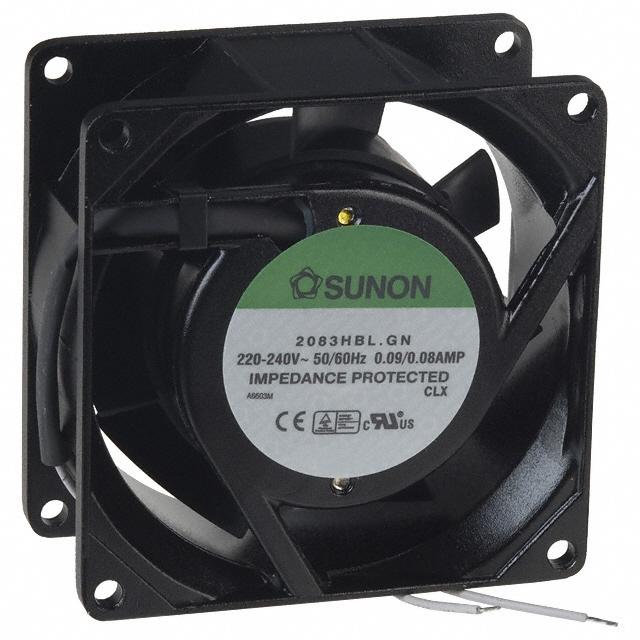

SF23080A-2083HSL.GN SF23080A-2083HSL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 16.00W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.75 lb (340.19g)
0
133 in stock

SF23080AT-2082HBL.GN SF23080AT-2082HBL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.50mm
Air Flow : 22.0 CFM (0.616m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.5 dB(A)
Power (Watts) : 13.50W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.573 lb (259.91g)
0
28 in stock

SF23080AT-2082HSL.GN SF23080AT-2082HSL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.50mm
Air Flow : 21.0 CFM (0.588m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 13.50W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.573 lb (259.91g)
0
30 in stock

SF23092A2092HBL.GN SF23092A2092HBL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 91.5mm L x 91.5mm H
Width : 25.50mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB(A)
Power (Watts) : 14.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.617 lb (279.87g)
0
476 in stock

SF23092A-2092HBT SF23092A-2092HBT

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Obsolete
Voltage - Rated : 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB(A)
Power (Watts) : 14.00W
RPM : 2850 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : BSMI, CCC, CE, cUL, TUV, UL
Weight : 0.613 lb (278.05g)
0
100 in stock

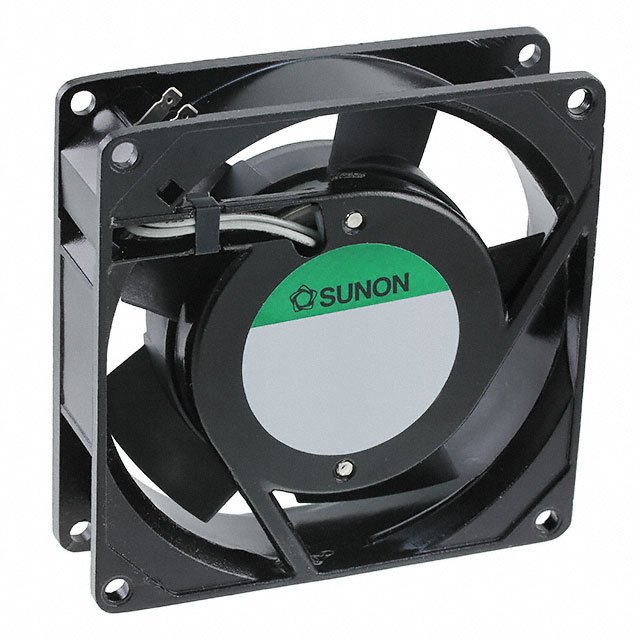

SF23092A-2092HBT.GN SF23092A-2092HBT.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 91.5mm L x 91.5mm H
Width : 25.50mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB(A)
Power (Watts) : 14.00W
RPM : 2850 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.617 lb (279.87g)
0
30 in stock

SF23092A-2092HSL.GN SF23092A-2092HSL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 91.5mm L x 91.5mm H
Width : 25.50mm
Air Flow : 36.0 CFM (1.01m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB(A)
Power (Watts) : 14.00W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.617 lb (279.87g)
0
481 in stock

SF23092A-2092HST.GN SF23092A-2092HST.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 91.5mm L x 91.5mm H
Width : 25.50mm
Air Flow : 36.0 CFM (1.01m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB(A)
Power (Watts) : 14.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.617 lb (279.87g)
0
30 in stock

SF23092A2092MBL.GN SF23092A2092MBL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 240VAC
Size / Dimension : Square - 91.5mm L x 91.5mm H
Width : 25.50mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : 14.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.617 lb (279.87g)
0
30 in stock

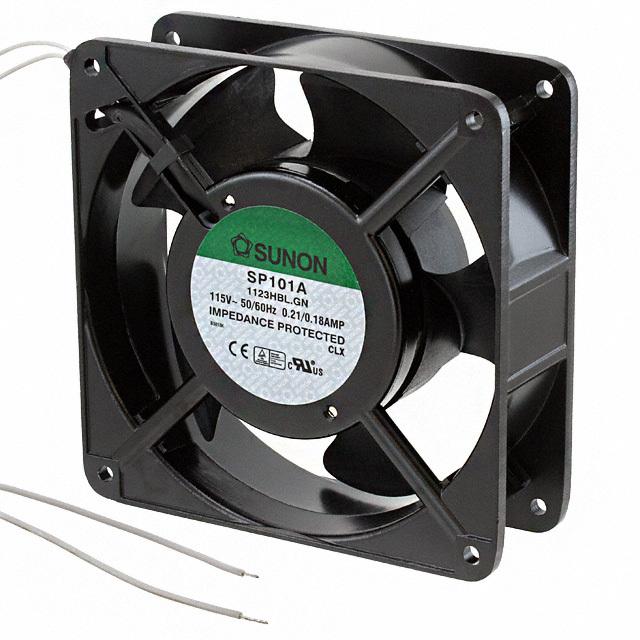

SP100A-1123XBL.GN SP100A-1123XBL.GN

Sunon
Manufacturer : Sunon Fans
Series : SP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.50mm
Air Flow : 117.0 CFM (3.28m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 20.00W
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
21 in stock

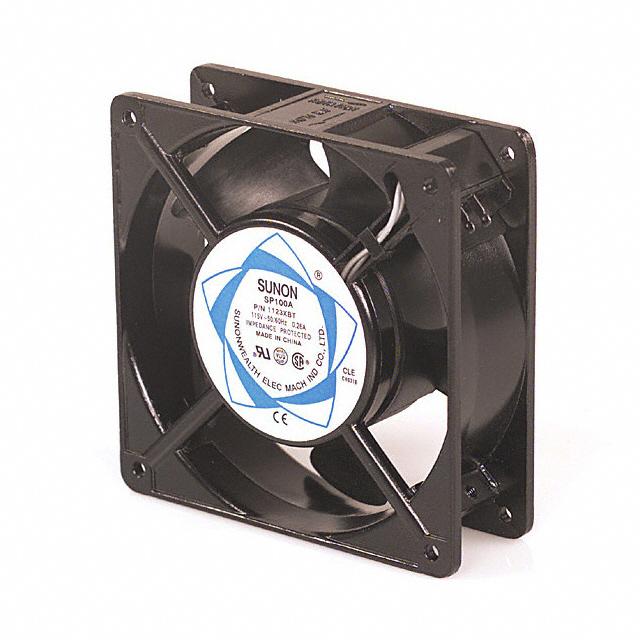

SP100A-1123XBT SP100A-1123XBT

Sunon
Manufacturer : Sunon Fans
Series : SP
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 117.0 CFM (3.28m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 20.00W
RPM : 3150 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
100 in stock

SP100A-1123XBT.GN SP100A-1123XBT.GN

Sunon
Manufacturer : Sunon Fans
Series : SP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 117.0 CFM (3.28m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 20.00W
RPM : 3150 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL
Weight : 1.2 lbs (544.3g)
0
1096 in stock
