Welcome to Weijie Semiconductor

Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

SA000-12004 SA000-12004

Sunon
Manufacturer : Sunon Fans
Packaging : Bulk
Series : -
Part Status : Active
Type : Heat Sink
For Use With/Related Products : Spotlights
Shape : Round
0
66 in stock

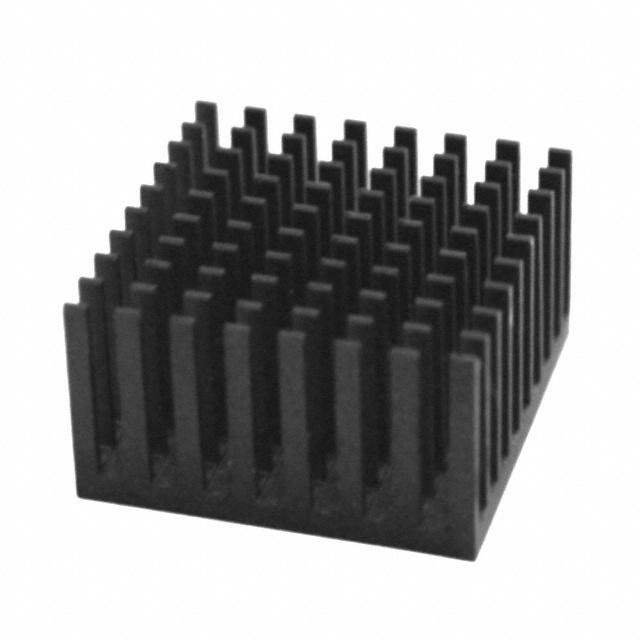

SA000-12009 SA000-12009

Sunon
Manufacturer : Sunon Fans
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : -
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.790" (20.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
70 in stock

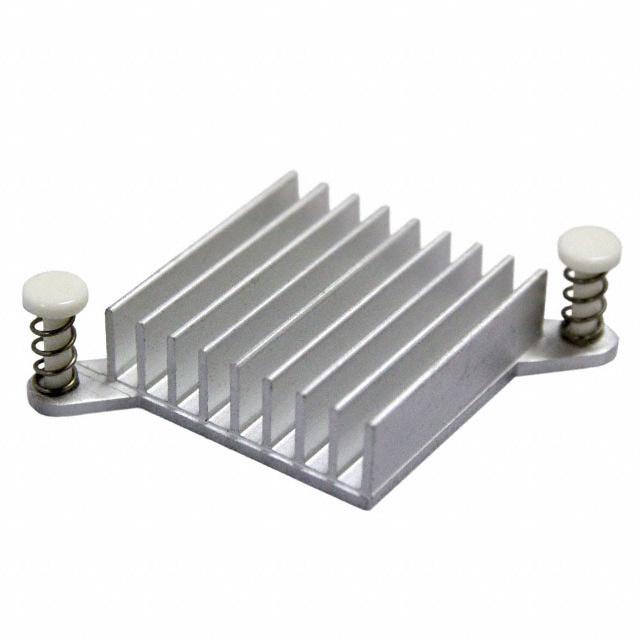

SA000-12016 SA000-12016

Sunon
Manufacturer : Sunon Fans
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : -
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.236" (31.40mm)
Width : 1.236" (31.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
151 in stock

SA000-12028 SA000-12028

Sunon
Manufacturer : Sunon Fans
Packaging : Bulk
Series : -
Part Status : Active
Type : Heat Sink
For Use With/Related Products : Spotlights
Shape : Round
0
47 in stock

SA000-12055 SA000-12055

Sunon
Manufacturer : Sunon Fans
Packaging : Bulk
Series : -
Part Status : Active
Type : Heat Sink
For Use With/Related Products : Spotlights
Shape : Round
0
45 in stock

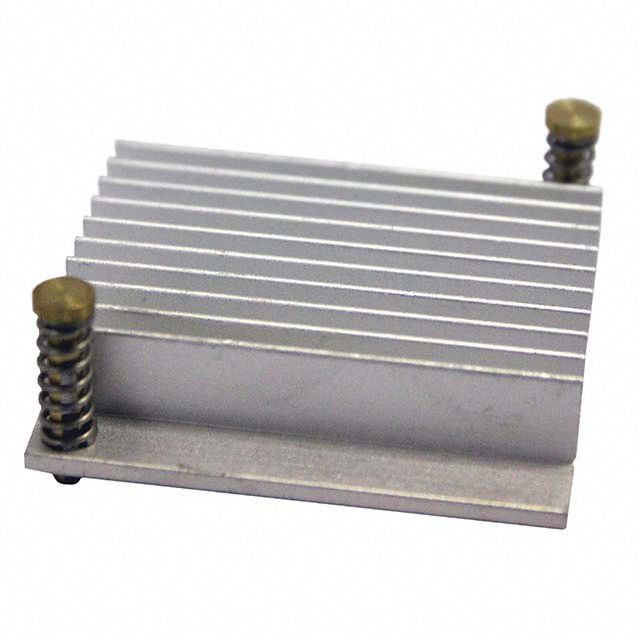

SA000-13007 SA000-13007

Sunon
Manufacturer : Sunon Fans
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : -
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.705" (43.30mm)
Width : 1.713" (43.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : -
0
399 in stock

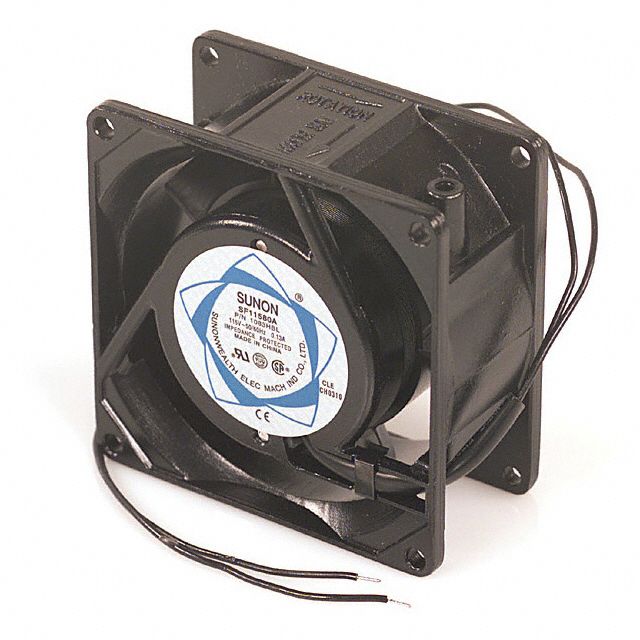

SF11580A-1083HBL SF11580A-1083HBL

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.5 dB(A)
Power (Watts) : 12.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CSA, UL
Weight : 0.75 lb (340.19g)
0
100 in stock

SF11580A-1083HBL.GN SF11580A-1083HBL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.5 dB(A)
Power (Watts) : 12.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.75 lb (340.19g)
0
236 in stock

SF11580A-1083HSL SF11580A-1083HSL

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 12.00W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CSA, UL
Weight : 0.75 lb (340.19g)
0
100 in stock

SF11580A-1083HSL.GN SF11580A-1083HSL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 12.00W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.75 lb (340.19g)
0
340 in stock

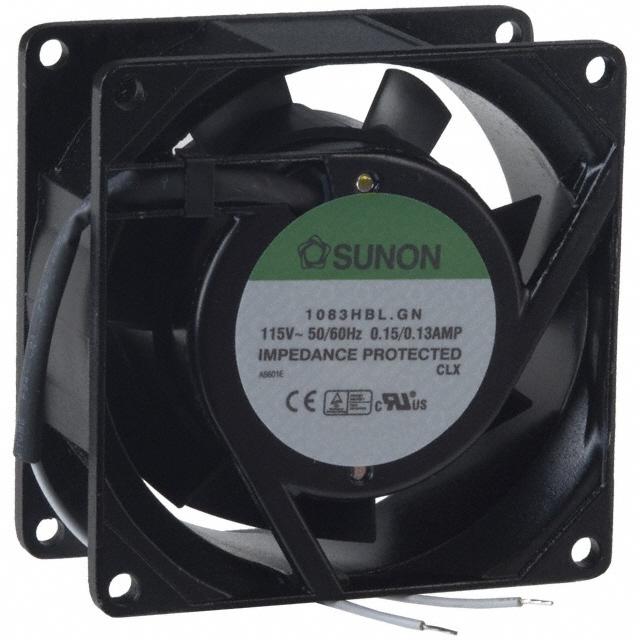

SF11580AT-1082HBL.GN SF11580AT-1082HBL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.50mm
Air Flow : 22.0 CFM (0.616m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.5 dB(A)
Power (Watts) : 11.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.573 lb (259.91g)
0
28 in stock

SF11580AT-1082HSL.GN SF11580AT-1082HSL.GN

Sunon
Manufacturer : Sunon Fans
Series : SF
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.50mm
Air Flow : 21.0 CFM (0.588m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 11.00W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.573 lb (259.91g)
0
30 in stock
