Welcome to Weijie Semiconductor

Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

PF80201V1-000U-A99 PF80201V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 48.0 dB(A)
Power (Watts) : 3.42W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.188 lb (85.28g)
0
30 in stock

PF80201V1-000U-G99 PF80201V1-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 48.0 dB(A)
Power (Watts) : 3.42W
RPM : 4600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.188 lb (85.28g)
0
29 in stock

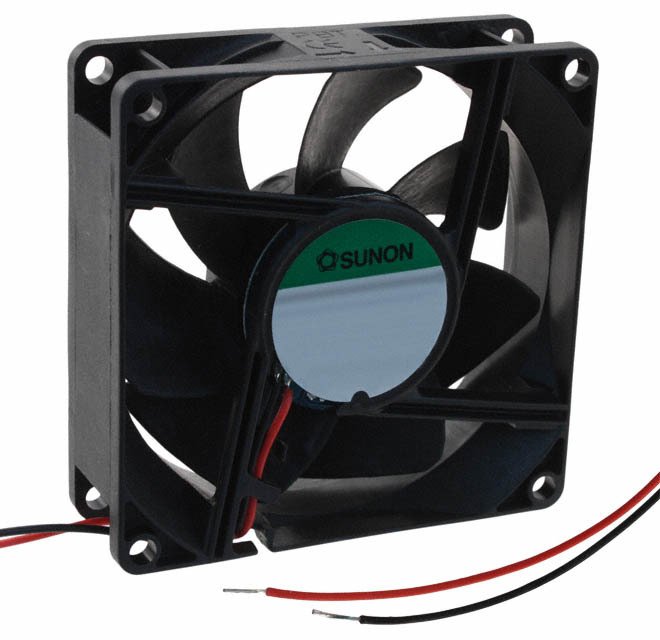

PF80251B1-000U-A99 PF80251B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 47.5 dB(A)
Power (Watts) : 4.10W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)
0
3656 in stock

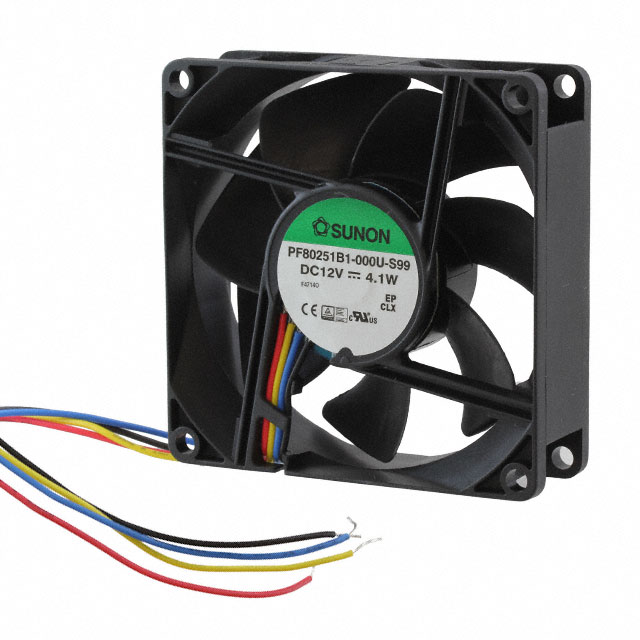

PF80251B1-000U-S99 PF80251B1-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 47.5 dB(A)
Power (Watts) : 4.10W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)
0
459 in stock

PF80251V1-1000U-F99 PF80251V1-1000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 44.7 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)
0
194 in stock

PF80251V1-1000U-G99 PF80251V1-1000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 44.7 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)
0
173 in stock

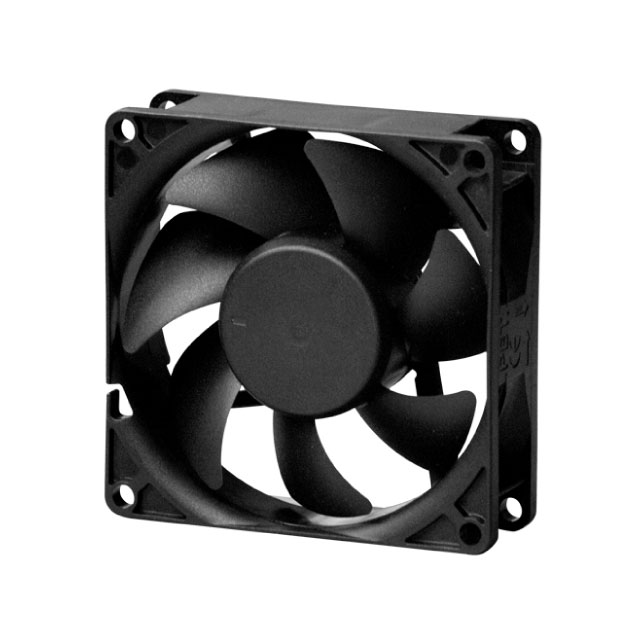

PF80251V3-1000U-F99 PF80251V3-1000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 41.5 dB(A)
Power (Watts) : 2.40W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)
0
158 in stock

PF80251V3-1000U-G99 PF80251V3-1000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 41.5 dB(A)
Power (Watts) : 2.40W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)
0
196 in stock

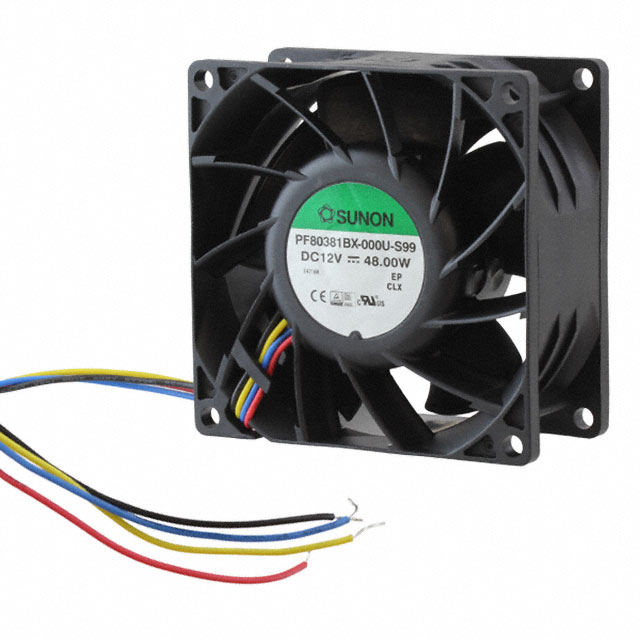

PF80381BX-000U-S99 PF80381BX-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 141.9 CFM (3.97m鲁/min)
Static Pressure : 3.200 in H2O (797.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 74.1 dB(A)
Power (Watts) : 48.00W
RPM : 14000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.43 lb (195.04g)
0
1250 in stock

PF92251B1-000U-A99 PF92251B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.216 lb (97.98g)
0
776 in stock

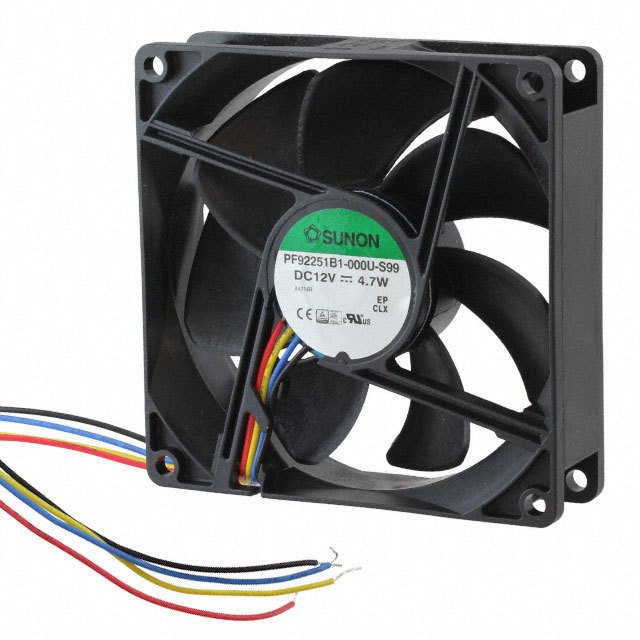

PF92251B1-000U-S99 PF92251B1-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.228 lb (103.42g)
0
8386 in stock

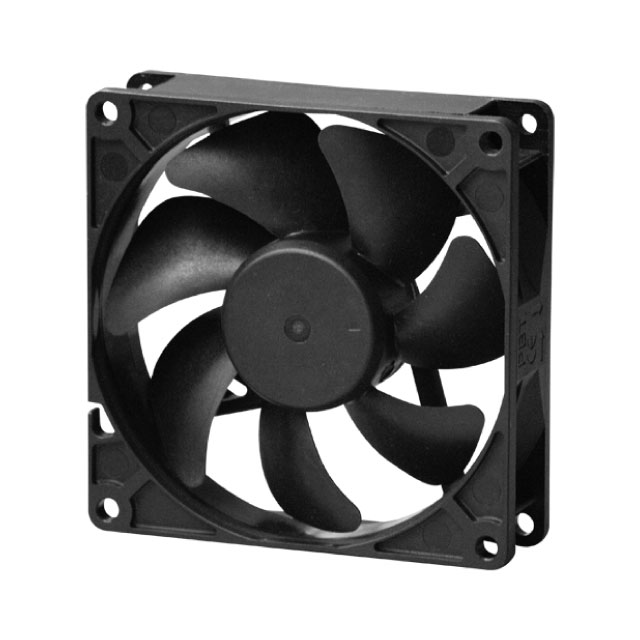

PF92251V1-1000U-F99 PF92251V1-1000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 45.5 dB(A)
Power (Watts) : 4.44W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.234 lb (106.14g)
0
172 in stock
