Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

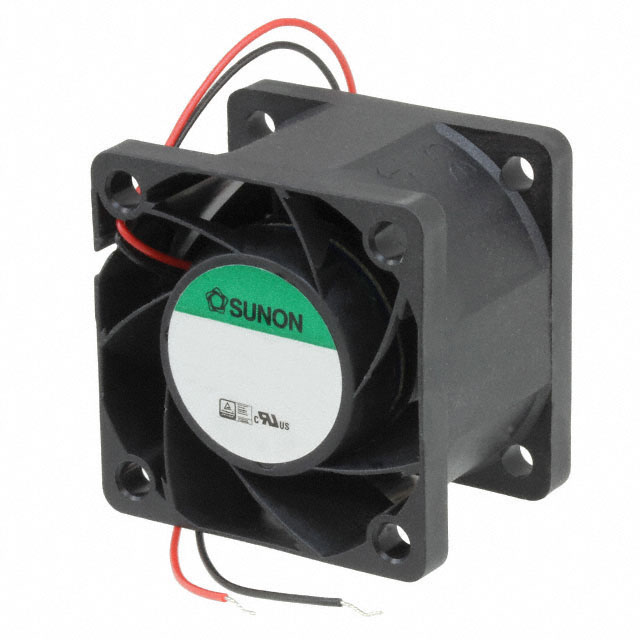

PF38281B4-000U-A99 PF38281B4-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 11.3 CFM (0.316m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 42.8 dB(A)
Power (Watts) : 1.38W
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.088 lb (39.92g)
0
30 in stock

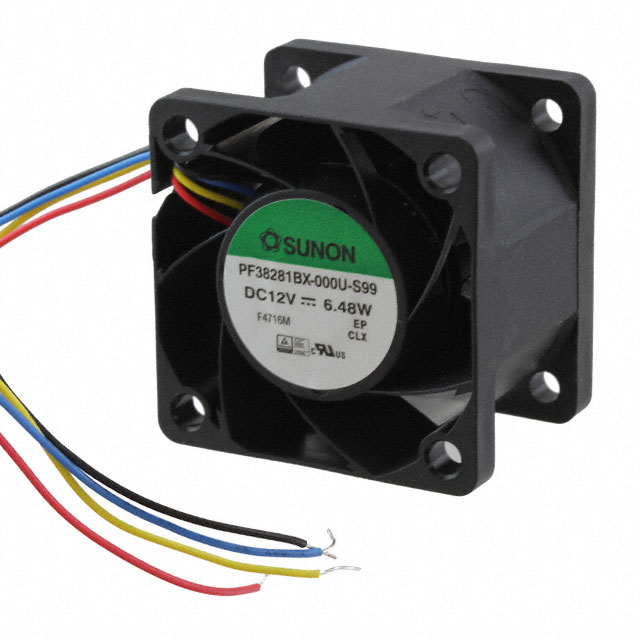

PF38281BX-000U-S99 PF38281BX-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 2.230 in H2O (555.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 59.0 dB(A)
Power (Watts) : 6.24W
RPM : 20000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.091 lb (41.28g)
0
547 in stock

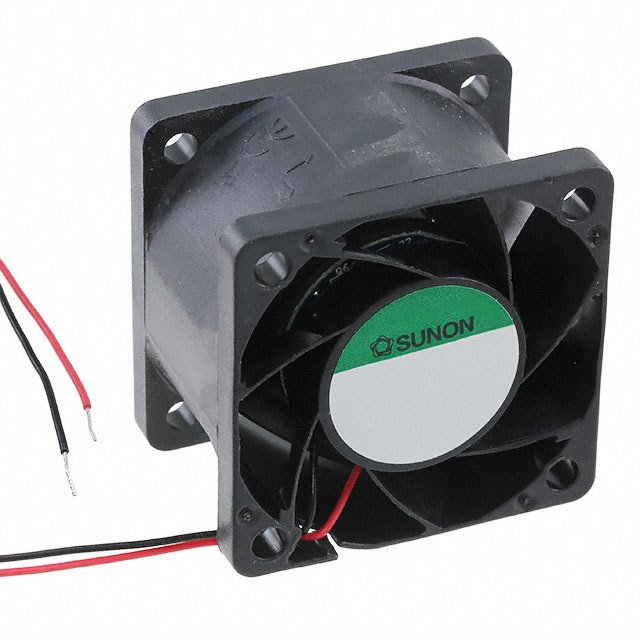

PF40281B1-000U-A99 PF40281B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.9 CFM (0.697m鲁/min)
Static Pressure : 1.950 in H2O (485.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 58.8 dB(A)
Power (Watts) : 6.12W
RPM : 17600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
262 in stock

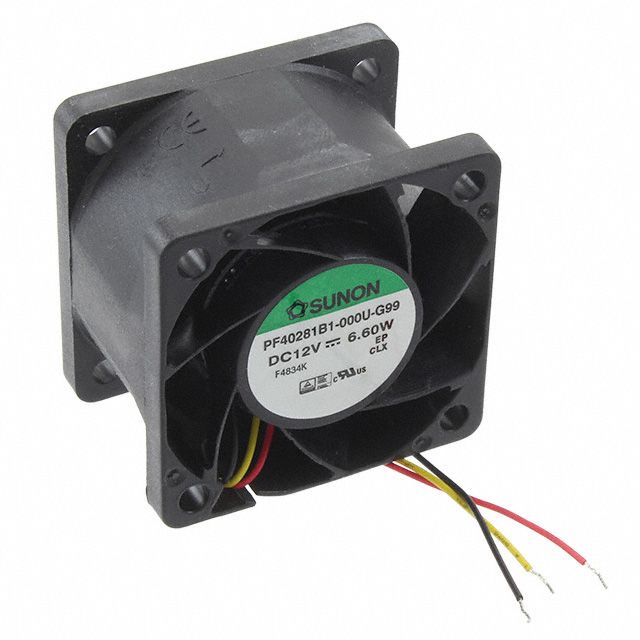

PF40281B1-000U-G99 PF40281B1-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.9 CFM (0.697m鲁/min)
Static Pressure : 1.950 in H2O (485.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 58.8 dB(A)
Power (Watts) : 6.12W
RPM : 17600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
1395 in stock

PF40281B1-000U-S99 PF40281B1-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.9 CFM (0.697m鲁/min)
Static Pressure : 1.950 in H2O (485.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 58.8 dB(A)
Power (Watts) : 6.12W
RPM : 17600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
454 in stock

PF40281B2-000U-A99 PF40281B2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 1.100 in H2O (274.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 50.7 dB(A)
Power (Watts) : 3.00W
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
30 in stock

PF40281B3-000U-A99 PF40281B3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 15.4 CFM (0.431m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 45.9 dB(A)
Power (Watts) : 1.95W
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
37 in stock

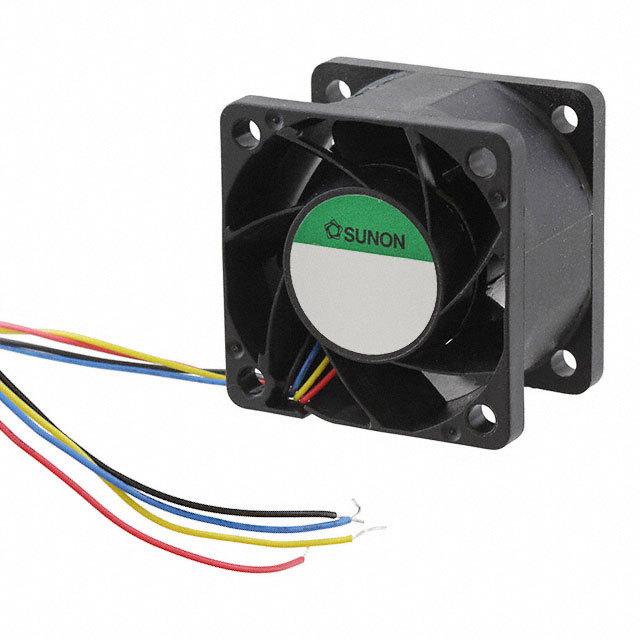

PF40281BX-000U-S99 PF40281BX-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 31.3 CFM (0.876m鲁/min)
Static Pressure : 2.810 in H2O (700.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 66.6 dB(A)
Power (Watts) : 10.80W
RPM : 22000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
2187 in stock

PF40561BX-000U-A99 PF40561BX-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 56.00mm
Air Flow : 31.3 CFM (0.876m鲁/min)
Static Pressure : 2.810 in H2O (700.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 66.6 dB(A)
Power (Watts) : 10.80W
RPM : 22000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)
0
100 in stock

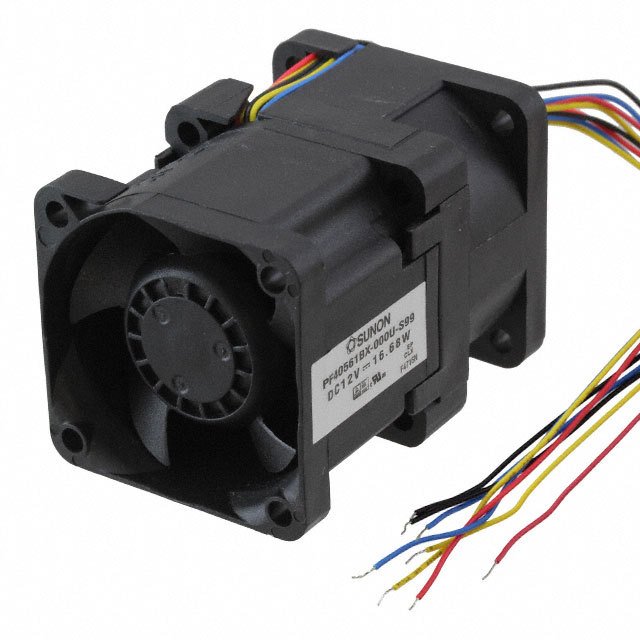

PF40561BX-000U-S99 PF40561BX-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 56.00mm
Air Flow : 31.7 CFM (0.888m鲁/min)
Static Pressure : 3.600 in H2O (896.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 67.9 dB(A)
Power (Watts) : 16.68W
RPM : 18000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.192 lb (87.08g)
0
100 in stock

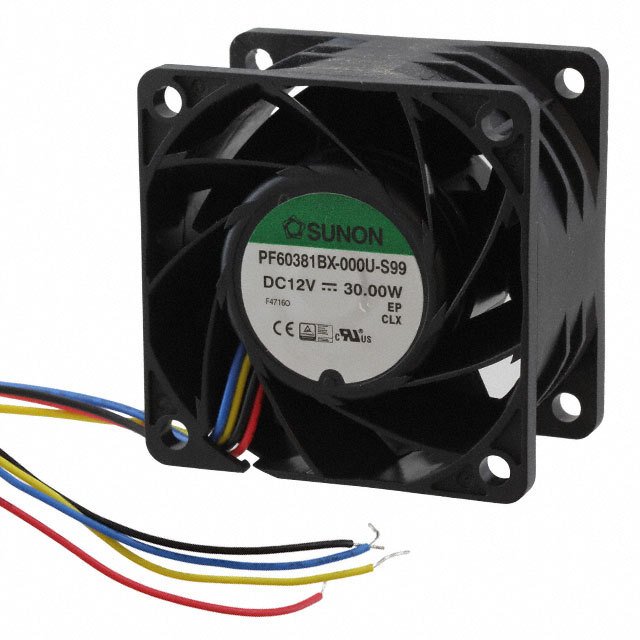

PF60381BX-000U-S99 PF60381BX-000U-S99

Sunon
Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 75.2 CFM (2.11m鲁/min)
Static Pressure : 3.280 in H2O (817.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 69.6 dB(A)
Power (Watts) : 30.00W
RPM : 16500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.28 lb (127.01g)
0
100 in stock

PF70201V1-000U-A99 PF70201V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 43.0 CFM (1.20m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 41.5 dB(A)
Power (Watts) : 3.42W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.177 lb (80.29g)
0
100 in stock
