Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

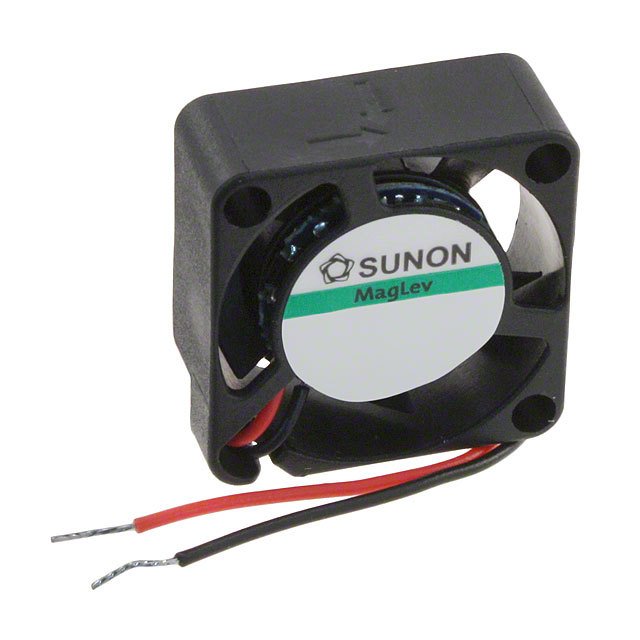

MC20080V2-000U-A99 MC20080V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 20mm L x 20mm H
Width : 8.00mm
Air Flow : 1.3 CFM (0.036m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 21.0 dB(A)
Power (Watts) : 450mW
RPM : 12000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.01 lb (4.54g)
0
2000 in stock

MC20100V1-000U-A99 MC20100V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 20mm L x 20mm H
Width : 10.00mm
Air Flow : 1.9 CFM (0.053m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 25.0 dB(A)
Power (Watts) : 1.05W
RPM : 17000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.012 lb (5.44g)
0
100 in stock

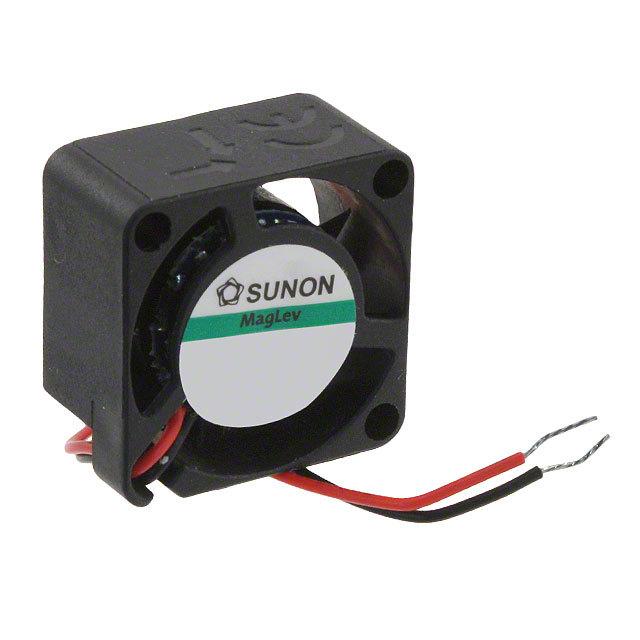

MC20100V2-000U-A99 MC20100V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 20mm L x 20mm H
Width : 10.00mm
Air Flow : 1.5 CFM (0.042m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 20.0 dB(A)
Power (Watts) : 780mW
RPM : 14000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.012 lb (5.44g)
0
4394 in stock

MC25060V1-000U-A99 MC25060V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.90mm
Air Flow : 3.0 CFM (0.084m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 31.0 dB(A)
Power (Watts) : 580mW
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.011 lb (4.99g)
0
10832 in stock

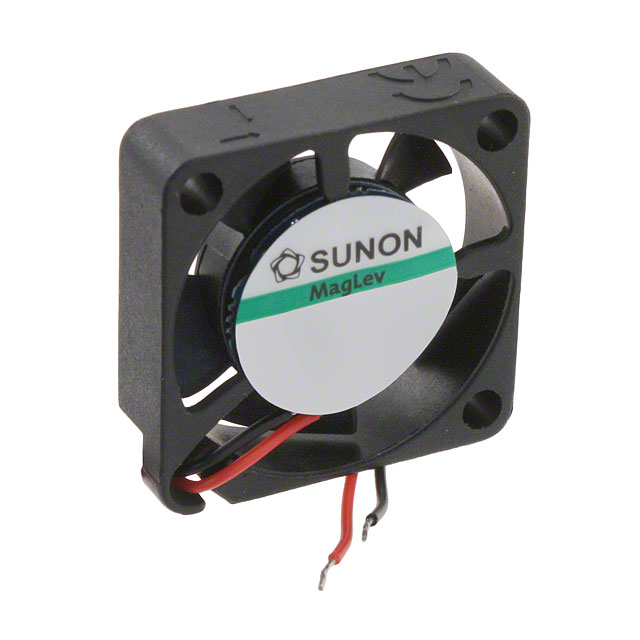

MC25060V2-000U-A99 MC25060V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.90mm
Air Flow : 2.2 CFM (0.061m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB(A)
Power (Watts) : 380mW
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.011 lb (4.99g)
0
11550 in stock

MC25100V1-000U-A99 MC25100V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB(A)
Power (Watts) : 600mW
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.017 lb (7.71g)
0
6183 in stock

MC25100V1-000U-G99 MC25100V1-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 23.0 dB(A)
Power (Watts) : 600mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.017 lb (7.71g)
0
2082 in stock

MC25100V2-000U-A99 MC25100V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 3.0 CFM (0.084m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.0 dB(A)
Power (Watts) : 430mW
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.017 lb (7.71g)
0
8776 in stock

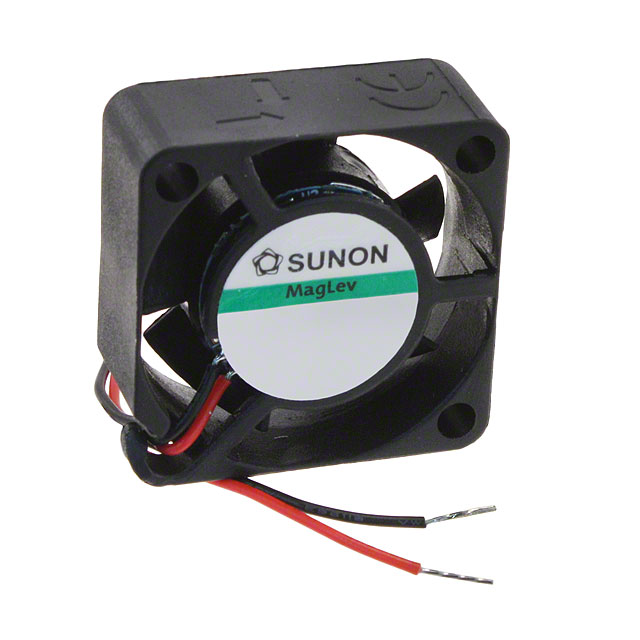

MC25101V1-000U-A99 MC25101V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB(A)
Power (Watts) : 690mW
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.017 lb (7.71g)
0
11195 in stock

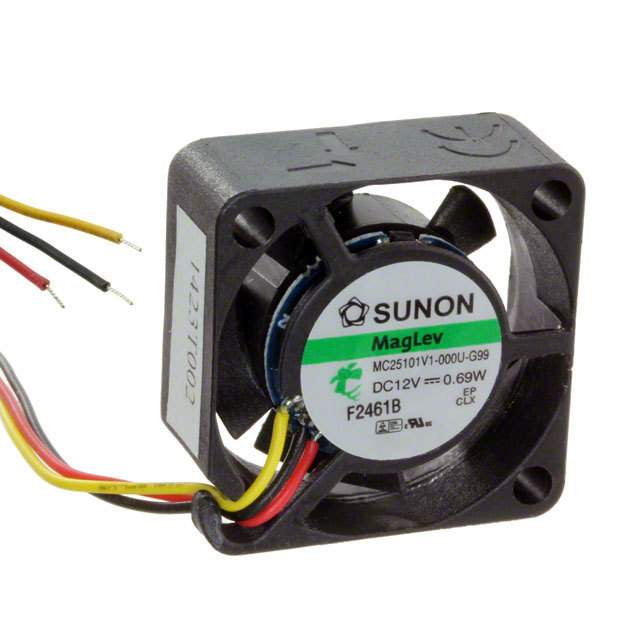

MC25101V1-000U-G99 MC25101V1-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 23.0 dB(A)
Power (Watts) : 690mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.017 lb (7.71g)
0
1297 in stock

MC25101V2-000U-A99 MC25101V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 3.0 CFM (0.084m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.0 dB(A)
Power (Watts) : 450mW
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.017 lb (7.71g)
0
5980 in stock

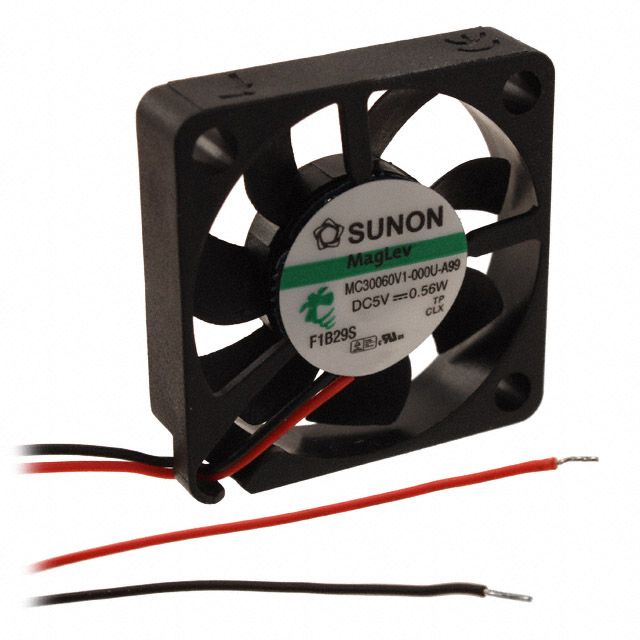

MC30060V1-000U-A99 MC30060V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 6.90mm
Air Flow : 4.9 CFM (0.137m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB(A)
Power (Watts) : 560mW
RPM : 9500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.013 lb (5.9g)
0
13274 in stock
