Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

LM310-001A99DN LM310-001A99DN

Sunon
Manufacturer : Sunon Fans
Packaging : -
Series : -
Part Status : Active
Type : Fansink
For Use With/Related Products : Citizen CL-L050
Shape : Rectangular
0
30 in stock

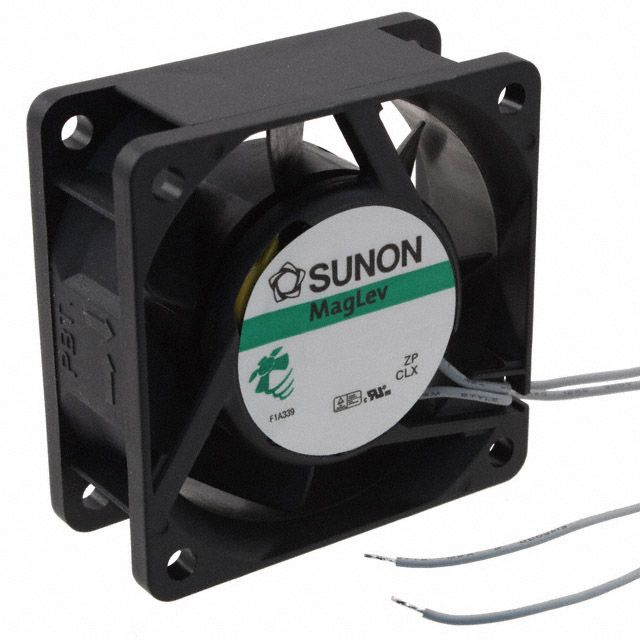

MA1062-HVL.GN MA1062-HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 3.60W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.18 lb (81.65g)
0
605 in stock

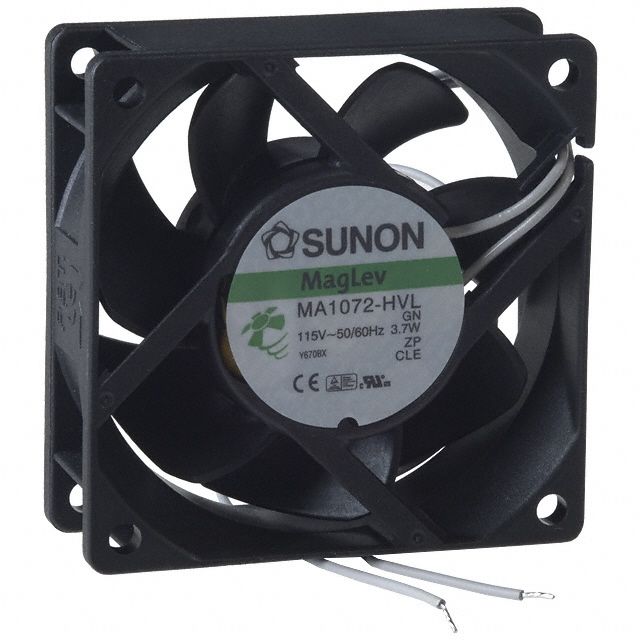

MA1072-HVL.GN MA1072-HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 3.70W
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.2 lb (90.72g)
0
30 in stock

MA1082HVL.GN MA1082HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 3.60W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.225 lb (102.06g)
0
22 in stock

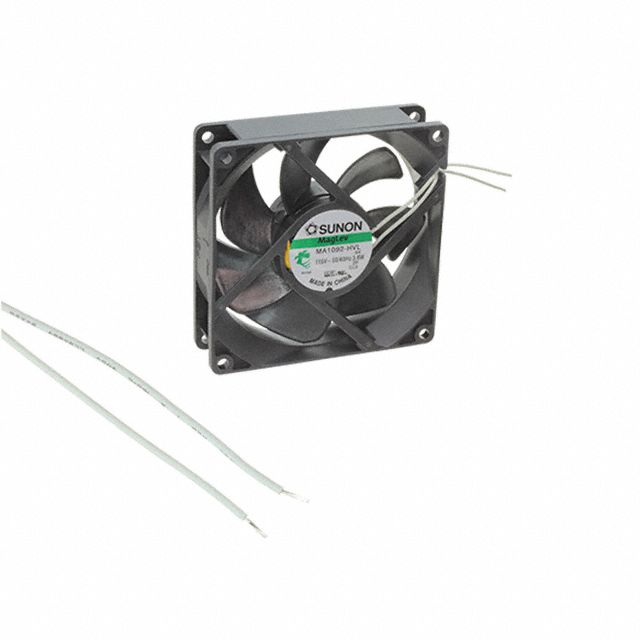

MA1092-HVL.GN MA1092-HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 54.0 CFM (1.51m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 3.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.264 lb (119.75g)
0
19 in stock

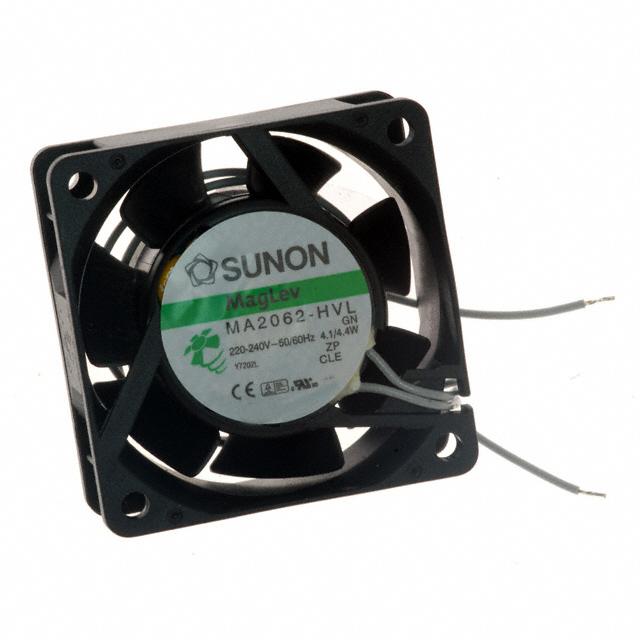

MA2062-HVL.GN MA2062-HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 4.40W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.18 lb (81.65g)
0
334 in stock

MA2082-HVL.GN MA2082-HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 4.60W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.225 lb (102.06g)
0
26 in stock

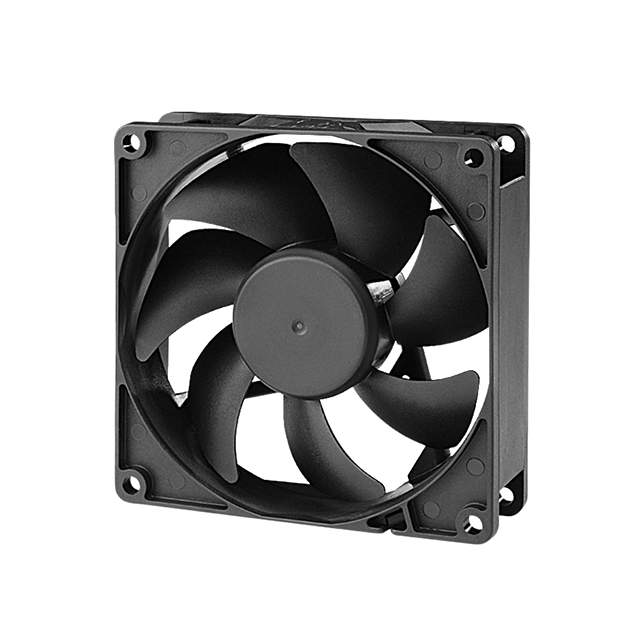

MA2092-HVL.GN MA2092-HVL.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 54.0 CFM (1.51m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 4.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.264 lb (119.75g)
0
440 in stock

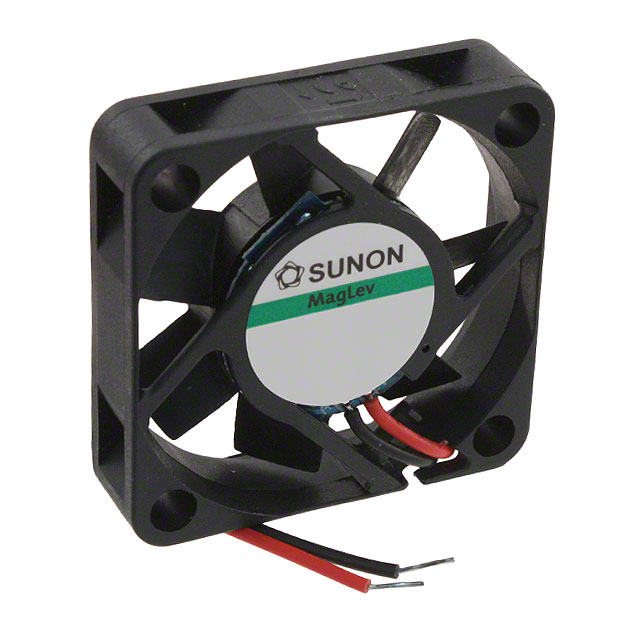

MB40101V2-000U-A99 MB40101V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.0 dB(A)
Power (Watts) : 960mW
RPM : 5800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.037 lb (16.78g)
0
2837 in stock

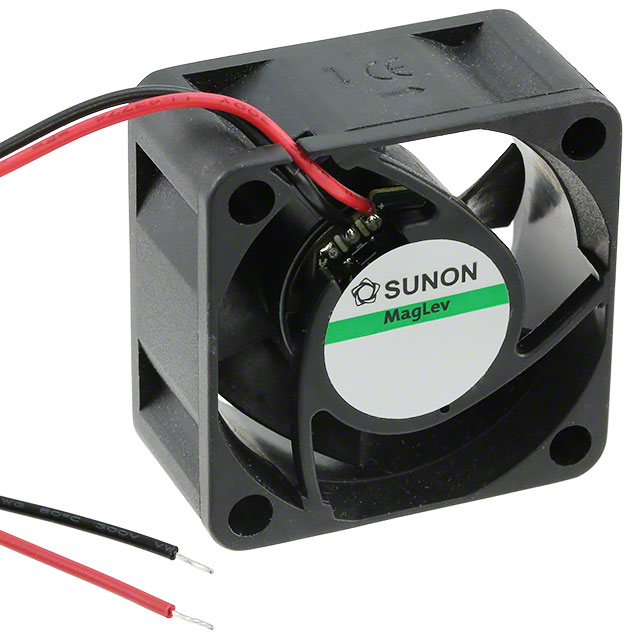

MB40200V1-000U-A99 MB40200V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 25.5 dB(A)
Power (Watts) : 950mW
RPM : 7200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.066 lb (29.94g)
0
114 in stock

MB40200V3-000U-G99 MB40200V3-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.3 CFM (0.176m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 18.0 dB(A)
Power (Watts) : 410mW
RPM : 5200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.066 lb (29.94g)
0
103 in stock

MB40201V2-000U-G99 MB40201V2-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 7.7 CFM (0.216m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 21.0 dB(A)
Power (Watts) : 600mW
RPM : 6200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.068 lb (30.84g)
0
586 in stock
