Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

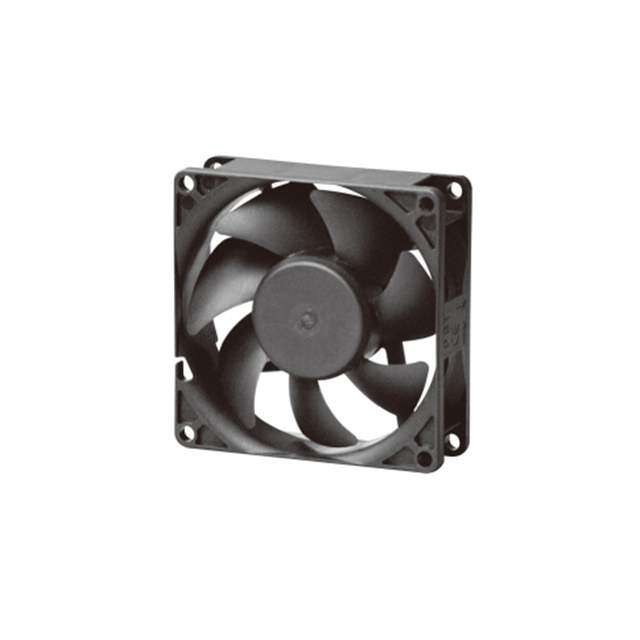

HA80251V4-1000U-A99 HA80251V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
100 in stock

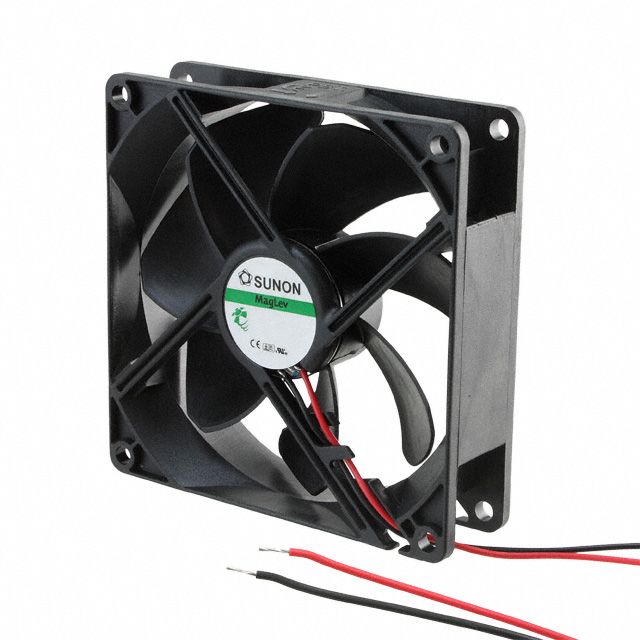

HA92251V4-000U-999 HA92251V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 28.1 CFM (0.787m鲁/min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 17.7 dB(A)
Power (Watts) : 900mW
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.039 lb (17.69g)
0
714 in stock

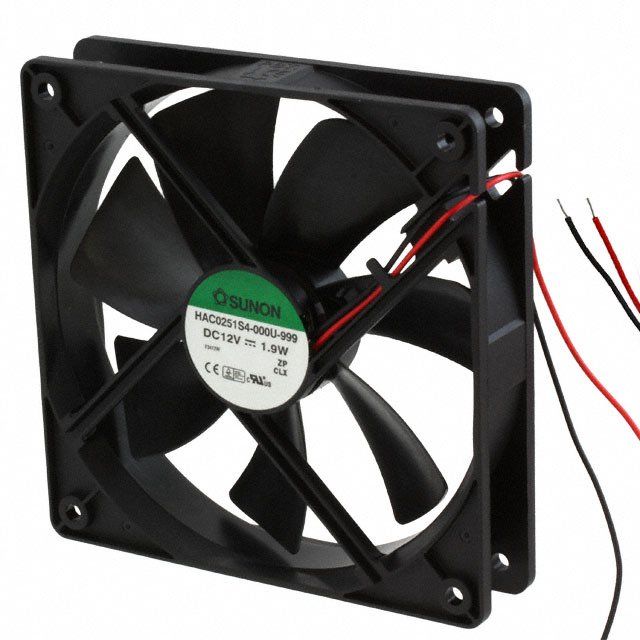

HAC0251S4-000U-999 HAC0251S4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : HAC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 55.0 CFM (1.54m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 29.6 dB(A)
Power (Watts) : 1.90W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.218 lb (98.88g)
0
2729 in stock

KD1205PHB1.(2).GN KD1205PHB1.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
567 in stock

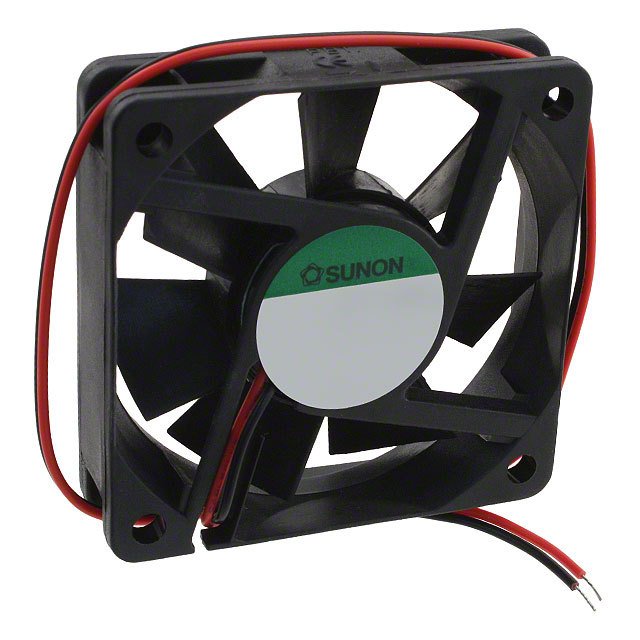

KD1206PHB1.(2).GN KD1206PHB1.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : KD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 21.0 CFM (0.588m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB(A)
Power (Watts) : 1.90W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.092 lb (41.73g)
0
1243 in stock

KD1206PHB2.(2).GN KD1206PHB2.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
25 in stock

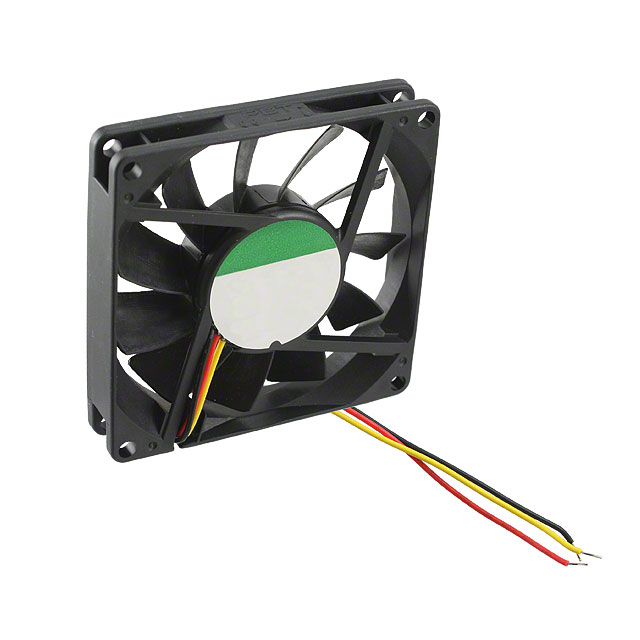

KD1208PHB1 13.(2).F.GN KD1208PHB1 13.(2).F.GN

Sunon
Manufacturer : Sunon Fans
Series : KD
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.0 dB(A)
Power (Watts) : 2.50W
RPM : 3000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.15 lb (68.04g)
0
1593 in stock

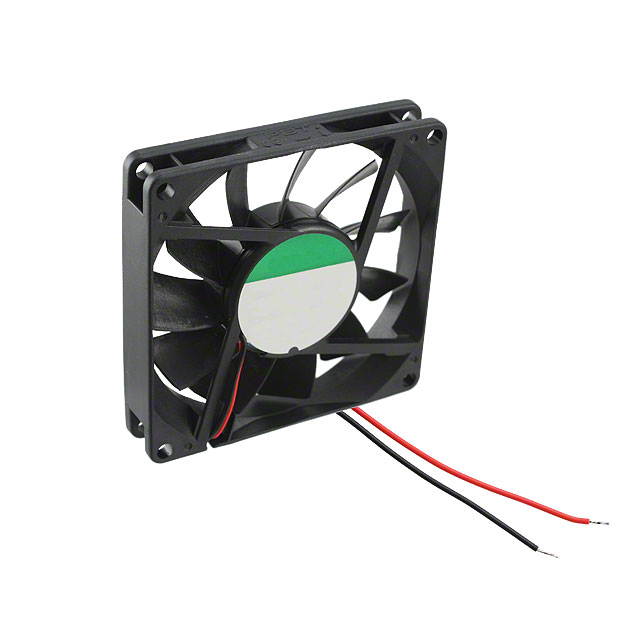

KD1208PHB1.13.(2).GN KD1208PHB1.13.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : KD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 2.50W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.15 lb (68.04g)
0
1699 in stock

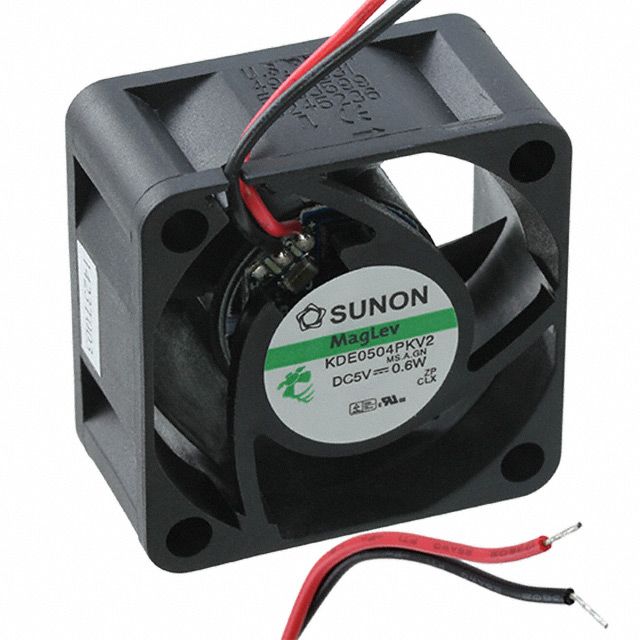

KDE0504PKV2.MS.A.GN KDE0504PKV2.MS.A.GN

Sunon
Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
442 in stock

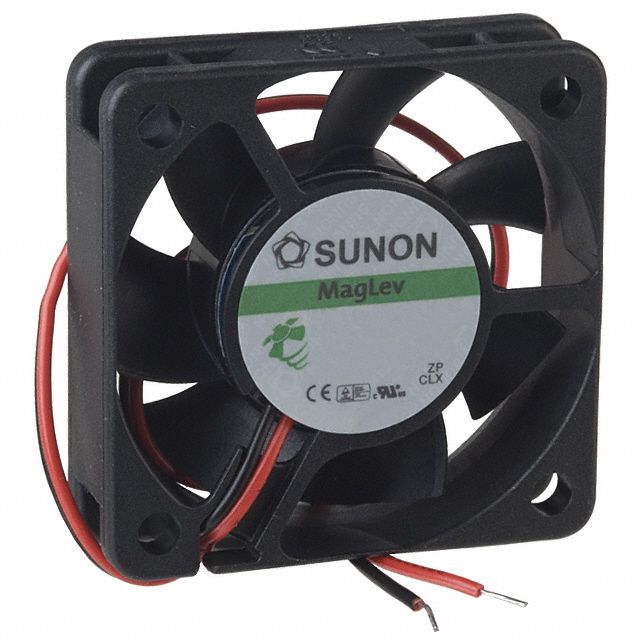

KDE0505PHV2.MS.A.GN KDE0505PHV2.MS.A.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® KDE
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 13.0 CFM (0.364m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 29.0 dB(A)
Power (Watts) : 800mW
RPM : 4700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.086 lb (39.01g)
0
1137 in stock

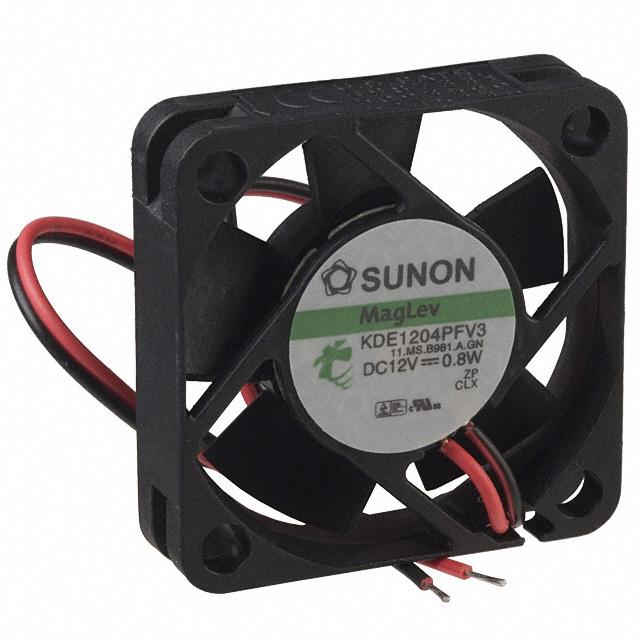

KDE1204PFV3 11.MS.B981.A.GN KDE1204PFV3 11.MS.B981.A.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® KDE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.9 CFM (0.137m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 20.0 dB(A)
Power (Watts) : 600mW
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.04 lb (18.14g)
0
2773 in stock

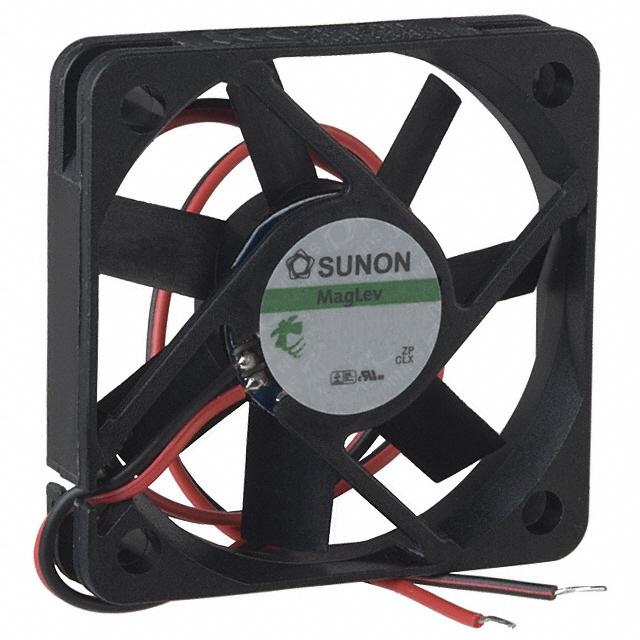

KDE1205PFVX.11.MS.A.GN KDE1205PFVX.11.MS.A.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® KDE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 15.2 CFM (0.426m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB(A)
Power (Watts) : 2.00W
RPM : 6100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.044 lb (19.96g)
0
5308 in stock
