Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

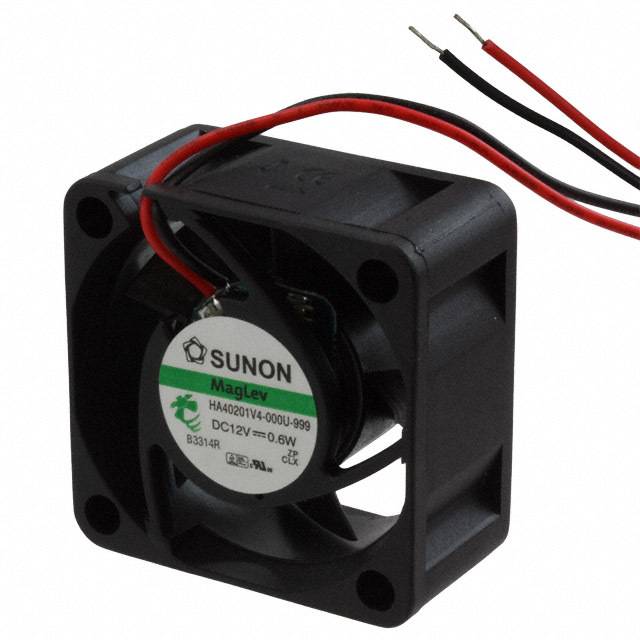

HA40201V4-000U-999 HA40201V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 5.5 CFM (0.154m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 12.8 dB(A)
Power (Watts) : 600mW
RPM : 4700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
2074 in stock

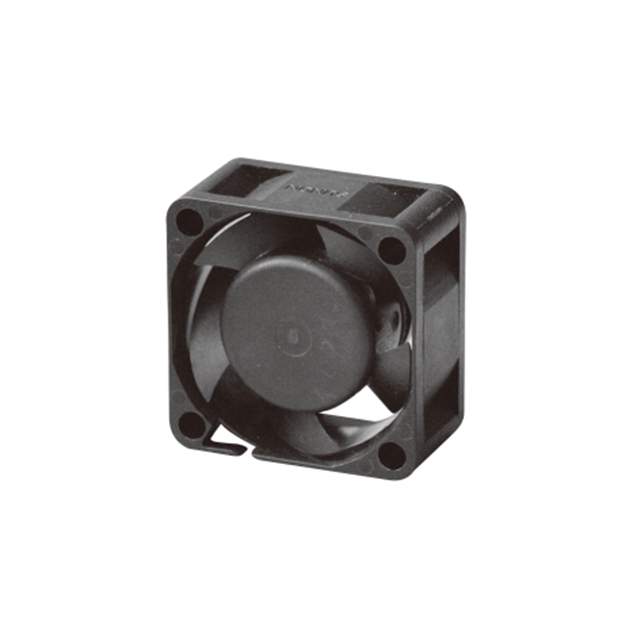

HA40201V4-1000U-A99 HA40201V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 5.5 CFM (0.154m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 12.3 dB(A)
Power (Watts) : 380mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
2487 in stock

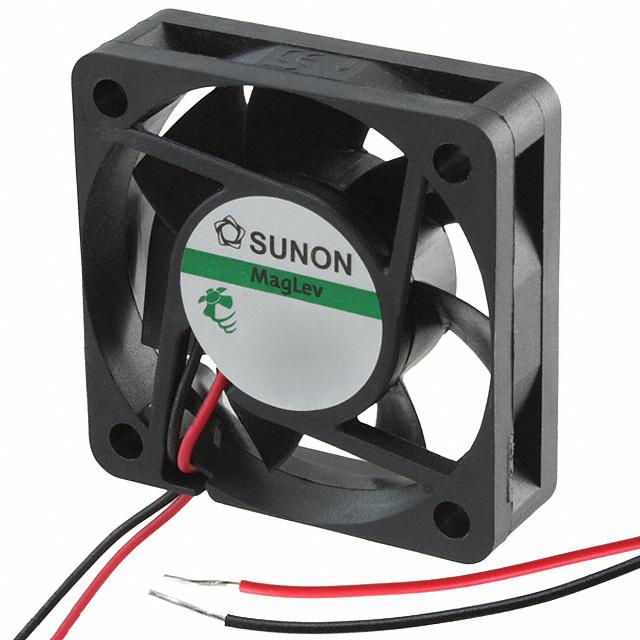

HA50151V4-1000U-A99 HA50151V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 7.7 CFM (0.216m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 15.4 dB(A)
Power (Watts) : 300mW
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.073 lb (33.11g)
0
100 in stock

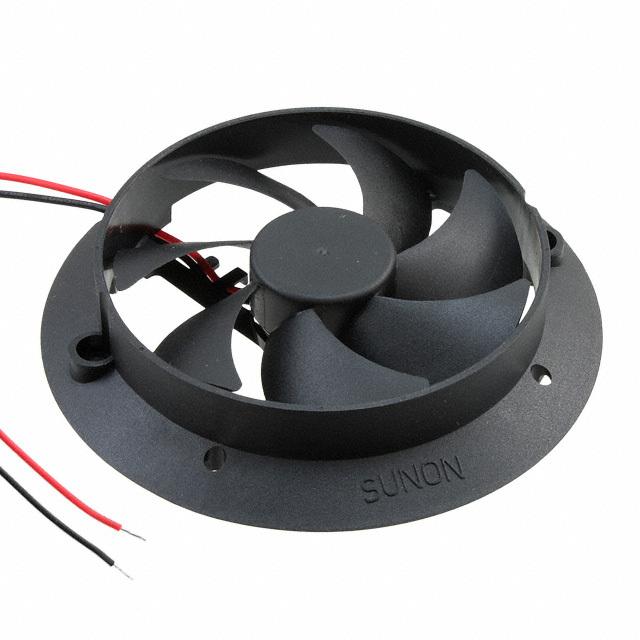

HA60150V3-E02U-A99 HA60150V3-E02U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 13.2 CFM (0.370m鲁/min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.1 dB(A)
Power (Watts) : 400mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.06 lb (27.22g)
0
64 in stock

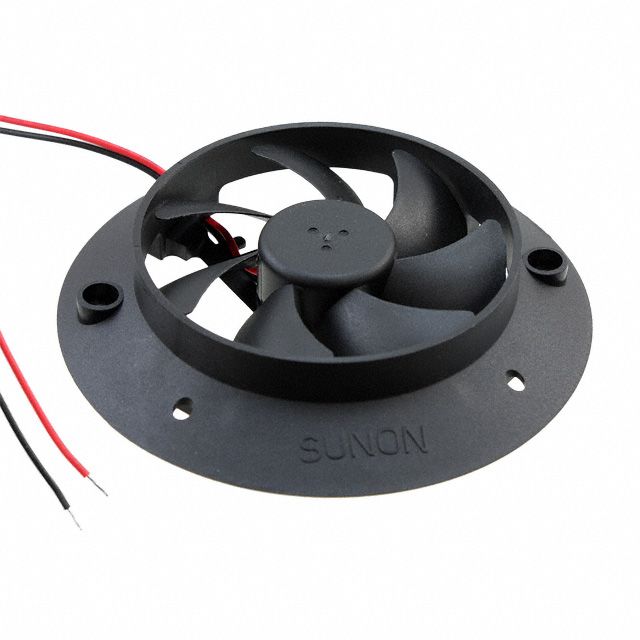

HA60150V3-E03U-A99 HA60150V3-E03U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 9.7 CFM (0.272m鲁/min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.8 dB(A)
Power (Watts) : 260mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
97 in stock

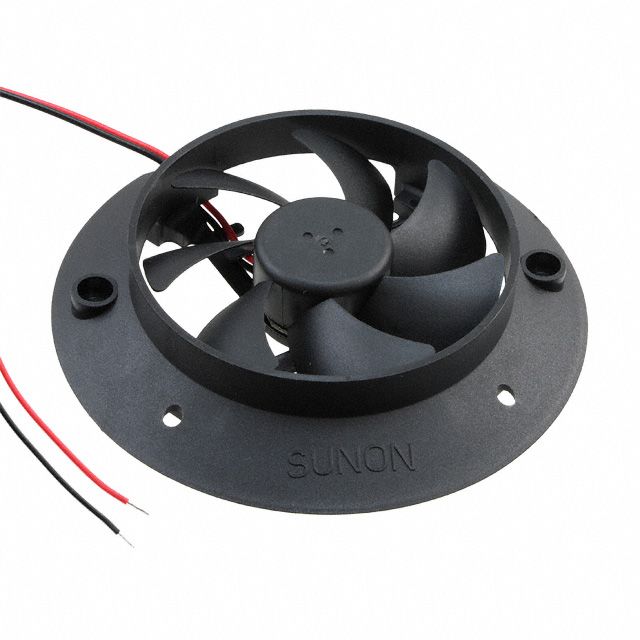

HA60151V3-E00U-A99 HA60151V3-E00U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 9.7 CFM (0.272m鲁/min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.8 dB(A)
Power (Watts) : 280mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
60 in stock

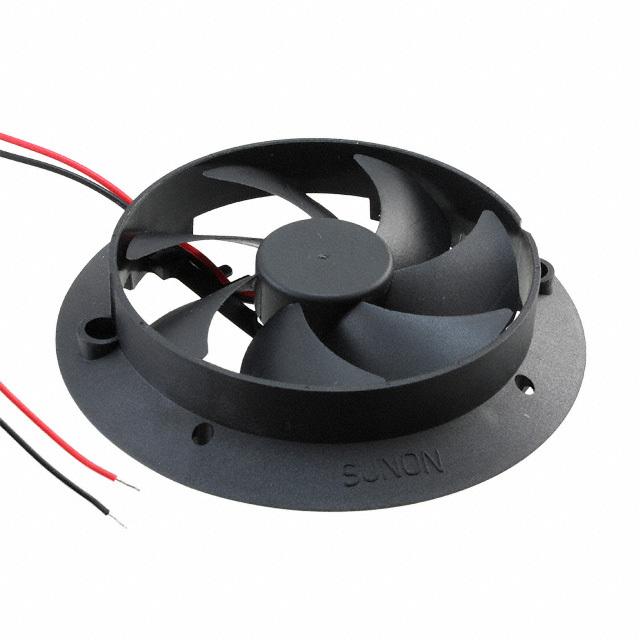

HA60151V3-E01U-A99 HA60151V3-E01U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 13.2 CFM (0.370m鲁/min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.3 dB(A)
Power (Watts) : 340mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.06 lb (27.22g)
0
371 in stock

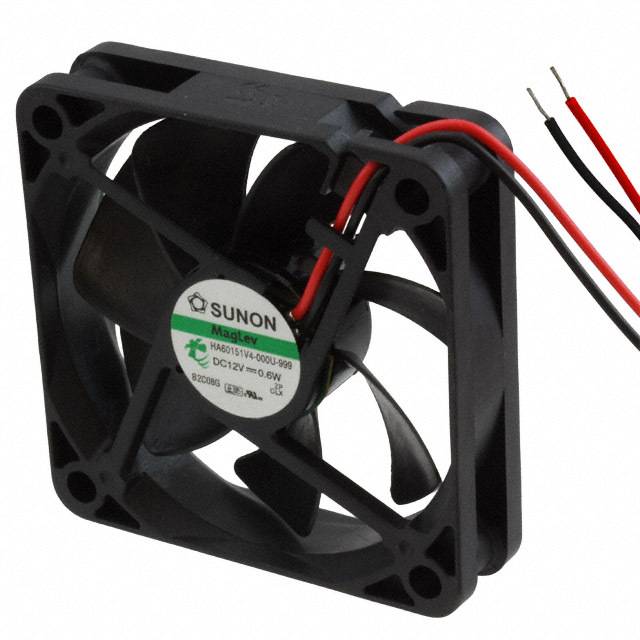

HA60151V4-000U-999 HA60151V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 14.5 dB(A)
Power (Watts) : 600mW
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.079 lb (35.83g)
0
1710 in stock

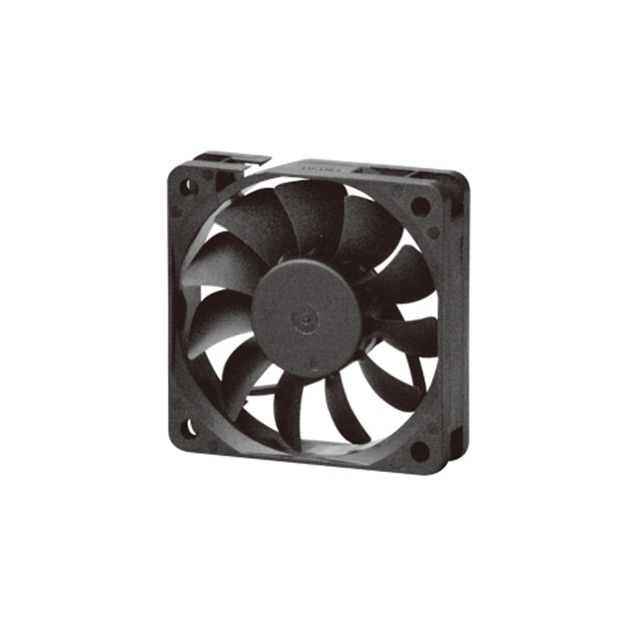

HA60151V4-1000U-A99 HA60151V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 12.7 CFM (0.356m鲁/min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 14.5 dB(A)
Power (Watts) : 270mW
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.077 lb (34.93g)
0
819 in stock

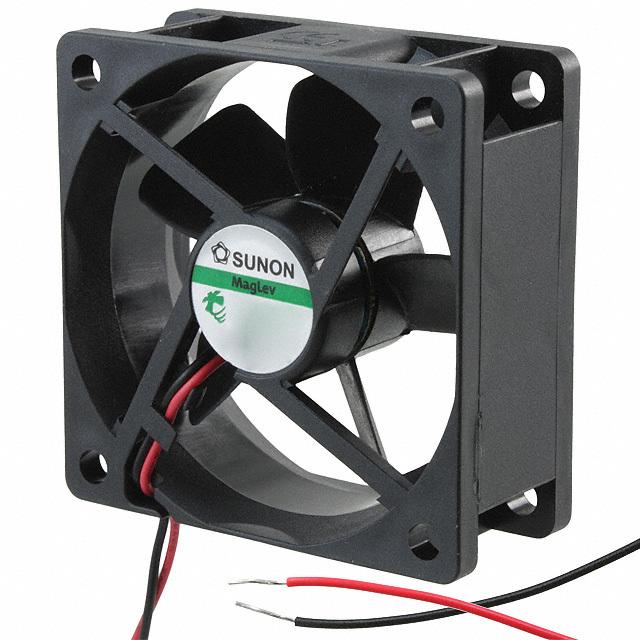

HA60251V4-000U-999 HA60251V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.8 CFM (0.386m鲁/min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 13.8 dB(A)
Power (Watts) : 700mW
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.091 lb (41.28g)
0
4535 in stock

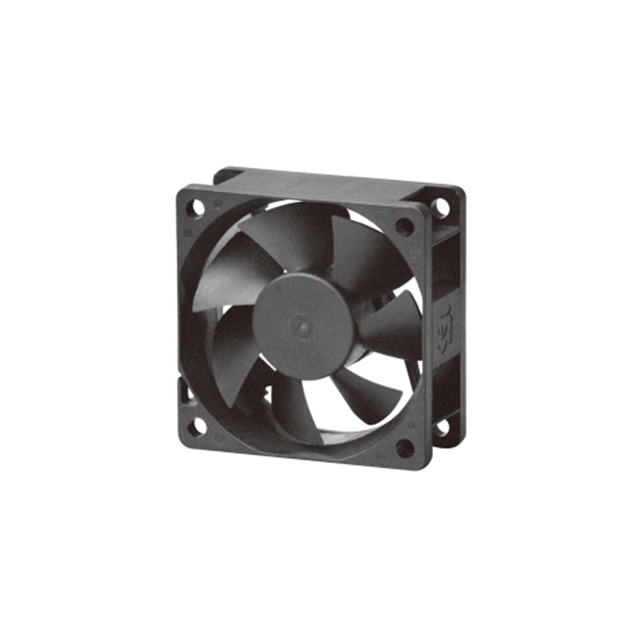

HA60251V4-1000U-A99 HA60251V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.8 CFM (0.386m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 10.7 dB(A)
Power (Watts) : 240mW
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.099 lb (44.91g)
0
100 in stock

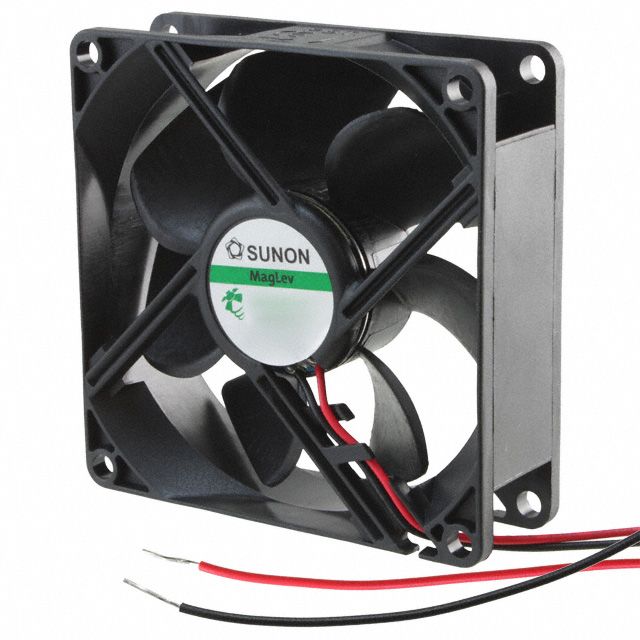

HA80251V4-000U-999 HA80251V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 23.7 CFM (0.664m鲁/min)
Static Pressure : 0.050 in H2O (12.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 22.1 dB(A)
Power (Watts) : 800mW
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.138 lb (62.6g)
0
4287 in stock
