Sunon
- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.
Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.
Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sunon
Manufacturer : Sunon Fans
Series : GE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.5 dB(A)
Power (Watts) : 4.80W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.231 lb (104.78g)
0
94 in stock

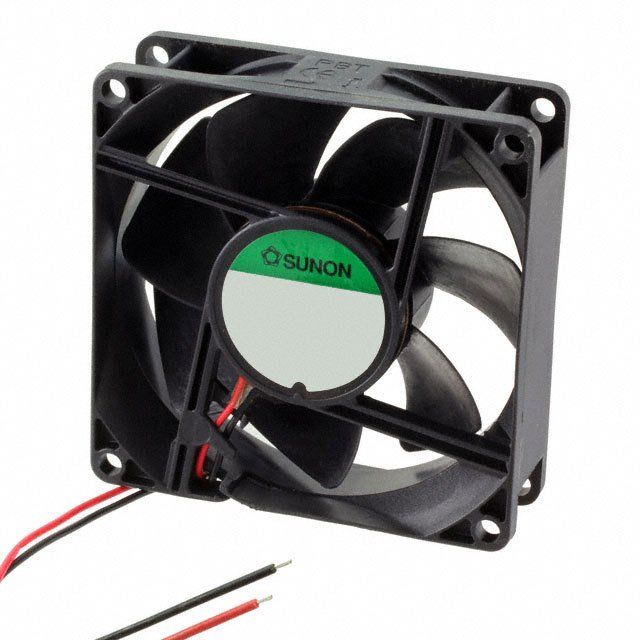

Sunon
Manufacturer : Sunon Fans
Series : GE
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.5 dB(A)
Power (Watts) : 5.48W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.231 lb (104.78g)
0
51 in stock
Sunon
Manufacturer : Sunon Fans
Series : GE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 5.28W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
27 in stock

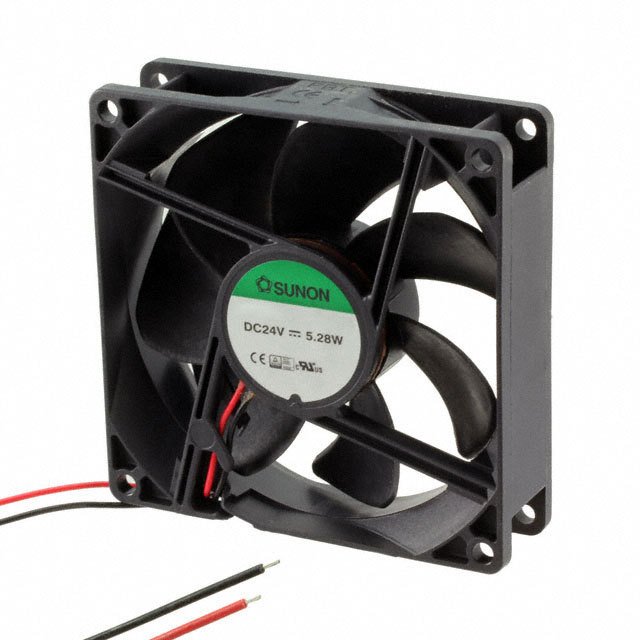

Sunon
Manufacturer : Sunon Fans
Series : GE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 5.28W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
1550 in stock
Sunon
Manufacturer : Sunon Fans
Series : GE
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 6.00W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
123 in stock

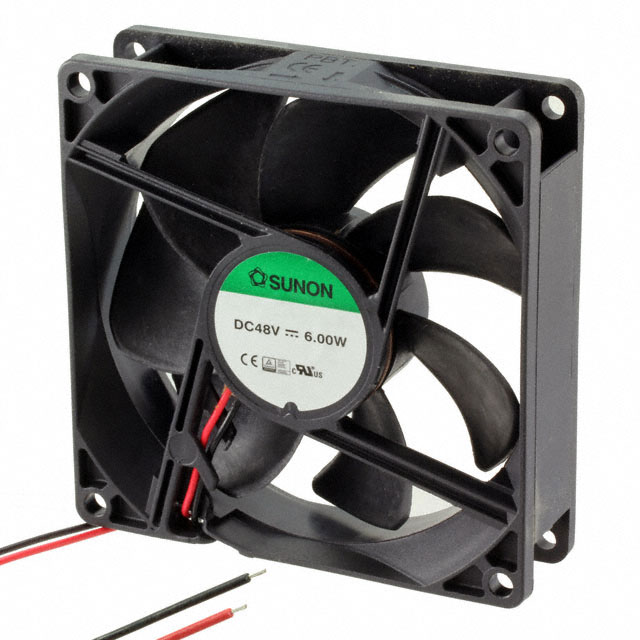

Sunon
Manufacturer : Sunon Fans
Series : GE
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 6.00W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
47 in stock

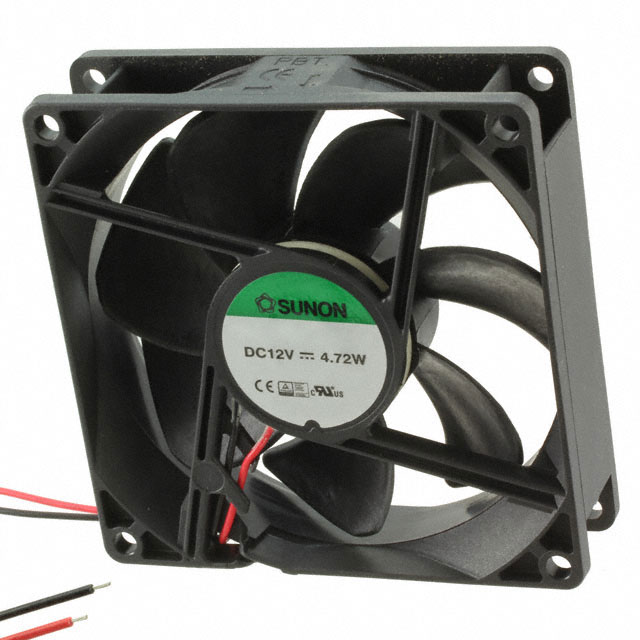

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.5 dB(A)
Power (Watts) : 3.96W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.231 lb (104.78g)
0
72 in stock
Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.5 dB(A)
Power (Watts) : 3.96W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.231 lb (104.78g)
0
121 in stock

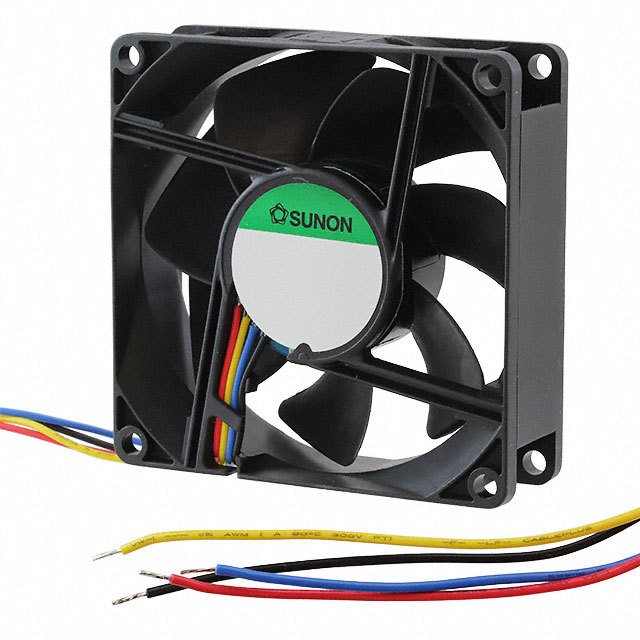

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 47.5 dB(A)
Power (Watts) : 3.96W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.231 lb (104.78g)
0
58 in stock
Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 47.5 dB(A)
Power (Watts) : 3.96W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.231 lb (104.78g)
0
110 in stock
Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 59.4 CFM (1.66m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.2 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.24 lb (108.86g)
0
51 in stock
Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 59.4 CFM (1.66m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.2 dB(A)
Power (Watts) : 3.70W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.24 lb (108.86g)
0
61 in stock
