Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

GF80321B1-000U-SC9 GF80321B1-000U-SC9

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 59.4 CFM (1.66m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 45.2 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.24 lb (108.86g)
0
50 in stock

GF80321B1-000U-SE9 GF80321B1-000U-SE9

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 59.4 CFM (1.66m鲁/min)
Static Pressure : 0.360 in H2O (89.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 45.2 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.24 lb (108.86g)
0
16 in stock

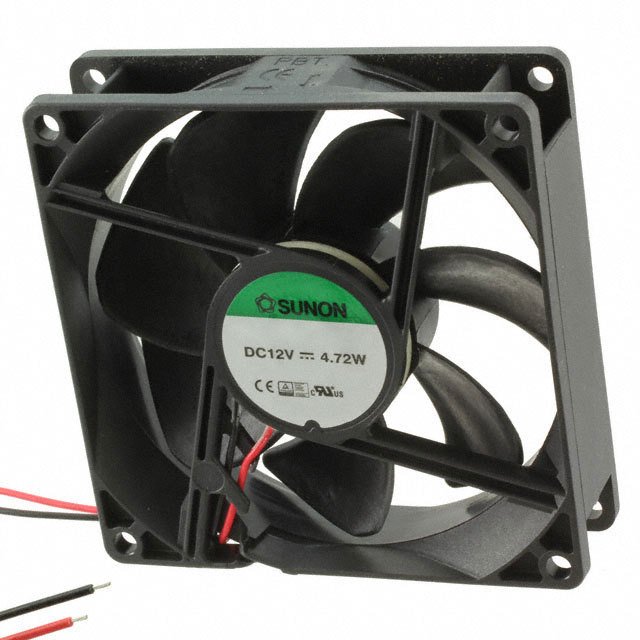

GF92251B1-000U-AC9 GF92251B1-000U-AC9

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.5 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
58 in stock

GF92251B1-000U-AE9 GF92251B1-000U-AE9

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
100 in stock

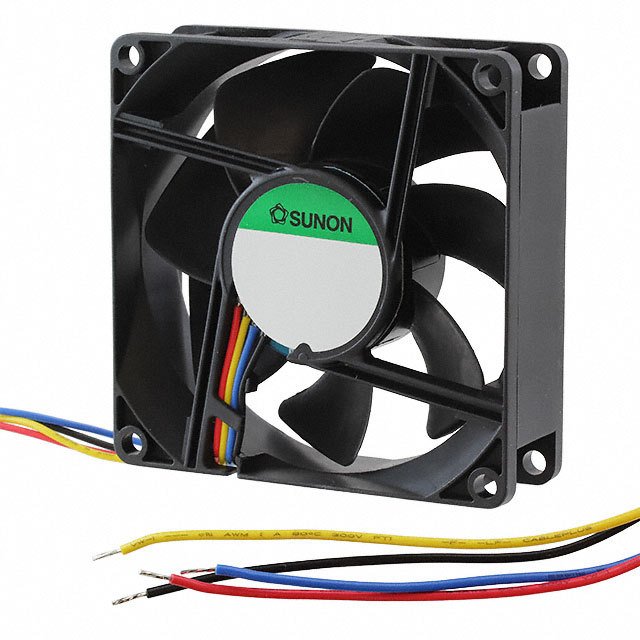

GF92251B1-000U-SC9 GF92251B1-000U-SC9

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
29 in stock

GF92251B1-000U-SE9 GF92251B1-000U-SE9

Sunon
Manufacturer : Sunon Fans
Series : GF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.249 lb (112.94g)
0
59 in stock

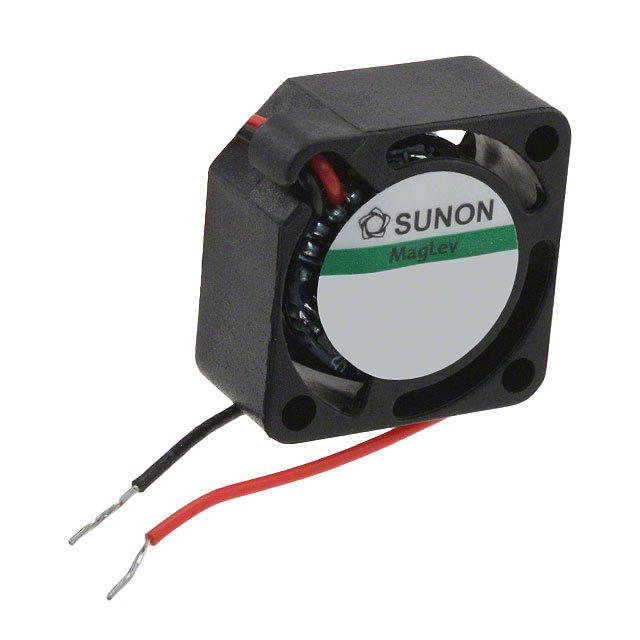

GM0517PDV2-8.GN GM0517PDV2-8.GN

Sunon
Manufacturer : Sunon Fans
Series : MagLev® GM
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 8.00mm
Air Flow : 0.706 CFM (0.020m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 16.0 dB(A)
Power (Watts) : 600mW
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.009 lb (4.08g)
0
670 in stock

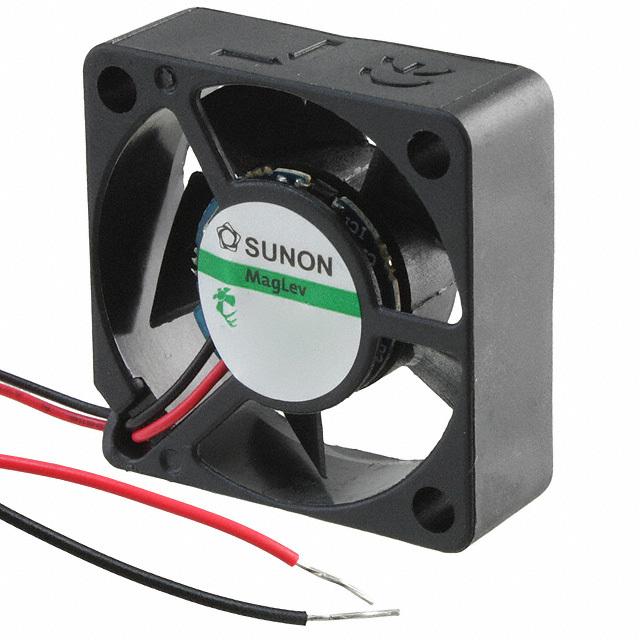

HA30101V3-000U-A99 HA30101V3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 3.5 CFM (0.098m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 17.6 dB(A)
Power (Watts) : 440mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.019 lb (8.62g)
0
4090 in stock

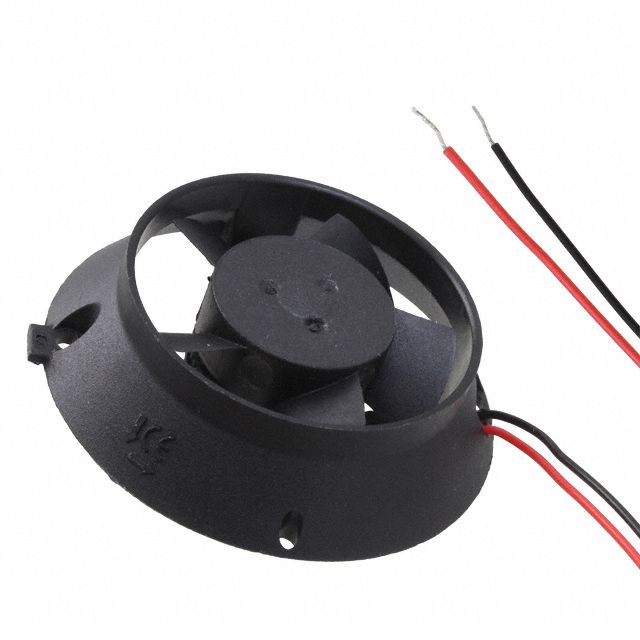

HA30101V3-E00U-A99 HA30101V3-E00U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 39.8mm Dia
Width : 10.40mm
Air Flow : 1.9 CFM (0.053m鲁/min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 10.5 dB(A)
Power (Watts) : 300mW
RPM : 4400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.016 lb (7.26g)
0
100 in stock

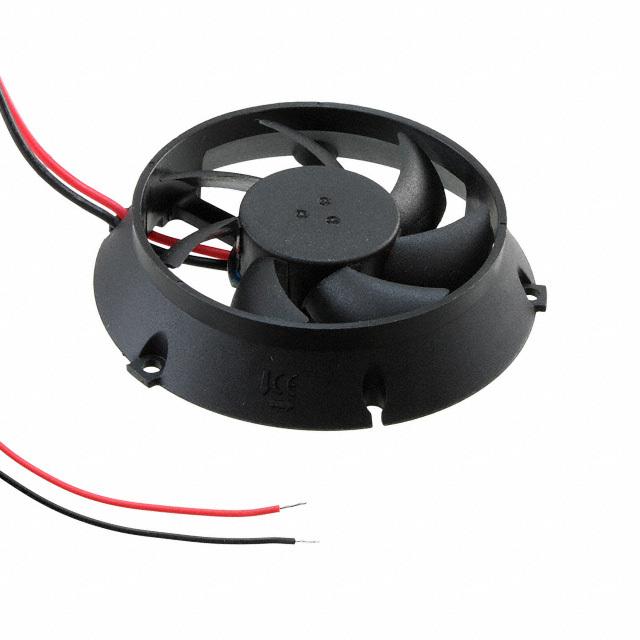

HA40101V3-E00U-A99 HA40101V3-E00U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 44.5mm Dia
Width : 10.60mm
Air Flow : 4.5 CFM (0.126m鲁/min)
Static Pressure : 0.050 in H2O (12.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 31.1 dB(A)
Power (Watts) : 320mW
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.026 lb (11.79g)
0
136 in stock

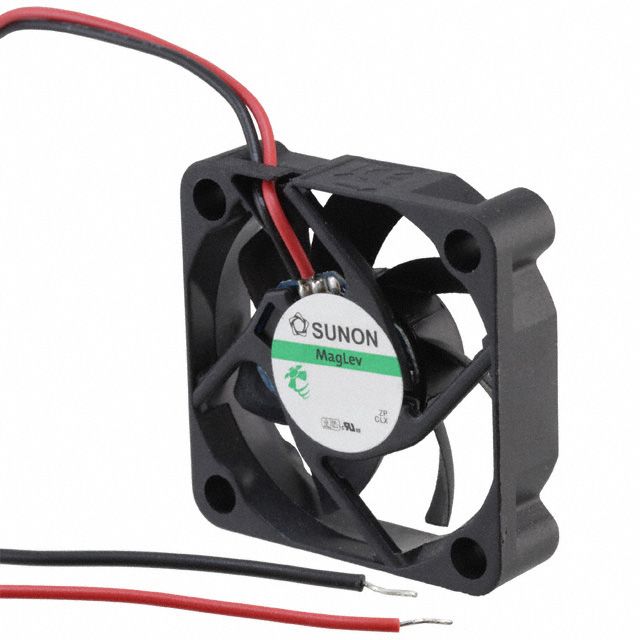

HA40101V4-000U-999 HA40101V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 18.2 dB(A)
Power (Watts) : 800mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.032 lb (14.51g)
0
4604 in stock

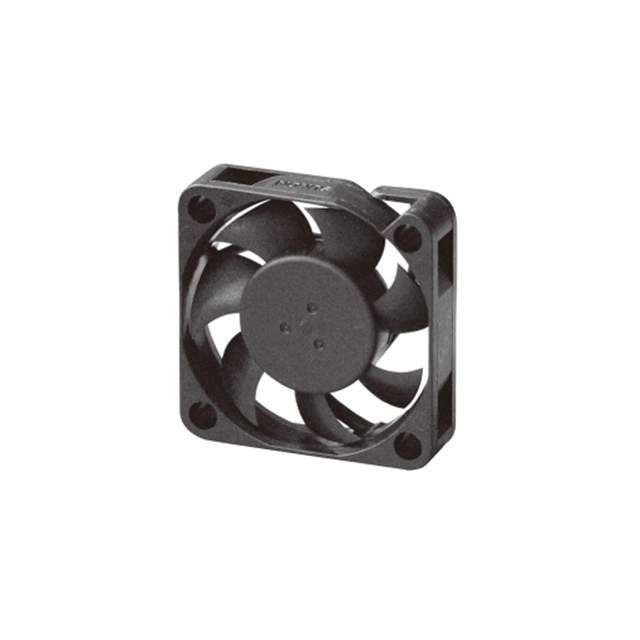

HA40101V4-1000U-A99 HA40101V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.4 CFM (0.151m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 15.7 dB(A)
Power (Watts) : 380mW
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
0
2859 in stock
