Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

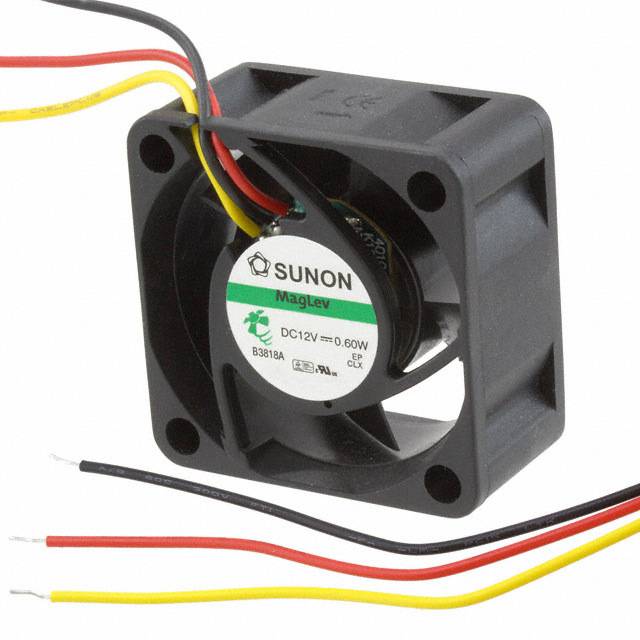

MB40201V3-000U-G99 MB40201V3-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.3 CFM (0.176m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 18.0 dB(A)
Power (Watts) : 480mW
RPM : 5200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.068 lb (30.84g)
0
821 in stock

MB40201VX-000U-F99 MB40201VX-000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 27.5 dB(A)
Power (Watts) : 1.38W
RPM : 8200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.068 lb (30.84g)
0
2142 in stock

MB40201VX-000U-G99 MB40201VX-000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 27.5 dB(A)
Power (Watts) : 1.38W
RPM : 8200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.068 lb (30.84g)
0
5363 in stock

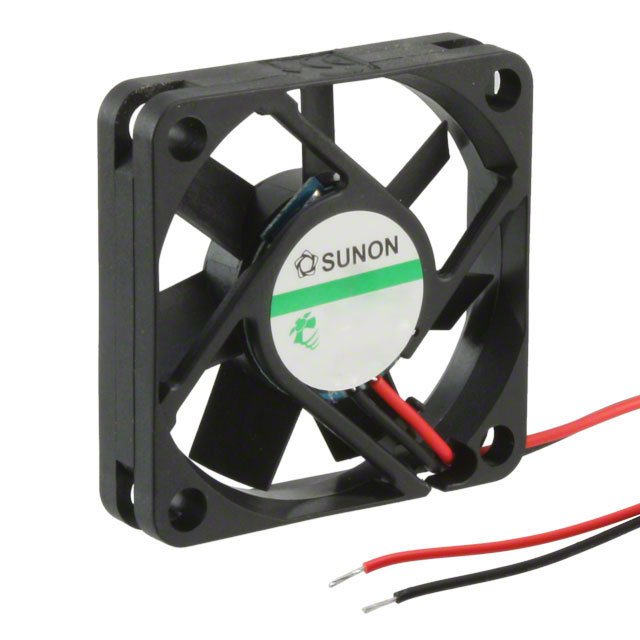

MB45101V2-000U-A99 MB45101V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 45mm L x 45mm H
Width : 10.00mm
Air Flow : 9.2 CFM (0.258m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.0 dB(A)
Power (Watts) : 1.26W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.041 lb (18.6g)
0
5877 in stock

MB50100V2-000U-A99 MB50100V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 11.0 CFM (0.308m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 26.0 dB(A)
Power (Watts) : 1.18W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.046 lb (20.87g)
0
7408 in stock

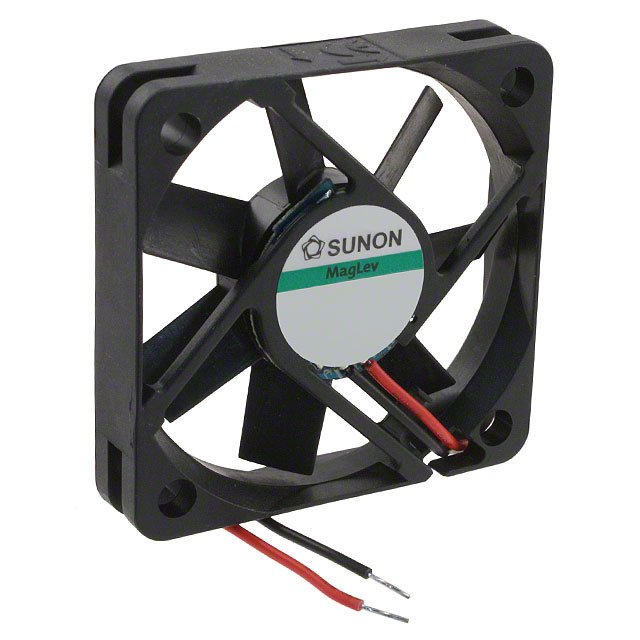

MB50101V2-000U-A99 MB50101V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 11.0 CFM (0.308m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 26.0 dB(A)
Power (Watts) : 1.26W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.044 lb (19.96g)
0
4842 in stock

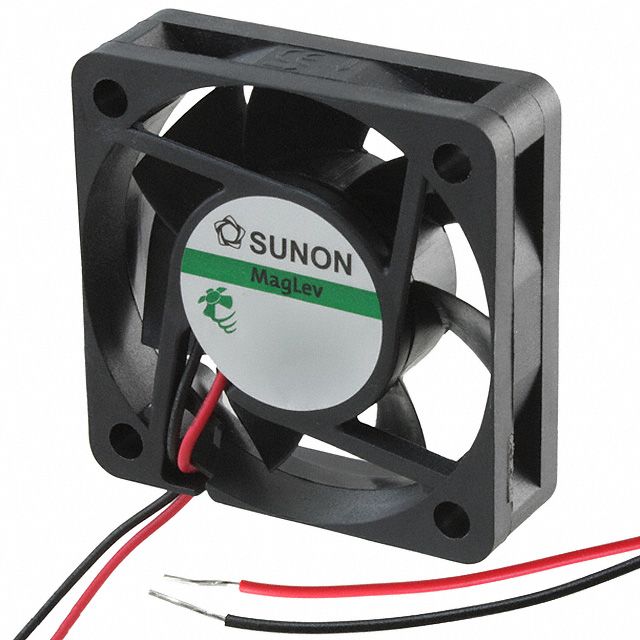

MB50151V1-000U-A99 MB50151V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 1.05W
RPM : 5800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.085 lb (38.56g)
0
10465 in stock

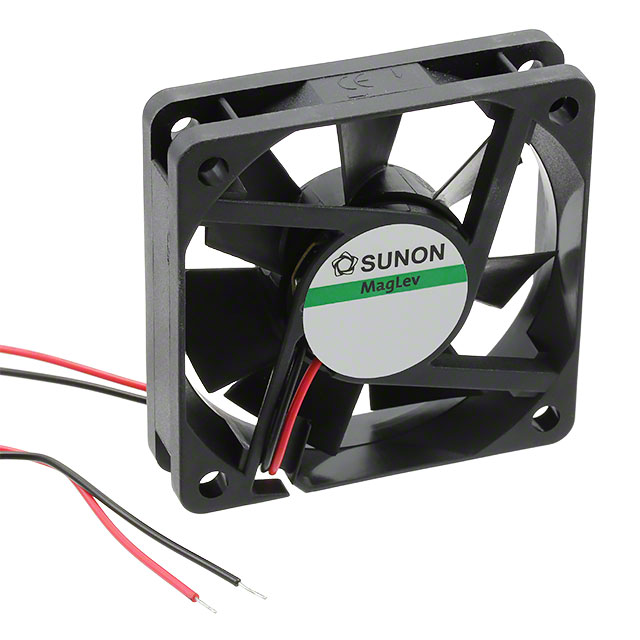

MB60152V1-000U-A99 MB60152V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 21.0 CFM (0.588m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 36.0 dB(A)
Power (Watts) : 1.68W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.094 lb (42.64g)
0
1902 in stock

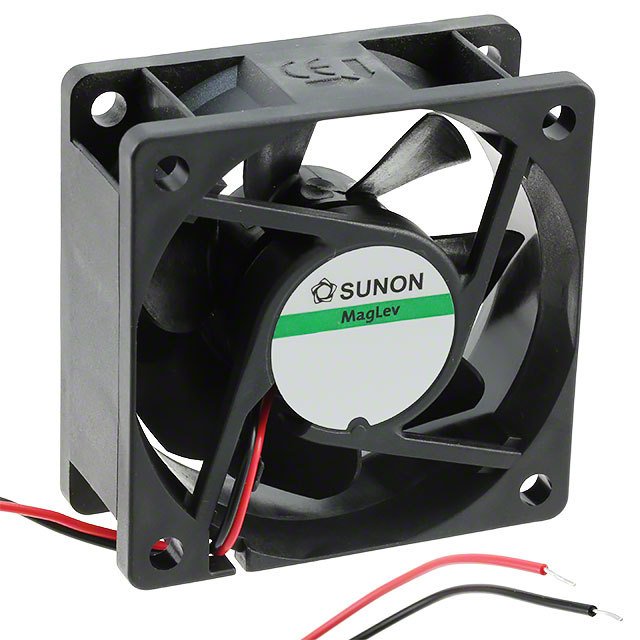

MB60201V2-000U-A99 MB60201V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 19.0 CFM (0.532m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB(A)
Power (Watts) : 950mW
RPM : 3700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.112 lb (50.8g)
0
66 in stock

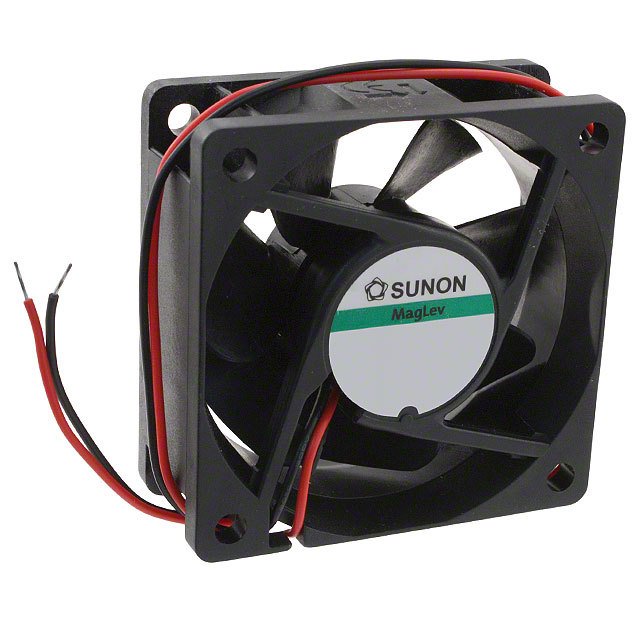

MB60251V1-000U-A99 MB60251V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 23.5 CFM (0.658m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.5 dB(A)
Power (Watts) : 1.50W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.126 lb (57.15g)
0
258 in stock

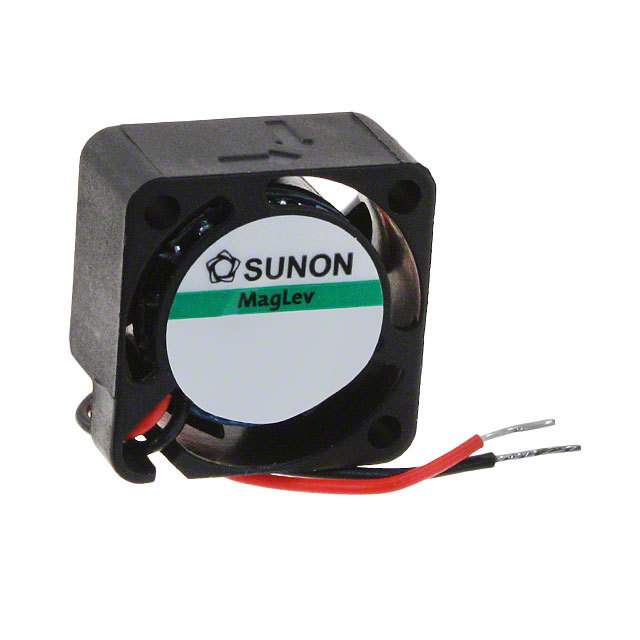

MC17080V2-000U-A99 MC17080V2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 17mm L x 17mm H
Width : 8.00mm
Air Flow : 0.706 CFM (0.020m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.0 dB(A)
Power (Watts) : 500mW
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.01 lb (4.54g)
0
277 in stock

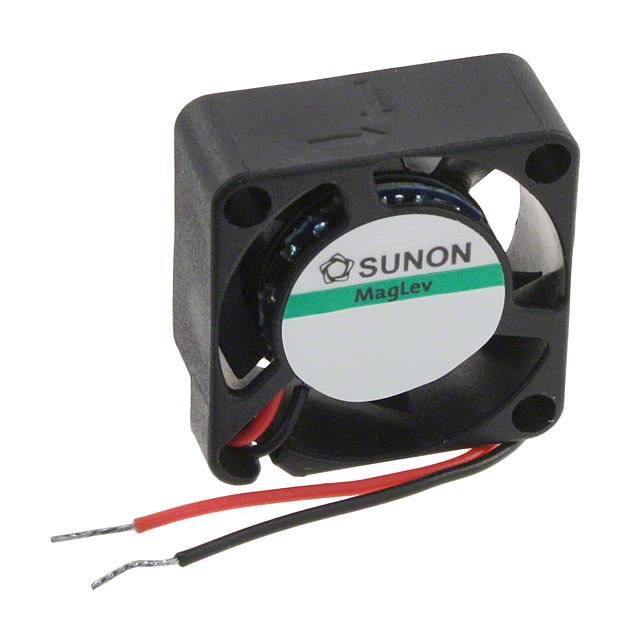

MC20080V1-000U-A99 MC20080V1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MC
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 20mm L x 20mm H
Width : 8.00mm
Air Flow : 1.6 CFM (0.045m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB(A)
Power (Watts) : 680mW
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.01 lb (4.54g)
0
4957 in stock
