Sprague Goodman
- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.
Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).
Part Number
Manufacturer
Description
Unit Price
In Stock

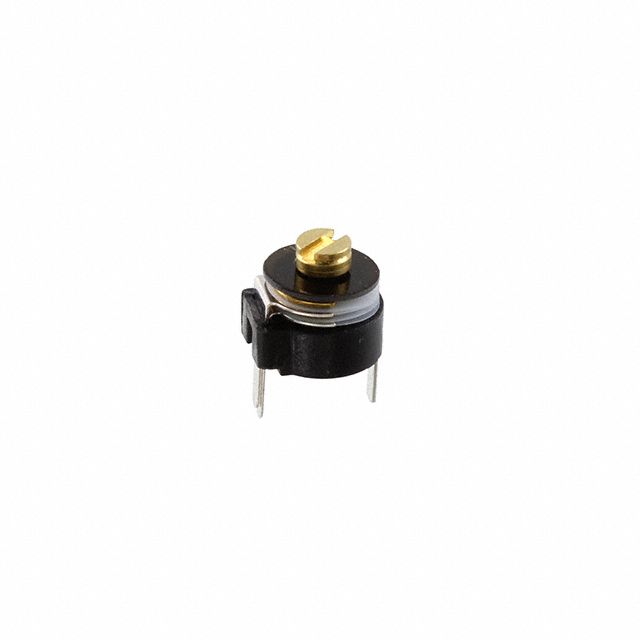

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : -
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
5045 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Plastic Box
Series : FILMTRIM®
Part Status : Active
Kit Type : Trimmer
Capacitance Range : 1.2pF ~ 18pF
Mounting Type : Through Hole
Voltage - Rated : 150V
Tolerance : -
Applications : -
Features : -
Quantity : 25 Pieces (5 Values - 5 Each)
Packages Included : -
0
4 in stock

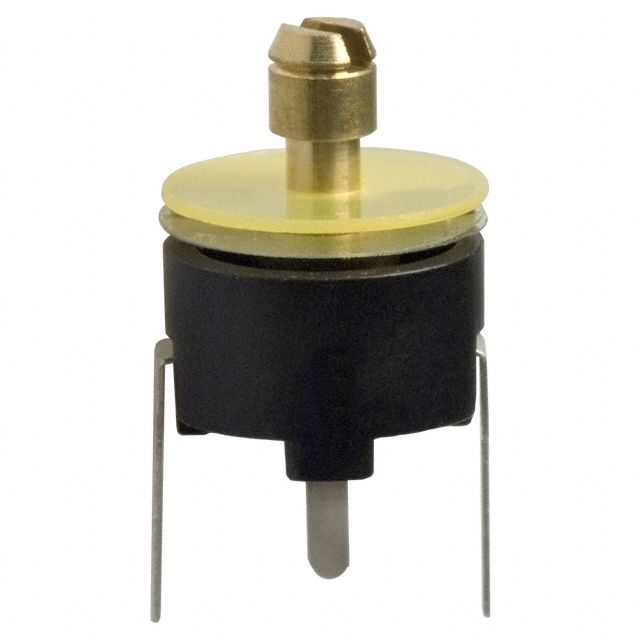

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 10pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
100 in stock

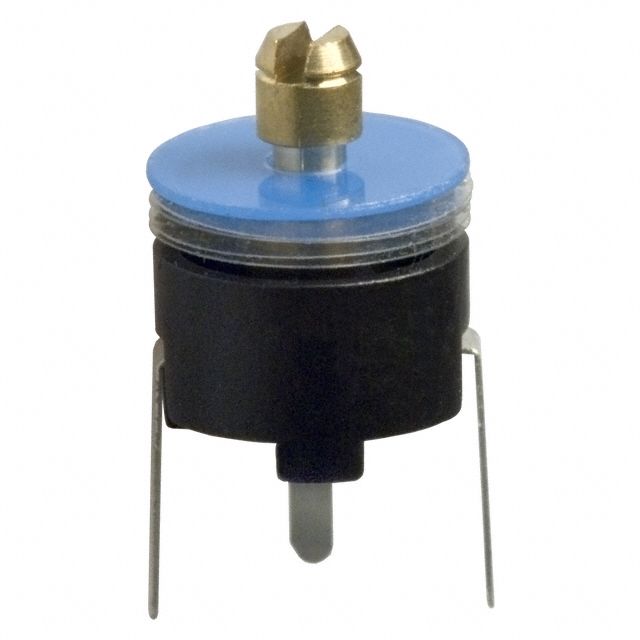

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 15pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
1900 in stock

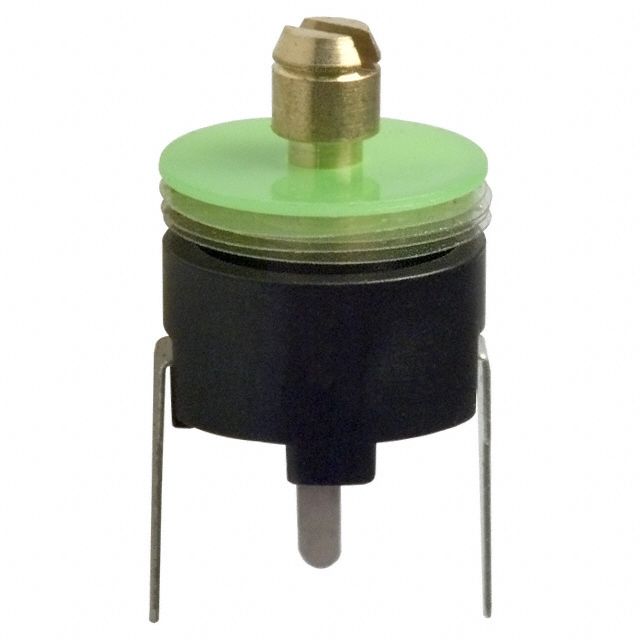

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.2 ~ 22pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
2464 in stock

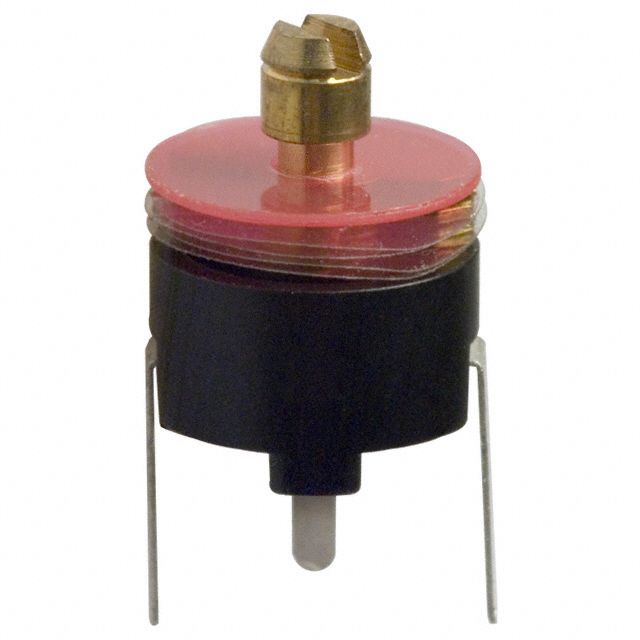

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.3 ~ 27pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
2300 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.3 ~ 27pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
98 in stock

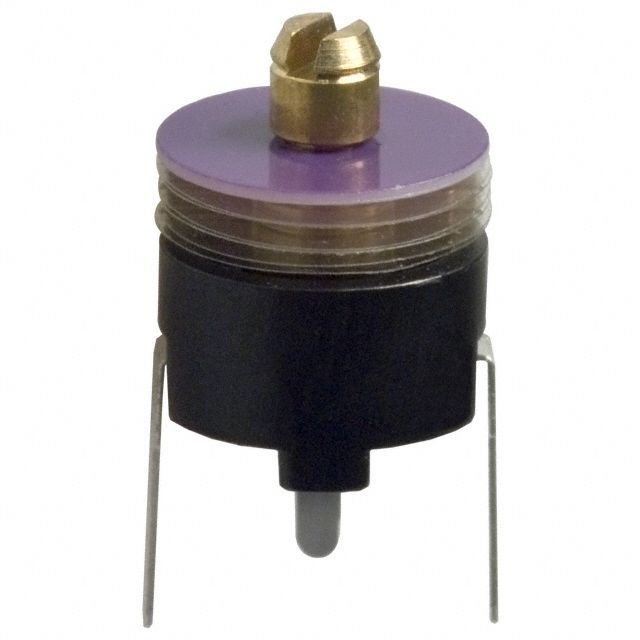

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3 ~ 36pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
4202 in stock

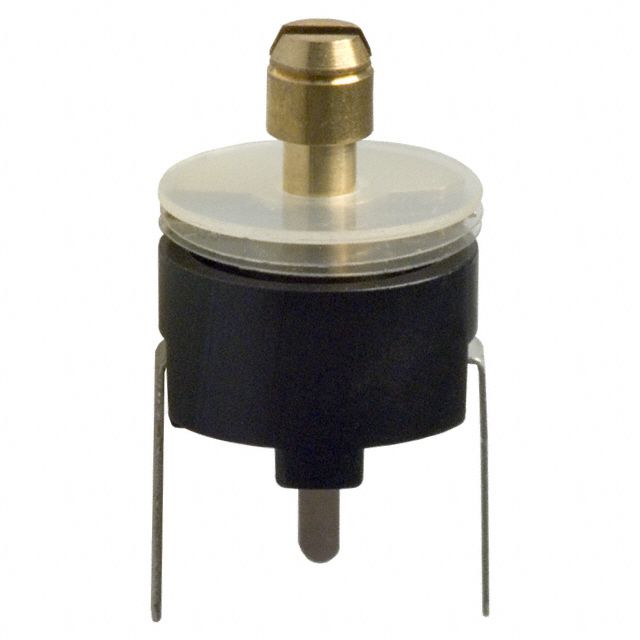

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.6 ~ 5pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
305 in stock

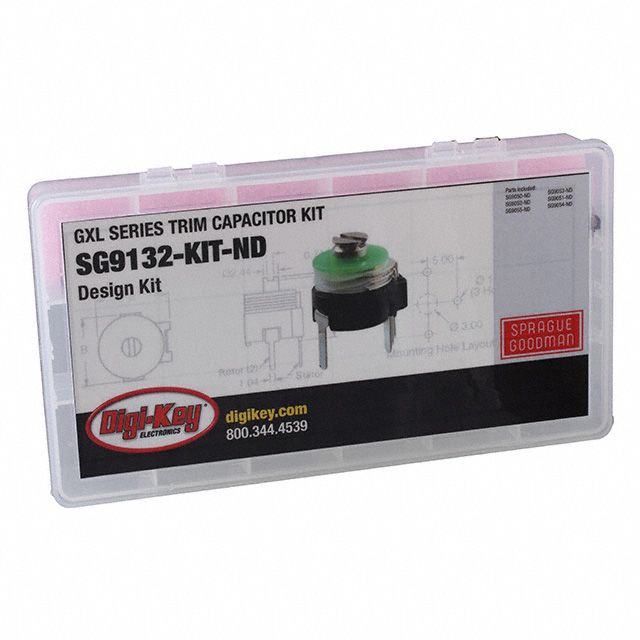

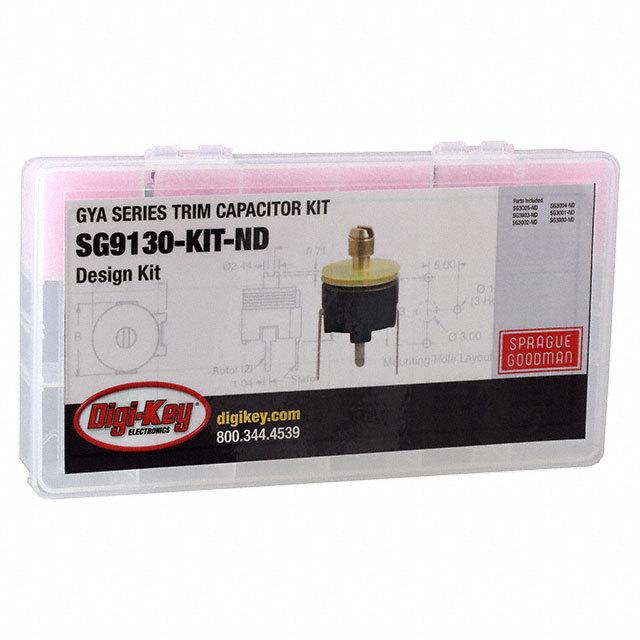

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Plastic Box
Series : FILMTRIM®
Part Status : Active
Kit Type : Trimmer
Capacitance Range : 1.6pF ~ 36pF
Mounting Type : Through Hole
Voltage - Rated : 100V
Tolerance : -
Applications : -
Features : -
Quantity : 30 Pieces (6 Values - 5 Each)
Packages Included : -
0
5 in stock

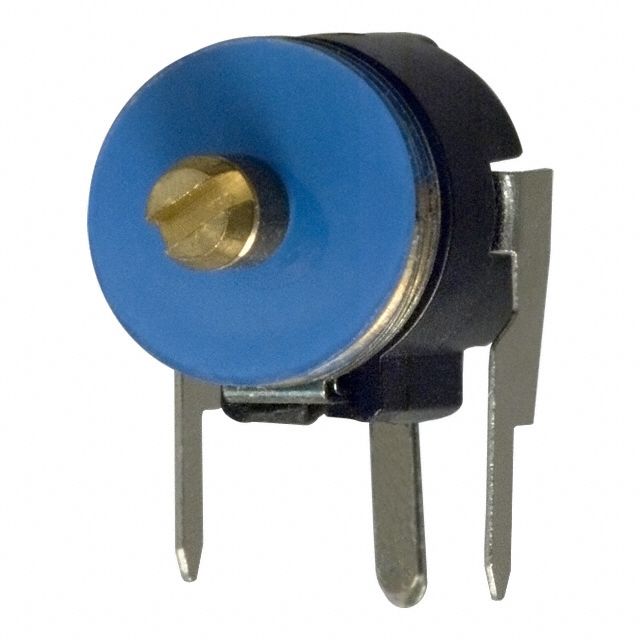

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 15pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
100 in stock

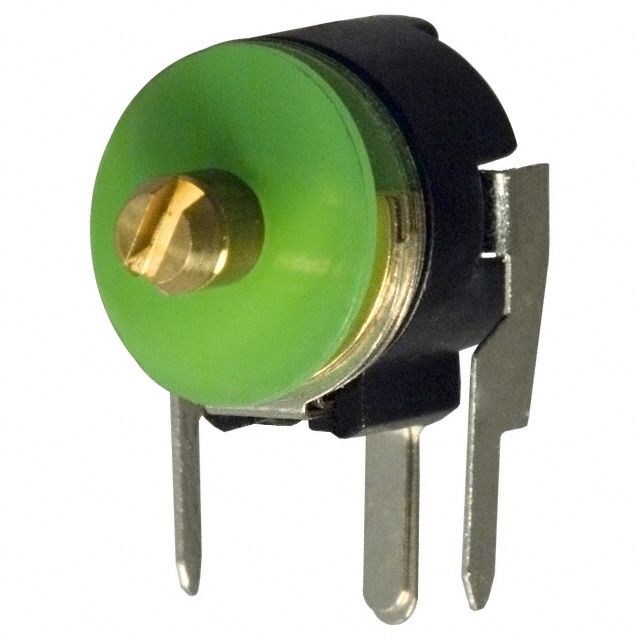

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.2 ~ 22pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose
0
2333 in stock
