Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).

Part Number
Manufacturer
Description
Unit Price
In Stock

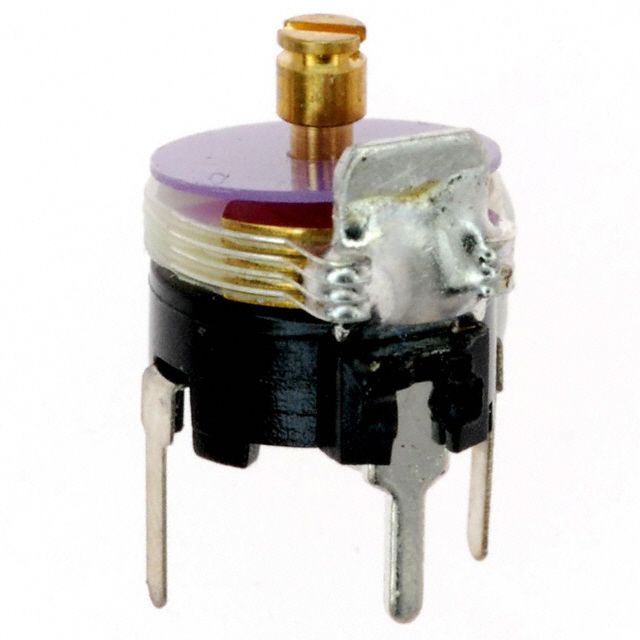

GZC10100  GZC10100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 9 ~ 100pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
11599 in stock

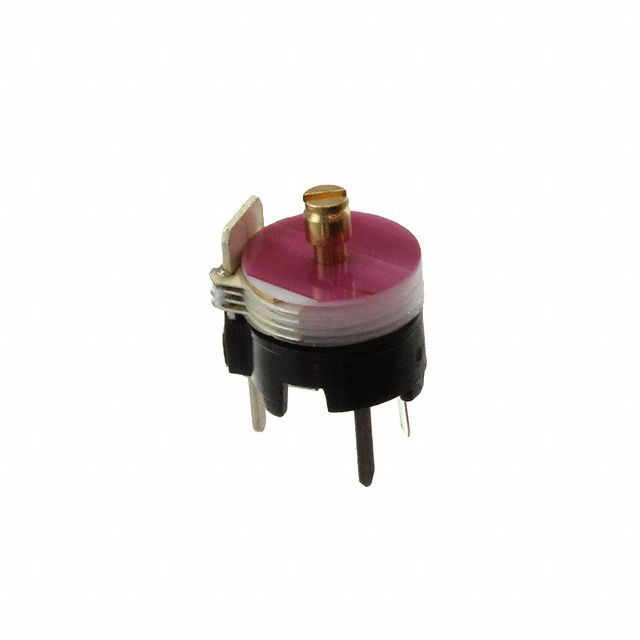

GZC10103  GZC10103

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 9 ~ 100pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" L x 0.374" W (11.00mm x 9.50mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
3857 in stock

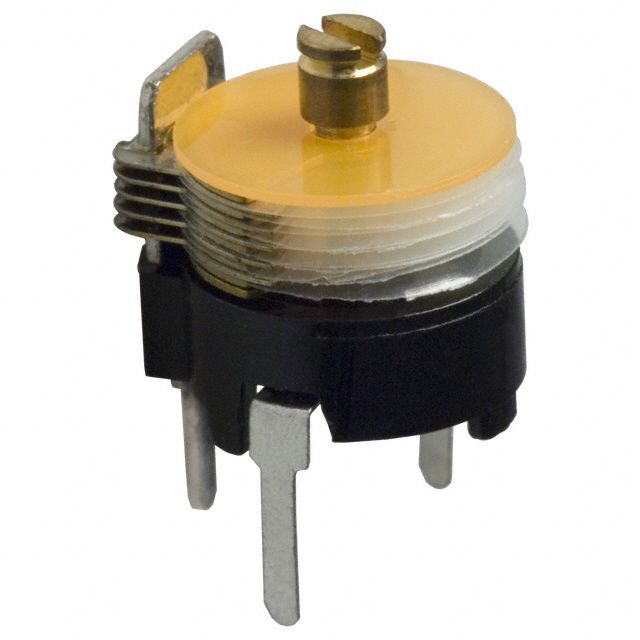

GZC12100  GZC12100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 9 ~ 120pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
4779 in stock

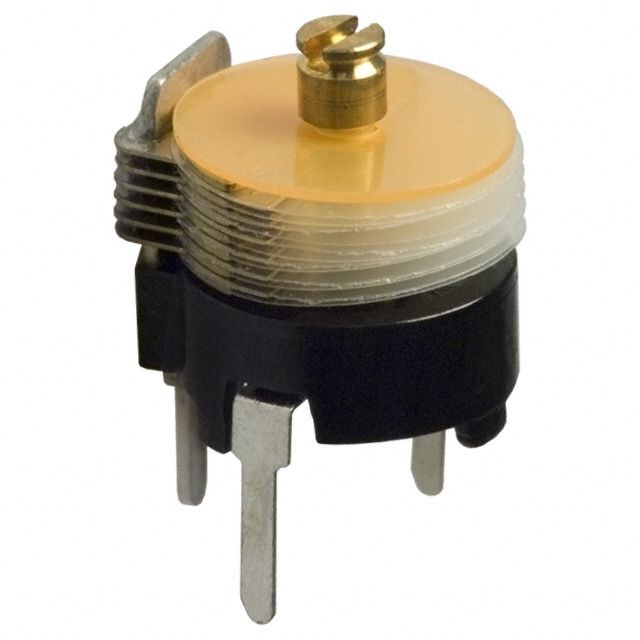

GZC15100  GZC15100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 10 ~ 150pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
2353 in stock

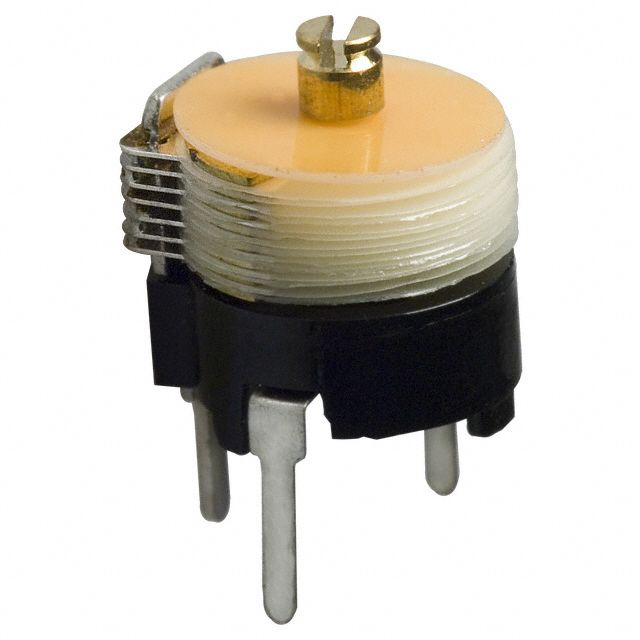

GZC18100  GZC18100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 12 ~ 180pf
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
9155 in stock

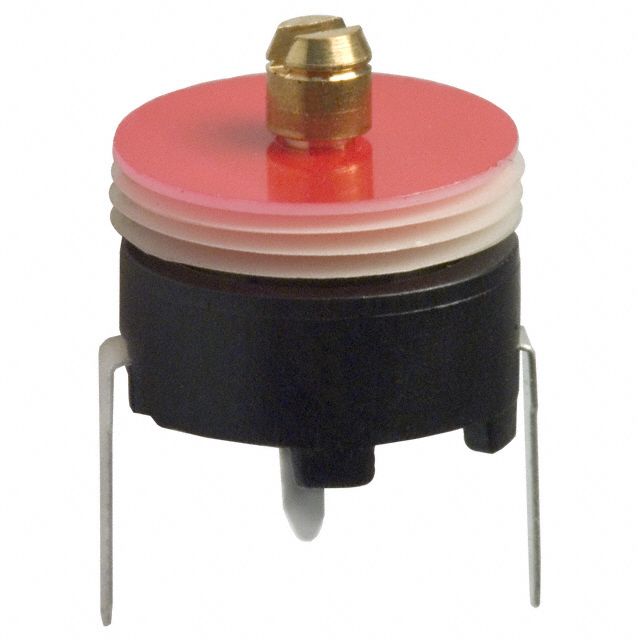

GZC80000  GZC80000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 8 ~ 80pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
1873 in stock

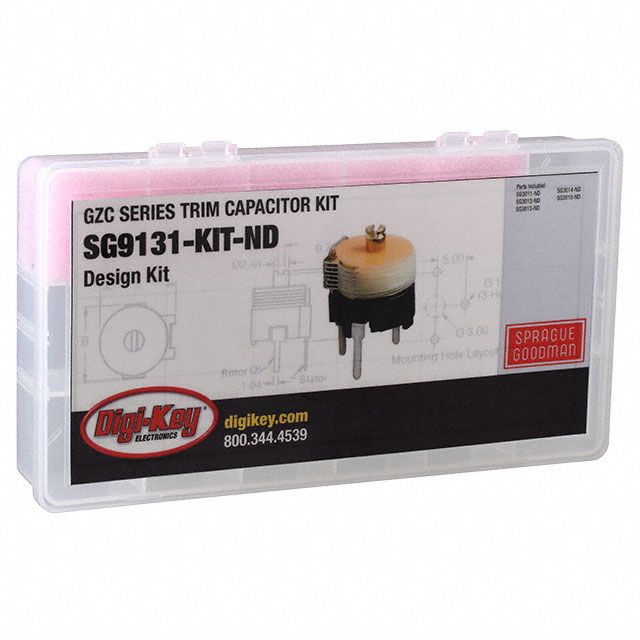

GZC-KIT GZC-KIT

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Plastic Box
Series : FILMTRIM®
Part Status : Active
Kit Type : Trimmer
Capacitance Range : 8pF ~ 180pF
Mounting Type : Through Hole
Voltage - Rated : 100V
Tolerance : -
Applications : -
Features : -
Quantity : 25 Pieces (5 Values - 5 Each)
Packages Included : -
0
6 in stock

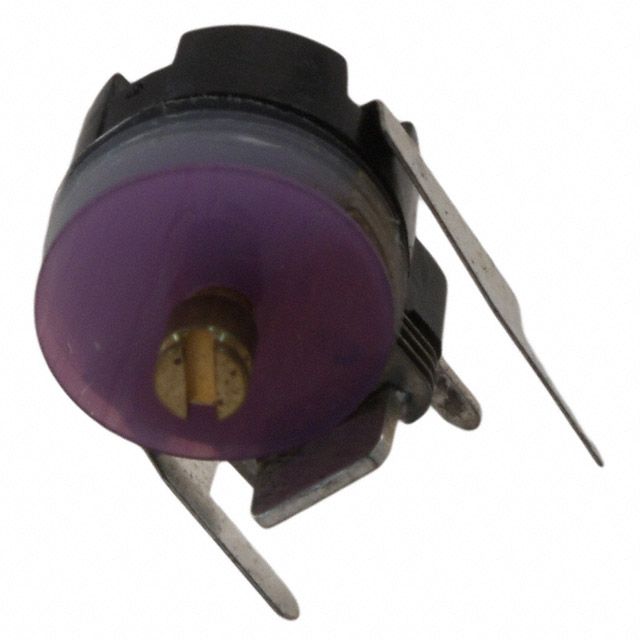

GZD10100  GZD10100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 9 ~ 100pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
13 in stock

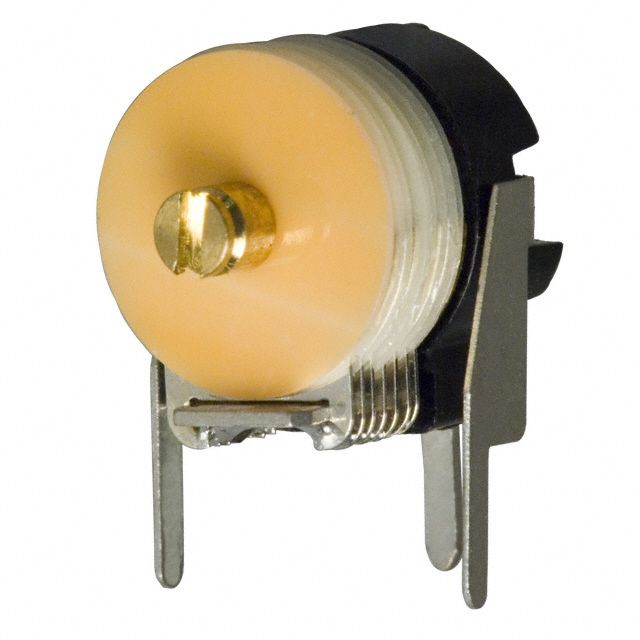

GZD18100  GZD18100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 10 ~ 180pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
4642 in stock

GZL5R000  GZL5R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.2 ~ 5pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polyimide (PI)
Q @ Freq : 150 @ 1MHz
Size / Dimension : 0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
699 in stock

GZN20100  GZN20100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 9 ~ 200pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.709" L x 0.610" W (18.00mm x 15.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
4835 in stock

GZN30100  GZN30100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 18 ~ 300pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.709" L x 0.610" W (18.00mm x 15.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
5033 in stock
