Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).


Part Number

Manufacturer

Description

Unit Price

In Stock

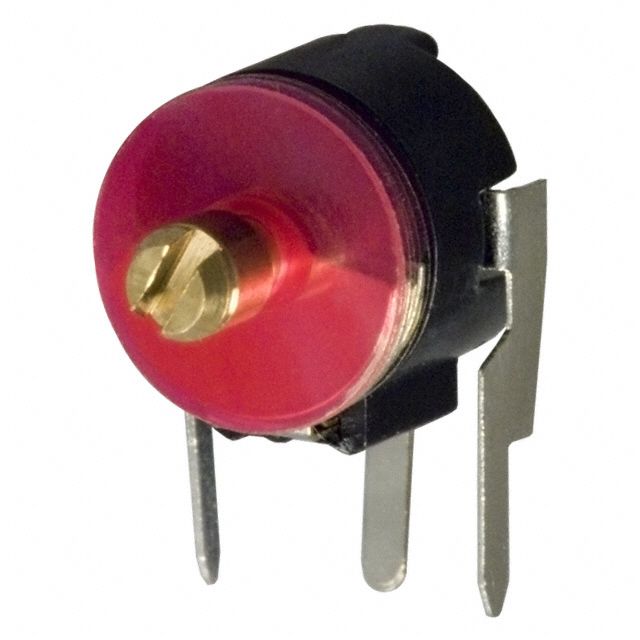

GYB27000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.3 ~ 27pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

100 in stock

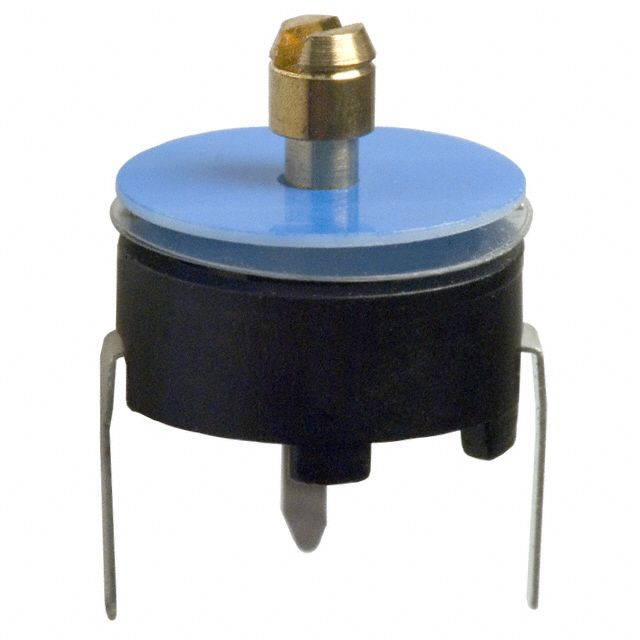

GYC15000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 15pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

139 in stock

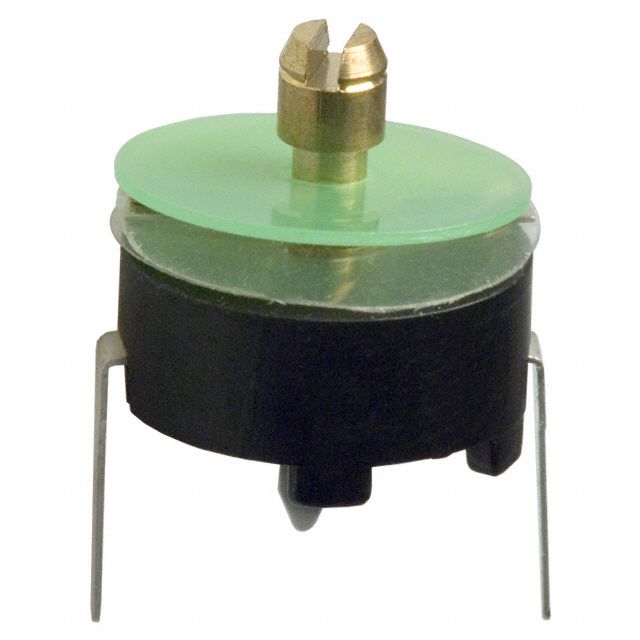

GYC20000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3 ~ 20pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

326 in stock

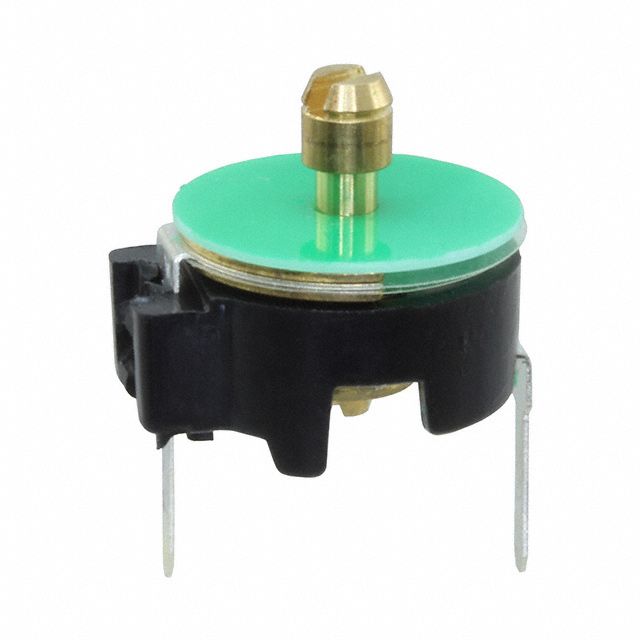

GYC20004

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3 ~ 20pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" L x 0.374" W (11.00mm x 9.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

496 in stock

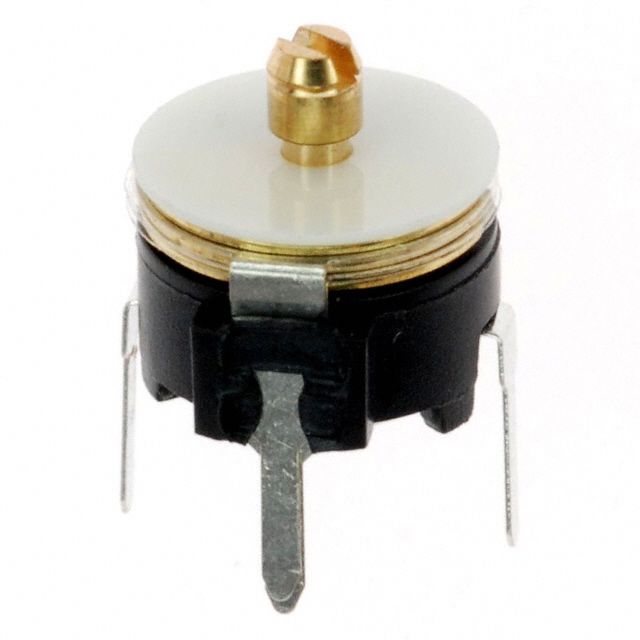

GYC40000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3 ~ 40pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

1588 in stock

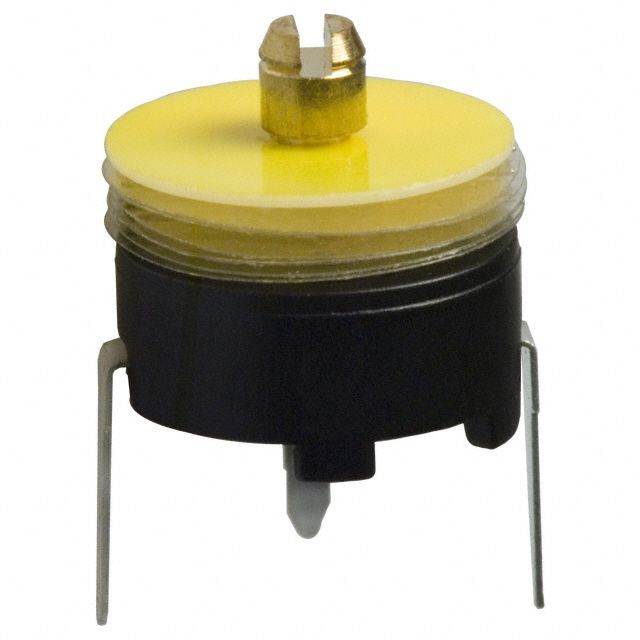

GYC65000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 4.5 ~ 65pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

7303 in stock

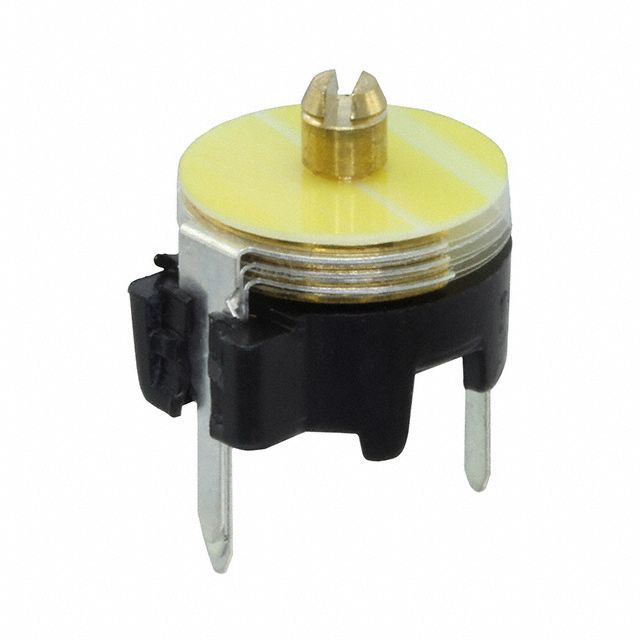

GYC65004

Sprague Goodman

730 in stock

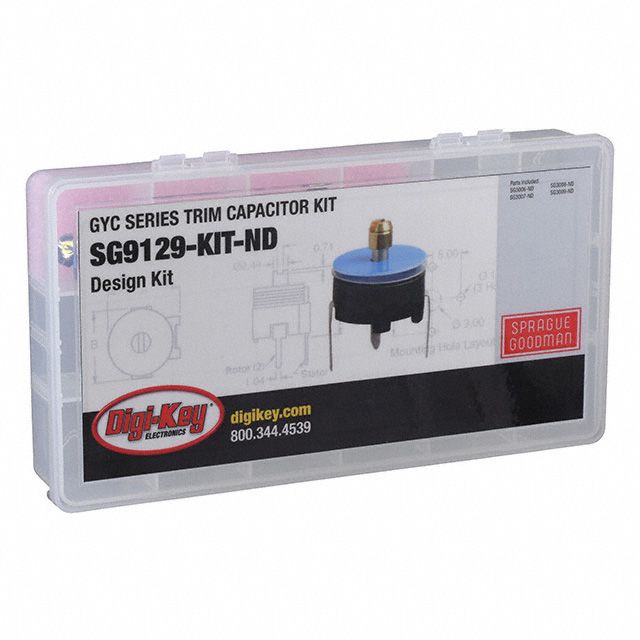

GYC-KIT

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Plastic Box
Series : FILMTRIM®
Part Status : Active
Kit Type : Trimmer
Capacitance Range : 2pF ~ 65pF
Mounting Type : Through Hole
Voltage - Rated : 100V
Tolerance : -
Applications : -
Features : -
Quantity : 20 Pieces (4 Values - 5 Each)
Packages Included : -

5 in stock

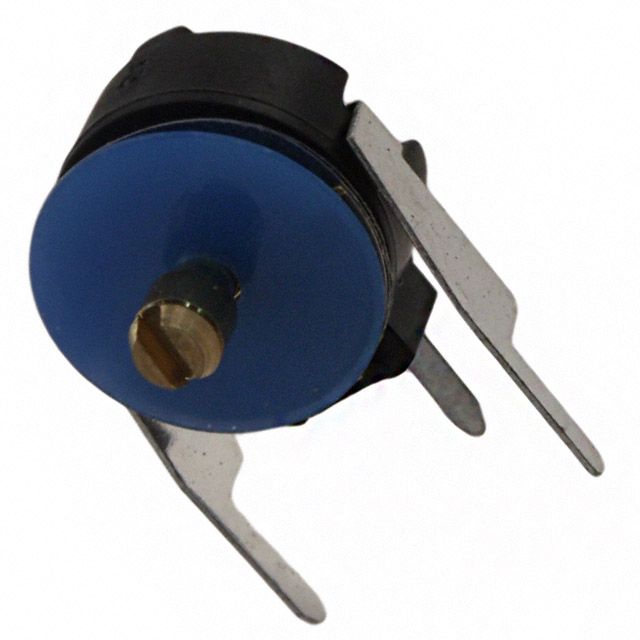

GYD15000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 15pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

2233 in stock

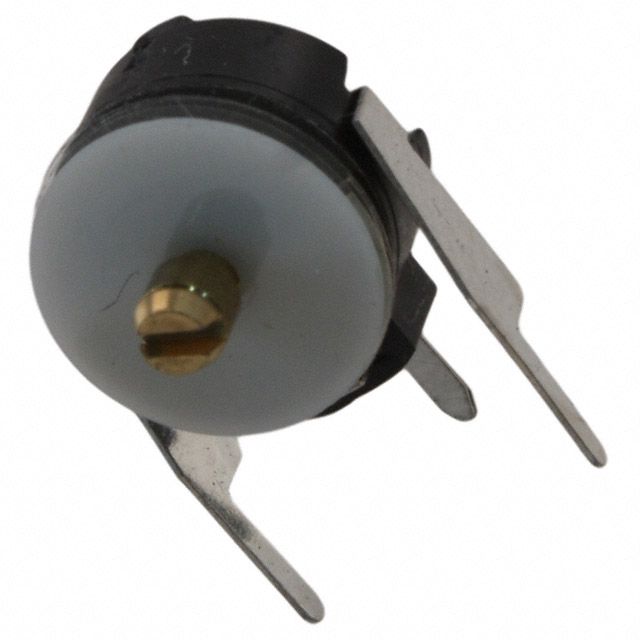

GYD40000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3 ~ 40pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

11 in stock

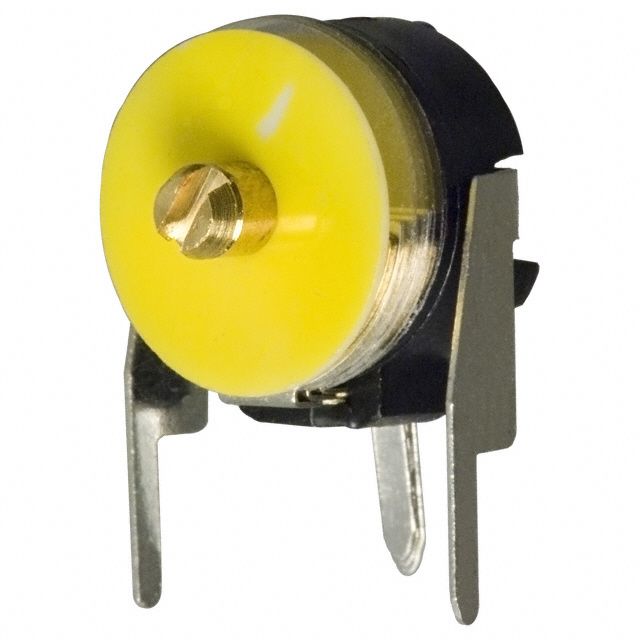

GYD65000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 4.5 ~ 65pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polypropylene (PP)
Q @ Freq : 1000 @ 1MHz
Size / Dimension : 0.433" Dia (11.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 70°C
Mounting Type : Through Hole
Features : General Purpose

4896 in stock

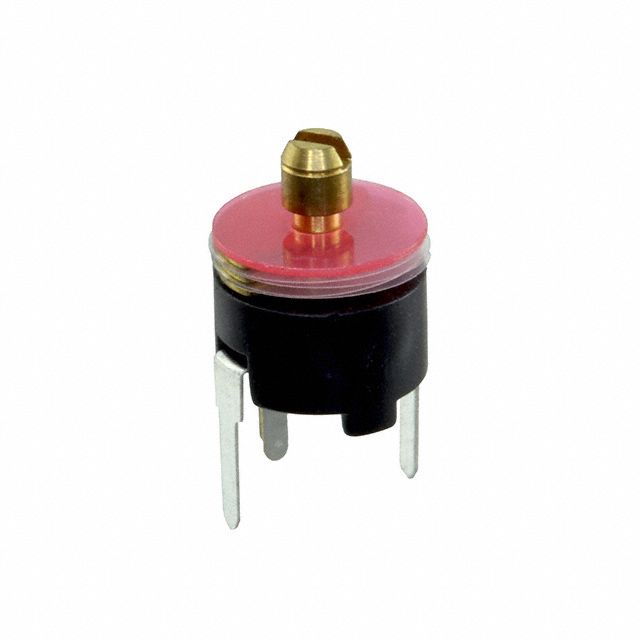

GZA30000

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.5 ~ 30pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polycarbonate (PC)
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

621 in stock
