Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).

Part Number
Manufacturer
Description
Unit Price
In Stock

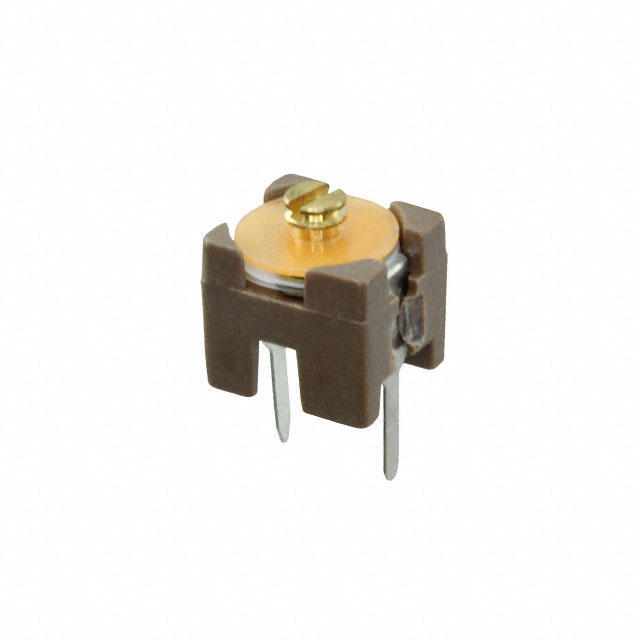

GXE3R501  GXE3R501

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1 ~ 3.5pF
Adjustment Type : Top and Bottom
Voltage - Rated : 300V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.291" L x 0.264" W (7.40mm x 6.70mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
600 in stock

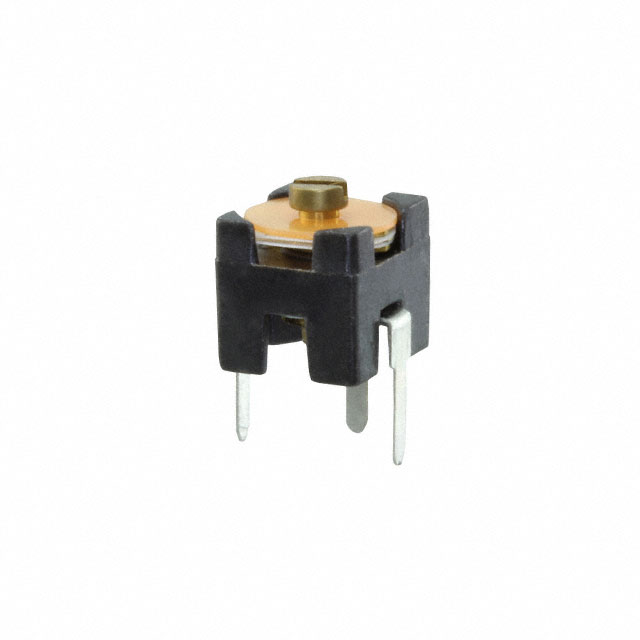

GXE3R511  GXE3R511

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1 ~ 3.5pF
Adjustment Type : Top and Bottom
Voltage - Rated : 300V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.291" L x 0.264" W (7.40mm x 6.70mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
1834 in stock

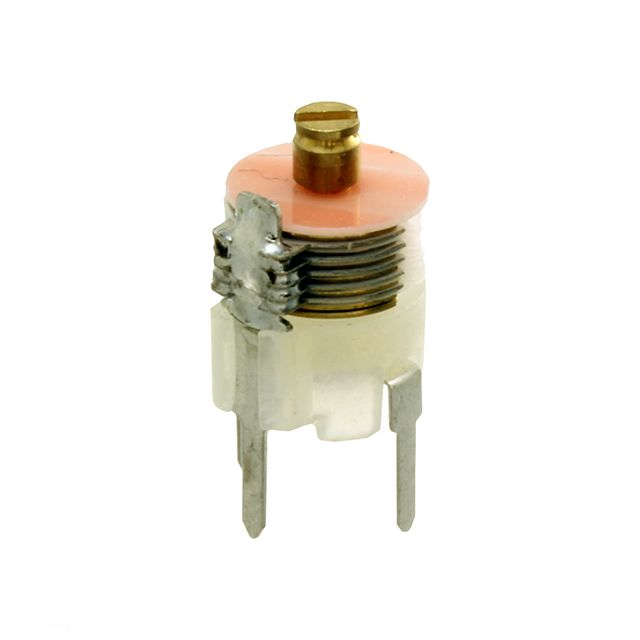

GXE45000NM  GXE45000NM

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GXE
Part Status : Active
Capacitance Range : 5 ~ 45pF
Adjustment Type : Top and Bottom
Voltage - Rated : 250V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
89 in stock

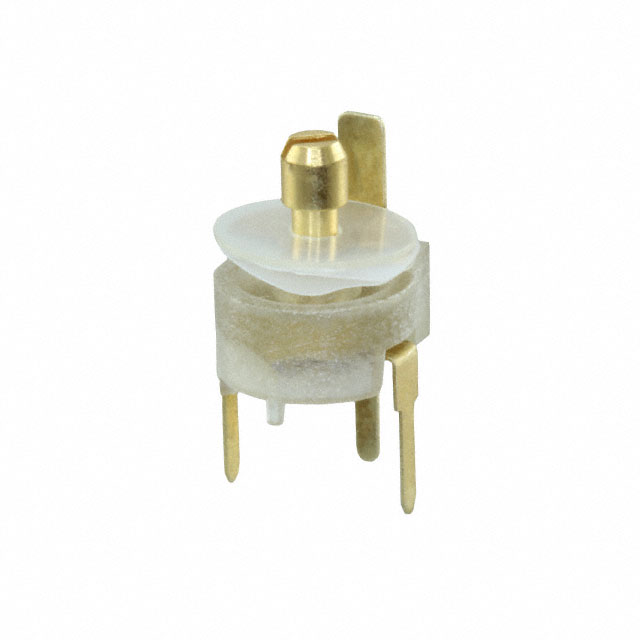

GXE5R000  GXE5R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.5 ~ 5pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
40 in stock

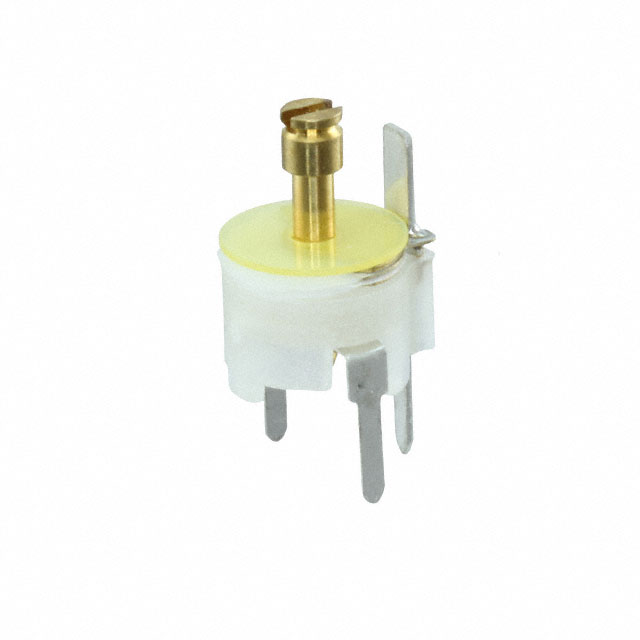

GXE5R000NM  GXE5R000NM

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GXE
Part Status : Active
Capacitance Range : 1.5 ~ 5pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
34 in stock

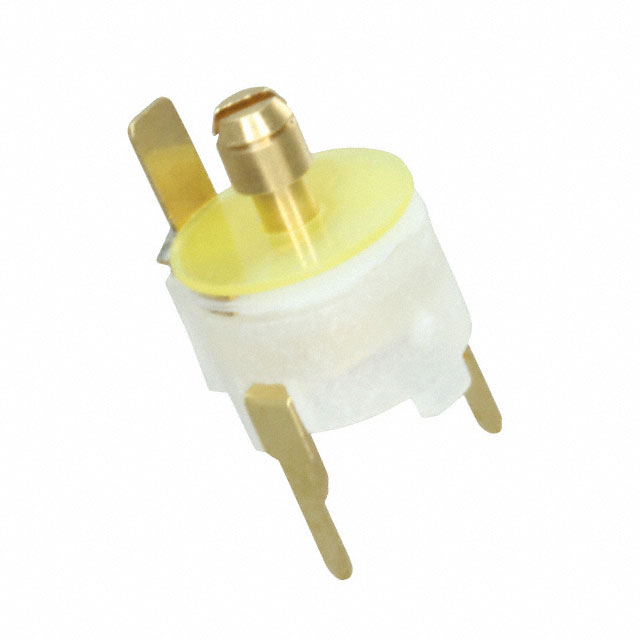

GXE9R000  GXE9R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.8 ~ 9pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
2500 in stock

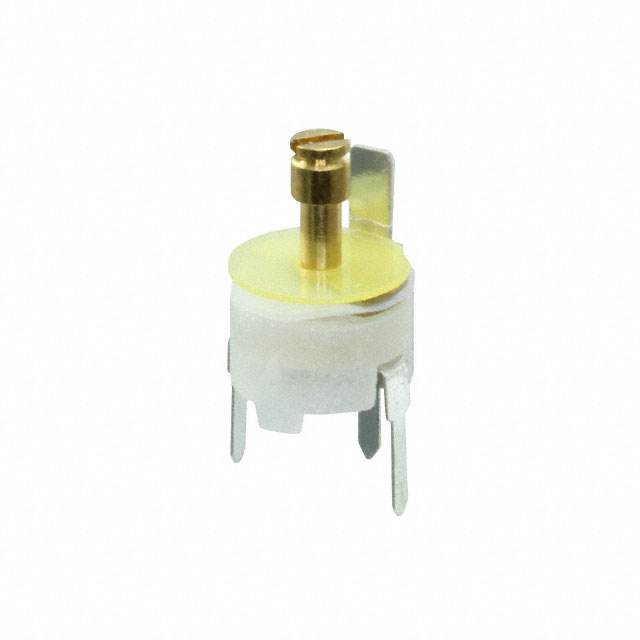

GXE9R000NM  GXE9R000NM

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GXE
Part Status : Active
Capacitance Range : 1.8 ~ 9pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
1446 in stock

GXL10000  GXL10000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.8 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max) : 0.228" (5.80mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
24 in stock

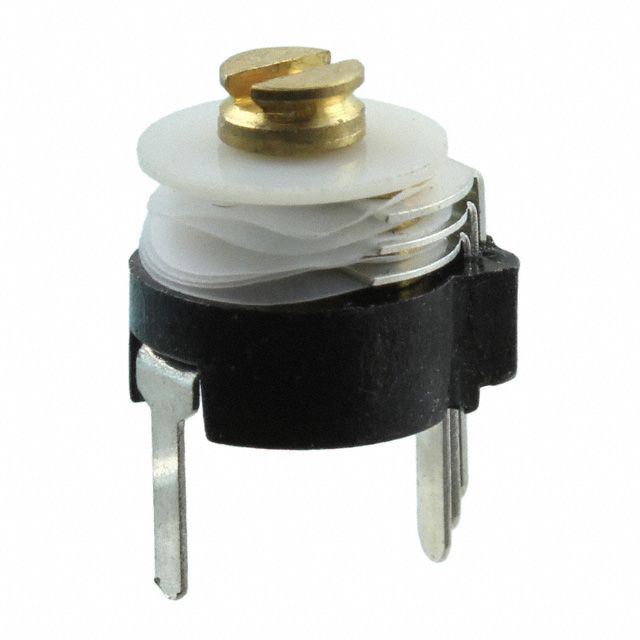

GXL15000  GXL15000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 15pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
5022 in stock

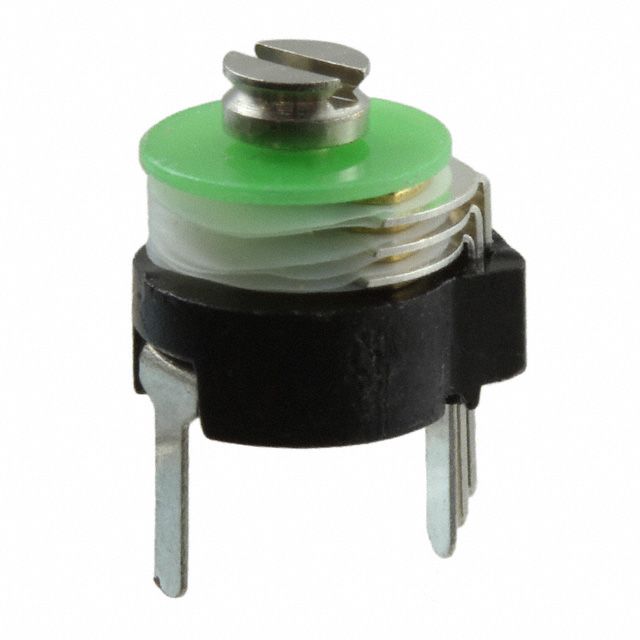

GXL18000  GXL18000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.3 ~ 18pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
4574 in stock

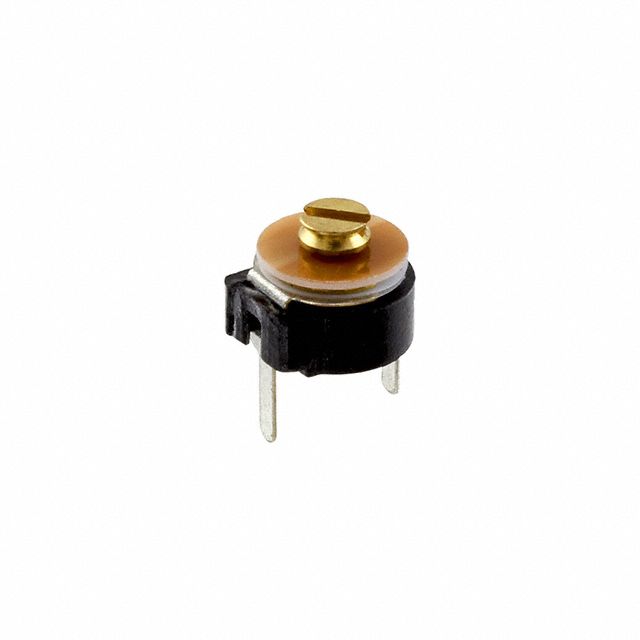

GXL3R000  GXL3R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : -
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
5035 in stock

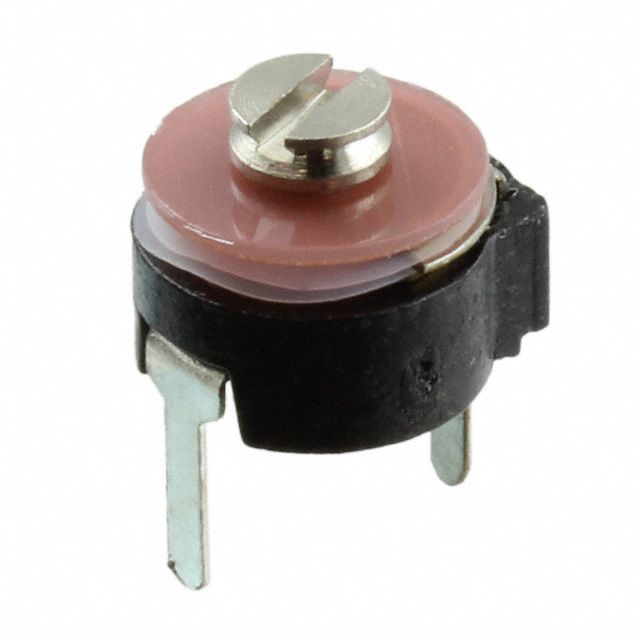

GXL4R000  GXL4R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.2 ~ 4pF
Adjustment Type : Top
Voltage - Rated : 150V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
4719 in stock
