Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).

Part Number
Manufacturer
Description
Unit Price
In Stock

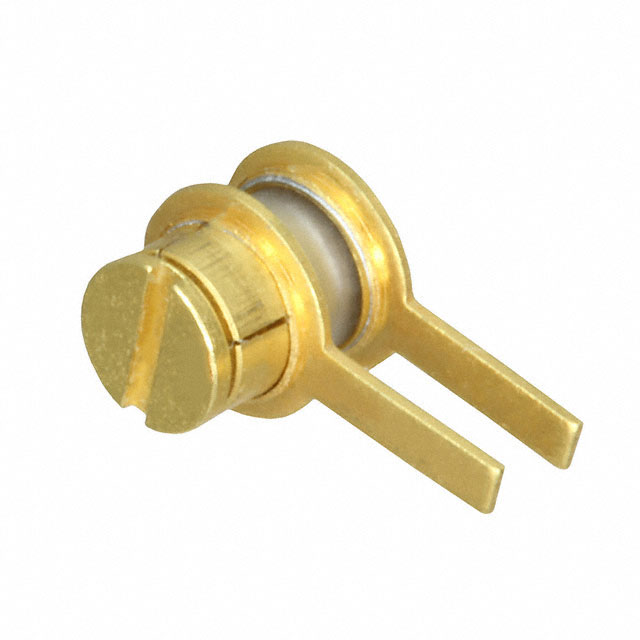

GWC2R550  GWC2R550

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.4 ~ 2.5pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 3000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
34 in stock

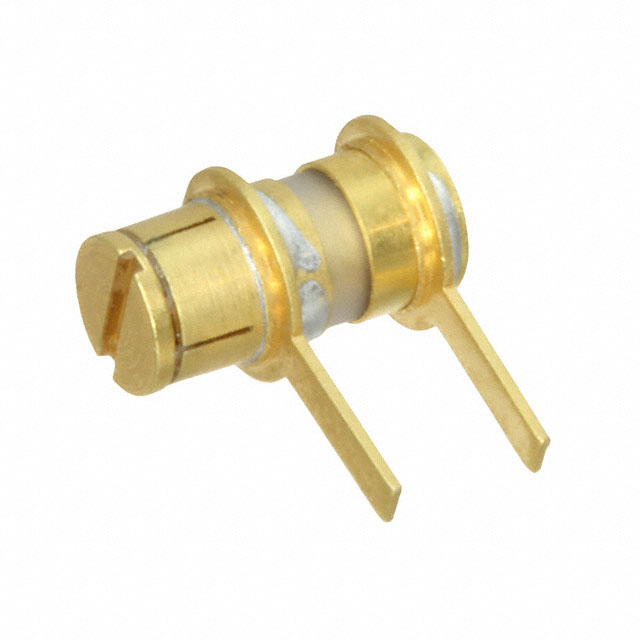

GWC4R500  GWC4R500

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.6 ~ 4.5pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 2000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.310" (7.90mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
12 in stock

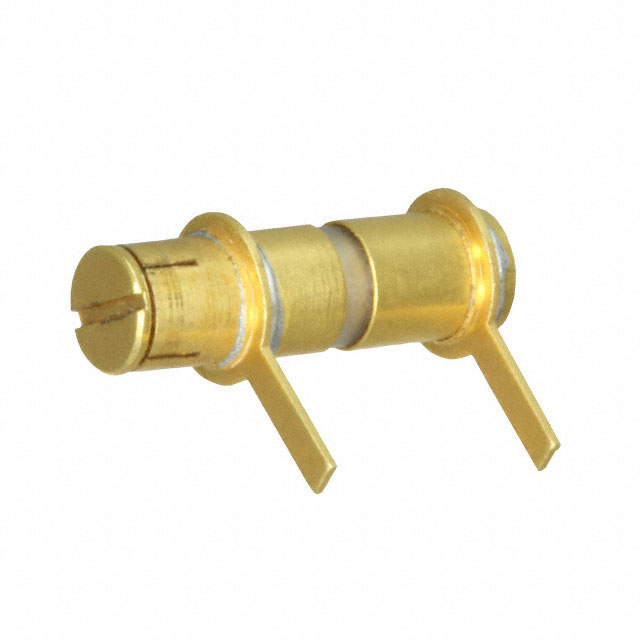

GWC8R000  GWC8R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 1000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.470" (12.00mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
31 in stock

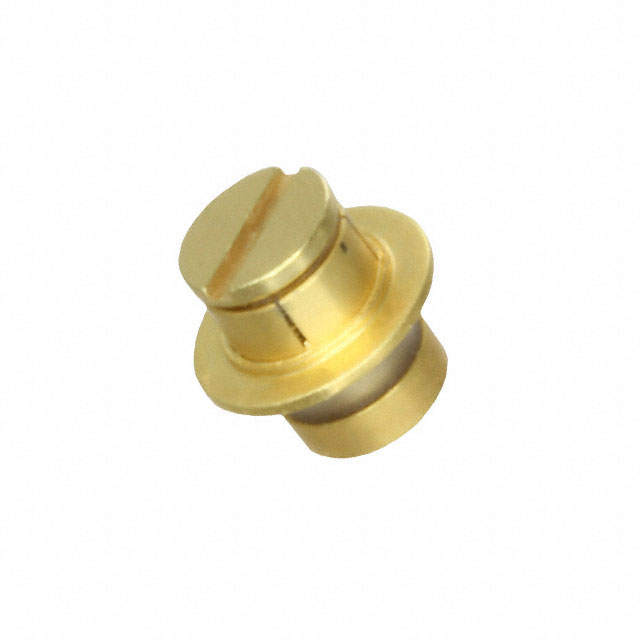

GWF2R500  GWF2R500

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.4 ~ 2.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 3000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
76 in stock

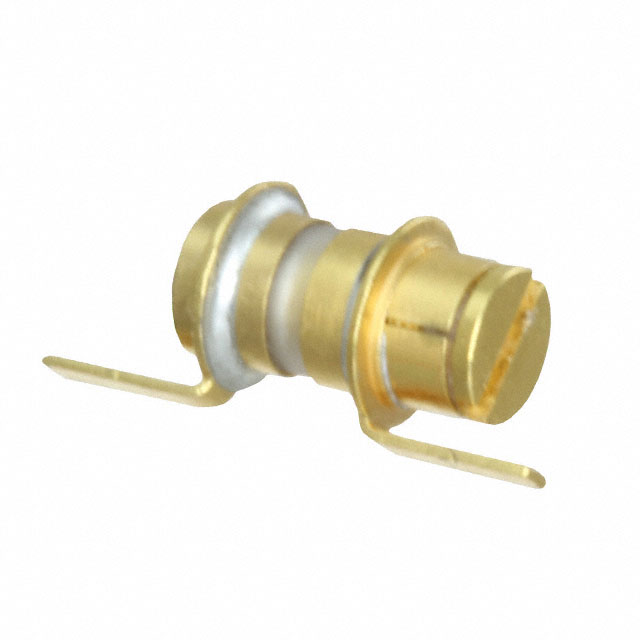

GWL4R550  GWL4R550

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.6 ~ 4.5pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 2000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.310" (7.90mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
184 in stock

GWL8R050  GWL8R050

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 1000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.470" (12.00mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
18 in stock

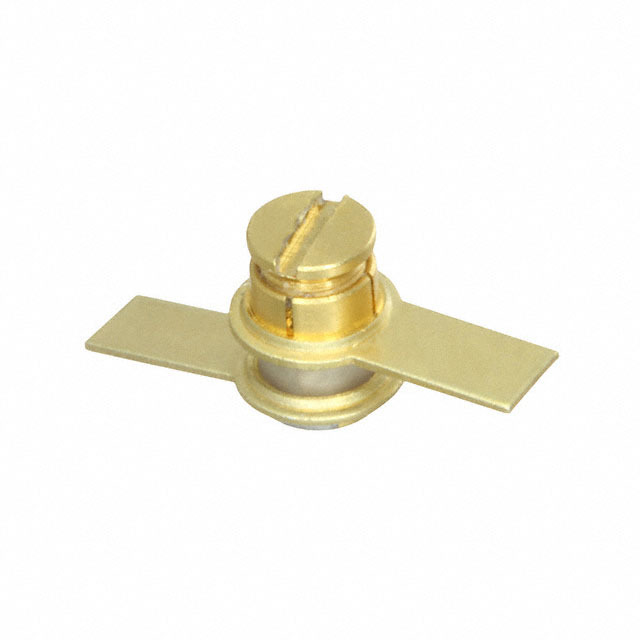

GWR2R550  GWR2R550

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.4 ~ 2.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 3000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
95 in stock

GWR4R500  GWR4R500

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.6 ~ 4.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 2000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.310" (7.90mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
90 in stock

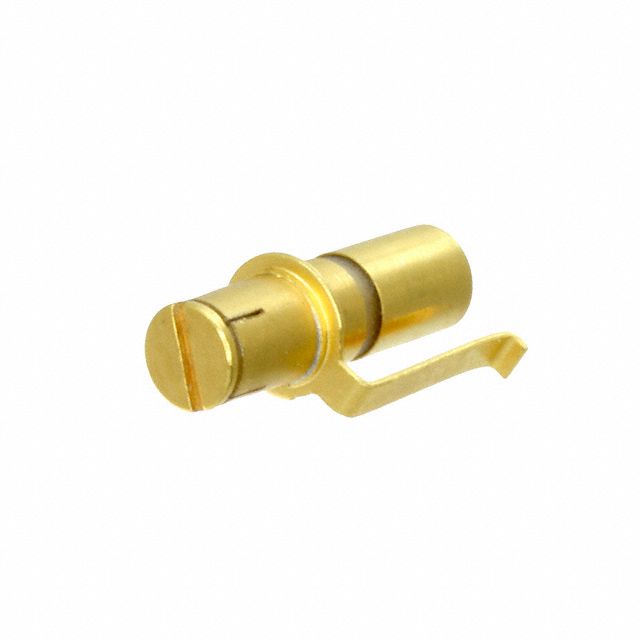

GWV8R000  GWV8R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 1000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.470" (12.00mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
79 in stock

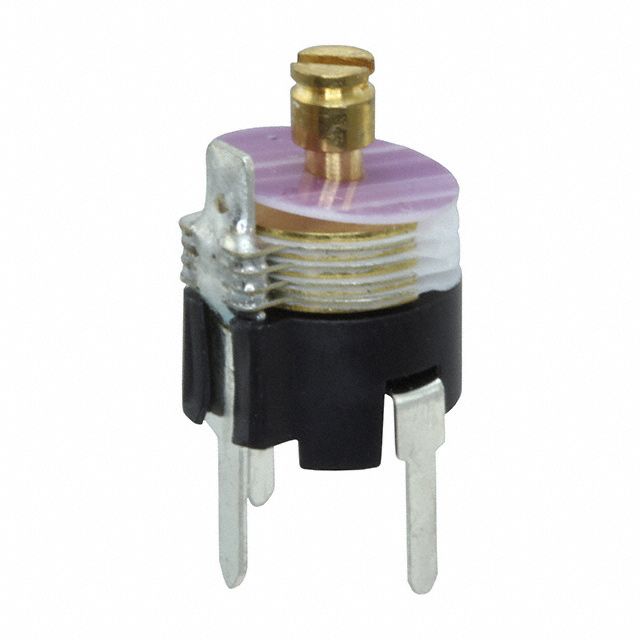

GXA36000  GXA36000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 4.5 ~ 36pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
670 in stock

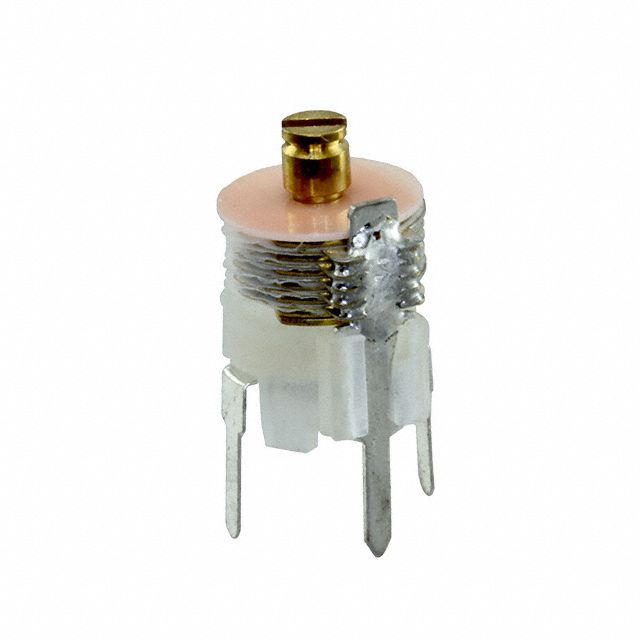

GXA45000  GXA45000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 5 ~ 45pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
1245 in stock

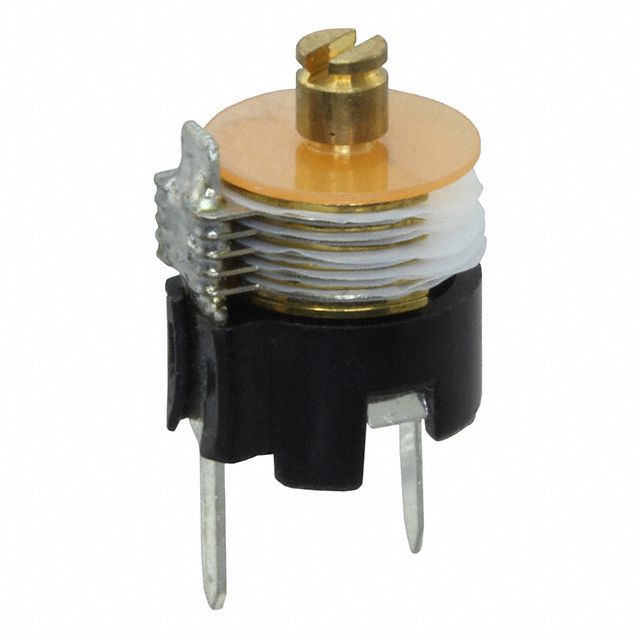

GXA45002  GXA45002

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 5 ~ 45pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
167 in stock
