Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).

Part Number
Manufacturer
Description
Unit Price
In Stock

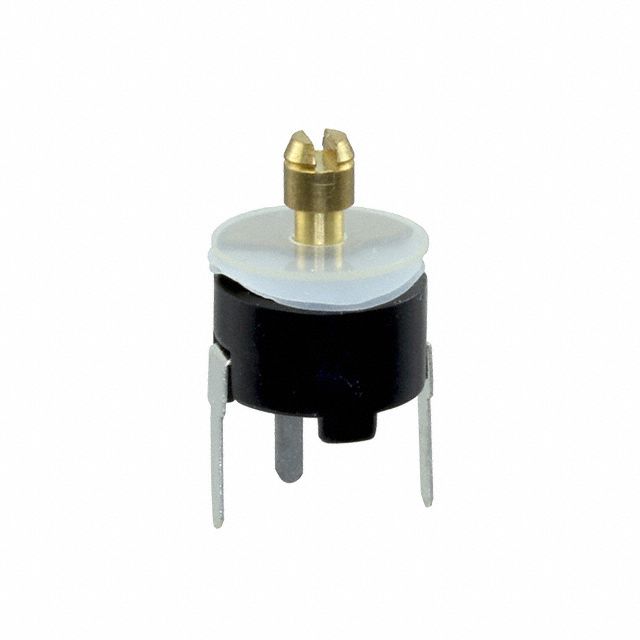

GXA5R000  GXA5R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.6 ~ 5pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
5000 in stock

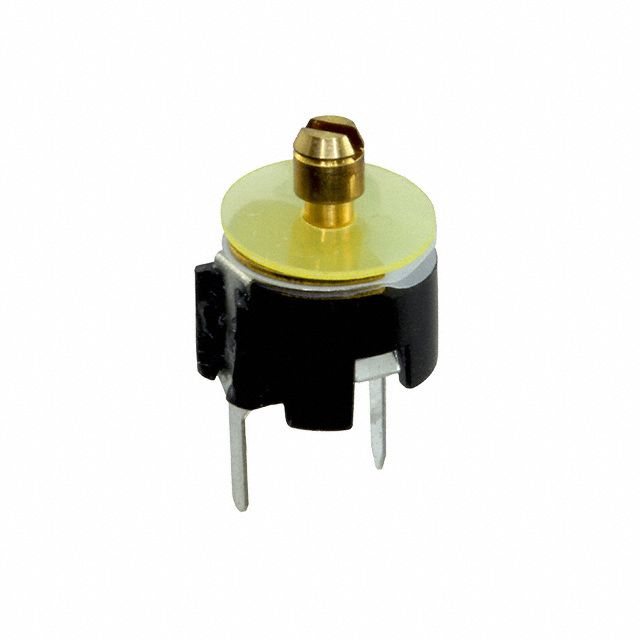

GXA9R002  GXA9R002

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 9pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
624 in stock

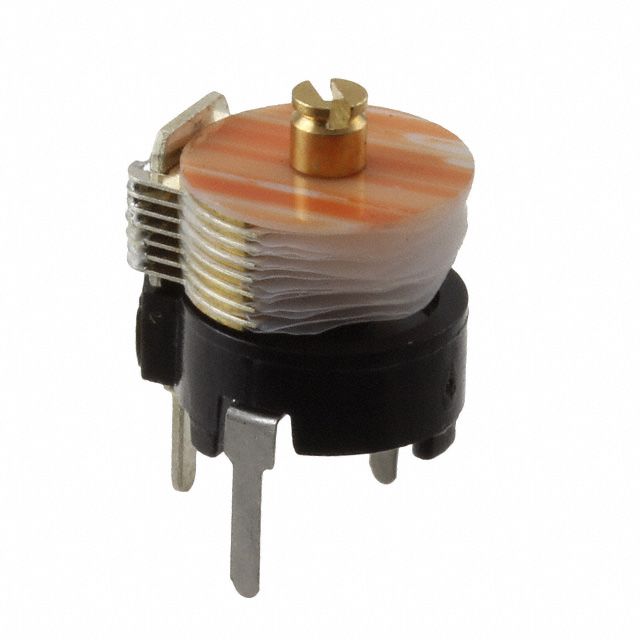

GXC15100  GXC15100

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Obsolete
Capacitance Range : 10 ~ 150pF
Adjustment Type : Top and Bottom
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.433" L x 0.374" W (11.00mm x 9.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
91 in stock

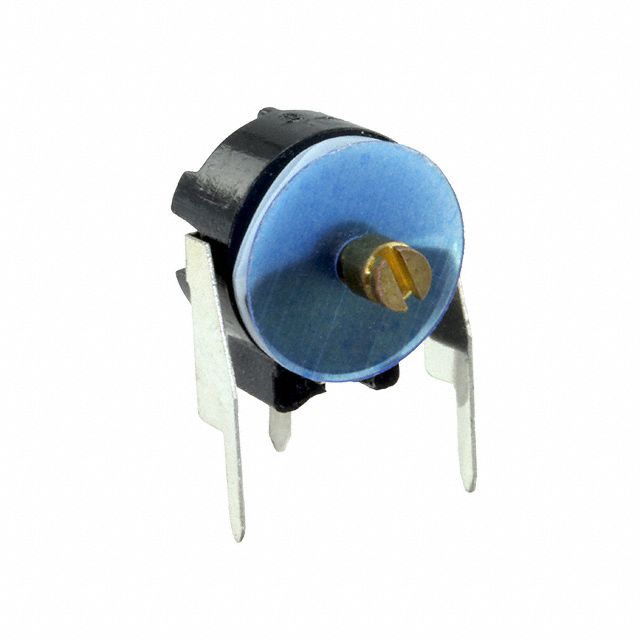

GXD13000  GXD13000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2 ~ 13pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) : 0.433" (11.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
2331 in stock

GXD60000  GXD60000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 6 ~ 60pF
Adjustment Type : Side
Voltage - Rated : 100V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.449" L x 0.402" W (11.40mm x 10.20mm)
Height - Seated (Max) : 0.433" (11.00mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
549 in stock

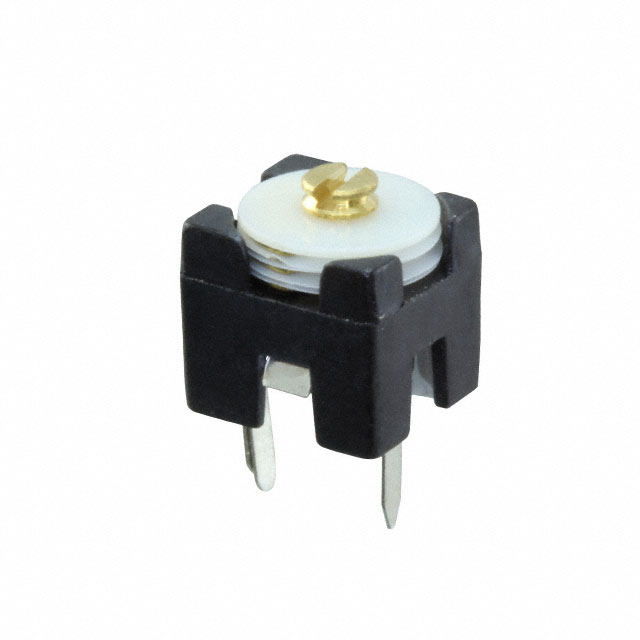

GXE10001  GXE10001

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 1.8 ~ 10pF
Adjustment Type : Top and Bottom
Voltage - Rated : 300V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.291" L x 0.264" W (7.40mm x 6.70mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
1783 in stock

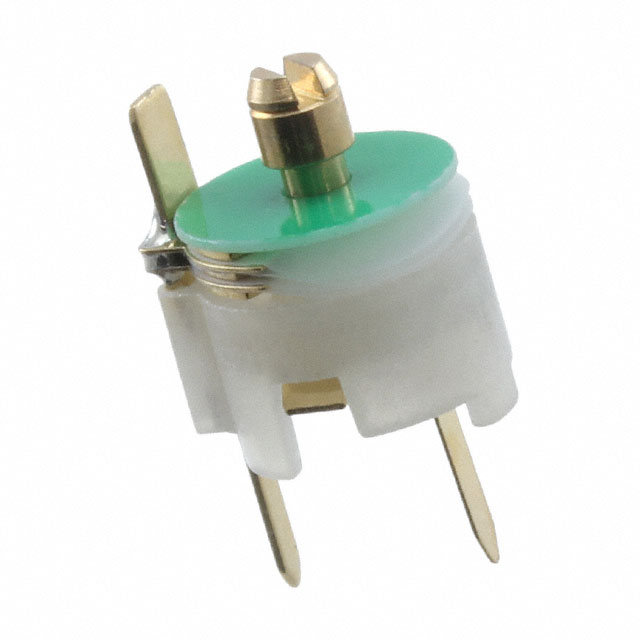

GXE18002  GXE18002

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.6 ~ 18pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
95 in stock

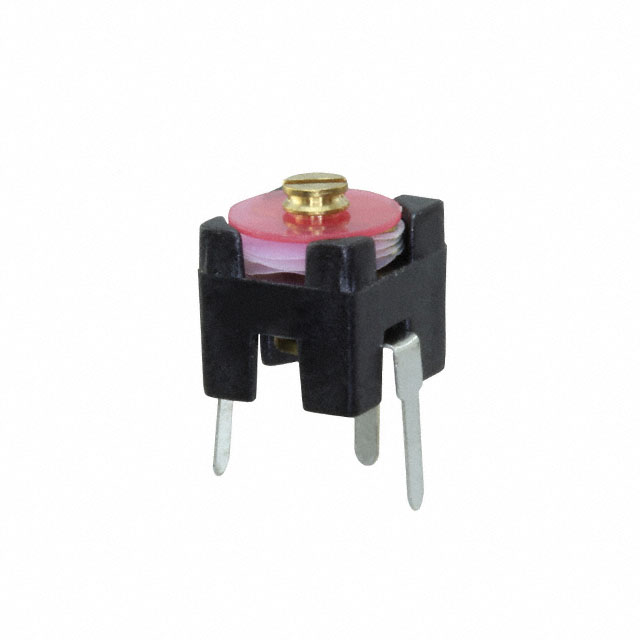

GXE18011  GXE18011

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 2.5 ~ 18pF
Adjustment Type : Top and Bottom
Voltage - Rated : 300V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.291" L x 0.264" W (7.40mm x 6.70mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
870 in stock

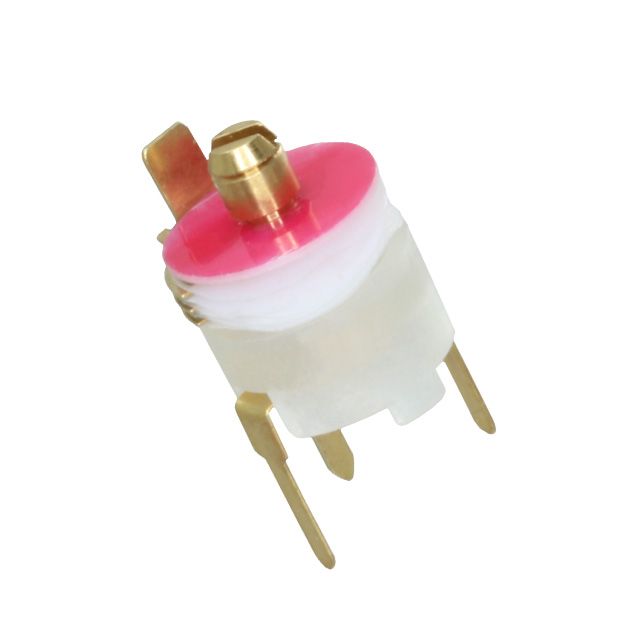

GXE27000  GXE27000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3.5 ~ 27pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
60 in stock

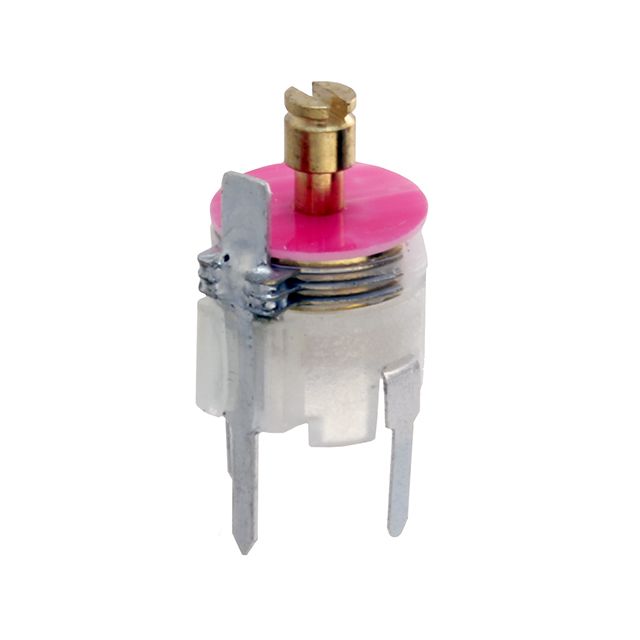

GXE27000NM  GXE27000NM

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GXE
Part Status : Active
Capacitance Range : 3.5 ~ 27pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
4371 in stock

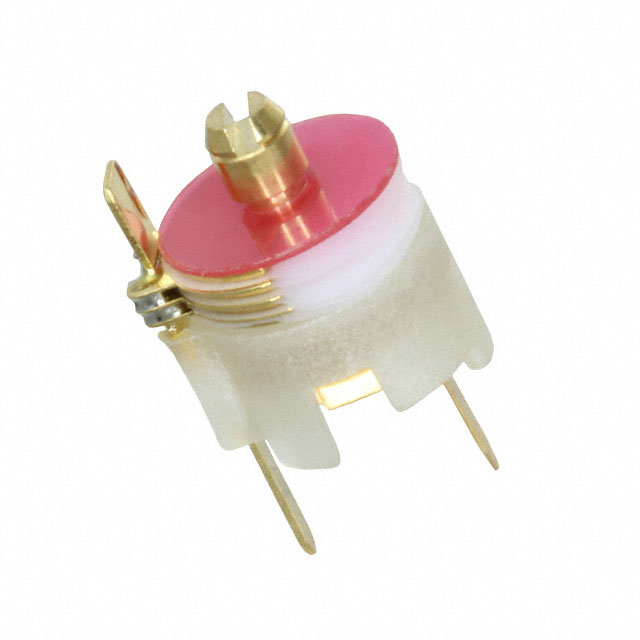

GXE27002  GXE27002

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : FILMTRIM®
Part Status : Active
Capacitance Range : 3.5 ~ 27pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) : 0.402" (10.20mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
81 in stock

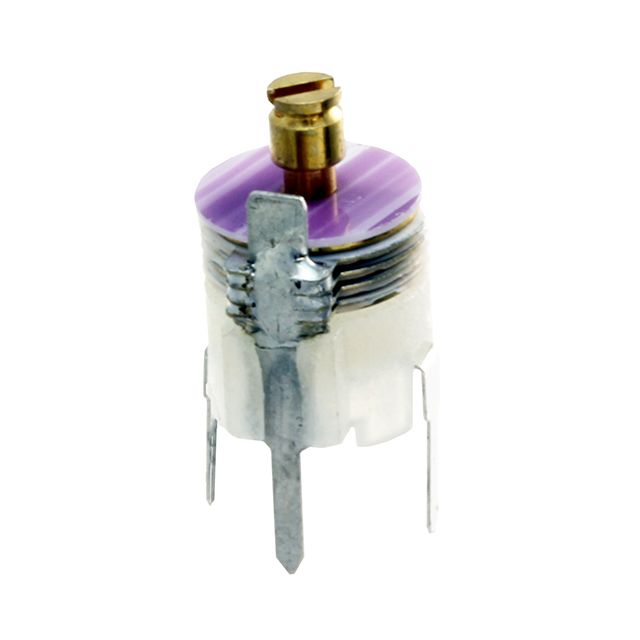

GXE36000NM  GXE36000NM

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GXE
Part Status : Active
Capacitance Range : 4.5 ~ 36pF
Adjustment Type : Top and Bottom
Voltage - Rated : 200V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.335" Dia (8.50mm)
Height - Seated (Max) : 0.449" (11.40mm)
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
4785 in stock
