Sprague Goodman
- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.
Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).
Part Number
Manufacturer
Description
Unit Price
In Stock

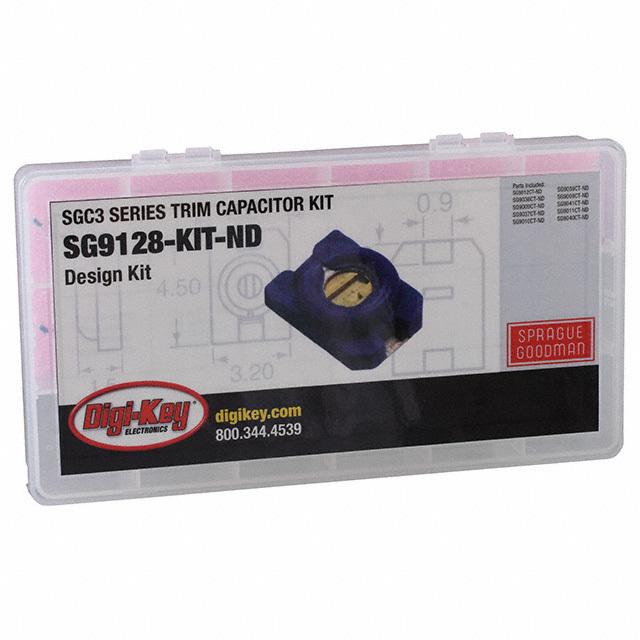

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Plastic Box
Series : SGC3
Part Status : Active
Kit Type : Trimmer
Capacitance Range : 1.2pF ~ 30pF
Mounting Type : Surface Mount
Voltage - Rated : 500V
Tolerance : -
Applications : -
Features : Low Profile
Quantity : 50 Pieces (10 Values - 5 Each)
Packages Included : -
0
8 in stock

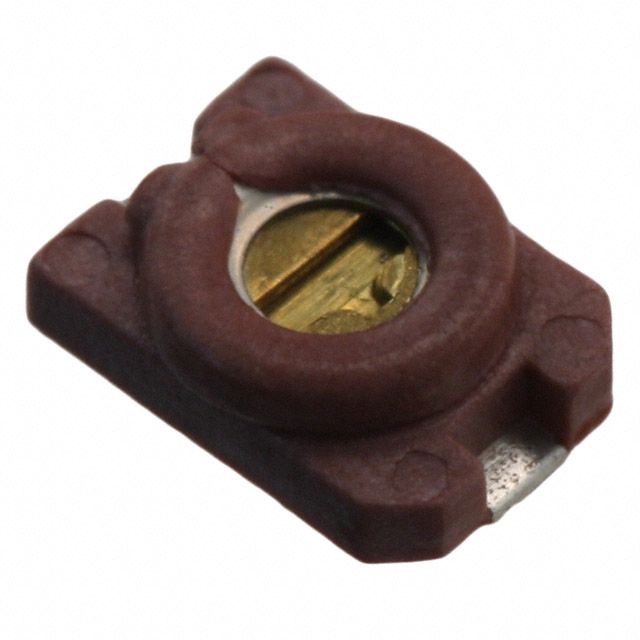

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 1.2 ~ 3pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile
0
2613 in stock

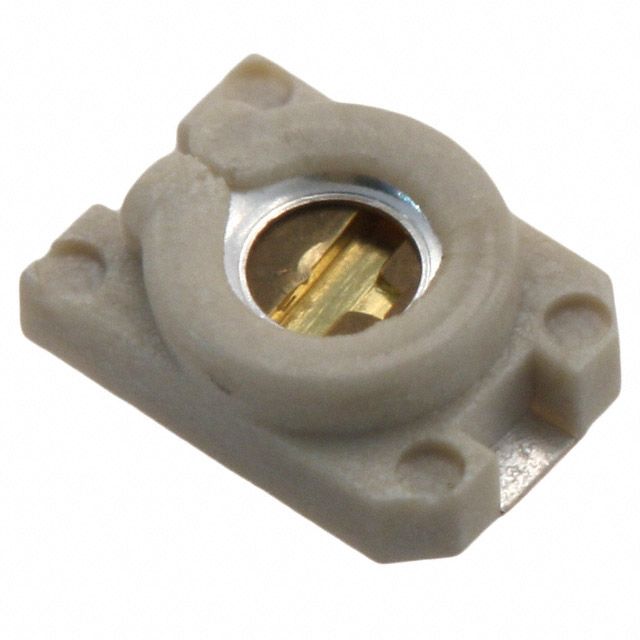

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 1.8 ~ 4.5pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 25MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile, Non-Magnetic
0
1055 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 2 ~ 6pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile
0
1277 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 2 ~ 6pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 25MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile, Non-Magnetic
0
1169 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 3 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile
0
2969 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 3 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 700 @ 25MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile, Non-Magnetic
0
2523 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 5.5 ~ 20pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile
0
2120 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 5.5 ~ 20pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 25MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile, Non-Magnetic
0
1803 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 8 ~ 30pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile
0
14423 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SGC3
Part Status : Active
Capacitance Range : 8 ~ 30pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Ceramic
Q @ Freq : 300 @ 25MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile, Non-Magnetic
0
9634 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SGNM10KV
Part Status : Active
Capacitance Range : 5 ~ 100pF
Adjustment Type : Top
Voltage - Rated : 10000V
Dielectric Material : Ceramic
Q @ Freq : 600 @ 25MHz
Size / Dimension : 0.710" Dia (18.03mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
