Sprague Goodman
- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.
Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).
Part Number
Manufacturer
Description
Unit Price
In Stock

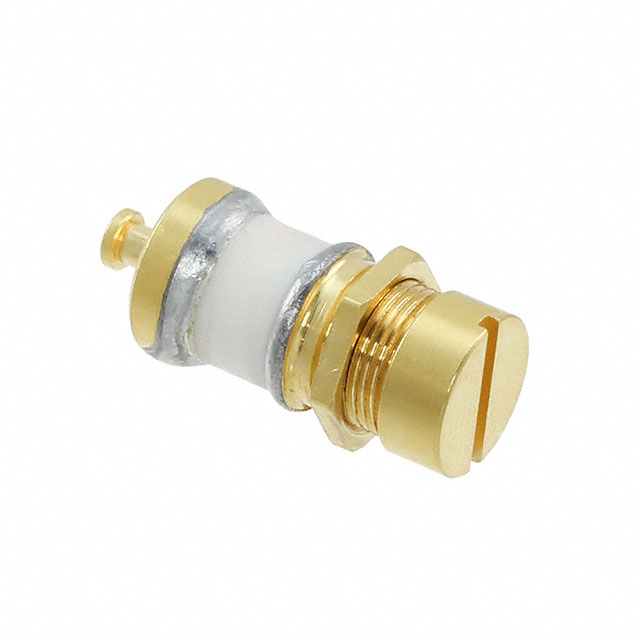

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 2 ~ 20pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.515" (13.08mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
79 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 2 ~ 20pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.533" (13.54mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
100 in stock

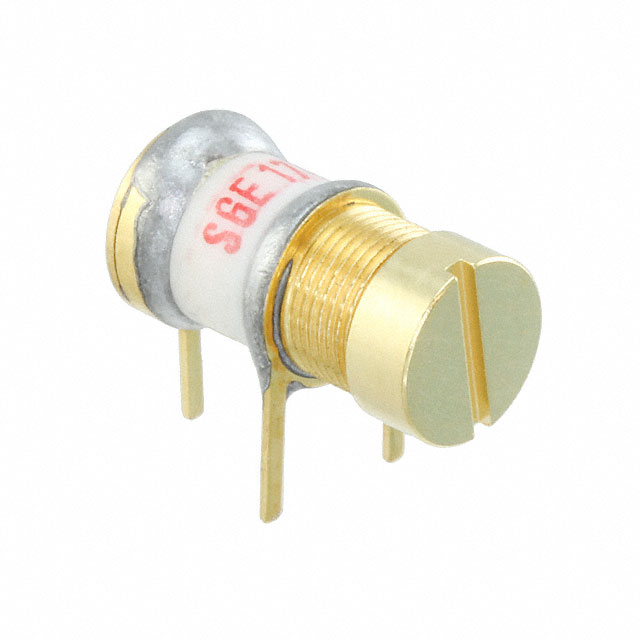

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 2 ~ 20pF
Adjustment Type : Side
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.280" Dia (7.11mm)
Height - Seated (Max) : 0.522" (13.26mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
51 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 2 ~ 20pF
Adjustment Type : Side
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.280" Dia (7.11mm)
Height - Seated (Max) : 0.522" (13.26mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
226 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 2 ~ 20pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.280" Dia (7.11mm)
Height - Seated (Max) : 0.490" (12.45mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
195 in stock

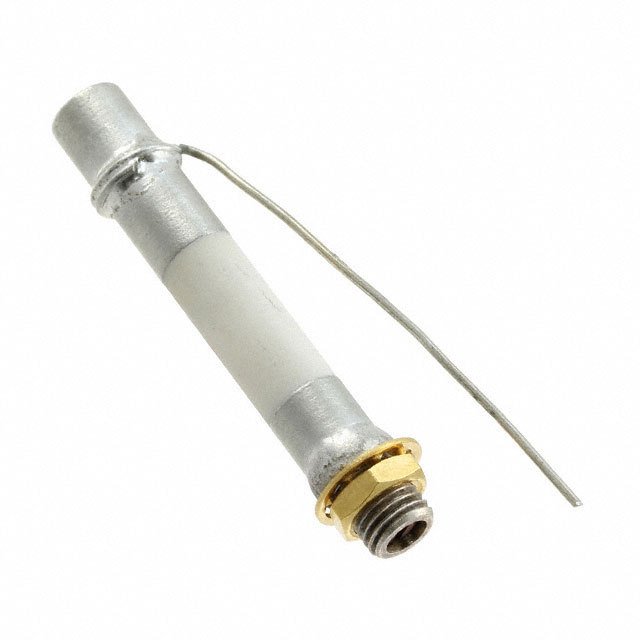

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 0.5 ~ 5pF
Adjustment Type : -
Voltage - Rated : 4000V
Dielectric Material : Ceramic
Q @ Freq : 2000 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock

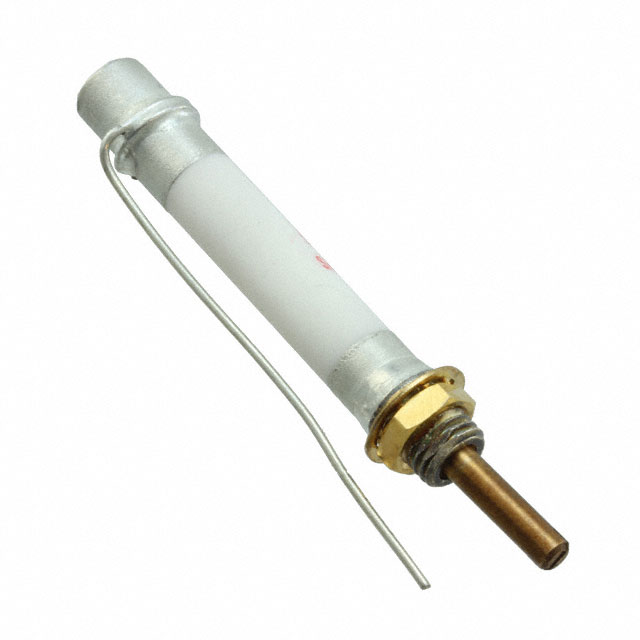

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 0.5 ~ 5pF
Adjustment Type : -
Voltage - Rated : 4000V
Dielectric Material : Ceramic
Q @ Freq : 2000 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 0.5 ~ 5pF
Adjustment Type : -
Voltage - Rated : 6000V
Dielectric Material : Ceramic
Q @ Freq : 2000 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 0.5 ~ 5pF
Adjustment Type : -
Voltage - Rated : 6000V
Dielectric Material : Ceramic
Q @ Freq : 2000 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 0.5 ~ 5pF
Adjustment Type : -
Voltage - Rated : 8750V
Dielectric Material : Ceramic
Q @ Freq : 2000 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 0.5 ~ 5pF
Adjustment Type : -
Voltage - Rated : 8750V
Dielectric Material : Ceramic
Q @ Freq : 2000 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
19 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNM-Series 1
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : -
Voltage - Rated : 3000V
Dielectric Material : Ceramic
Q @ Freq : 1700 @ 25MHz
Size / Dimension : 0.270" Dia (6.86mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
