Sprague Goodman
- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.
Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).
Part Number
Manufacturer
Description
Unit Price
In Stock

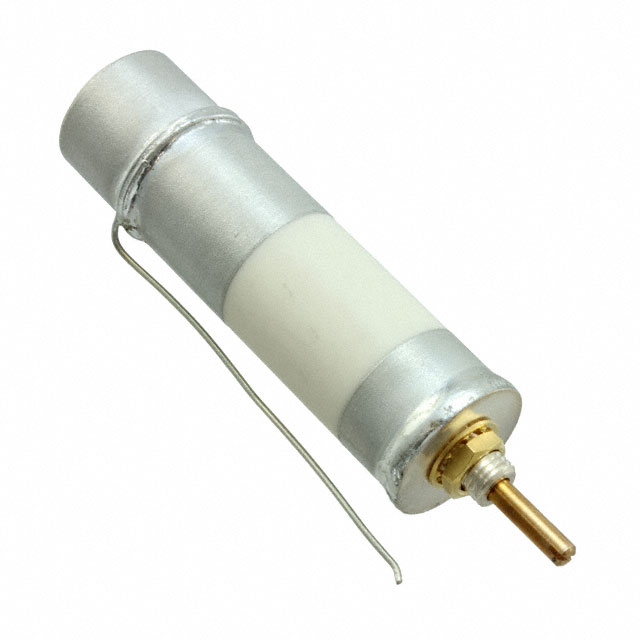

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SGNM10KV
Part Status : Active
Capacitance Range : 5 ~ 100pF
Adjustment Type : Top
Voltage - Rated : 10000V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 25MHz
Size / Dimension : 0.710" Dia (18.03mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
26 in stock

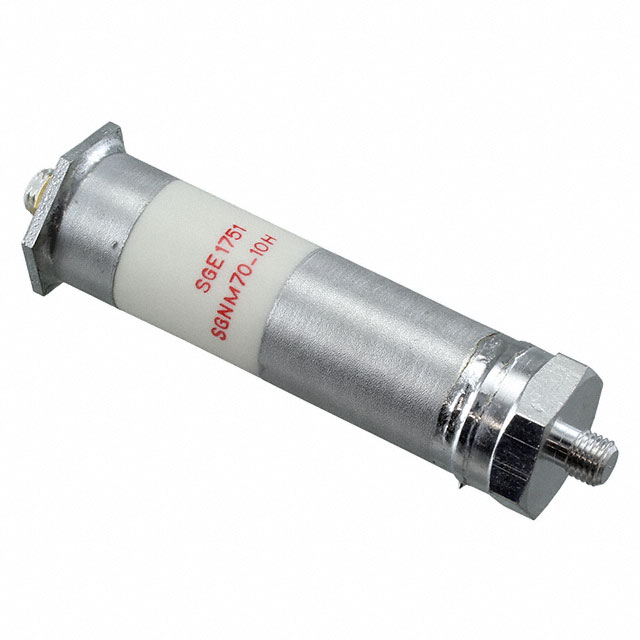

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SGNM10KV
Part Status : Active
Capacitance Range : 4 ~ 70pF
Adjustment Type : -
Voltage - Rated : 10000V
Dielectric Material : Ceramic
Q @ Freq : 600 @ 25MHz
Size / Dimension : 0.710" Dia (18.03mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
21 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SGNM10KV
Part Status : Active
Capacitance Range : 4 ~ 70pF
Adjustment Type : -
Voltage - Rated : 10000V
Dielectric Material : Ceramic
Q @ Freq : 600 @ 25MHz
Size / Dimension : 0.710" Dia (18.03mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SGNM10KV
Part Status : Active
Capacitance Range : 4 ~ 70pF
Adjustment Type : -
Voltage - Rated : 10000V
Dielectric Material : Ceramic
Q @ Freq : 600 @ 25MHz
Size / Dimension : 0.710" Dia (18.03mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SGNM10KV
Part Status : Active
Capacitance Range : 4 ~ 70pF
Adjustment Type : -
Voltage - Rated : 10000V
Dielectric Material : Ceramic
Q @ Freq : 600 @ 25MHz
Size / Dimension : 0.710" Dia (18.03mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Chassis Mount
Features : Non-Magnetic, Sealed
0
25 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.490" (12.45mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
177 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.515" (13.08mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
100 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.533" (13.54mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
100 in stock

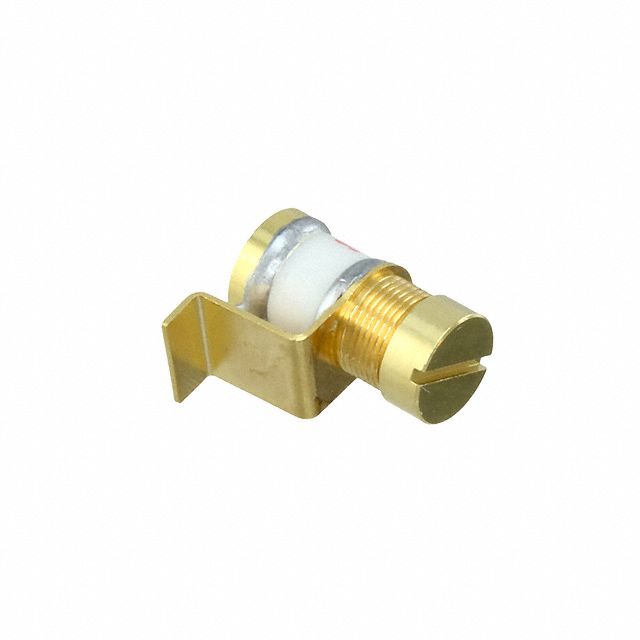

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : Side
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.522" (13.26mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Through Hole
Features : Non-Magnetic
0
87 in stock

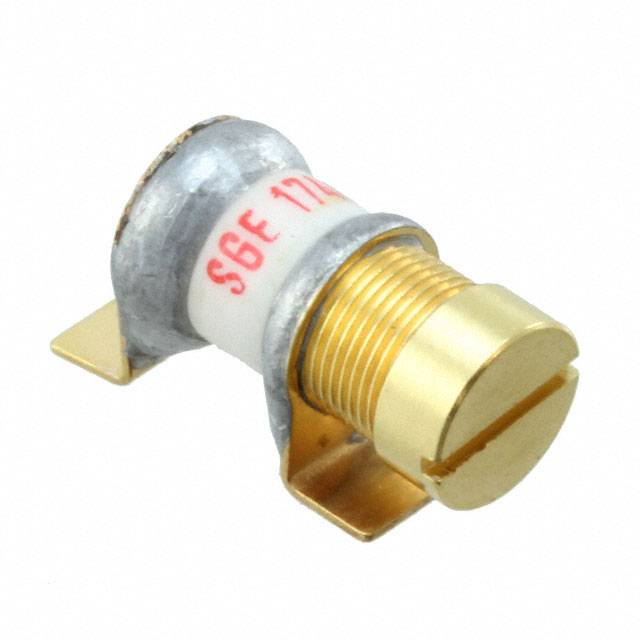

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : Side
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.522" (13.26mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
257 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 1 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.490" (12.45mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
249 in stock

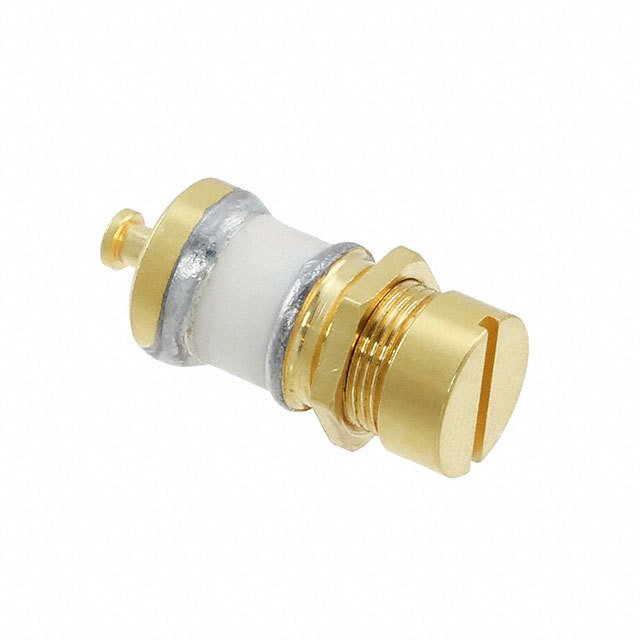

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SGNMA3T
Part Status : Active
Capacitance Range : 2 ~ 20pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.281" Dia (7.14mm)
Height - Seated (Max) : 0.533" (13.54mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
263 in stock
