Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

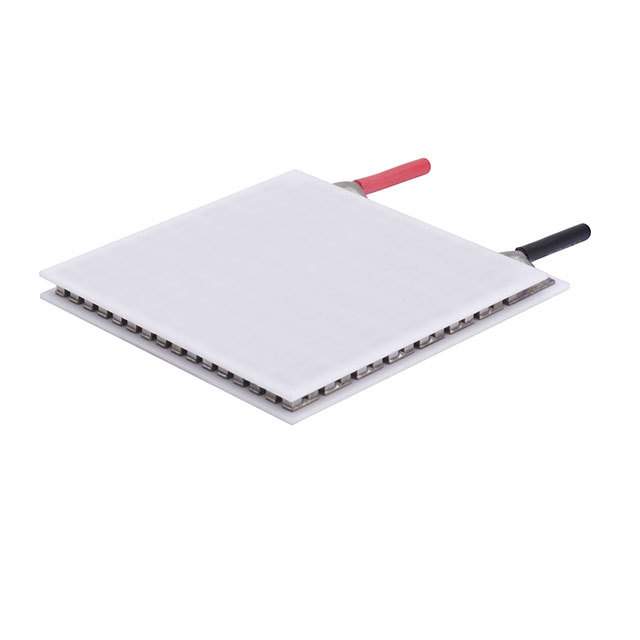

430052-501 430052-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.63mm
Qmax @ Th : 52.2W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.19 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
39 in stock

430058-508 430058-508

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 14.73mm x 10.31mm x 3.15mm
Qmax @ Th : 5.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.6A
Voltage - Max : 3.2V
Resistance : 1.12 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
58 in stock

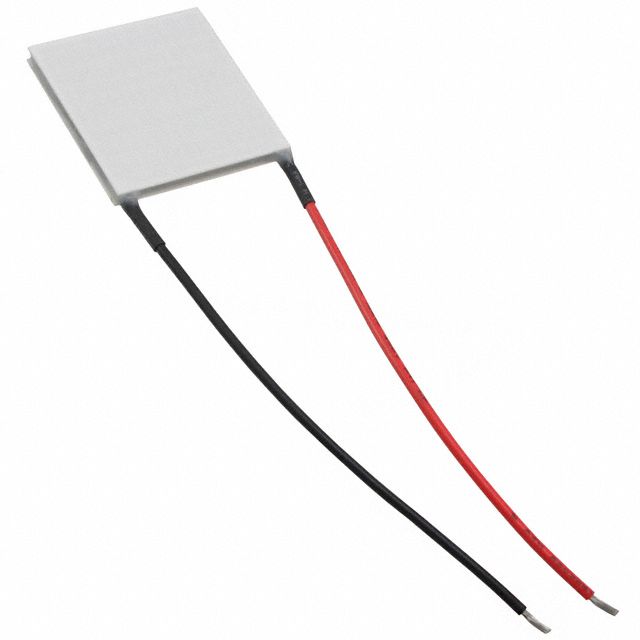

430078-525 430078-525

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
48 in stock

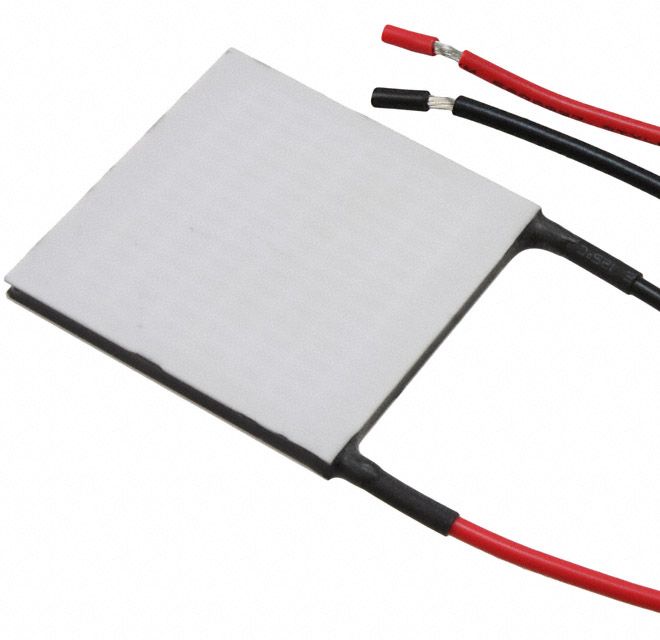

430082-502 430082-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
296 in stock

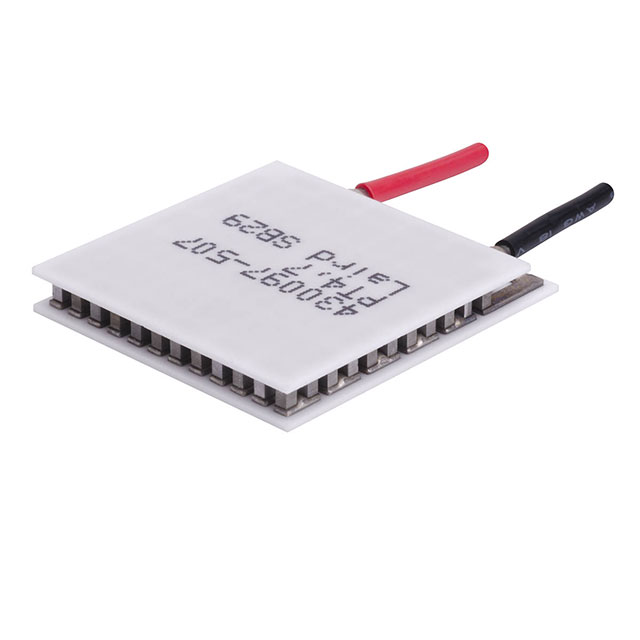

430097-507 430097-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 4.14mm
Qmax @ Th : 18.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 8.1V
Resistance : 1.95 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
17 in stock

430104-501 430104-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.20mm x 13.20mm x 2.69mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.4V
Resistance : 5.65 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
64 in stock

430104-503 430104-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 3.00mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.4V
Resistance : 5.65 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
90 in stock

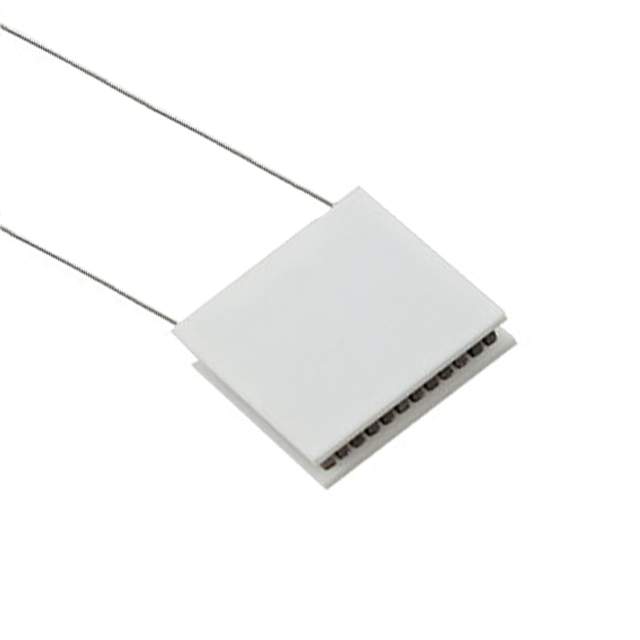

430104-509 430104-509

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 2.69mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.4V
Resistance : 5.65 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
100 in stock

430104-512 430104-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 2.69mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.4V
Resistance : 5.65 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
43 in stock

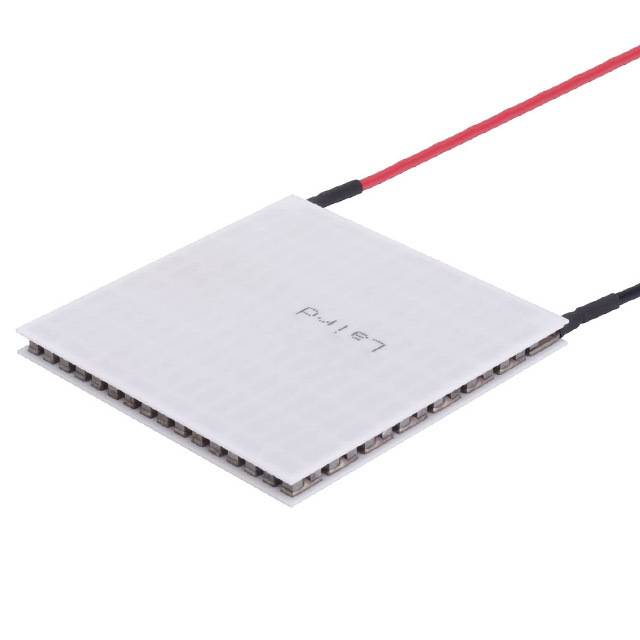

430122-507 430122-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 62.00mm x 4.57mm
Qmax @ Th : 122.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 14.5V
Resistance : 940 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
109 in stock

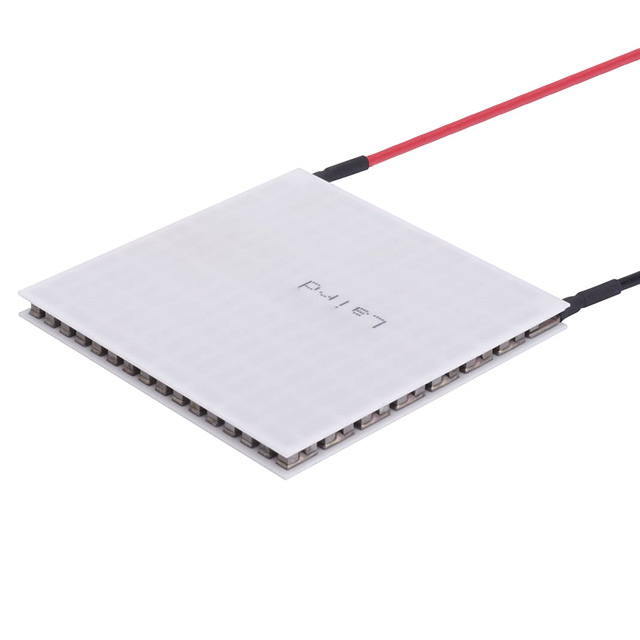

430122-520 430122-520

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 62.00mm x 4.57mm
Qmax @ Th : 122.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 14.5V
Resistance : 940 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
56 in stock

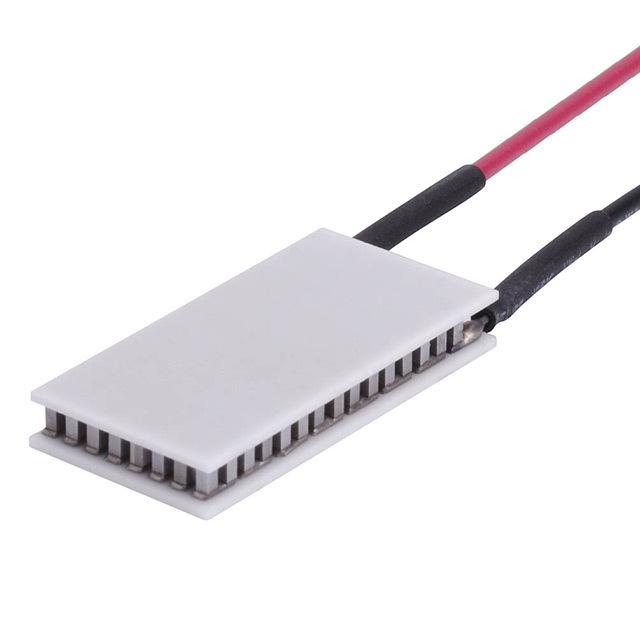

430126-503 430126-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 24.56mm x 12.29mm x 3.40mm
Qmax @ Th : 9.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.1A
Voltage - Max : 7.6V
Resistance : 3.13 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
359 in stock
