Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

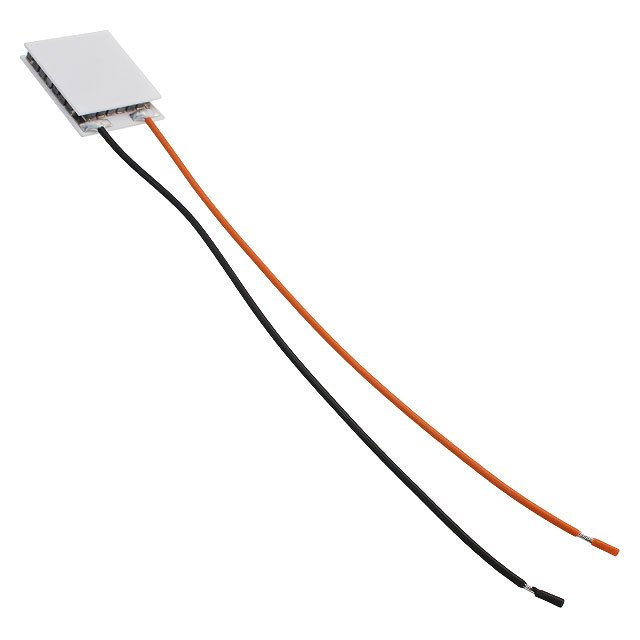

430134-516 430134-516

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 28.70mm x 25.40mm x 5.00mm
Qmax @ Th : 20.1W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 9.6A
Voltage - Max : 3.6V
Resistance : 340 mOhms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
46 in stock

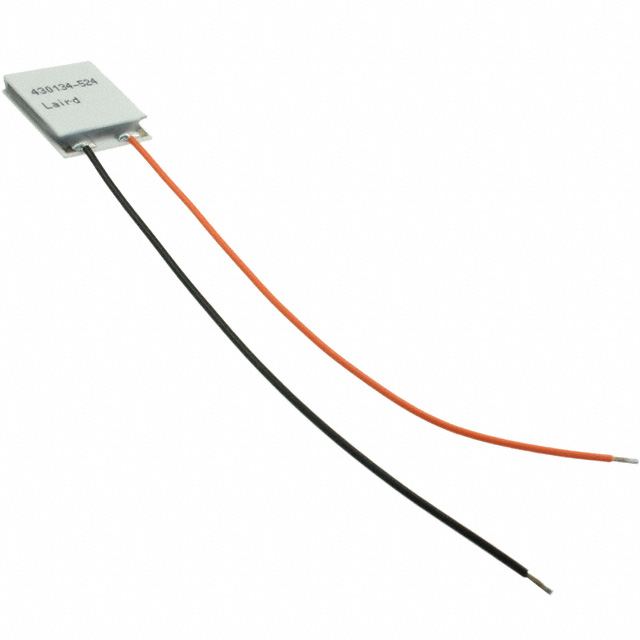

430134-524 430134-524

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 28.70mm x 25.40mm x 5.00mm
Qmax @ Th : 20.1W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 9.6A
Voltage - Max : 3.6V
Resistance : 340 mOhms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
58 in stock

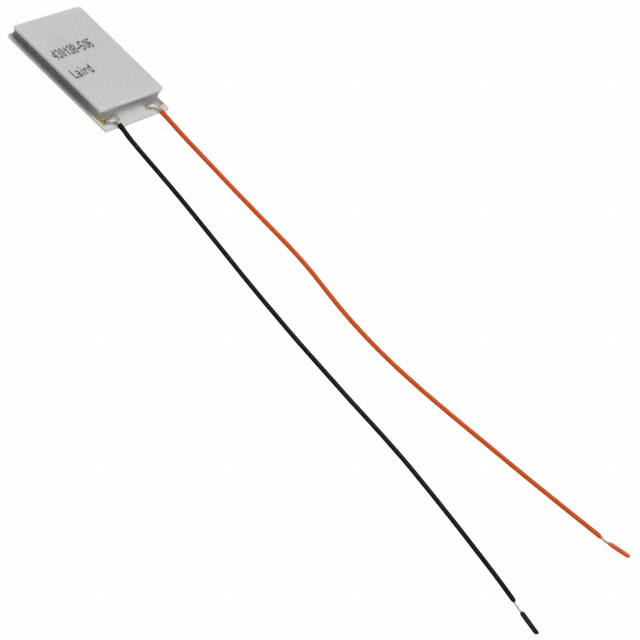

430138-506 430138-506

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.58mm
Qmax @ Th : 19.5W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 2.3A
Voltage - Max : 14.4V
Resistance : 5.76 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
62 in stock

430138-513 430138-513

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.58mm
Qmax @ Th : 19.5W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 2.3A
Voltage - Max : 14.4V
Resistance : 5.76 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
22 in stock

430139-512 430139-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.20mm
Qmax @ Th : 24.7W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 2.9A
Voltage - Max : 14.5V
Resistance : 4.65 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

430139-513 430139-513

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.20mm
Qmax @ Th : 24.7W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 2.9A
Voltage - Max : 14.5V
Resistance : 4.65 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
26 in stock

430140-502 430140-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.20mm
Qmax @ Th : 34.3W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 4.0A
Voltage - Max : 14.5V
Resistance : 3.36 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
80 in stock

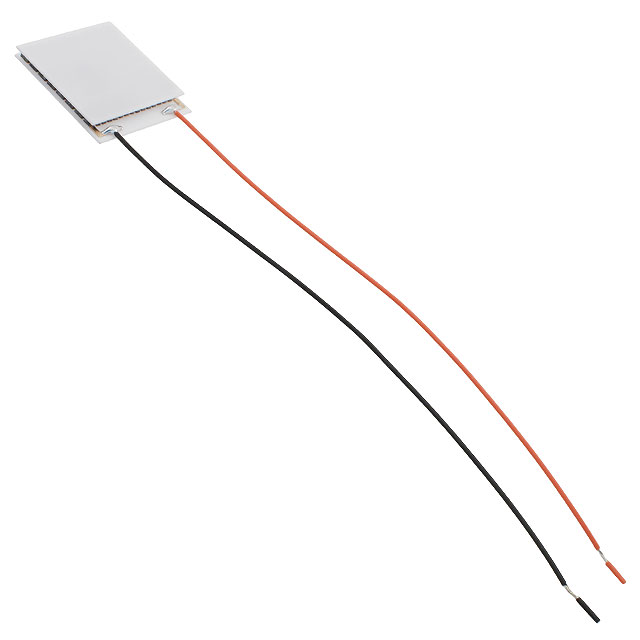

430140-522 430140-522

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.20mm
Qmax @ Th : 34.3W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 4.0A
Voltage - Max : 14.5V
Resistance : 3.36 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
59 in stock

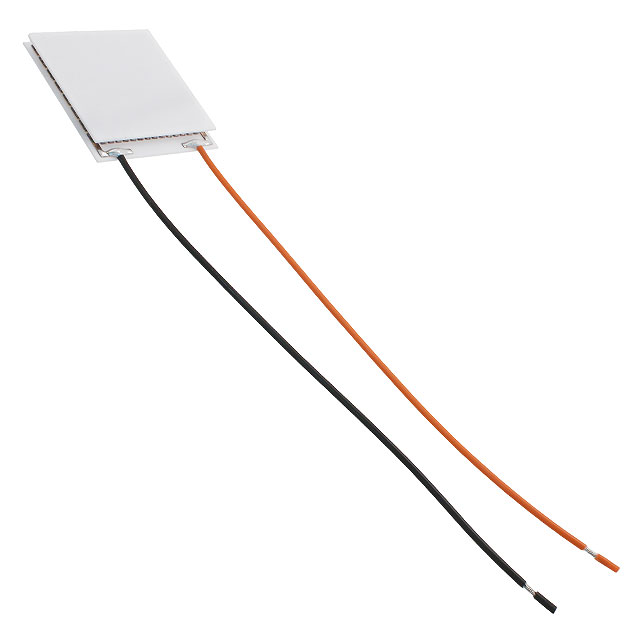

430141-510 430141-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 4.14mm
Qmax @ Th : 33.0W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 14.5V
Resistance : 3.49 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
459 in stock

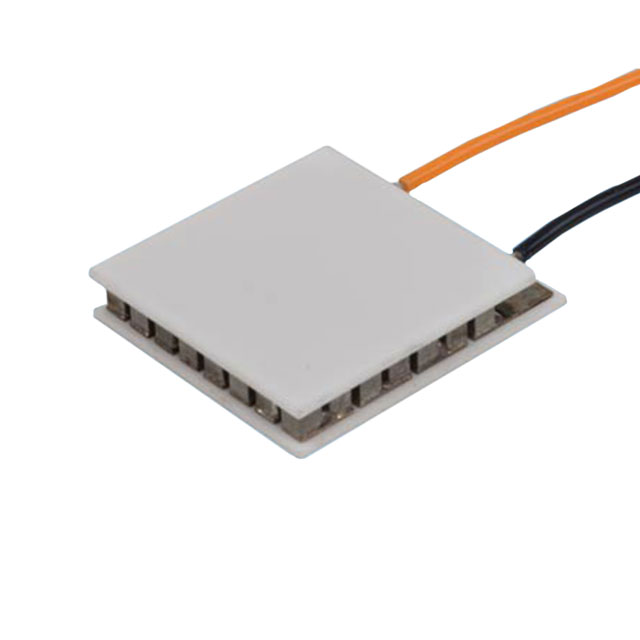

430141-512 430141-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 4.14mm
Qmax @ Th : 33.0W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 14.5V
Resistance : 3.49 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
20 in stock

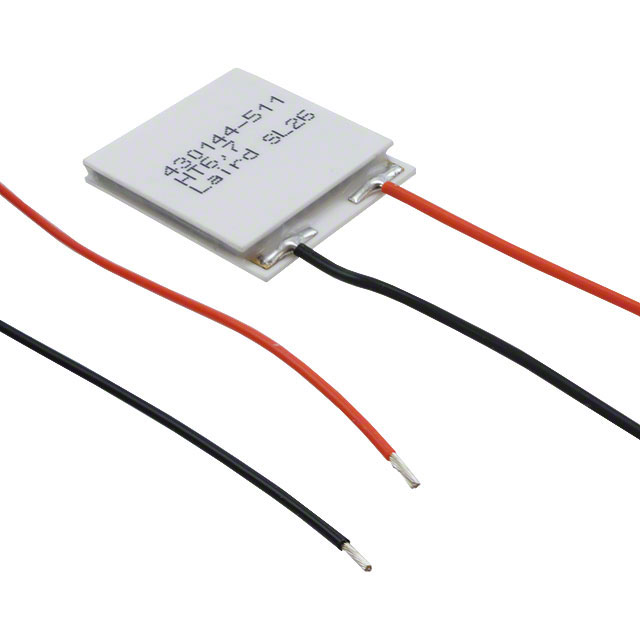

430144-511 430144-511

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.04mm x 29.97mm x 4.09mm
Qmax @ Th : 18.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 8.1V
Resistance : 1.95 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
31 in stock

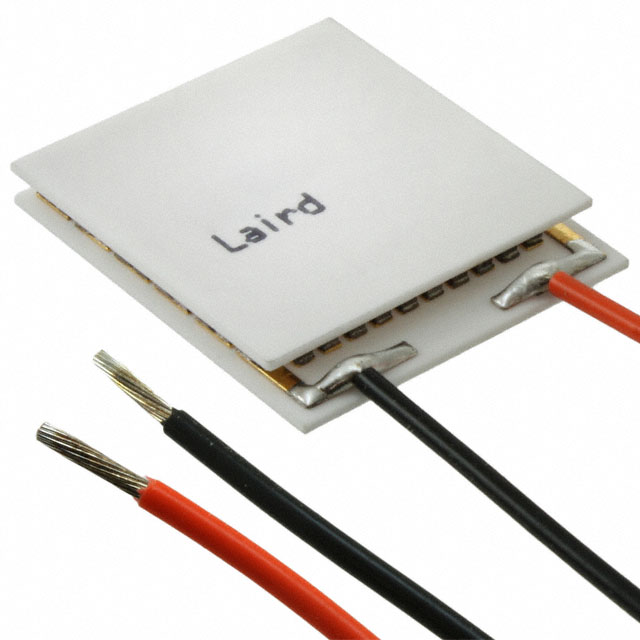

430144-512 430144-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.81mm
Qmax @ Th : 29.2W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8V
Resistance : 1.22 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
58 in stock
