Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

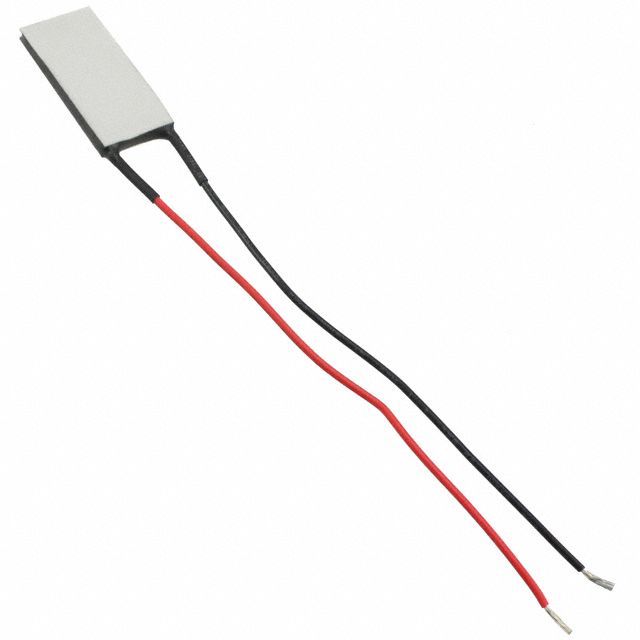

430036-504 430036-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 15.00mm x 3.20mm
Qmax @ Th : 16.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 7.6V
Resistance : 1.66 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
156 in stock

430037-501 430037-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
20 in stock

430037-502 430037-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 3.07mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
100 in stock

430037-512 430037-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

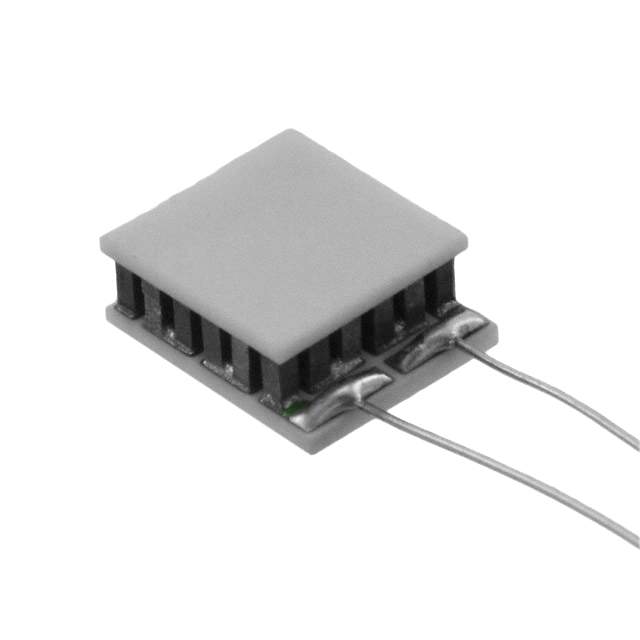

430037-515 430037-515

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
40 in stock

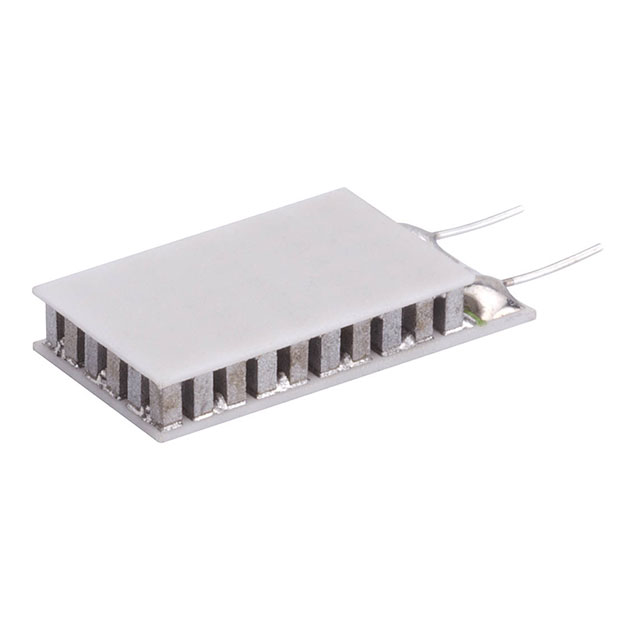

430039-501 430039-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 11.00mm x 8.80mm x 2.18mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
89 in stock

430039-510 430039-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.97mm x 8.79mm x 2.49mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

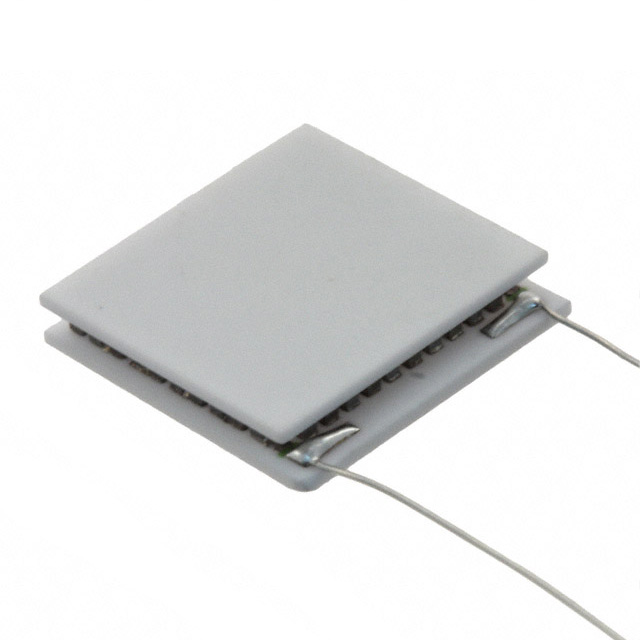

430040-501 430040-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.20mm x 13.20mm x 2.18mm
Qmax @ Th : 8.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.4V
Resistance : 3.39 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
27 in stock

430040-508 430040-508

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 2.49mm
Qmax @ Th : 8.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.4V
Resistance : 3.39 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

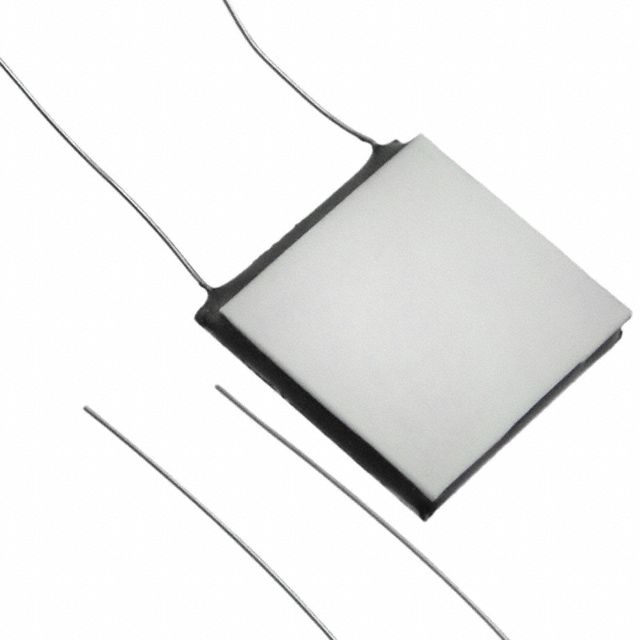

430040-512 430040-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 2.18mm
Qmax @ Th : 8.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.4V
Resistance : 3.39 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Epoxy
0
100 in stock

430040-513 430040-513

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 2.18mm
Qmax @ Th : 8.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.4V
Resistance : 3.39 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
40 in stock

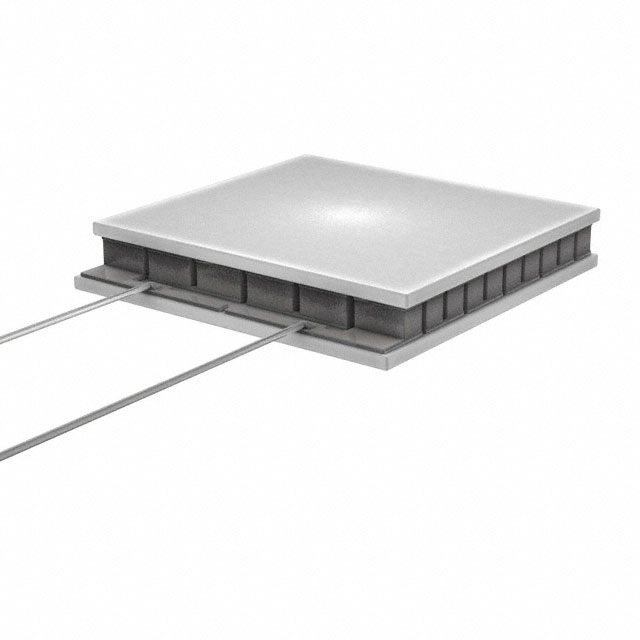

430040-514 430040-514

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 2.18mm
Qmax @ Th : 8.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.4V
Resistance : 3.39 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
40 in stock
