Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

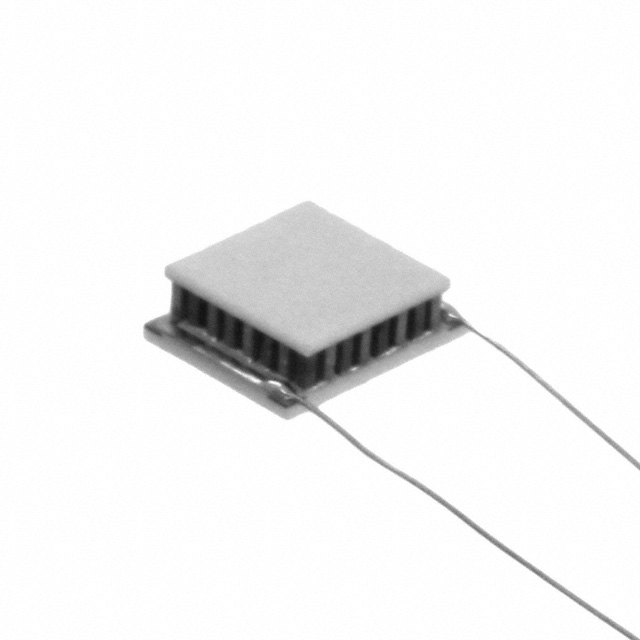

430005-501 430005-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.13mm x 6.50mm x 2.44mm
Qmax @ Th : 1.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 3.7V
Resistance : 4.17 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
8 in stock

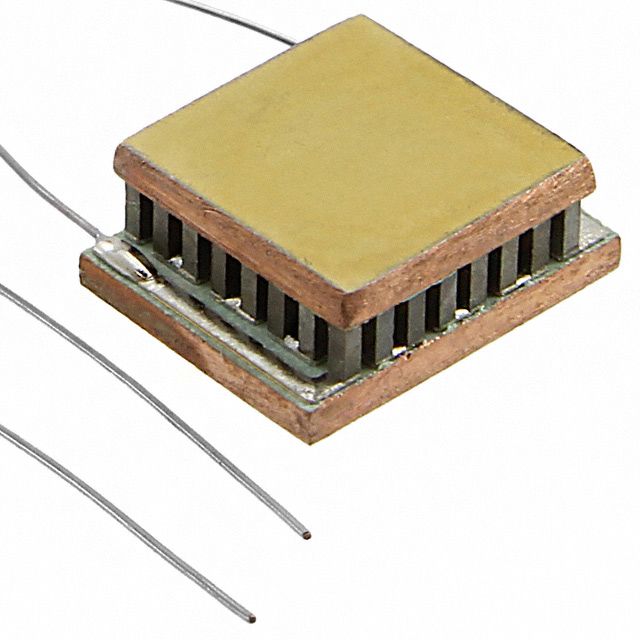

430005-517 430005-517

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : 8.13mm x 6.50mm x 2.44mm
Qmax @ Th : 1.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 3.7V
Resistance : 4.17 Ohms
Operating Temperature : -
Features : Lead Wires
0
100 in stock

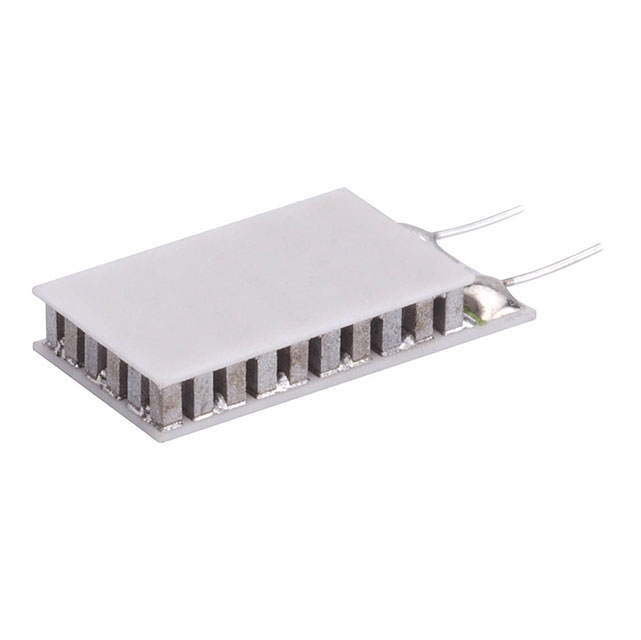

430007-506 430007-506

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.30mm x 6.20mm x 2.21mm
Qmax @ Th : 3.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 3.4V
Resistance : 2.09 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
32 in stock

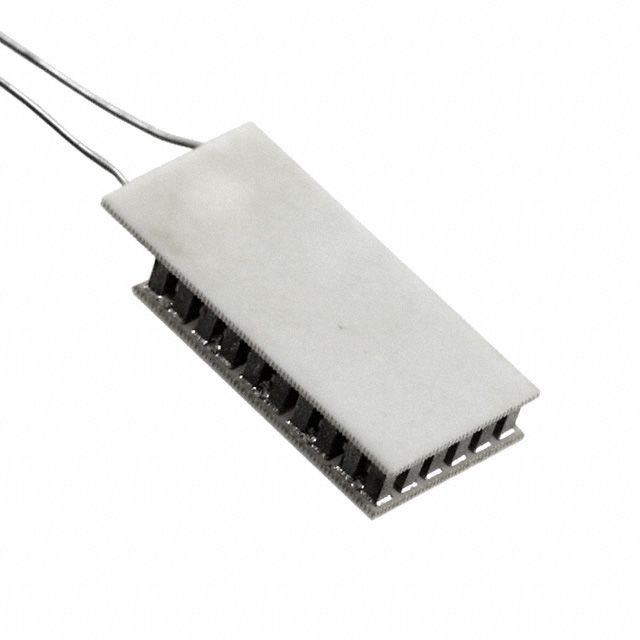

430007-509 430007-509

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.30mm x 6.20mm x 1.95mm
Qmax @ Th : 3.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 3.4V
Resistance : 2.09 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
22 in stock

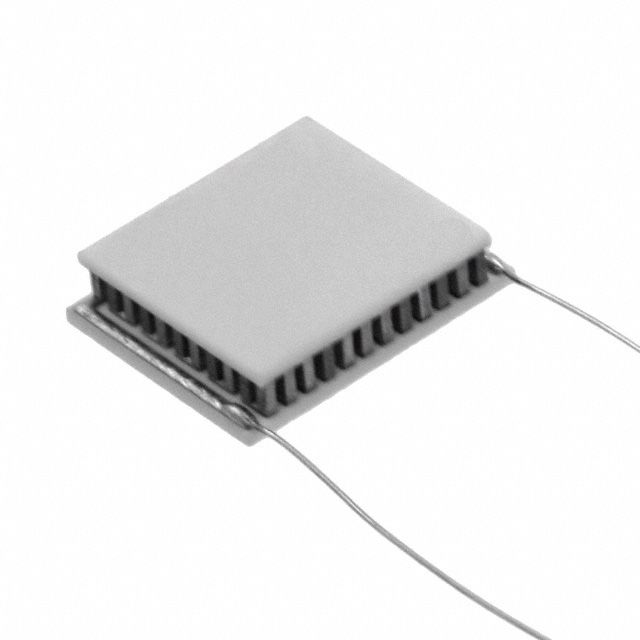

430009-501 430009-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 11.38mm x 8.94mm x 2.44mm
Qmax @ Th : 3.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 7.6V
Resistance : 8.61 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
118 in stock

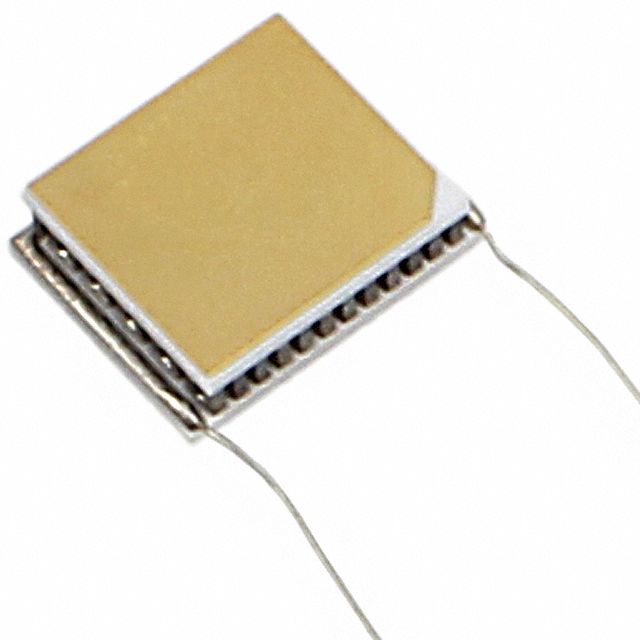

430009-502 430009-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 11.38mm x 8.94mm x 2.79mm
Qmax @ Th : 3.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 7.6V
Resistance : 8.61 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

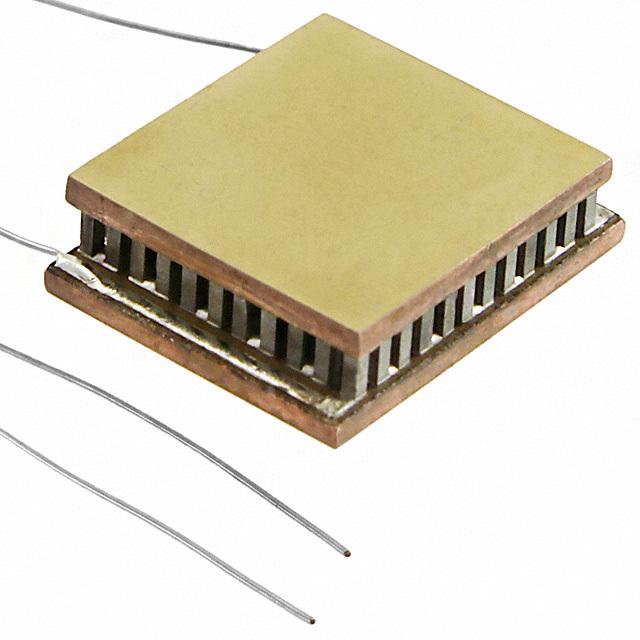

430009-524 430009-524

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : 11.38mm x 8.94mm x 2.44mm
Qmax @ Th : 3.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 7.6V
Resistance : 8.61 Ohms
Operating Temperature : -
Features : Lead Wires
0
100 in stock

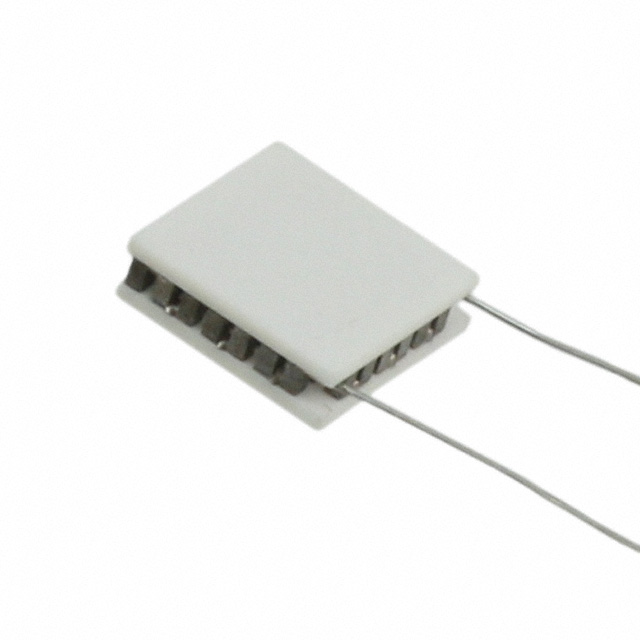

430010-501 430010-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.10mm x 8.10mm x 2.18mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
29 in stock

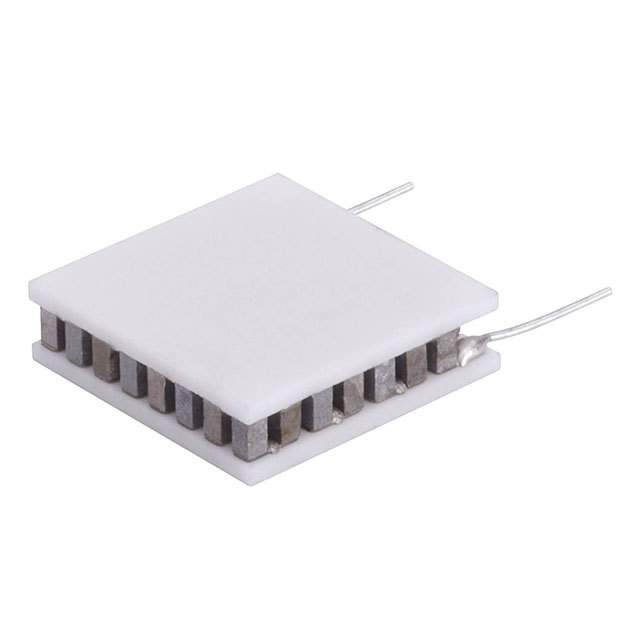

430010-502 430010-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.10mm x 8.10mm x 2.54mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

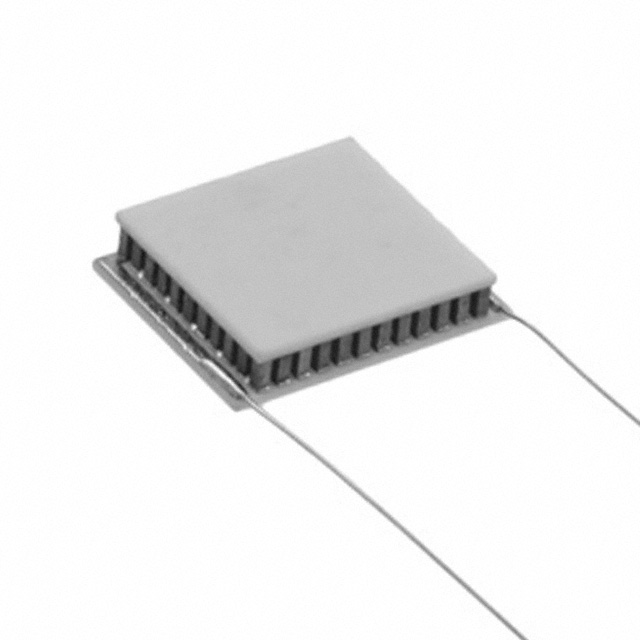

430011-501 430011-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.40mm x 11.30mm x 2.69mm
Qmax @ Th : 5.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.5V
Resistance : 5.74 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
14 in stock

430011-507 430011-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.40mm x 11.30mm x 2.69mm
Qmax @ Th : 5.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.5V
Resistance : 5.74 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
6 in stock

430011-508 430011-508

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.40mm x 11.30mm x 2.69mm
Qmax @ Th : 5.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.5V
Resistance : 5.74 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock
