Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

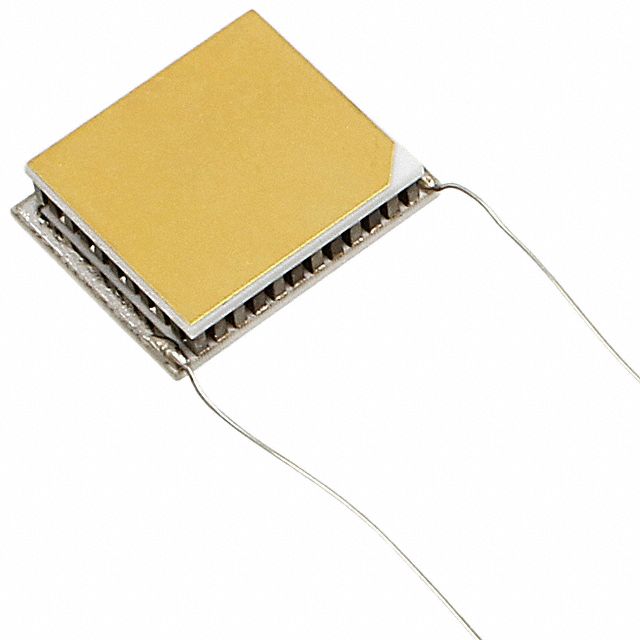

430011-509 430011-509

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.40mm x 11.30mm x 3.05mm
Qmax @ Th : 5.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.5V
Resistance : 5.74 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

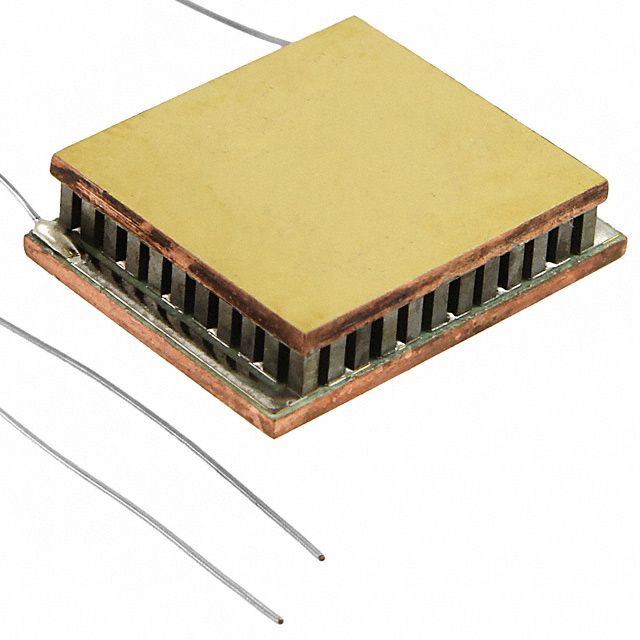

430011-510 430011-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : 14.40mm x 11.30mm x 2.69mm
Qmax @ Th : 5.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.5V
Resistance : 5.74 Ohms
Operating Temperature : -
Features : Lead Wires
0
100 in stock

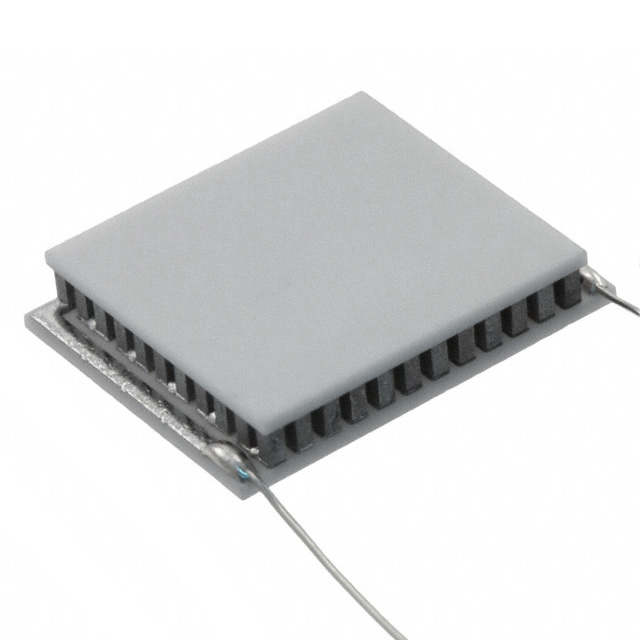

430013-501 430013-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.40mm x 11.30mm x 2.44mm
Qmax @ Th : 6.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 7.5V
Resistance : 4.59 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
32 in stock

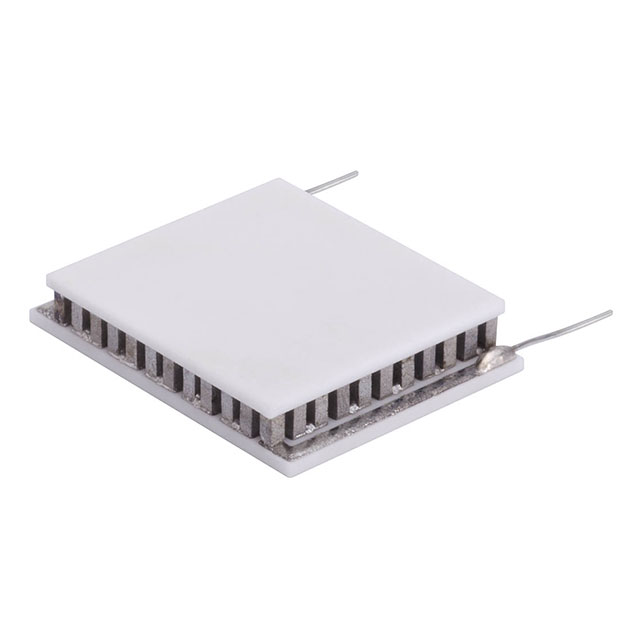

430013-510 430013-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.40mm x 11.30mm x 2.79mm
Qmax @ Th : 6.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 7.5V
Resistance : 4.59 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

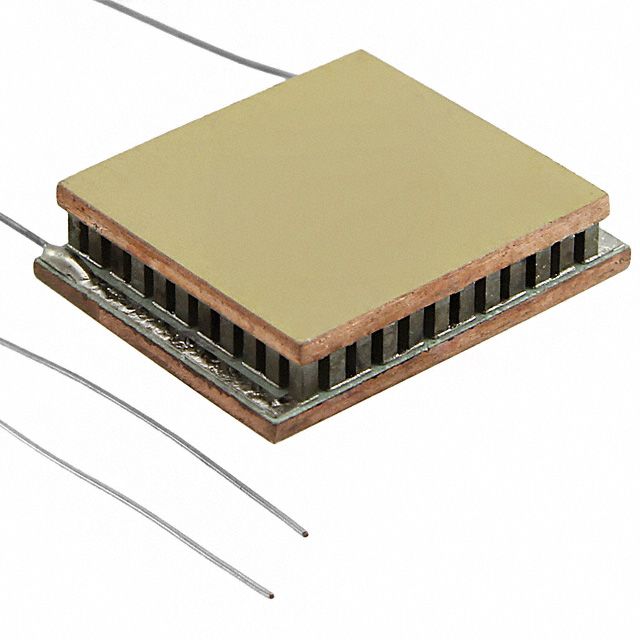

430013-511 430013-511

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : 14.40mm x 11.30mm x 2.44mm
Qmax @ Th : 6.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 7.5V
Resistance : 4.59 Ohms
Operating Temperature : -
Features : Lead Wires
0
100 in stock

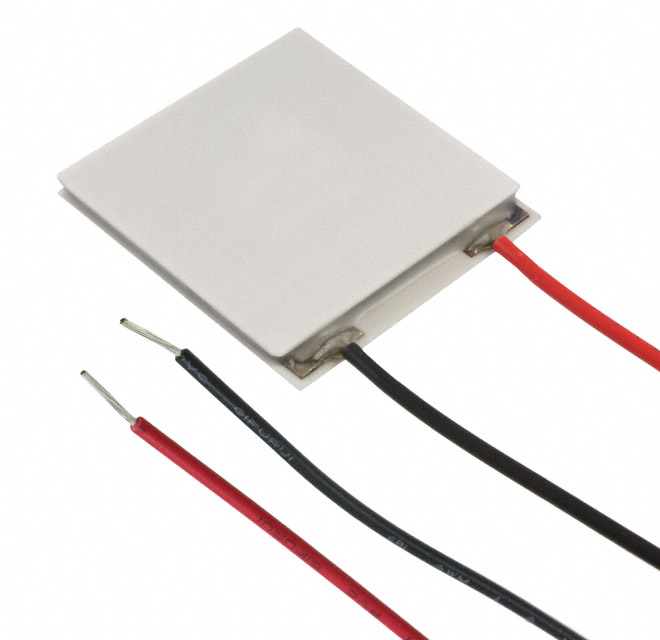

430023-507 430023-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 4.14mm
Qmax @ Th : 33.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 14.5V
Resistance : 3.49 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
77 in stock

430026-503 430026-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.20mm
Qmax @ Th : 34.3W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 4.0A
Voltage - Max : 14.5V
Resistance : 3.36 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
20 in stock

430026-507 430026-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.20mm
Qmax @ Th : 34.3W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 4.0A
Voltage - Max : 14.5V
Resistance : 3.36 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
20 in stock

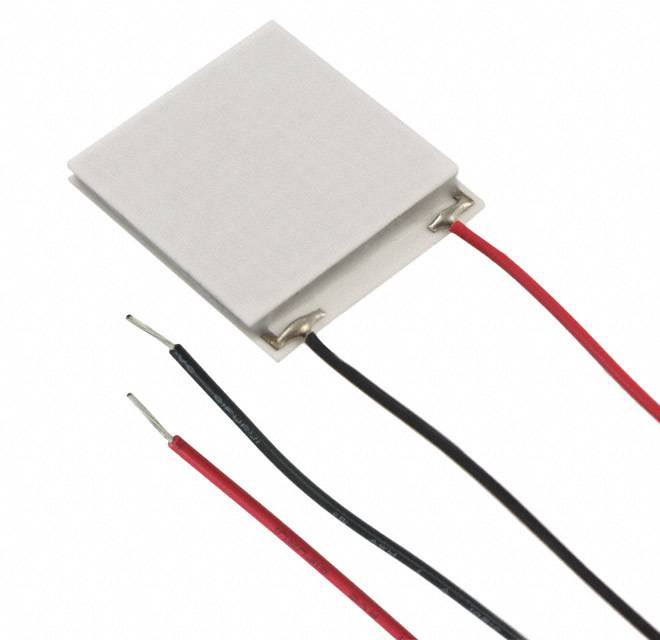

430027-501 430027-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.81mm
Qmax @ Th : 29.2W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8.0V
Resistance : 1.22 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
30 in stock

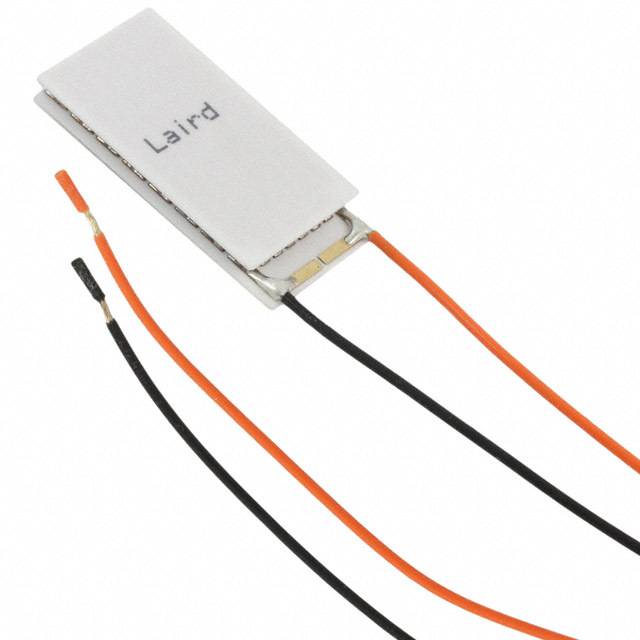

430028-509 430028-509

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.20mm x 20.60mm x 3.81mm
Qmax @ Th : 16.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 7.2V
Resistance : 1.73 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
14 in stock

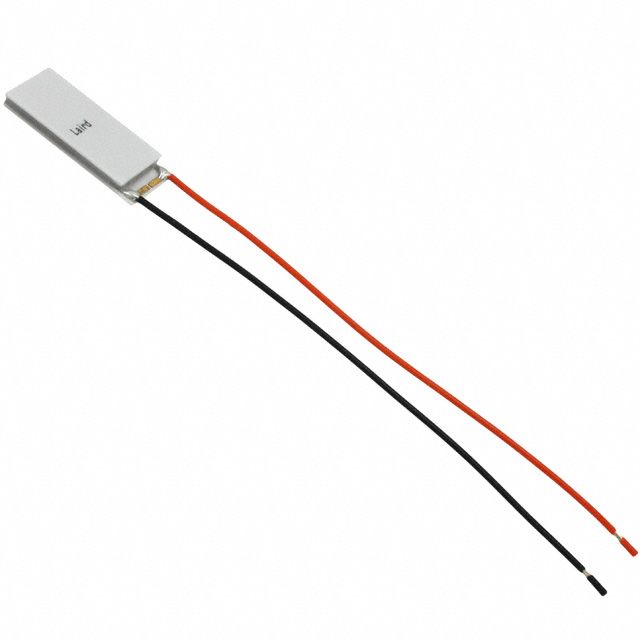

430028-513 430028-513

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.20mm x 20.60mm x 3.81mm
Qmax @ Th : 16.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 7.2V
Resistance : 1.73 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
14 in stock

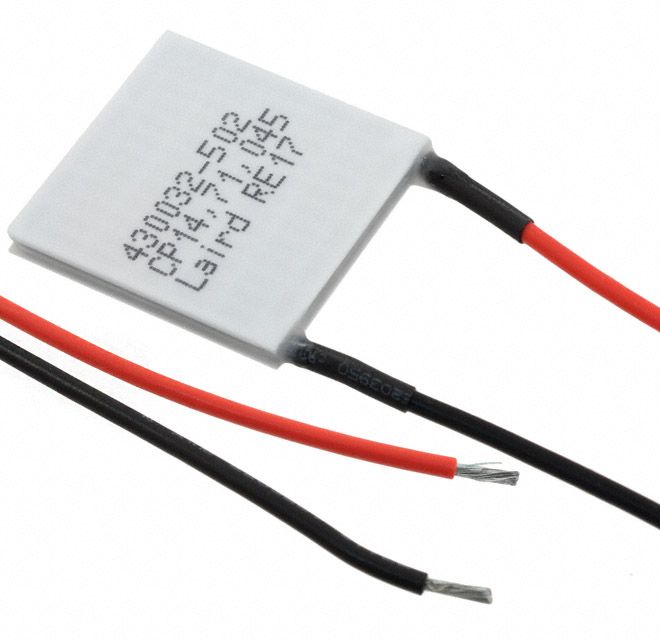

430032-502 430032-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.33mm
Qmax @ Th : 41.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 8.0V
Resistance : 870 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
30 in stock
