Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

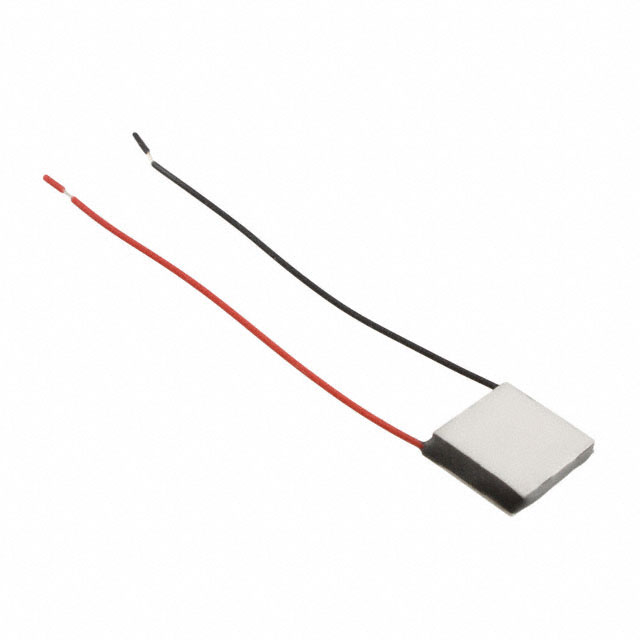

430146-508 430146-508

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : FC
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : Lead Wires, Sealed - Epoxy
0
100 in stock

430160-502 430160-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.33mm
Qmax @ Th : 72.9W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.58 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
165 in stock

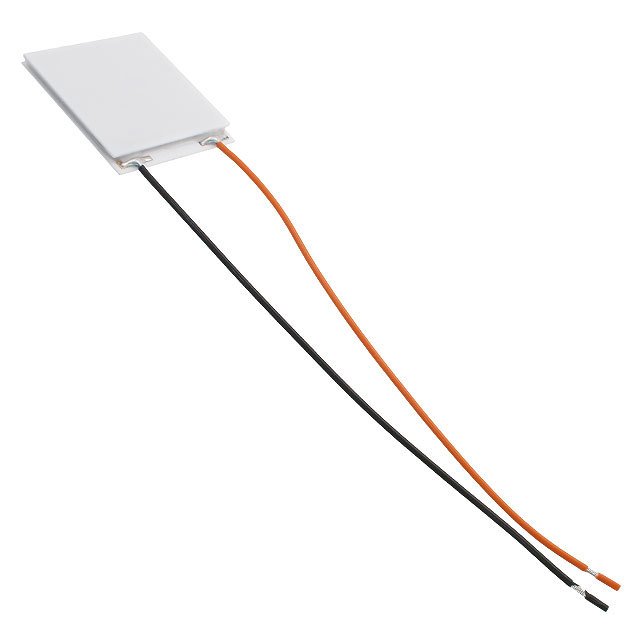

430160-504 430160-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.33mm
Qmax @ Th : 72.9W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.58 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV
0
232 in stock

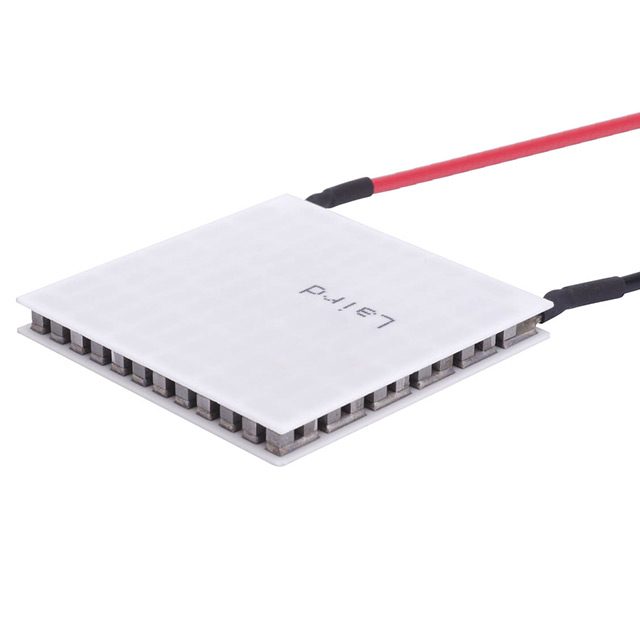

430165-507 430165-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 43.94mm x 43.94mm x 4.57mm
Qmax @ Th : 68.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 8.1V
Resistance : 530 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
5 in stock

430263-501 430263-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 2.18mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
2 in stock

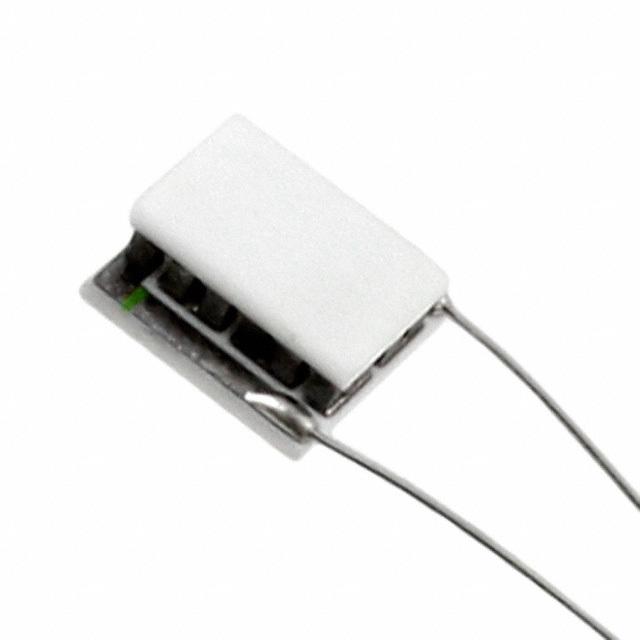

430263-502 430263-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 2.51mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

430263-503 430263-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 2.51mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
423 in stock

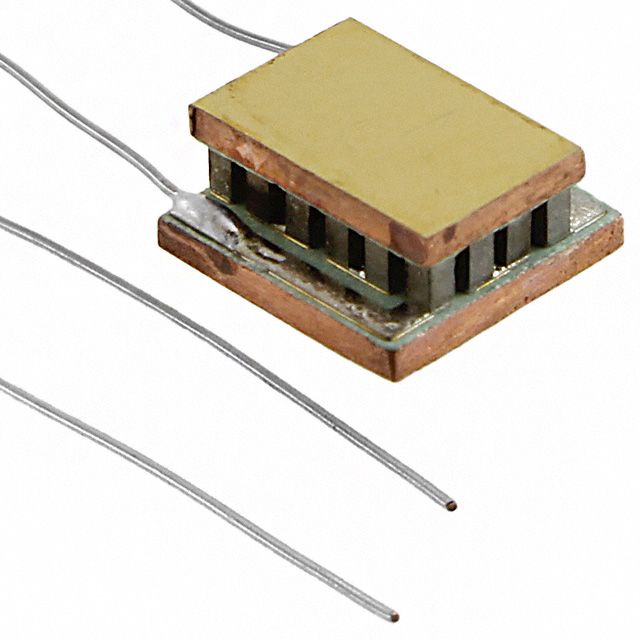

430263-506 430263-506

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : 6.10mm x 6.10mm x 2.18mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : -
Features : Lead Wires
0
100 in stock

430264-502 430264-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.30mm x 6.20mm x 2.06mm
Qmax @ Th : 4.1W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.4V
Resistance : 1.57 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
24 in stock

430264-503 430264-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.30mm x 6.20mm x 1.80mm
Qmax @ Th : 4.1W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.4V
Resistance : 1.57 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
34 in stock

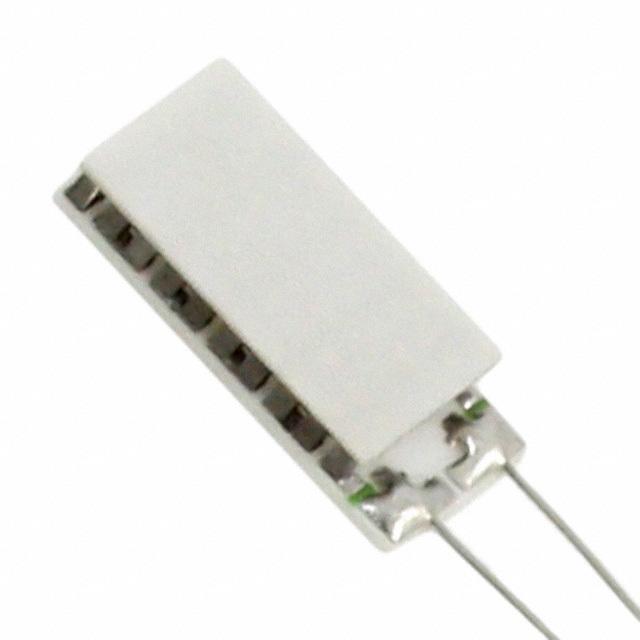

430264-504 430264-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.30mm x 6.20mm x 1.80mm
Qmax @ Th : 4.1W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.4V
Resistance : 1.57 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
100 in stock

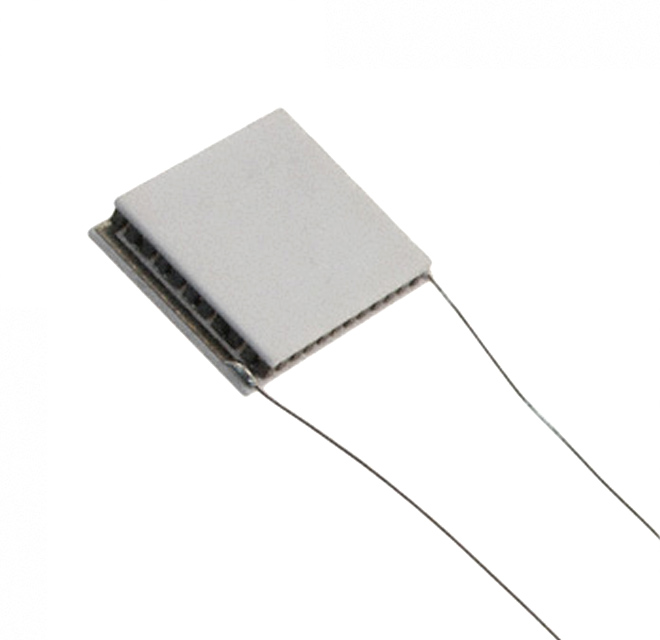

430265-501 430265-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 14.22mm x 11.18mm x 2.18mm
Qmax @ Th : 9.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.5V
Resistance : 3.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
8 in stock
