Apex Microtechnology
- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.
Part Number
Manufacturer
Description
Unit Price
In Stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 16 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 4.8mA
Current - Output / Channel : 75mA
Voltage - Supply, Single/Dual (±) : 150 V ~ 1200 V, ±75 V ~ 600 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
81 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 300 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 500µV
Current - Supply : 10mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 80 V ~ 400 V, ±40 V ~ 200 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
783 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 300 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 500µV
Current - Supply : 10mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 80 V ~ 450 V, ±40 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
366 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 50 V/µs
Gain Bandwidth Product : 18MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 2mV
Current - Supply : 10mA
Current - Output / Channel : 4A
Voltage - Supply, Single/Dual (±) : 100 V ~ 400 V, ±50 V ~ 200 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
461 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 50 V/µs
Gain Bandwidth Product : 12MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 2mV
Current - Supply : 10mA
Current - Output / Channel : 8A
Voltage - Supply, Single/Dual (±) : 80 V ~ 400 V, ±40 V ~ 200 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
171 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 700 V/µs
Gain Bandwidth Product : 140MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 500µV
Current - Supply : 17mA
Current - Output / Channel : 100mA
Voltage - Supply, Single/Dual (±) : 100 V ~ 900 V, ±50 V ~ 450 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP, 8 Leads
Supplier Device Package : 8-SIP
0
698 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 30 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 500µV
Current - Supply : 1.6mA
Current - Output / Channel : 100mA
Voltage - Supply, Single/Dual (±) : 100 V ~ 900 V, ±50 V ~ 450 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP, 8 Leads
Supplier Device Package : 8-SIP
0
601 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 250 V/µs
Gain Bandwidth Product : 175MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 1mV
Current - Supply : 30mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole

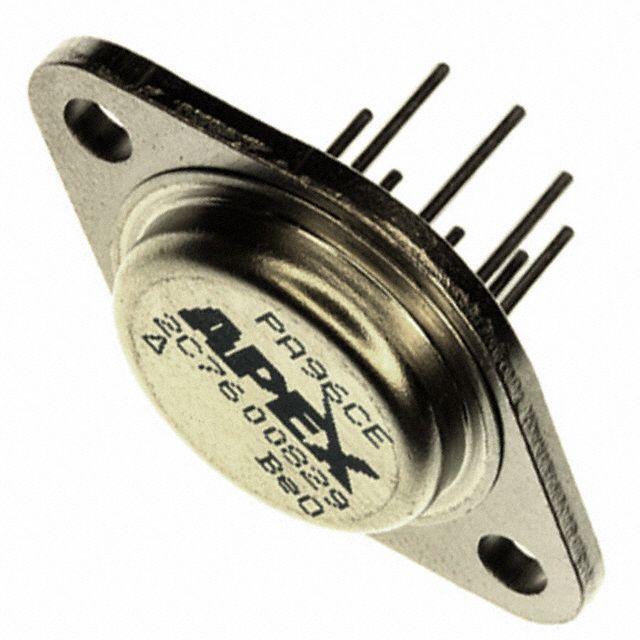

Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
427 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 8 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 500µV
Current - Supply : 600µA
Current - Output / Channel : 10mA
Voltage - Supply, Single/Dual (±) : 100 V ~ 900 V, ±50 V ~ 450 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP, 7 Leads
Supplier Device Package : 7-SIP
0
481 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 1000 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 21mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 450 V, ±15 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
1064 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 1000 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 3pA
Voltage - Input Offset : 250µV
Current - Supply : 21mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 450 V, ±15 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
46 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 1000 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 21mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 450 V, ±15 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole

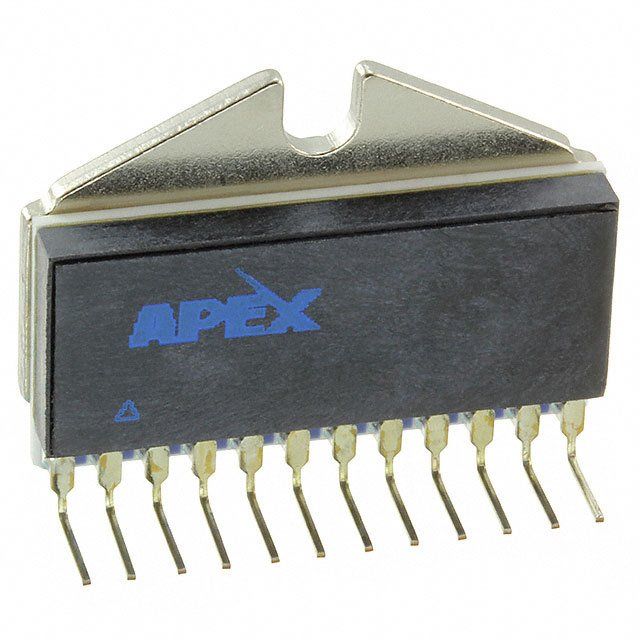

Package / Case : 12-PowerSIP, Formed Leads
Supplier Device Package : 12-SIP
0
6 in stock
