Apex Microtechnology
- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.
Part Number
Manufacturer
Description
Unit Price
In Stock

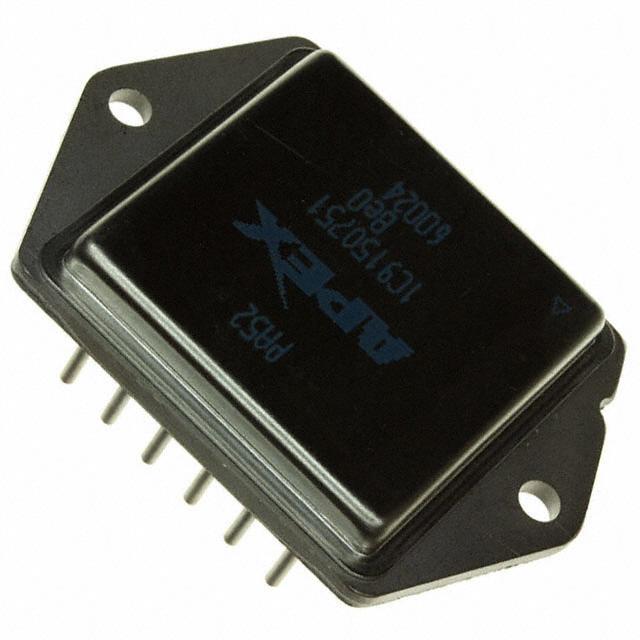

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : Rail-to-Rail
Slew Rate : 50 V/µs
Gain Bandwidth Product : 3MHz
-3db Bandwidth : -
Current - Input Bias : 10pA
Voltage - Input Offset : 5mV
Current - Supply : 30mA
Current - Output / Channel : 100A
Voltage - Supply, Single/Dual (±) : 6 V ~ 100 V, ±3 V ~ 50 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole

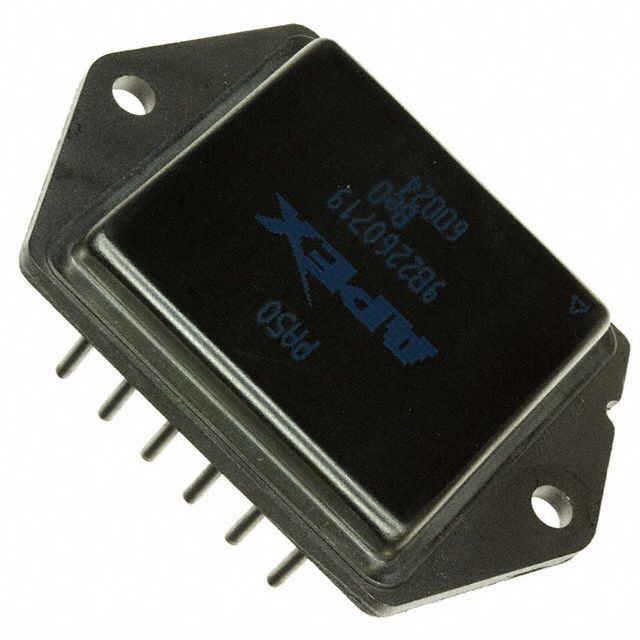

Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
26 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : Rail-to-Rail
Slew Rate : 50 V/µs
Gain Bandwidth Product : 3MHz
-3db Bandwidth : -
Current - Input Bias : 10pA
Voltage - Input Offset : 2mV
Current - Supply : 30mA
Current - Output / Channel : 100A
Voltage - Supply, Single/Dual (±) : 6 V ~ 100 V, ±3 V ~ 50 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
7 in stock

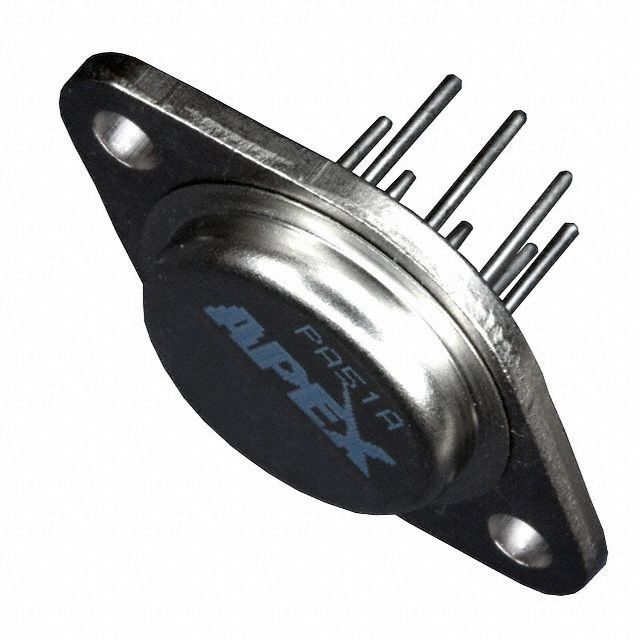

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 2.6 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 15nA
Voltage - Input Offset : 2mV
Current - Supply : 2.6mA
Current - Output / Channel : 10A
Voltage - Supply, Single/Dual (±) : 20 V ~ 80 V, ±10 V ~ 40 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole

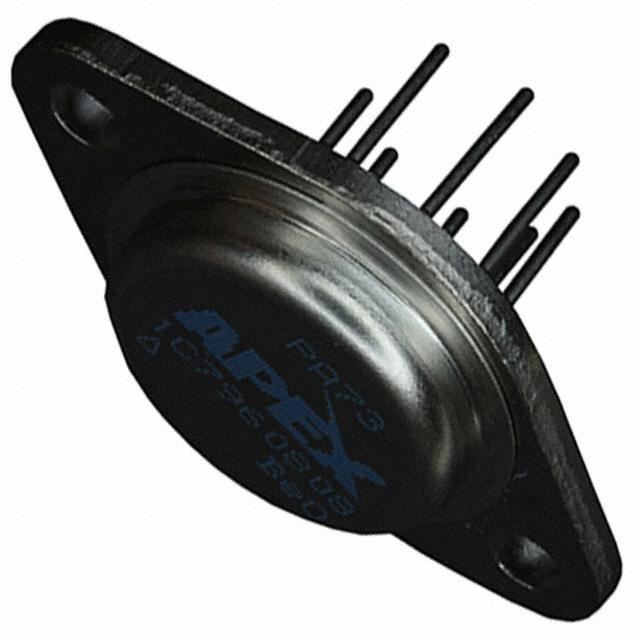

Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
360 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 50 V/µs
Gain Bandwidth Product : 3MHz
-3db Bandwidth : -
Current - Input Bias : 10pA
Voltage - Input Offset : 5mV
Current - Supply : 30mA
Current - Output / Channel : 80A
Voltage - Supply, Single/Dual (±) : 6 V ~ 200 V, ±3 V ~ 100 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP Module
Supplier Device Package : 12-DIP
0
109 in stock

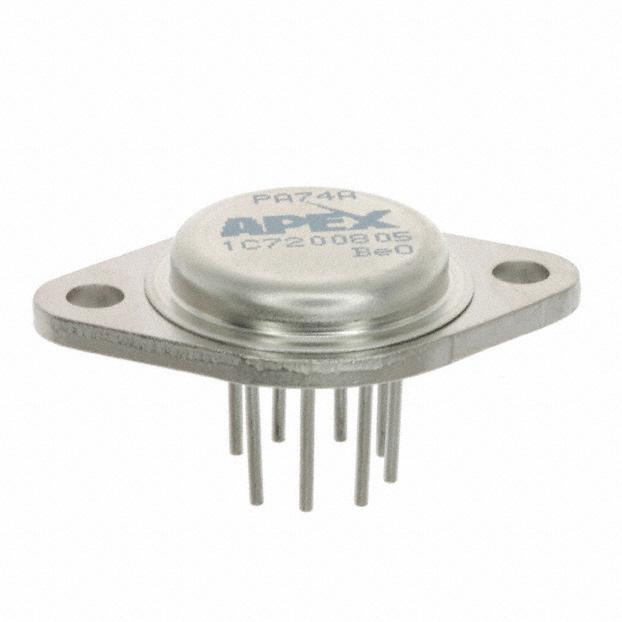

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 2.8 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 12nA
Voltage - Input Offset : 2mV
Current - Supply : 3mA
Current - Output / Channel : 10A
Voltage - Supply, Single/Dual (±) : 20 V ~ 90 V, ±10 V ~ 45 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
18 in stock

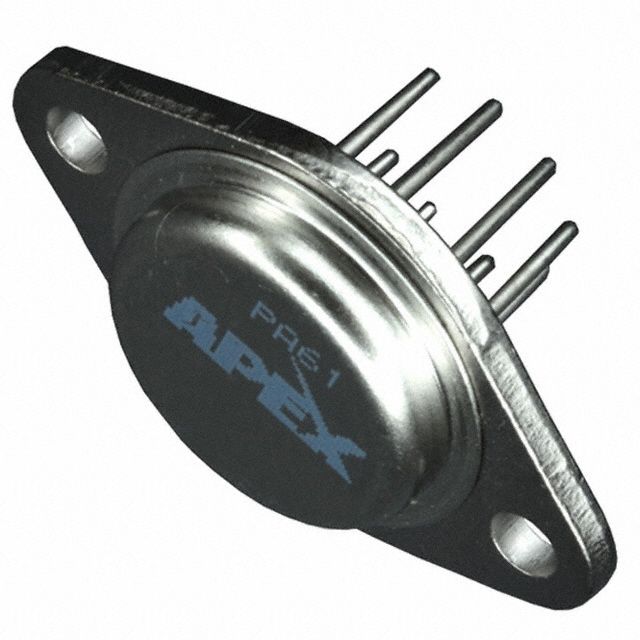

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 2.6 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 15nA
Voltage - Input Offset : 5mV
Current - Supply : 2.6mA
Current - Output / Channel : 5A
Voltage - Supply, Single/Dual (±) : 20 V ~ 60 V, ±10 V ~ 30 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
580 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 1.5mV
Current - Supply : 18mA
Current - Output / Channel : 2.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
82 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 500µV
Current - Supply : 18mA
Current - Output / Channel : 3A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
53 in stock

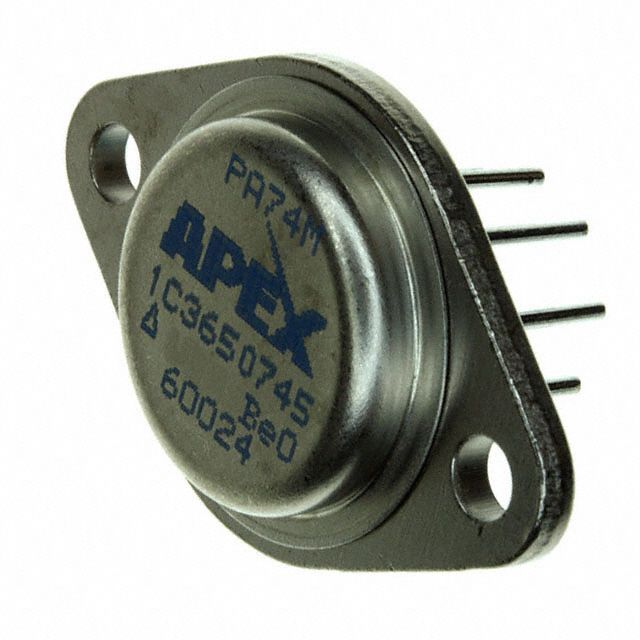

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 0.5 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 1µA
Voltage - Input Offset : 14mV
Current - Supply : 30mA
Current - Output / Channel : 2.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
575 in stock

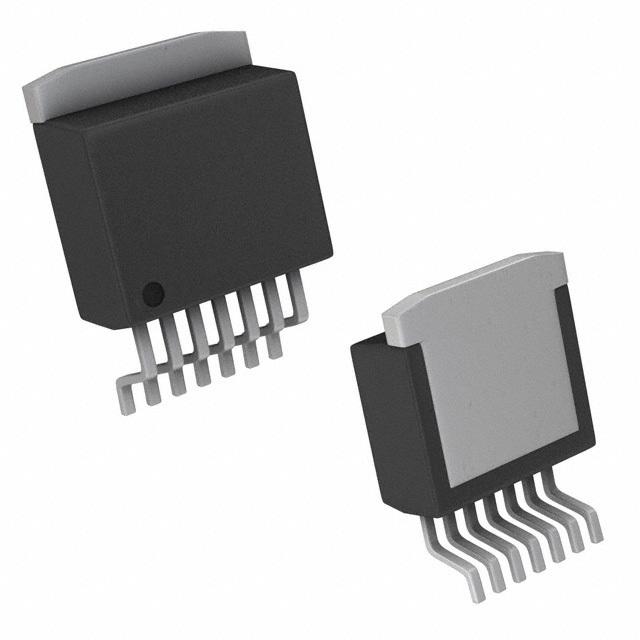

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 1mV
Current - Supply : 8mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package : 7-DDPAK
0
2907 in stock

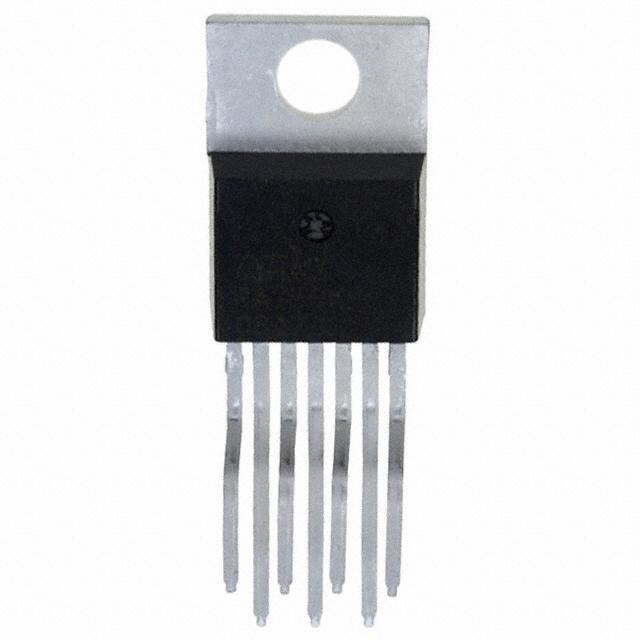

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 1mV
Current - Supply : 8mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-220-7
Supplier Device Package : TO-220-7
0
2345 in stock

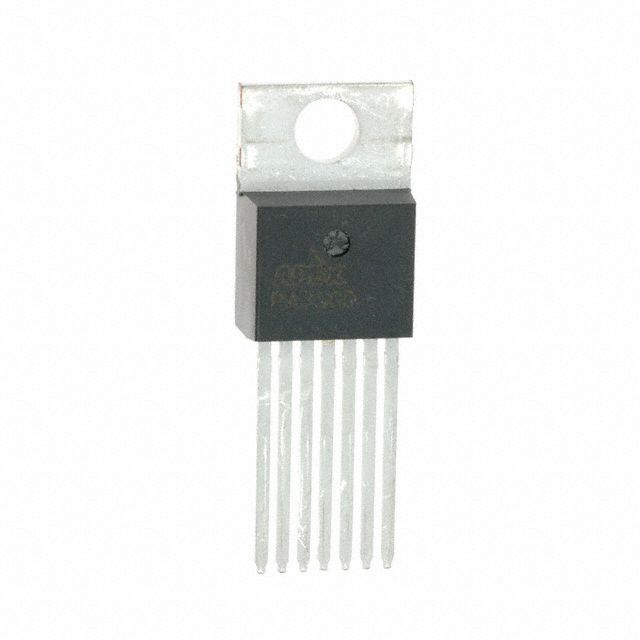

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 1mV
Current - Supply : 8mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-220-7 (Formed Leads)
Supplier Device Package : TO-220-7 Staggered Leads
0
572 in stock
