Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

PA13A PA13A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 4 V/µs
Gain Bandwidth Product : 4MHz
-3db Bandwidth : -
Current - Input Bias : 10nA
Voltage - Input Offset : 1mV
Current - Supply : 25mA
Current - Output / Channel : 15A
Voltage - Supply, Single/Dual (±) : 20 V ~ 90 V, ±10 V ~ 45 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
46 in stock

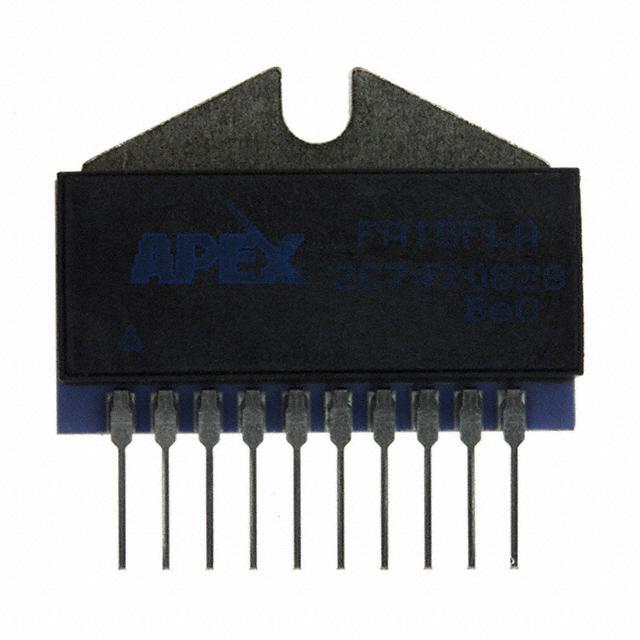

PA15FL PA15FL

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 20 V/µs
Gain Bandwidth Product : 5.8MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 2mV
Current - Supply : 2mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 100 V ~ 450 V, ±50 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
123 in stock

PA15FLA PA15FLA

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 30 V/µs
Gain Bandwidth Product : 5.8MHz
-3db Bandwidth : -
Current - Input Bias : 200pA
Voltage - Input Offset : 500µV
Current - Supply : 2mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 100 V ~ 450 V, ±50 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
91 in stock

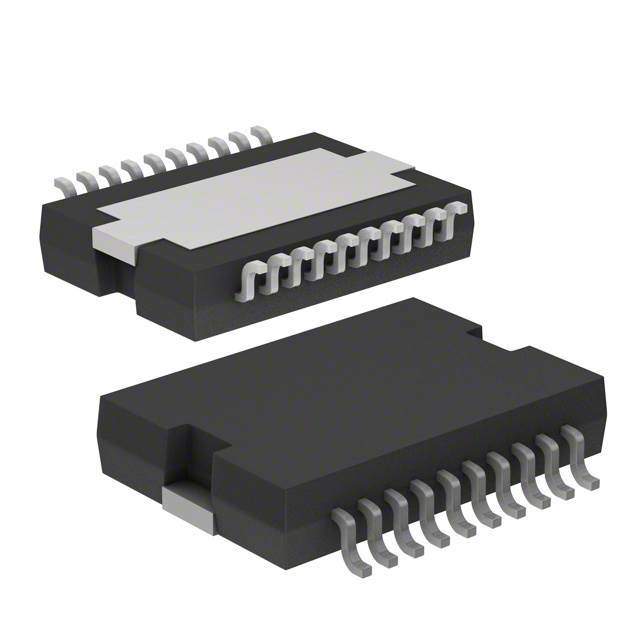

PA162DK PA162DK

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 4
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 900kHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 1mV
Current - Supply : 16mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 20-PSOP
0
422 in stock

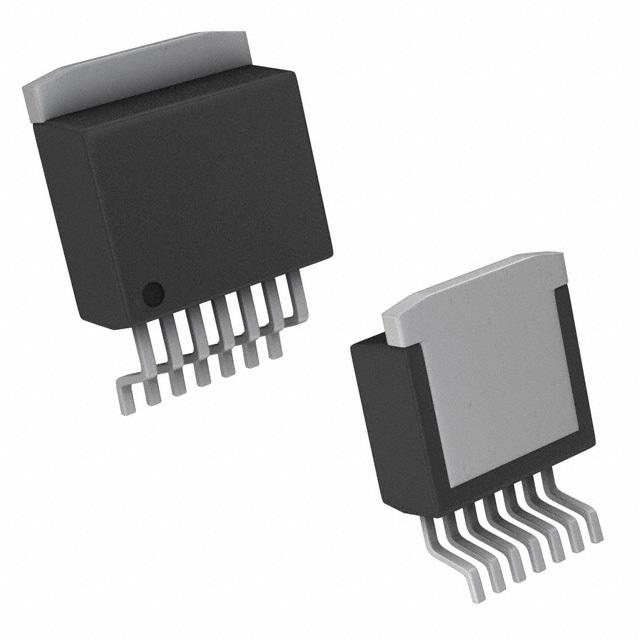

PA340CC PA340CC

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 50pA
Voltage - Input Offset : 12mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package : DDPAK-7
0
2830 in stock

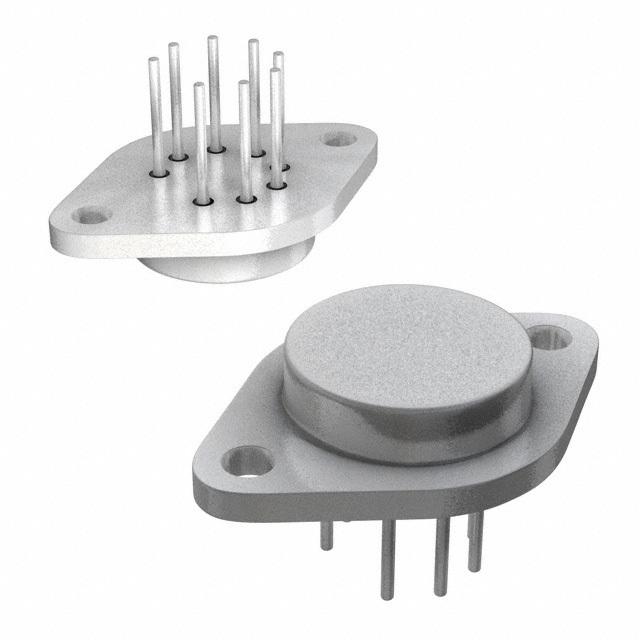

PA341CE PA341CE

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 12mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
213 in stock

PA341DF PA341DF

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 50pA
Voltage - Input Offset : 12mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 24-SMD
Supplier Device Package : 24-PSOP
0
1589 in stock

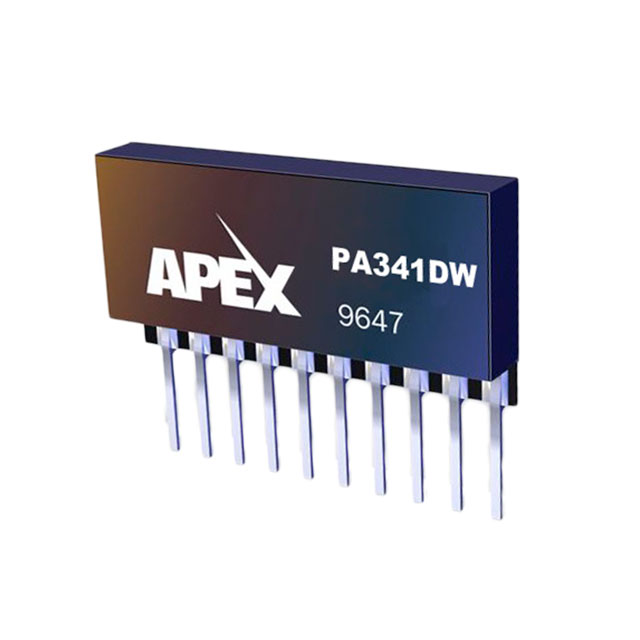

PA341DW PA341DW

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 100pA
Voltage - Input Offset : 12mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
328 in stock

PA343DF PA343DF

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 50pA
Voltage - Input Offset : 12mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 24-SMD
Supplier Device Package : 24-PSOP
0
2497 in stock

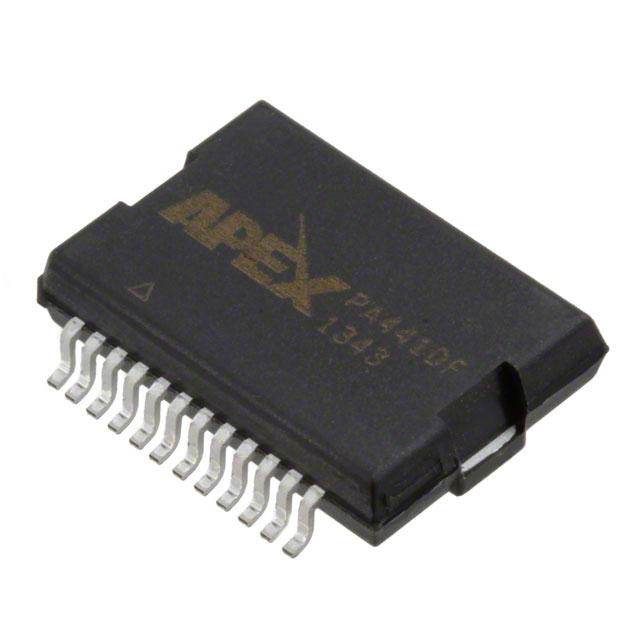

PA441DF PA441DF

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 2pA
Voltage - Input Offset : 5mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 24-SMD
Supplier Device Package : 24-PSOP
0
950 in stock

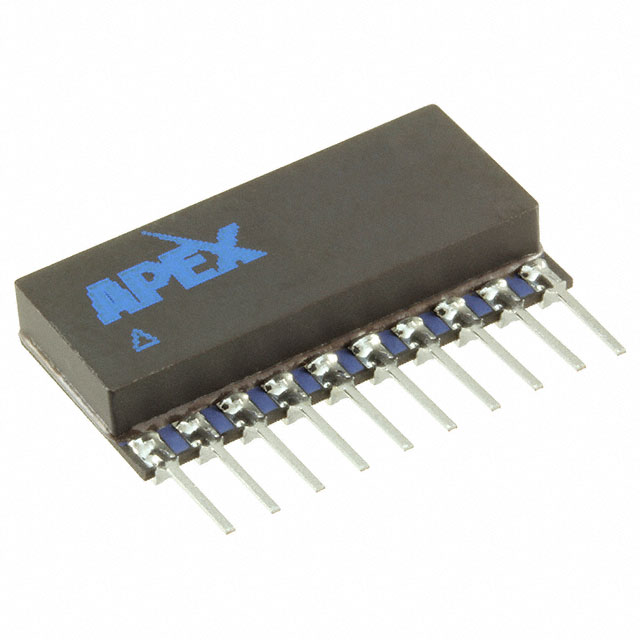

PA441DW PA441DW

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 1
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 2pA
Voltage - Input Offset : 5mV
Current - Supply : 2.2mA
Current - Output / Channel : 120mA
Voltage - Supply, Single/Dual (±) : ±10 V ~ 175 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
758 in stock

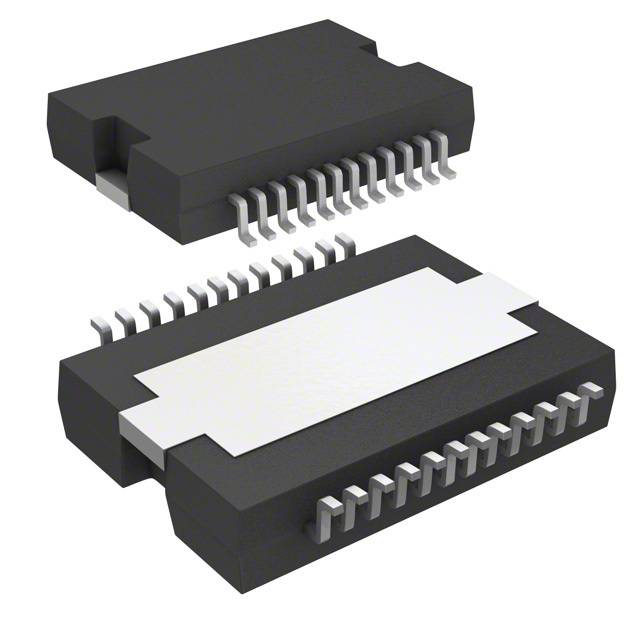

PA443DF PA443DF

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 2
Output Type : -
Slew Rate : 32 V/µs
Gain Bandwidth Product : 35kHz
-3db Bandwidth : -
Current - Input Bias : -
Voltage - Input Offset : 5mV
Current - Supply : 2.2mA
Current - Output / Channel : 60mA
Voltage - Supply, Single/Dual (±) : ±10 V ~ 175 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 24-PowerSOP
Supplier Device Package : 24-PSOP
0
2782 in stock
