Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

PA76 PA76

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 1.5mV
Current - Supply : 18mA
Current - Output / Channel : 2.5A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
8 in stock

PA76A PA76A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 100nA
Voltage - Input Offset : 500µV
Current - Supply : 18mA
Current - Output / Channel : 3A
Voltage - Supply, Single/Dual (±) : 5 V ~ 40 V, ±2.5 V ~ 20 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
72 in stock

PA78DK PA78DK

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 350 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 8.5pA
Voltage - Input Offset : 8mV
Current - Supply : 700µA
Current - Output / Channel : 150mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 20-PSOP
0
3024 in stock

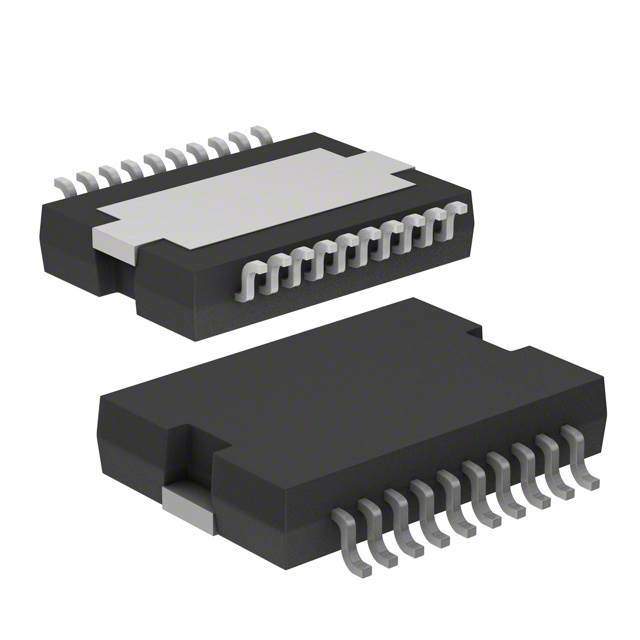

PA79DK PA79DK

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 350 V/µs
Gain Bandwidth Product : 1MHz
-3db Bandwidth : -
Current - Input Bias : 8.5pA
Voltage - Input Offset : 8mV
Current - Supply : 700µA
Current - Output / Channel : 150mA
Voltage - Supply, Single/Dual (±) : 20 V ~ 350 V, ±10 V ~ 175 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 20-PSOP
0
932 in stock

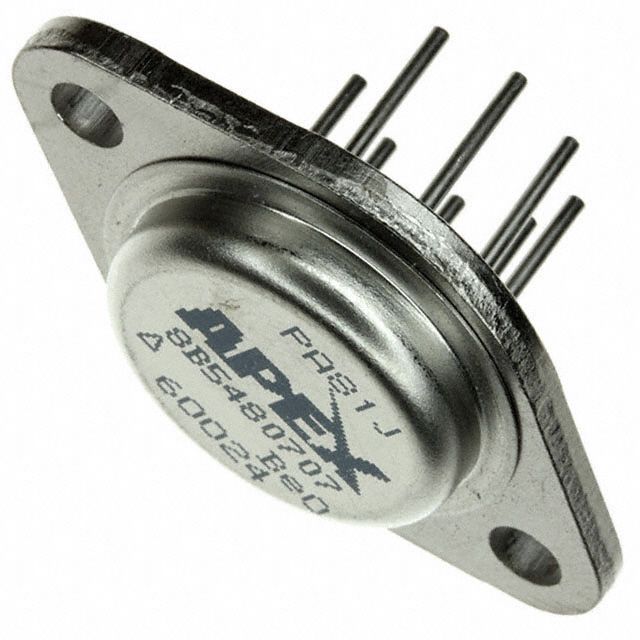

PA81J PA81J

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 20 V/µs
Gain Bandwidth Product : 5MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 1.5mV
Current - Supply : 6.5mA
Current - Output / Channel : 30mA
Voltage - Supply, Single/Dual (±) : 64 V ~ 150 V, ±32 V ~ 75 V
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
6 in stock

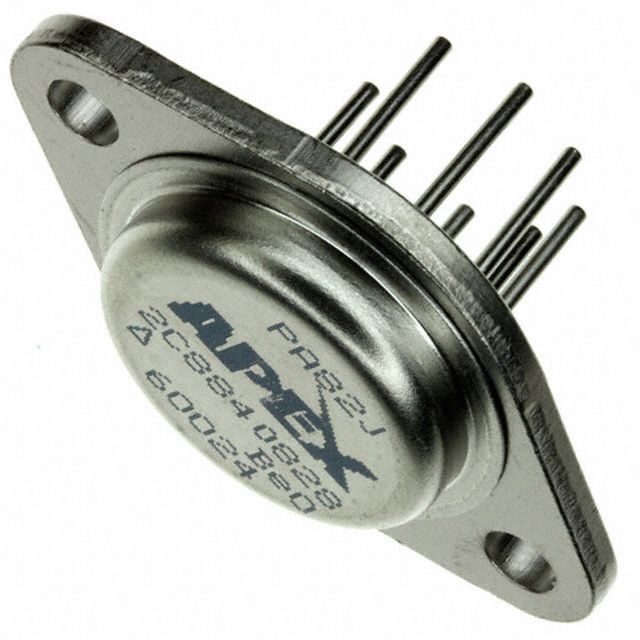

PA82J PA82J

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 20 V/µs
Gain Bandwidth Product : 5MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 1.5mV
Current - Supply : 6.5mA
Current - Output / Channel : 15mA
Voltage - Supply, Single/Dual (±) : 140 V ~ 300 V, ±70 V ~ 150 V
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
13 in stock

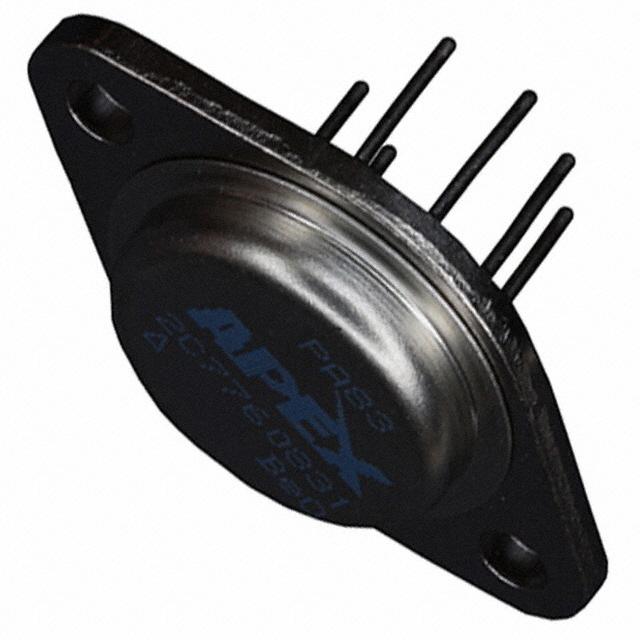

PA83 PA83

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 30 V/µs
Gain Bandwidth Product : 5MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 1.5mV
Current - Supply : 6mA
Current - Output / Channel : 75mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
128 in stock

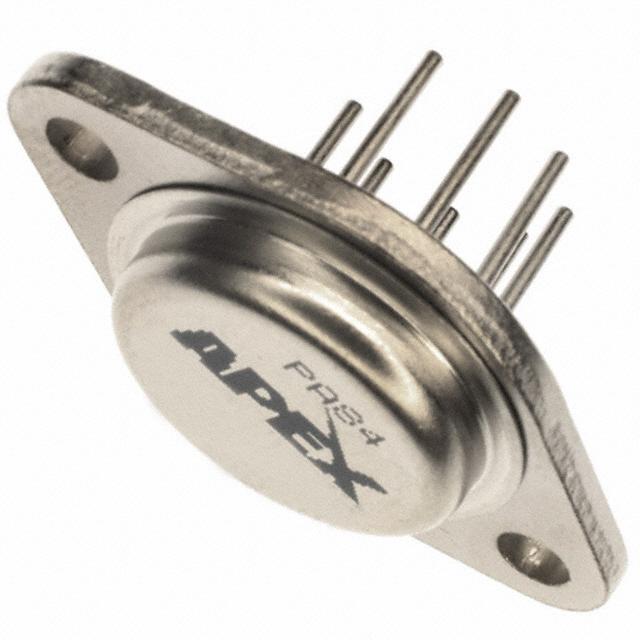

PA84 PA84

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 200 V/µs
Gain Bandwidth Product : 75MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 1.5mV
Current - Supply : 5.5mA
Current - Output / Channel : 40mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
523 in stock

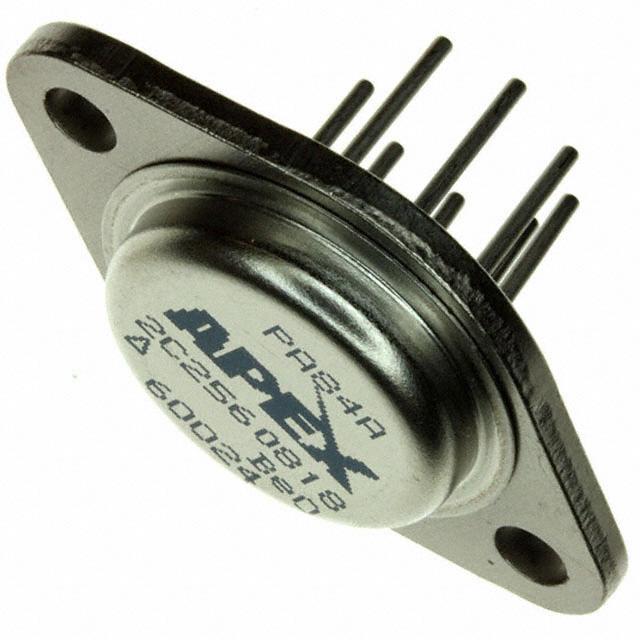

PA84A PA84A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 200 V/µs
Gain Bandwidth Product : 75MHz
-3db Bandwidth : -
Current - Input Bias : 3pA
Voltage - Input Offset : 500µV
Current - Supply : 5.5mA
Current - Output / Channel : 40mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
20 in stock

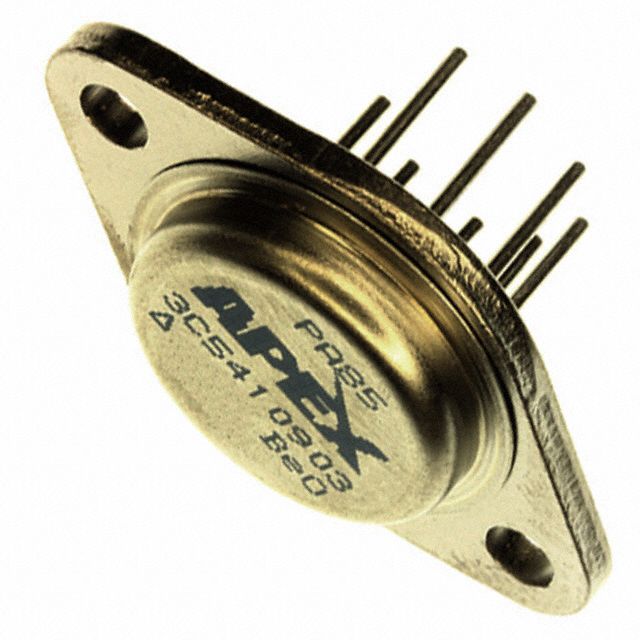

PA85 PA85

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 1000 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 21mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 450 V, ±15 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
131 in stock

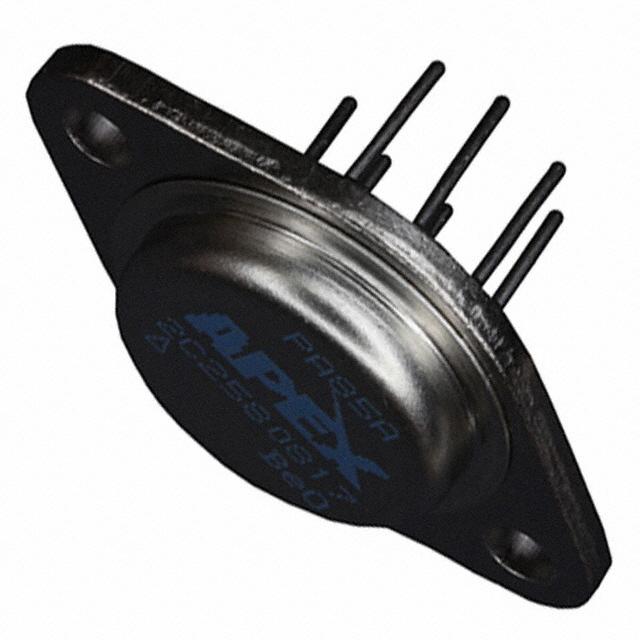

PA85A PA85A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 1000 V/µs
Gain Bandwidth Product : 100MHz
-3db Bandwidth : -
Current - Input Bias : 3pA
Voltage - Input Offset : 250µV
Current - Supply : 21mA
Current - Output / Channel : 200mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 450 V, ±15 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
229 in stock

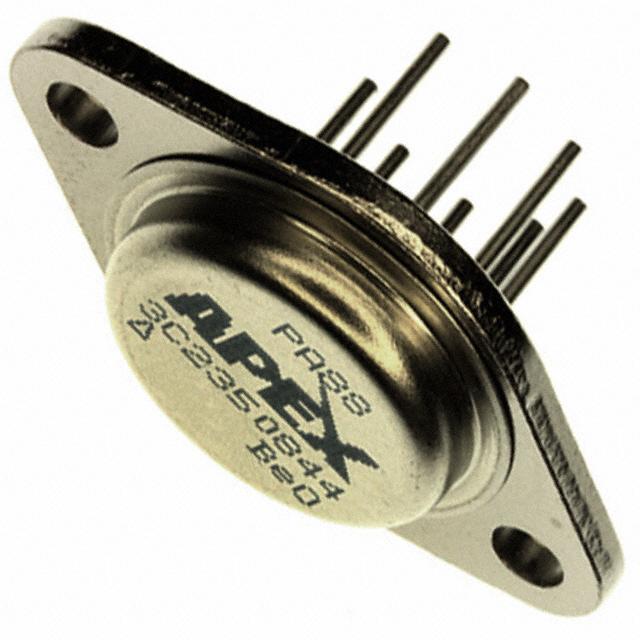

PA88 PA88

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 30 V/µs
Gain Bandwidth Product : 2.1MHz
-3db Bandwidth : -
Current - Input Bias : 5pA
Voltage - Input Offset : 500µV
Current - Supply : 1.7mA
Current - Output / Channel : 100mA
Voltage - Supply, Single/Dual (±) : 30 V ~ 450 V, ±15 V ~ 225 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
240 in stock
