Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

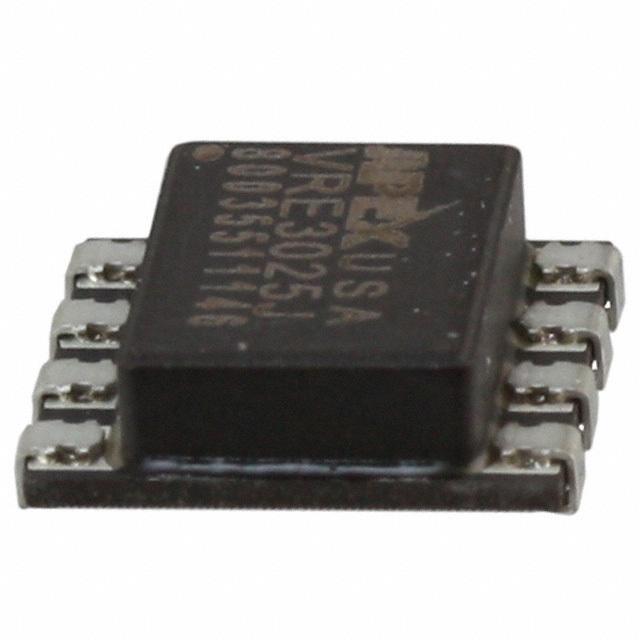

VRE3025JS VRE3025JS

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Current - Output : 15mA
Tolerance : ±0.01%
Temperature Coefficient : 0.6ppm/°C
Noise - 0.1Hz to 10Hz : 1.5µVp-p
Noise - 10Hz to 10kHz : 3µVrms
Voltage - Input : 8 V ~ 36 V
Current - Supply : 4mA
Current - Cathode : -
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-SMT
0
166 in stock

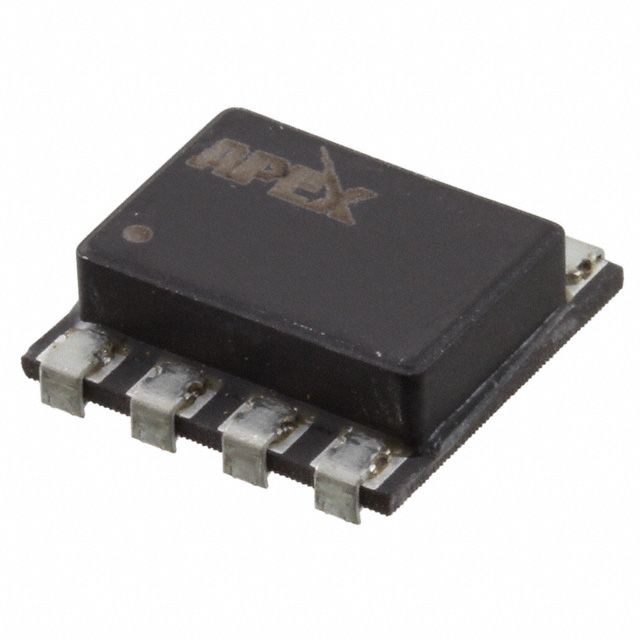

VRE3050JS VRE3050JS

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Current - Output : 15mA
Tolerance : ±0.01%
Temperature Coefficient : 0.6ppm/°C
Noise - 0.1Hz to 10Hz : 3µVp-p
Noise - 10Hz to 10kHz : 5µVrms
Voltage - Input : 8 V ~ 36 V
Current - Supply : 4mA
Current - Cathode : -
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-SMT
0
343 in stock

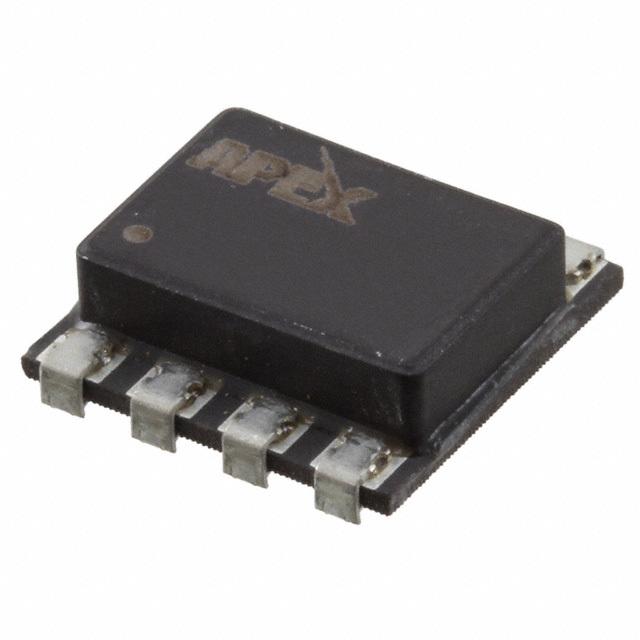

VRE3050LS VRE3050LS

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Current - Output : 15mA
Tolerance : ±0.02%
Temperature Coefficient : 2ppm/°C
Noise - 0.1Hz to 10Hz : 3µVp-p
Noise - 10Hz to 10kHz : 5µVrms
Voltage - Input : 8 V ~ 36 V
Current - Supply : 4mA
Current - Cathode : -
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-SMT
0
2 in stock

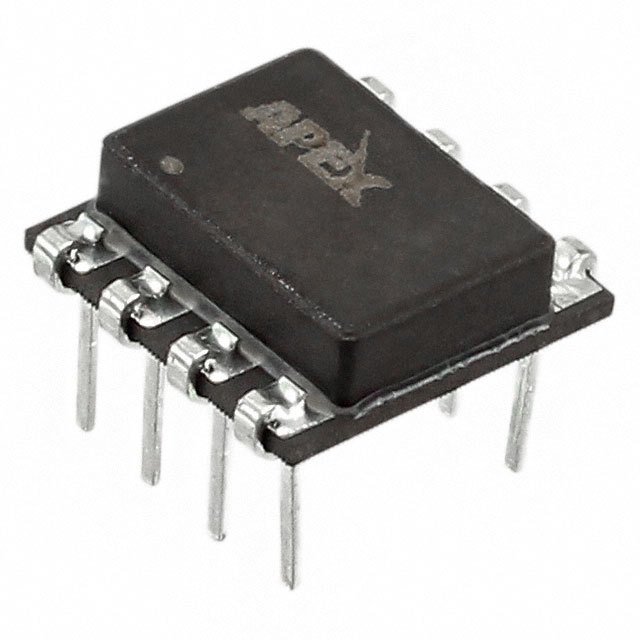

VRE305AD VRE305AD

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Current - Output : 10mA
Tolerance : ±0.01%
Temperature Coefficient : 0.6ppm/°C
Noise - 0.1Hz to 10Hz : 3µVp-p
Noise - 10Hz to 10kHz : -
Voltage - Input : 13.5 V ~ 22 V
Current - Supply : 7mA
Current - Cathode : -
Operating Temperature : 0°C ~ 70°C (TA)
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
0
9 in stock

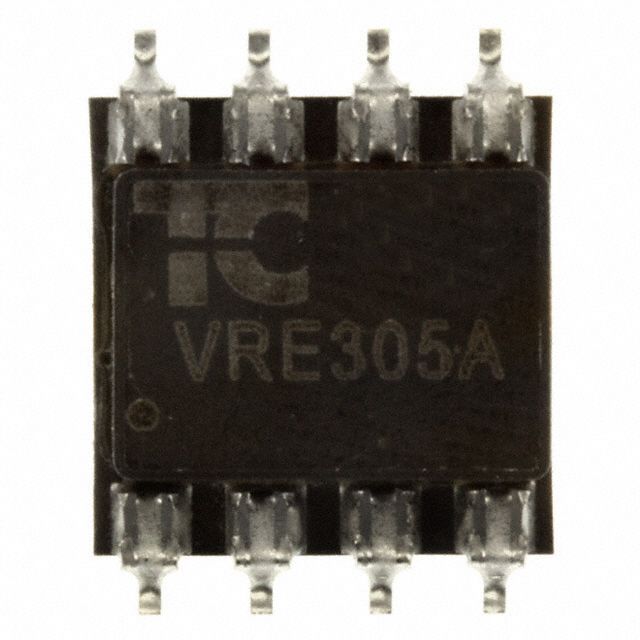

VRE305AS VRE305AS

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Current - Output : 10mA
Tolerance : ±0.01%
Temperature Coefficient : 0.6ppm/°C
Noise - 0.1Hz to 10Hz : 3µVp-p
Noise - 10Hz to 10kHz : -
Voltage - Input : 13.5 V ~ 22 V
Current - Supply : 7mA
Current - Cathode : -
Operating Temperature : 0°C ~ 70°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-SMT
0
45 in stock

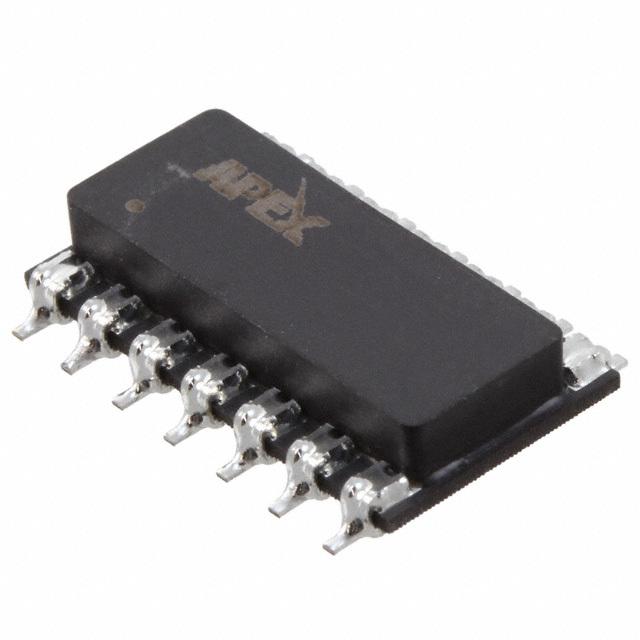

VRE410JS VRE410JS

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : ±10V
Voltage - Output (Max) : -
Current - Output : 10mA
Tolerance : ±0.02%
Temperature Coefficient : 1ppm/°C
Noise - 0.1Hz to 10Hz : 6µVp-p
Noise - 10Hz to 10kHz : -
Voltage - Input : 13.5 V ~ 22 V
Current - Supply : 7mA
Current - Cathode : -
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SMD
Supplier Device Package : 14-SMT
0
28 in stock

VRE410LS VRE410LS

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Reference Type : Series
Output Type : Fixed
Voltage - Output (Min/Fixed) : ±10V
Voltage - Output (Max) : -
Current - Output : 10mA
Tolerance : ±0.02%
Temperature Coefficient : 2.2ppm/°C
Noise - 0.1Hz to 10Hz : 6µVp-p
Noise - 10Hz to 10kHz : -
Voltage - Input : 13.5 V ~ 22 V
Current - Supply : 7mA
Current - Cathode : -
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SMD
Supplier Device Package : 14-SMT
0
1048 in stock
