Apex Microtechnology
- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.
Part Number
Manufacturer
Description
Unit Price
In Stock

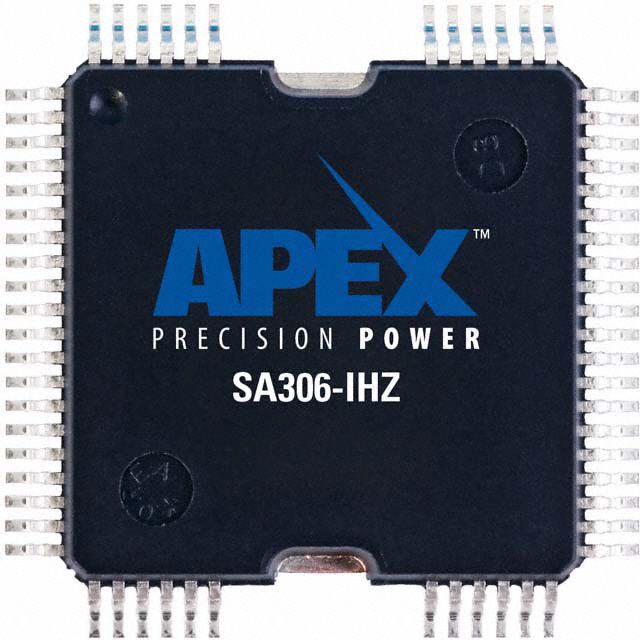

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose, Solenoids
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 250 mOhm LS, 300 mOhm HS
Current - Output / Channel : 5A
Current - Peak Output : 17A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 9 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 64-PowerQFP
Supplier Device Package : 64-PowerQFP
0
100 in stock

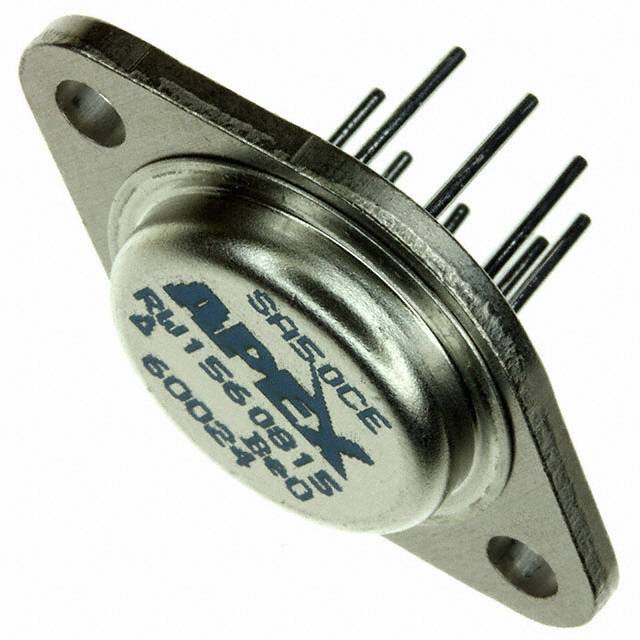

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : On/Off
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : 5A
Current - Peak Output : 7A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 175°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
100 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 500 mOhm LS + HS
Current - Output / Channel : 5A
Current - Peak Output : 7A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -25°C ~ 150°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
100 in stock

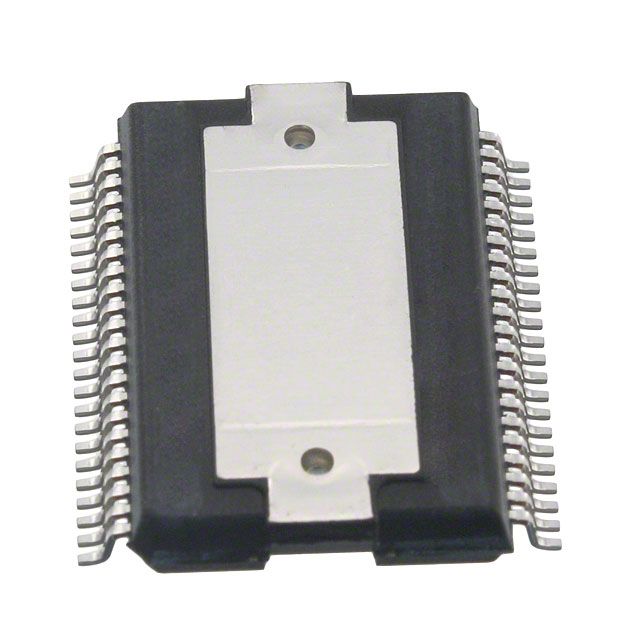

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose, Solenoids, Stepper Motors
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 400 mOhm
Current - Output / Channel : 3A
Current - Peak Output : 10A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 8.3 V ~ 60 V
Operating Temperature : -25°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 44-HSOP
0
100 in stock

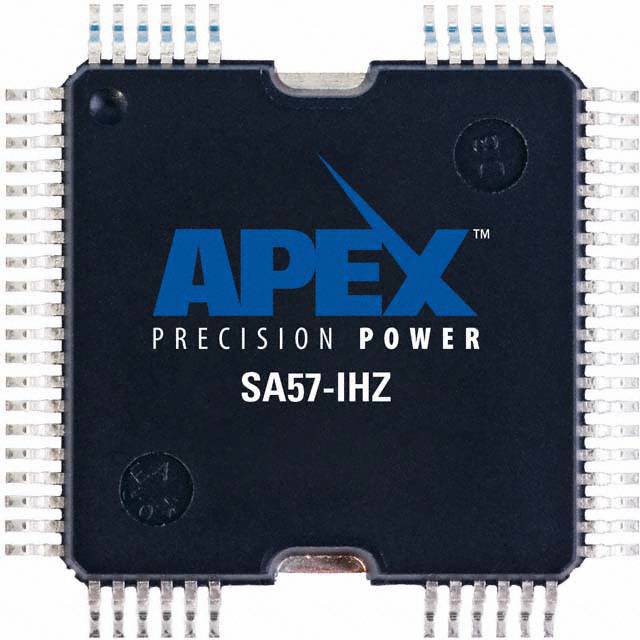

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose, Solenoids, Stepper Motors
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 400 mOhm
Current - Output / Channel : 3A
Current - Peak Output : 10A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 8.3 V ~ 60 V
Operating Temperature : -25°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 64-PowerQFP
Supplier Device Package : 64-PowerQFP
0
100 in stock

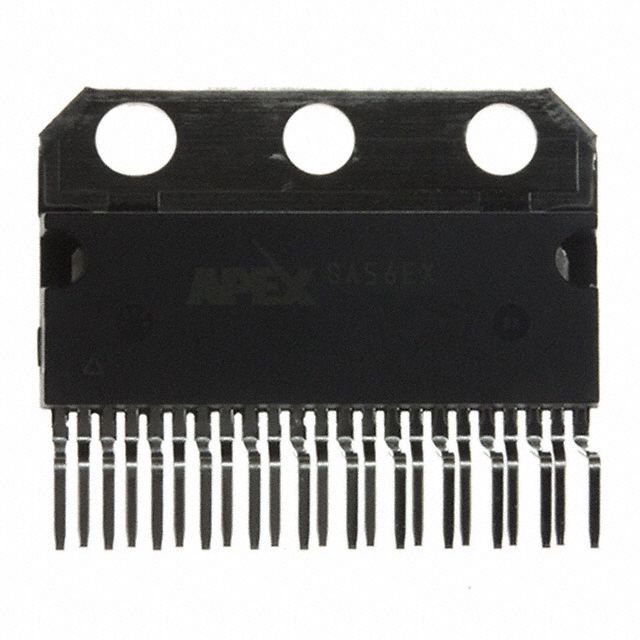

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 270 mOhm LS, 230 mOhm HS
Current - Output / Channel : 5A
Current - Peak Output : 10A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 12 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Status Flag
Fault Protection : Over Temperature
Mounting Type : Through Hole
Package / Case : 23-SIP Formed Leads
Supplier Device Package : 23-SIP
0
100 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose, Solenoids, Stepper Motors
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 300 mOhm
Current - Output / Channel : 8A
Current - Peak Output : 17A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 9 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 44-HSOP
0
100 in stock

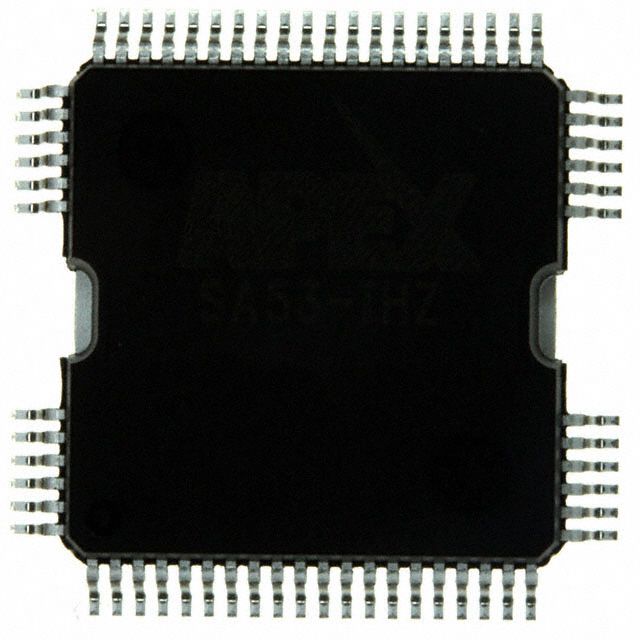

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose, Solenoids, Stepper Motors
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 300 mOhm
Current - Output / Channel : 5A
Current - Peak Output : 17A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 9 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 64-PowerQFP
Supplier Device Package : 64-PowerQFP
0
100 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Not For New Designs
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 450 mOhm LS + HS
Current - Output / Channel : 10A
Current - Peak Output : 15A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP
Supplier Device Package : 12-POWER SIP
0
100 in stock

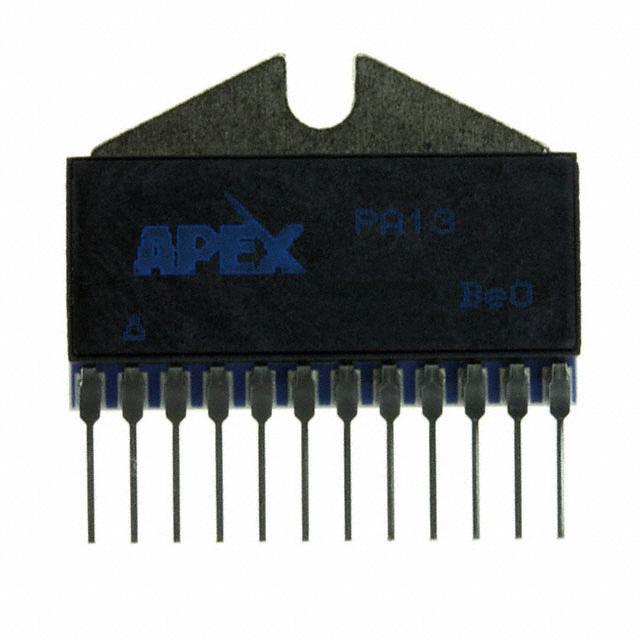

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Not For New Designs
Output Configuration : Half Bridge (2)
Applications : -
Interface : Analog, PWM
Load Type : -
Technology : -
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : -
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 85°C (TA)
Features : -
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP, Formed Leads
Supplier Device Package : 12-POWER SIP
0
100 in stock

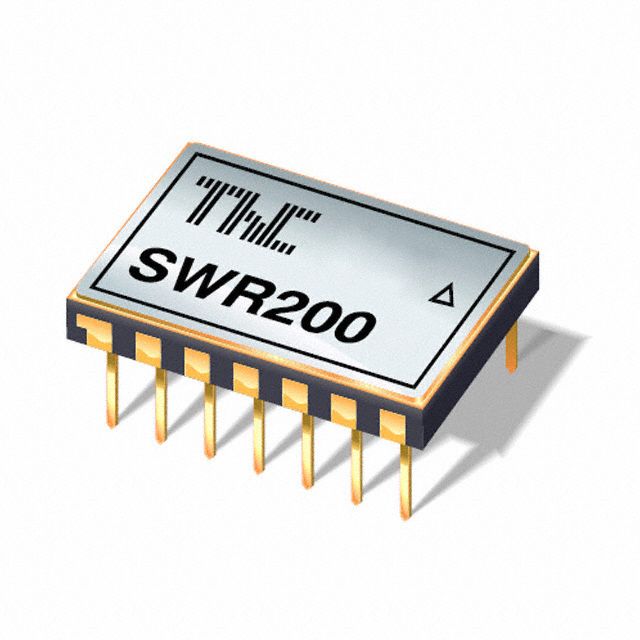

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Type : Sine Wave Reference
Count : -
Frequency : 400Hz ~ 10kHz
Voltage - Supply : ±15V
Current - Supply : 10.5mA
Operating Temperature : -25°C ~ 85°C
Package / Case : 14-DIP
Supplier Device Package : 14-CDIP
Mounting Type : Through Hole
0
81 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Usage : TO-3
Type : Pad, Washer
Shape : Rhombus
Outline : 39.37mm x 26.67mm
Thickness : 0.0005" (0.013mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Aluminum
Color : Silver
Thermal Resistivity : -
Thermal Conductivity : -
0
756 in stock
