Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

SA160 SA160

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 10A
Current - Peak Output : 15A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP
Supplier Device Package : 12-POWER SIP
0
100 in stock

SA160A SA160A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 14A
Current - Peak Output : 20A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP
Supplier Device Package : 12-POWER SIP
0
100 in stock

SA160AEE SA160AEE

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 14A
Current - Peak Output : 20A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP, Formed Leads
Supplier Device Package : 12-POWER SIP
0
100 in stock

SA160DP SA160DP

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Analog, PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 10A
Current - Peak Output : 15A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP
Supplier Device Package : 12-POWER SIP
0
6 in stock

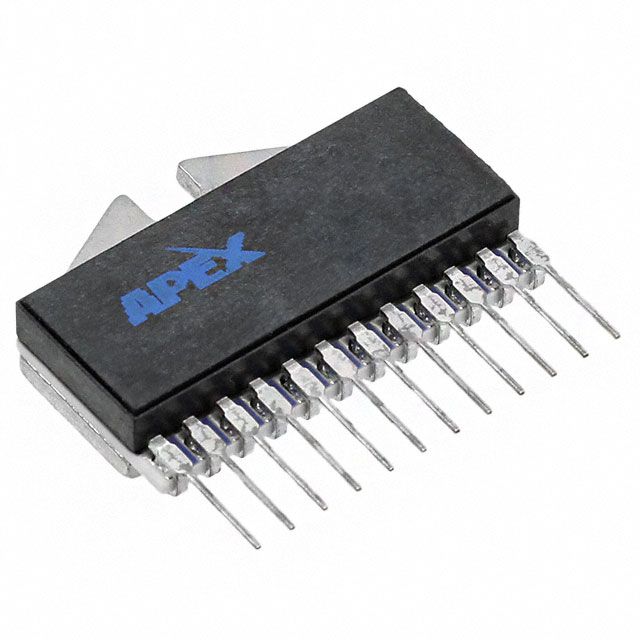

SA160DPA SA160DPA

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Analog, PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 14A
Current - Peak Output : 20A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP
Supplier Device Package : 12-POWER SIP
0
100 in stock

SA160EE SA160EE

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 10A
Current - Peak Output : 15A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-PowerSIP, Formed Leads
Supplier Device Package : 12-POWER SIP
0
100 in stock

SA160EEA SA160EEA

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 140 mOhm LS + HS
Current - Output / Channel : 14A
Current - Peak Output : 20A
Voltage - Supply : 9.5 V ~ 15 V
Voltage - Load : 80V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Internal Oscillators
Fault Protection : -
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
100 in stock

SA303HU SA303HU

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose, Solenoids
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 400 mOhm
Current - Output / Channel : 3A
Current - Peak Output : 10A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 8.3 V ~ 60 V
Operating Temperature : -25°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 44-HSOP
0
100 in stock

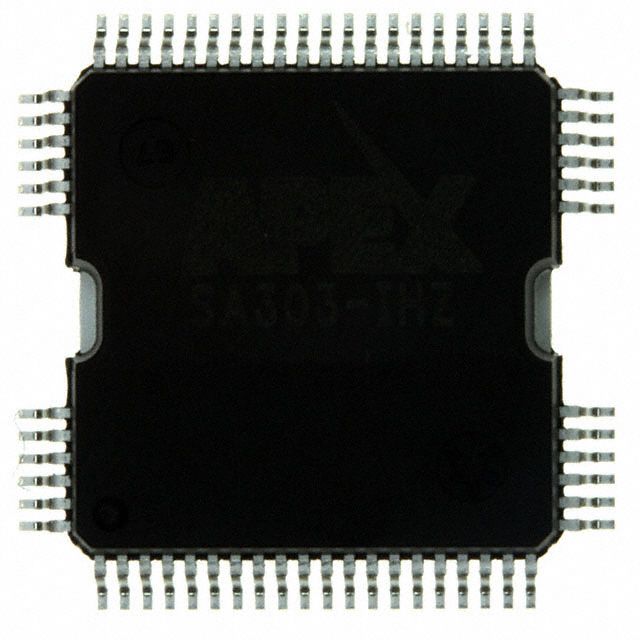

SA303-IHZ SA303-IHZ

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose, Solenoids
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 400 mOhm
Current - Output / Channel : 3A
Current - Peak Output : 10A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 8.3 V ~ 60 V
Operating Temperature : -25°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 64-PowerQFP
Supplier Device Package : 64-PowerQFP
0
100 in stock

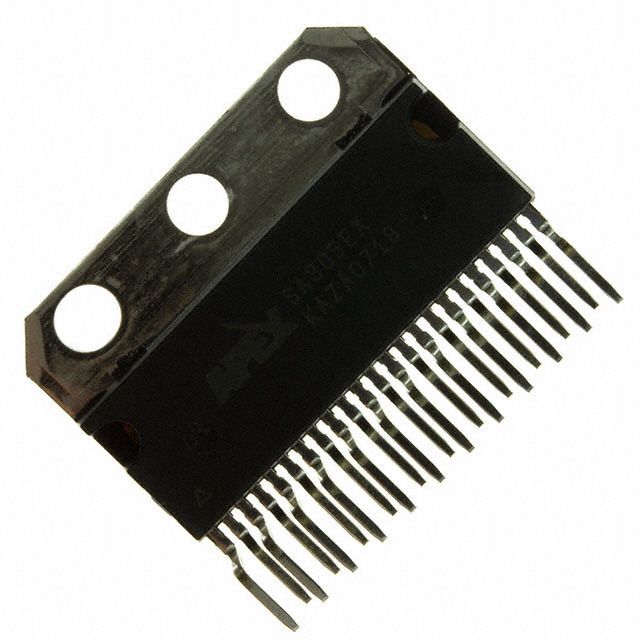

SA305EX SA305EX

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (3)
Applications : DC Motors, Solenoids
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 600 mOhm LS, 600 mOhm HS
Current - Output / Channel : 5A
Current - Peak Output : 10A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 9.8 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Slew Rate Controlled, Status Flag
Fault Protection : Current Limiting, Over Temperature, Shoot Through, Short Circuit
Mounting Type : Through Hole
Package / Case : 23-SIP Formed Leads
Supplier Device Package : 23-SIP
0
100 in stock

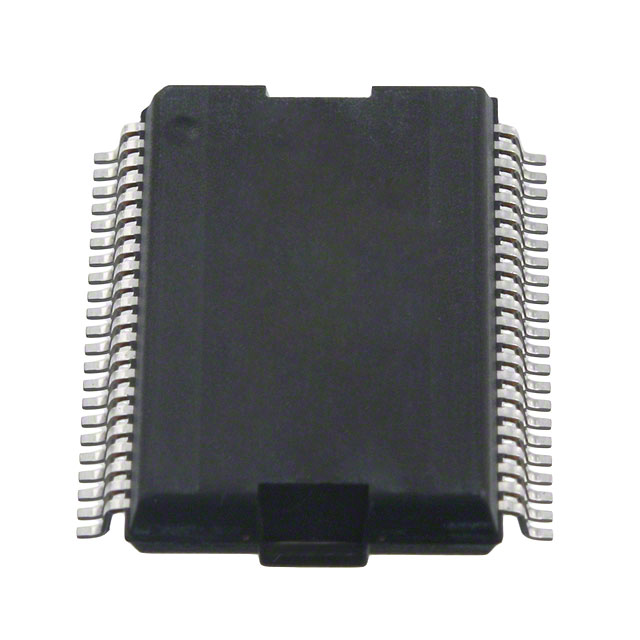

SA306AHR SA306AHR

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose, Solenoids
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 250 mOhm LS, 300 mOhm HS
Current - Output / Channel : 8A
Current - Peak Output : 17A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 9 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 44-HSOP
0
152 in stock

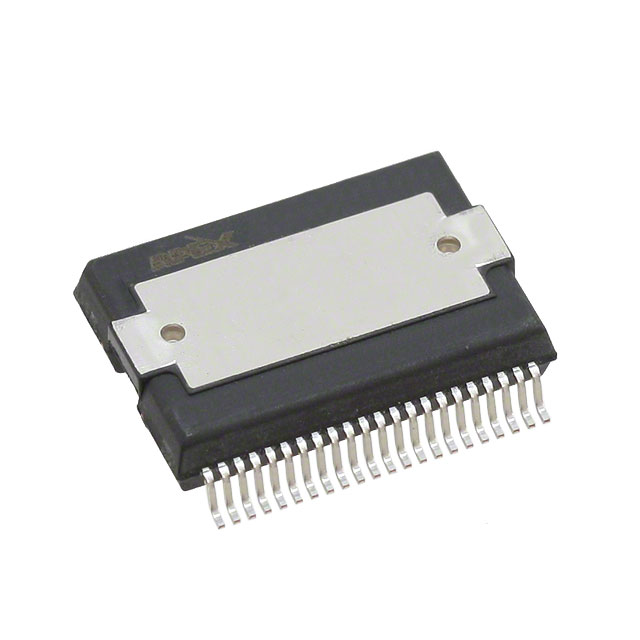

SA306AHU SA306AHU

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose, Solenoids
Interface : PWM
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 250 mOhm LS, 300 mOhm HS
Current - Output / Channel : 8A
Current - Peak Output : 17A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 9 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type : Surface Mount
Package / Case : 44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package : 44-HSOP
0
67 in stock
